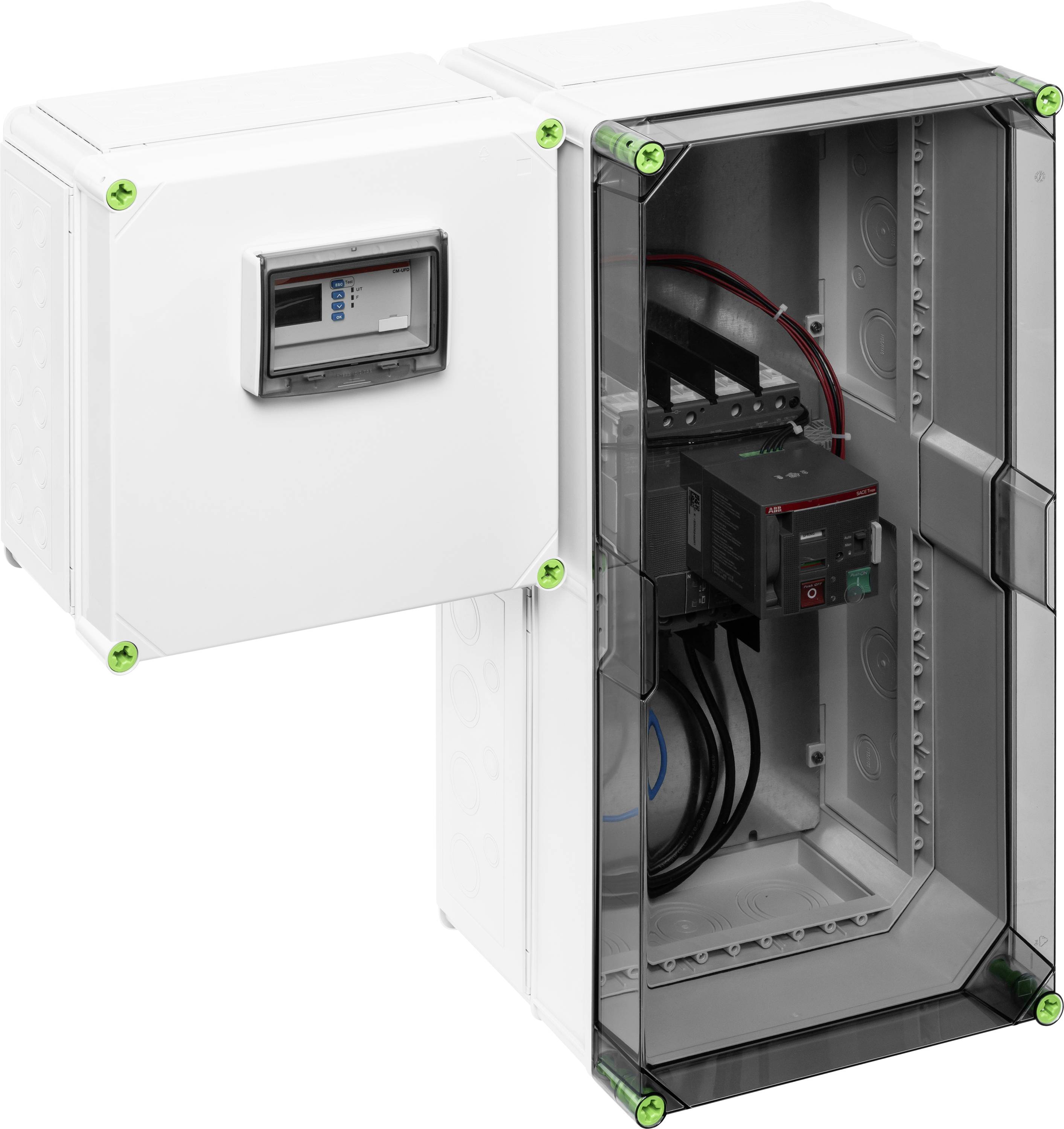

Spelsberg 3331501 GNA 7315 Generator junction box
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 6,249.00 / piece)
€ 6,249.00
incl. VAT
Only 6 Piece(s) available
Technical specifications
- Nominal current: 250 A
- Nominal voltage 400 V
- Overload trip:40;100 A
- Number of pins: 4
- Product type
Generator junction box
- Dim
(W x H x D) 640 x 254 x 640 mm
- Factory colour
Grey
Transparent
- Content
1 pc(s)
- Width
640 mm
- Height
254 mm
- Depth
640 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3374214 Spelsberg 3331501 GNA 7315 Generator junction box
User & Safety Instructions
User & Safety Instructions 3374214 Spelsberg 3331501 GNA 7315 Generator junction box
Information
Information 3374214 Spelsberg 3331501 GNA 7315 Generator junction box
Description
NA protective casing as an activation point according to VDE-AR-N 4105 for photovoltaic systems and block heating plants, rated current of the circuit breaker 250 A, ICU: 50 kA (415V), LS/I-trigger Setting range: 100-250 A , rated power: 150 kVA, supplied in modules for individual arrangement on site, simple combination with plug system and accompanying accessories, including with flange set GFS 14-m and two flanges GFL 381-m (3xM63/M50/M40) for closing the housing sides, individually expandable by additional GTi housing solutions, 3-pole for TN-S, TN-C, TN-C-S - power supplies, connections: Screw connection M8, PE/N terminals M10 dimensions: 640 x 640 x 254 mm
