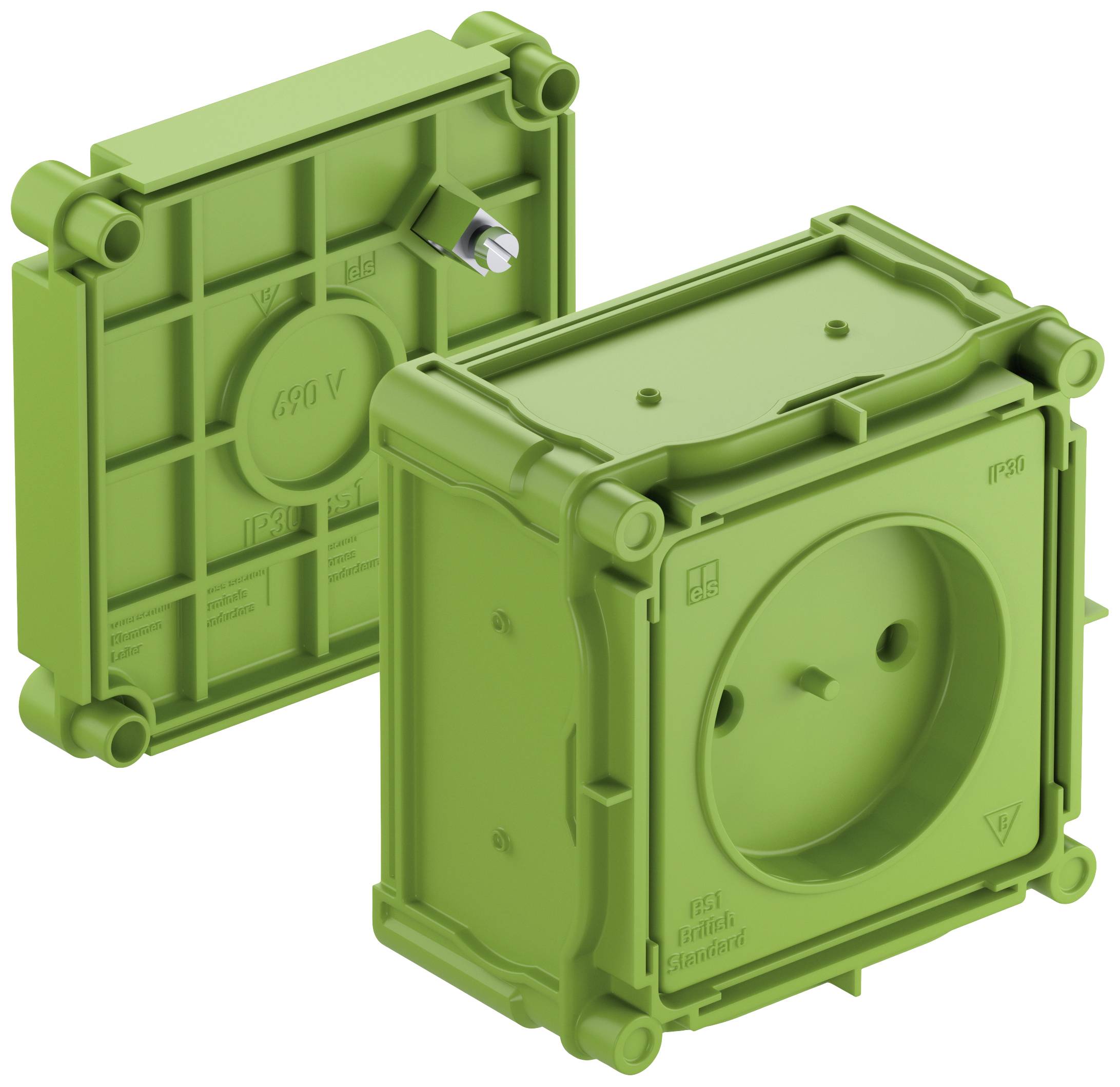

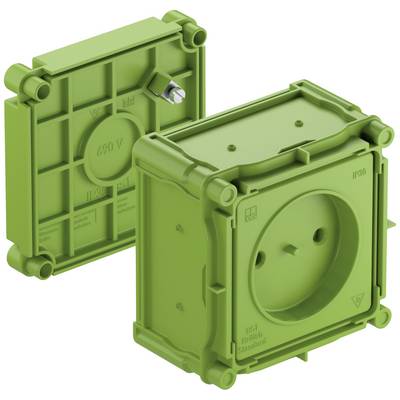

Spelsberg 98700101 Dry lining box Halogen-free, Windproof (L x W x H) 86 x 86 x 60 mm 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 5.87
3
5% = € 0.32
€ 5.55
5
8% = € 0.45
€ 5.42
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 5.87 / piece)
€ 5.87
plus VAT.
Technical specifications
- Internal depth 37 mm
- IP30 protection
- Cover type: Blind cover, snap-on
- Number of introductions: 8
- For cable diameter 1 - 32 mm
- Assembly: Terminal
- For pipe diameter 32 mm
- Attachment of the devices: Screws
- Pipe lock: Yes
- Clamp fixed in position: Yes
- Number of terminals: 1
- Product type
Dry lining box
- Features
Halogen-free
Windproof
- Mounting type
Concrete
- Type
Square, plastic
- Content
1 pc(s)
- Factory colour
Green
- Dim
(L x W x H) 86 x 86 x 60 mm
- Length
86 mm
- Width
86 mm
- Height
60 mm
Documents & Downloads
Datasheet
Datasheet 2379039 Spelsberg 98700101 Dry lining box Halogen-free, Windproof (L x W x H) 86 x 86 x 60 mm 1 pc(s)
Description
Device mounting box for concrete installation, "1-gear box" for installation in devices "British Standard", screw distance 60.3 mm (2 3/8 inch), supplied with earthing screw, also suitable for counterformwork, for magnetic clamp 50mm HM-UNI
This text is machine translated.
This text is machine translated.
Hints
Safety-relevant component - installation only by skilled workers
