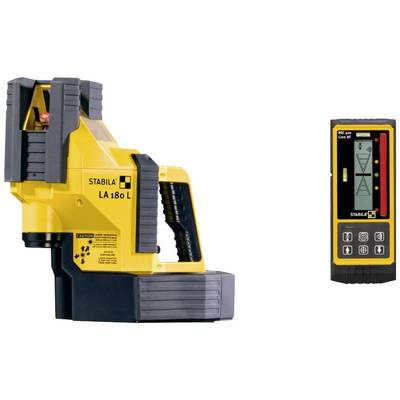

Stabila LA 180 L Multi-line laser Self-levelling Range (max.): 100 m
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 1,562.18 / piece)
€ 1,562.18
plus VAT.
Highlights & Details
Stabila LA 180 L cross-line laser, self-leveling, 3 vertical lines, 1 horizontal line, soldering function, Laser receiver, carrying case
- CLEVER: Fully automatic transfer of axes and creation of right angles. Receiver controls the fine alignment of the laser on distances of up to 40 m – without losing the reference pointPRECISE: Self-leveling line laser for highly accurate work results - motor-driven control, accuracy of ± 0.07 mm/m. PRECISELY sharp, well-visible lines FOR quick, effective working on the laser line - range up to 20 m indoors LARGE RANGE: Pulsed laser lines for accurate measurements with the receiver REC 410 line RF up to 100 m – indoors and outdoors PRACTICAL: Unique shape of the housing for positioning in corners and via edges (e.g. Concrete Plate) – Check right angles. Other accessories: Small and large target plate, laser-view glasses
Technical specifications
- Protection class IP54Laser wavelength 635 nm
- Product type
Multi-line laser
- Features
Self-levelling
- Range (max.)
100 m
- Accuracy (+/-)
0.07 mm/m
- Auto-adjustment range (+/-)
5°
- Laser category
2
- Visible beam length
20 m
- Operating time (battery-powered)
20 h
- Tripod thread mount
5/8"
Manufacturer's standards (no certificate)
- Type
LA 180 L
Documents & Downloads
Datasheet
Datasheet 2814228 Stabila LA 180 L Multi-line laser Self-levelling Range (max.): 100 m
Datasheet 2814228 Stabila LA 180 L Multi-line laser Self-levelling Range (max.): 100 m
User & Safety Instructions
User & Safety Instructions 2814228 Stabila LA 180 L Multi-line laser Self-levelling Range (max.): 100 m
Warranty Terms
Warranty Terms 2814228 Stabila LA 180 L Multi-line laser Self-levelling Range (max.): 100 m
Description
Creating right angles is a challenging task. And measurement errors not only cost time, but often also a lot of money. The LA 180 L self-leveling multi-line laser lets you quickly and precisely set right angles and adjust the axis. Thanks TO THE Stabila AUTO ALIGNMENT technology, the REC 410 Line RF receiver automatically controls fine alignment of THE LA 180 L laser via radio. Totally at the touch of a button. This laser is Stabila's answer to the construction challenges.
This text is machine translated.
This text is machine translated.

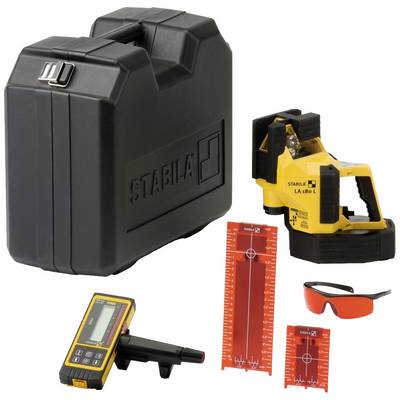

Scope of delivery
- Multi-line laser LA 180 LReceiver REC 410 Line RF with bracketLaser viewing goggles2 target platesHard case4 x D 1.5 V batteries3 x AA 1.5 V batteries
