Name: Stabila Type 80 M Installation 16882 Magnetic spirit level incl. magnet 100 cm 0.5 mm/m
Brand: Stabila
SKU: 1233725
Availability: InStock

Yellow spirit level with two vials for horizontal and vertical alignment. 'STABILA Made in Germany' on the side.

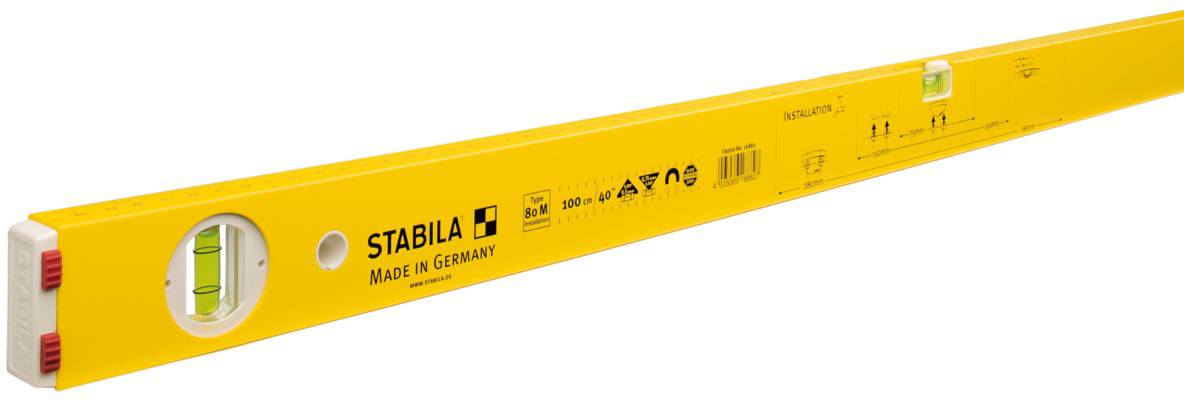

Yellow spirit level with ruler markings and 'Stabila Made in Germany' branding.

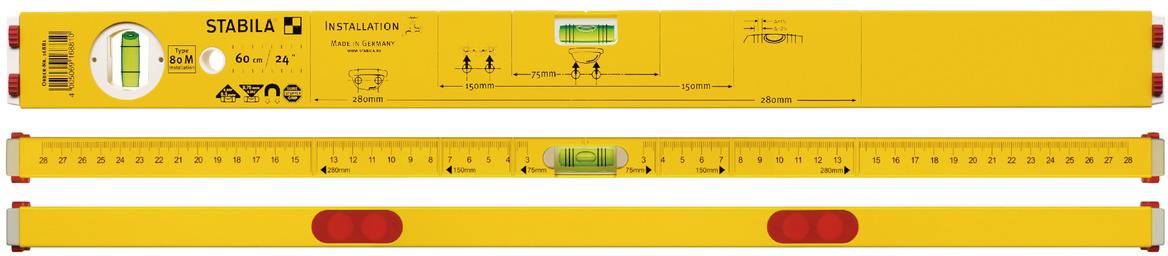

Yellow spirit level with built-in bubble vials, indicating horizontal and vertical planes. Markings for precise measurements.

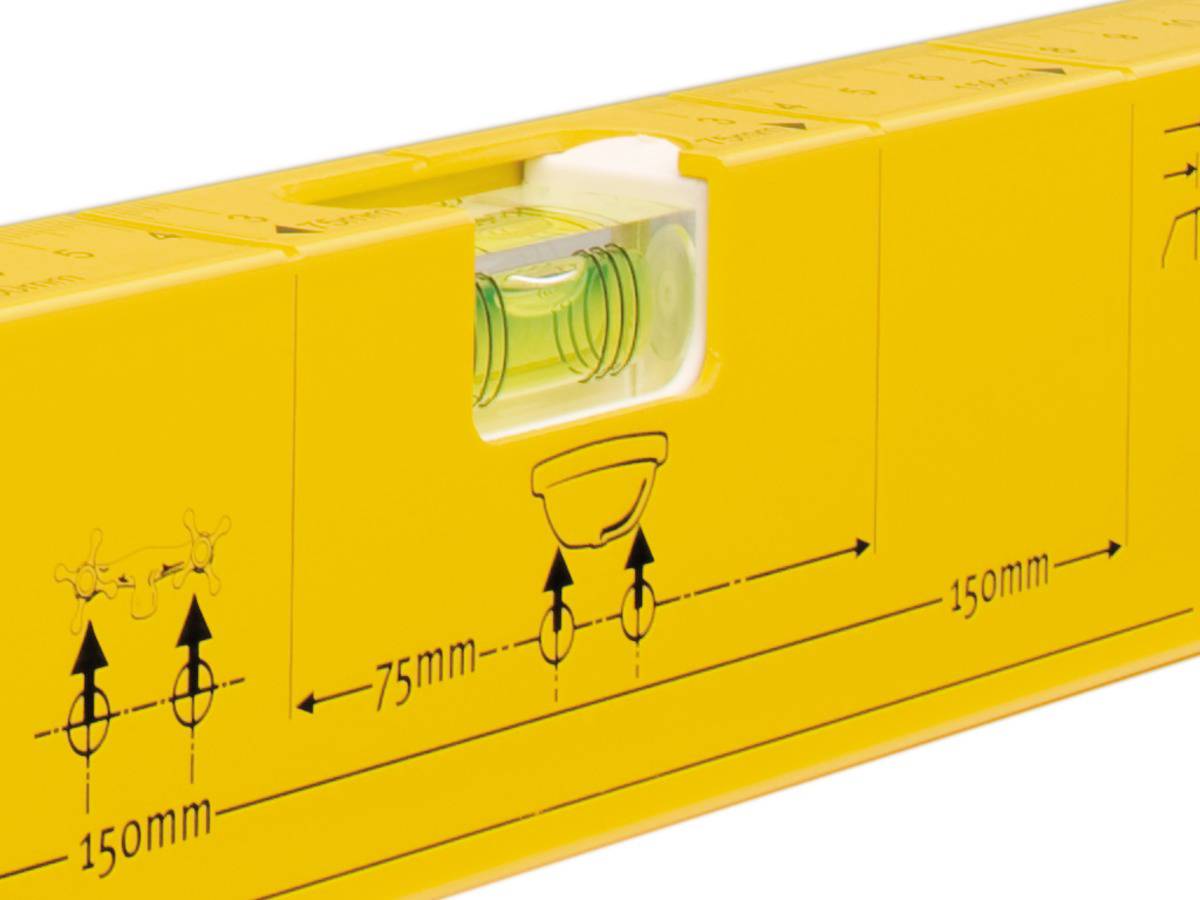

A yellow spirit level displays a green bubble vial in the centre for measuring horizontality. Measurement lines are marked on the surface.

A yellow barrier gate with reflective red markings.

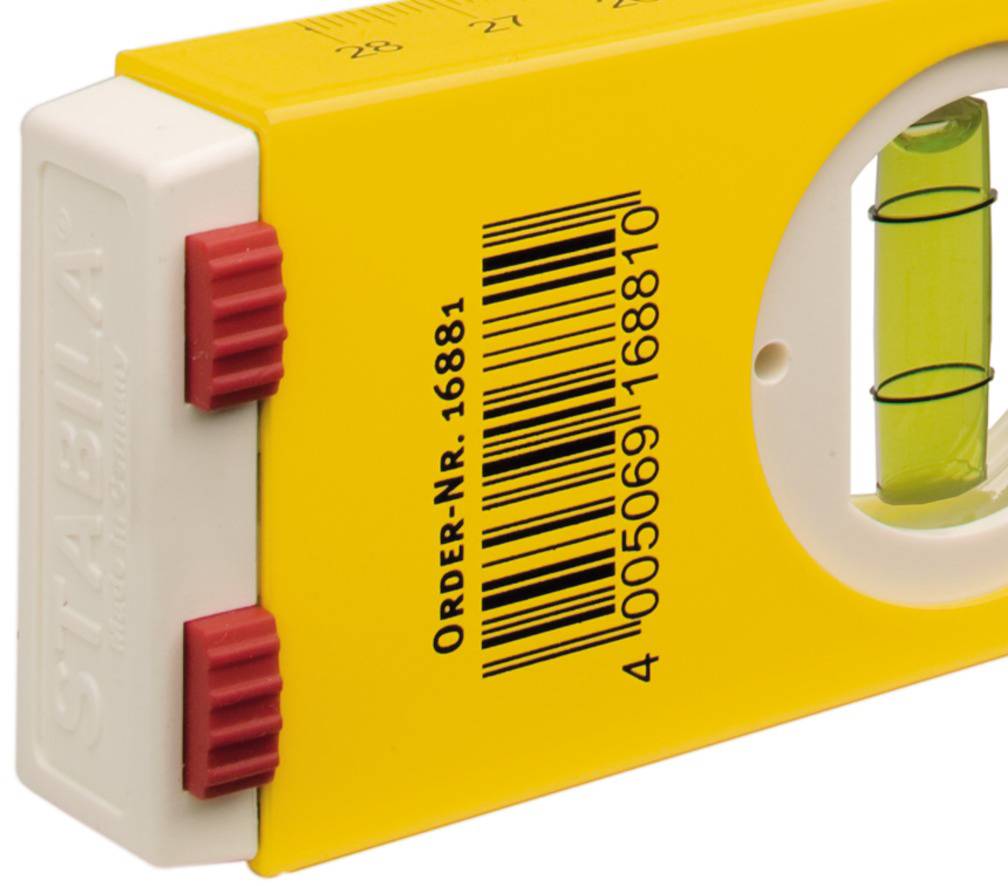

Yellow spirit level with built-in bubble vial and red adjustment mechanism. Barcode and order number are printed on the surface.

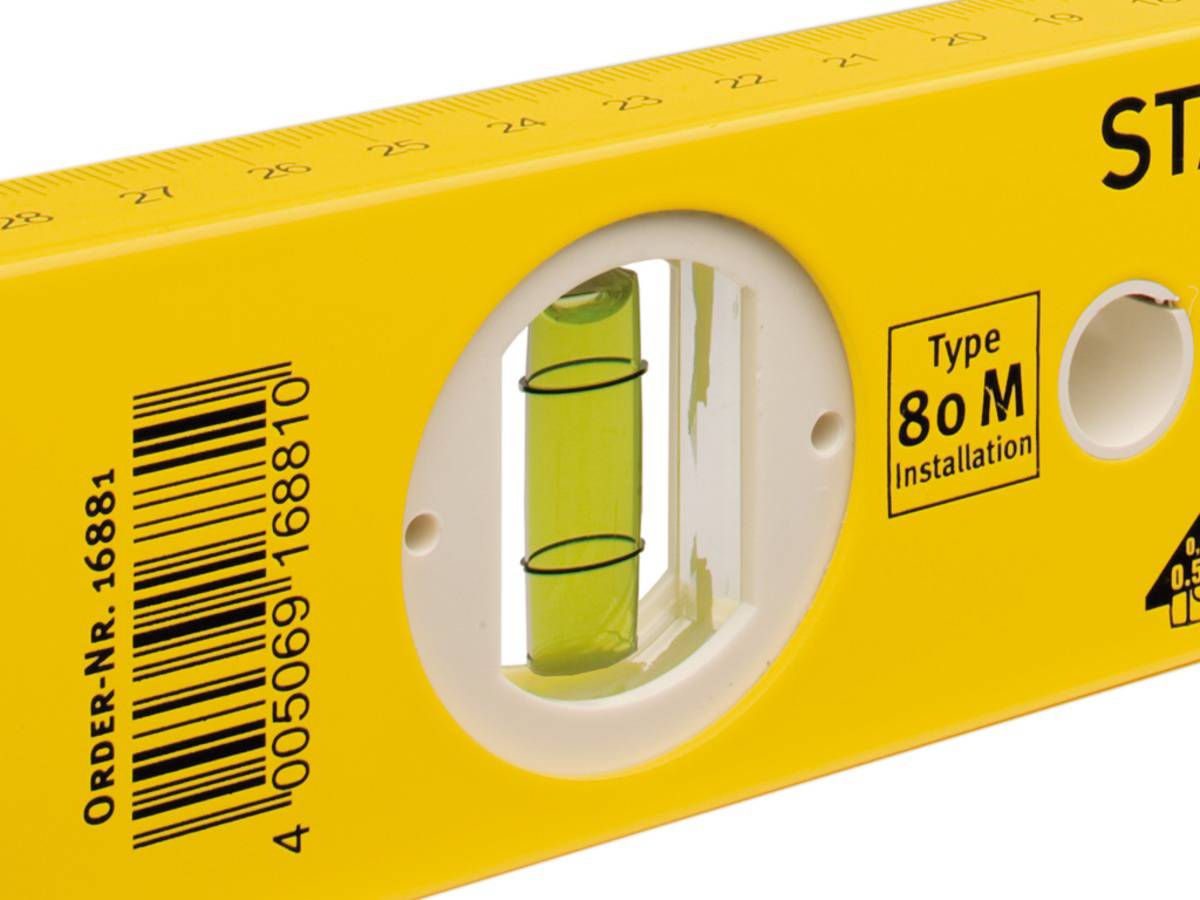

Yellow spirit level with green bubble, indicates horizontal alignment. Suitable for 80M type installations.

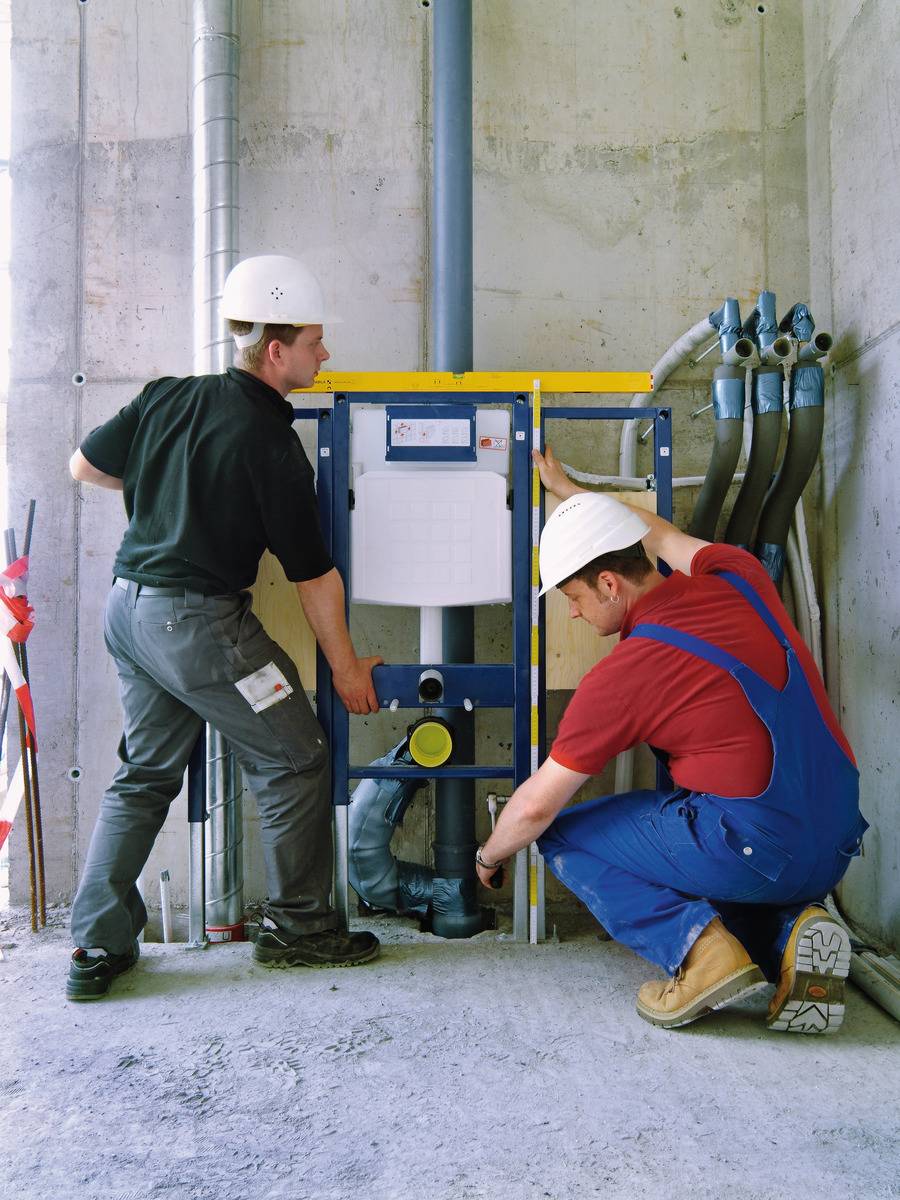

Two construction workers are installing a toilet installation system on a concrete wall. Both are wearing hard hats and work clothing.

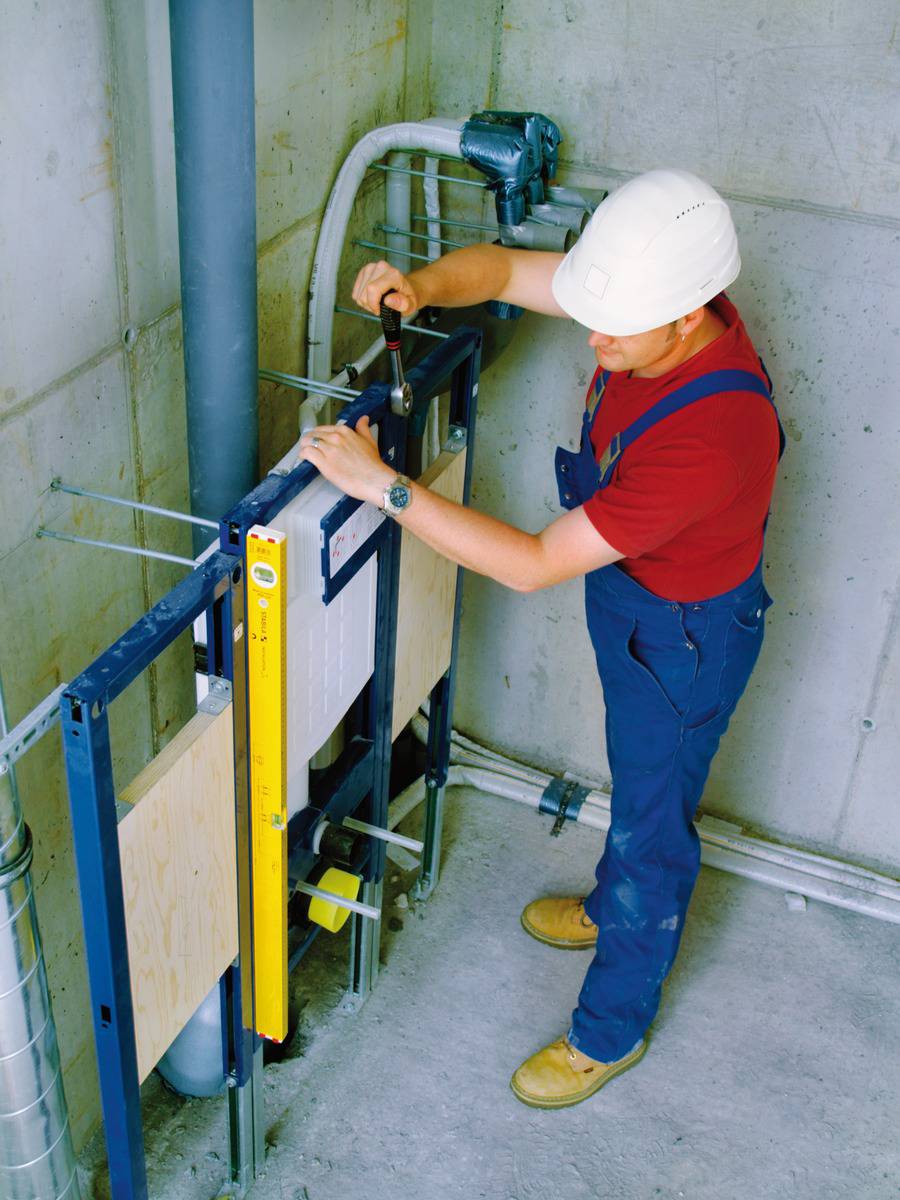

A construction worker wearing a hard hat and overalls is securing a metal support to a concrete wall in an unfinished building.

1/10

EAN:

Part number:

Item no:

Fast track dispatch on Wed 4 Nov

4 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 85.99 / piece)

€ 85.99

incl. VAT

Only 4 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Water level 80 M Installation

Horizontal and vertical bubble level with printed installation masses of rare-earth magnet
sliding stopper

Technical specifications

Accuracy in standard position 0.5 mm/m
Accuracy at overhead measurement 0.75 mm/m
Horizontal and vertical bubble level

Product type: Magnetic spirit level

Features: incl. magnet

Length: 100 cm

Level accuracy: 0.5 mm/m

Material: Aluminium

: Manufacturer's standards (no certificate)

Reading range: 1000 mm

Type: Type 80 M Installation

UKCA: yes

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1233725 Stabila Type 80 M Installation 16882 Magnetic spirit level incl. magnet 100 cm 0.5 mm/m

Warranty Terms

Warranty Terms 1233725 Stabila Type 80 M Installation 16882 Magnetic spirit level incl. magnet 100 cm 0.5 mm/m

Features

Printed on the housing are all common installation dimensions
the installation points can be directly transferred from the spirit level profile on the mounting surface
Starting from the meter-crack the drill hole markings for sink holder and valves transfer
Jig dimensions are marked with the help of the notches
Continuous bridge over the horizontal level for marking the stitch dimension line over the entire width. Dragonfly and axis always remain in your field of view
Centrally-centric Centimeter scales on the profile top
Six Ring Horizontal spirit level for 1% and 2% slope
End caps with two-sided slip stoppers for secure hold
Seltenerd-Magnete facilitate the aligning of GIS modules
Smooth Alu-Rechteckprofil
Electrostatic powder coating
Suitable for overhead measurement.

Hints

This text is machine translated.

Description

Features

Printed on the housing are all common installation dimensions
the installation points can be directly transferred from the spirit level profile on the mounting surface
Starting from the meter-crack the drill hole markings for sink holder and valves transfer
Jig dimensions are marked with the help of the notches
Continuous bridge over the horizontal level for marking the stitch dimension line over the entire width. Dragonfly and axis always remain in your field of view
Centrally-centric Centimeter scales on the profile top
Six Ring Horizontal spirit level for 1% and 2% slope
End caps with two-sided slip stoppers for secure hold
Seltenerd-Magnete facilitate the aligning of GIS modules
Smooth Alu-Rechteckprofil
Electrostatic powder coating
Suitable for overhead measurement.
