Buy Stahlwille 730/65 QUICK 50184065 Torque wrench Calibrated to (ISO standards) 130 - 650 Nm

Torque wrench with black handle and scale, positioned horizontally. Ideal for precisely tightening screw connections.

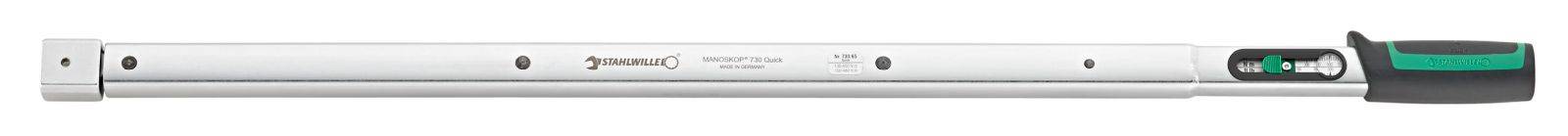

A torque wrench with a long, metallic body and a green handle, ideal for precisely tightening screws.

1/2

Fast track dispatch on Wed, 23 Sep

1 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 528.57 / piece)

€ 735.70

-28 %

€ 528.57

plus VAT.

Only 1 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Torque wrench, mechanical for plug-in tools (1040)

release
No reset to "0" is required, as the measuring element is loaded only during the tightening process
Mounting for changeable plug tools
QuickRelease safety lock (size 5-65)
Flash setting through easy to use clamping lever in the handle (Gr. 5-65)
Ergonomically designed, non-slip adjusting element with thumb recess
Integrated magnifying glass in the reading window (Gr. 5-65)
Optimised bale grip for fatigue-free working
Double stop signal
Dual scale N.
m/ft
lb bz

Technical specifications

b 30.6 mm
h 25.6 mm
L 875 mm
LF 855 mm
SF 25 mm
Size Tool-intake square socket: 14 x 18 mm

Product type: Torque wrench

Torque (min.): 130 Nm

Torque (max.): 650 Nm

Length: 875 mm

Weight: 3192 g

Width: 80 mm

Height: 80 mm

: ISO standards

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2485101 Stahlwille 730/65 QUICK 50184065 Torque wrench Calibrated to (ISO standards) 130 - 650 Nm

Description

· release · No reset to "0" is required, as the measuring element is loaded only during the tightening process · Mounting for changeable plug tools · QuickRelease safety lock (size 5-65) · Flash setting through easy to use clamping lever in the handle (Gr. 5-65) · Ergonomically designed, non-slip adjusting element with thumb recess · Integrated magnifying glass in the reading window (Gr. 5-65) · Optimised bale grip for fatigue-free working · Double stop signal · Dual scale N.·m/ft·Lb or N.·m/in·Lb (Size 5-80) · On request also only as N·M Available without double scale version (Size 5-65) · Left-handed tightening by turning the plug-in tools · Load after tripping or loading against the function direction, e.g. If screws are stuck, the release mechanism does not work, which is thus protected against damage · Calibration with the perfectControl® calibration device no. 7794 or calibration unit no. 7706. If necessary. Readjust without dismantling · Certificate according to DIN EN ISO 6789-2:2017 · Indication deviation ± 4 %

This text is machine translated.
