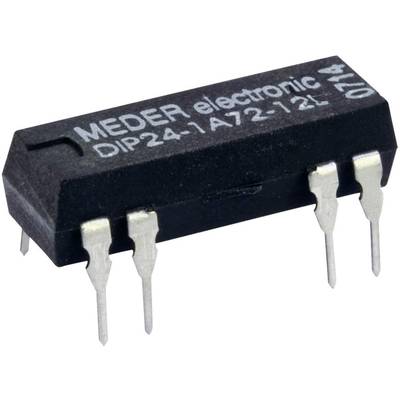

A black microchip with silver connections, labelled 'MEDER electronic DIP24-1A72-12L', on a white background.

Image similar

A black microchip with silver connections, labelled 'MEDER electronic DIP24-1A72-12L', on a white background.

Figure shows technical drawing of an electronic component with dimensions and pins. D = with protective diode, symbols are depicted.

1/2

Image similar

StandexMeder Electronics

Datasheet (PDF)

50 Piece(s)

Do your needs go beyond this?

Sales and shipping:

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 2.93 / piece)

€

Report legal concerns

Technical specifications

Type: DIP05-1A72-12L

Contact type: 1 maker

Features: w/o protection diode

Enclosure: DIP 8

Connection: Print

Contact material: Iridium

Nominal voltage: 5 V DC

Resistance (coil): 500 Ω

Switching voltage (max.): 200 V DC

Switching current (max.): 0.5 A

Max. switching capacity: 10 W

Min. temperature: -20 °C

Max. temperature: 70 °C

Length: 19.3 mm

Width: 6.4 mm

Height: 5.1 mm

Dim: (L x W x H) 19.3 x 6.4 x 5.1 mm

Product type: Reed relay

Documents & Downloads

Datasheet

Datasheet 1205875 StandexMeder Electronics DIP05-1A72-12L Reed relay 1 maker 5 V DC 0.5 A 10 W DIP 8
