StandexMeder Electronics DIP12-2A72-21L Reed relay 2 makers 12 V DC 0.5 A 10 W DIP 8

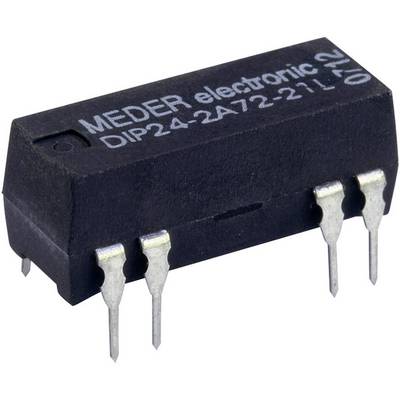

A black electronic component with the inscription 'MEDER electronic' and 'DIP24-2A72-21L', showing six silver connections.

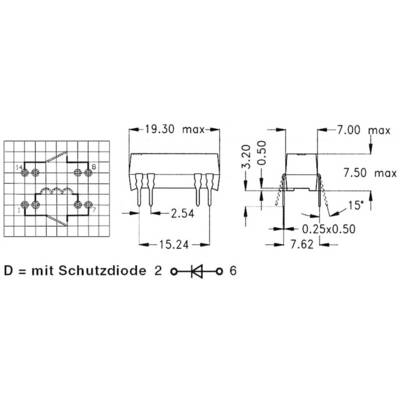

'Technical drawing of an electronic component with dimensions: 19.30 x 7.50 mm. Contains protective diode and connection details.'
1/2
Image similar
Product type
Reed relay
Contact type
2 makers
Enclosure
DIP 8
Connection
Print
Contact material
Iridium
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Thu 5 Nov
93 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 6.49 / piece)
€ 8.99
-28 %
€ 6.49
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Reed relay in dual-in-line housing

  • A black plus sign in a circle, with lines at the corners of the cross, on a white background.

Technical specifications

Product type

Reed relay

Type

DIP12-2A72-21L

Contact type

2 makers

Features

w/o protection diode

Enclosure

DIP 8

Connection

Print

Contact material

Iridium

Nominal voltage

12 V DC

Resistance (coil)

500 Ω

Switching voltage (max.)

200 V DC

Switching current (max.)

0.5 A

Max. switching capacity

10 W

Min. temperature

-20 °C

Max. temperature

70 °C

Length

19.6 mm

Width

6.9 mm

Height

7.7 mm

Dim

(L x W x H) 19.6 x 6.9 x 7.7 mm

Documents & Downloads

Datasheet

Datasheet 1205882 StandexMeder Electronics DIP12-2A72-21L Reed relay 2 makers 12 V DC 0.5 A 10 W DIP 8

User & Safety Instructions

User & Safety Instructions 1205882 StandexMeder Electronics DIP12-2A72-21L Reed relay 2 makers 12 V DC 0.5 A 10 W DIP 8
