StandexMeder Electronics MS05-1A87-75LHR Reed relay 1 maker 5 V DC 0.5 A 10 W SIP 4

A black electronic component with four silver pins, likely a chip or connector.

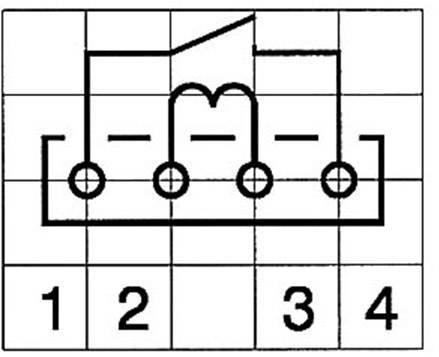

'Knitting Pattern Chart' with vertical lines, arches, and four numbered columns representing knitting stitches.

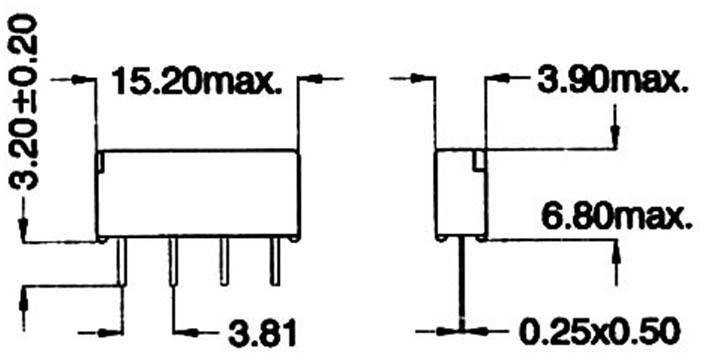

Circuit diagram of an electronic component with dimensions. Left: 15.20 mm length, 3.20 mm height. Right: 3.90 mm width, 6.80 mm height.
1/3
Image similar
Product type
Reed relay
Contact type
1 maker
Enclosure
SIP 4
Connection
Print
Contact material
Rh (Rhodium)
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Wed 4 Nov
113 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 3.29 / piece)
€ 3.29
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

Product type

Reed relay

Type

MS05-1A87-75LHR

Contact type

1 maker

Features

w/o protection diode

Enclosure

SIP 4

Connection

Print

Contact material

Rh (Rhodium)

Nominal voltage

5 V DC

Resistance (coil)

500 Ω

Switching voltage (max.)

200 V DC

Switching current (max.)

0.5 A

Max. switching capacity

10 W

Min. temperature

-20 °C

Max. temperature

70 °C

Length

15.2 mm

Width

3.81 mm

Height

6.8 mm

Dim

(L x W x H) 15.2 x 3.81 x 6.8 mm
