StandexMeder Electronics DIP24-1A72-12L Reed relay 1 maker 24 V DC 0.5 A 10 W DIP 8

A black electronic DIP relay module with the inscription 'MEDER electronic DIP24-1A72-12L'.

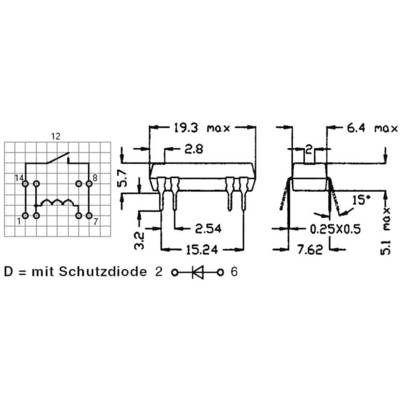

'Technical drawing of an electronic component. With dimensions in millimetres. Note: D = with protective diode.'
1/2
Image similar
Product type
Reed relay
Contact type
1 maker
Enclosure
DIP 8
Connection
Print
Contact material
Iridium
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Wed 4 Nov
45 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 4.29 / piece)
€ 4.29
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Reed relay in dual-in-line housing

  • A black cross with four diagonal rays in a circle on a white background.

Technical specifications

Product type

Reed relay

Type

DIP24-1A72-12L

Contact type

1 maker

Features

w/o protection diode

Enclosure

DIP 8

Connection

Print

Contact material

Iridium

Nominal voltage

24 V DC

Resistance (coil)

2000 Ω

Switching voltage (max.)

200 V DC

Switching current (max.)

0.5 A

Max. switching capacity

10 W

Min. temperature

-20 °C

Max. temperature

70 °C

Length

19.3 mm

Width

6.4 mm

Height

5.1 mm

Dim

(L x W x H) 19.3 x 6.4 x 5.1 mm

Documents & Downloads

Datasheet

Datasheet 1205886 StandexMeder Electronics DIP24-1A72-12L Reed relay 1 maker 24 V DC 0.5 A 10 W DIP 8

User & Safety Instructions

User & Safety Instructions 1205886 StandexMeder Electronics DIP24-1A72-12L Reed relay 1 maker 24 V DC 0.5 A 10 W DIP 8
