ElectromechanicsRelaysReed SwitchesReed Relays

StandexMeder Electronics DIP12-1C90-51L Reed relay 1 change-over 12 V DC 0.5 A 10 W DIP 8

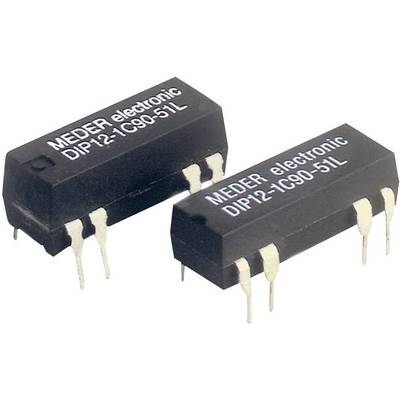

Two black electronic components with the inscription 'MEDER electronic DIP12-1C90-51L', which are part of an electrical circuit.
Collection
Product type
Reed relay
Contact type
1 change-over
Enclosure
DIP 8
Connection
Print
Contact material
Rh (Rhodium)
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Thu 5 Nov
77 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 11.99 / piece)
€ 12.99
-8 %
€ 11.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Reed relay in dual-in-line housing

  • A six-pointed Torx screw head within a circle.

Technical specifications

Product type

Reed relay

Type

DIP12-1C90-51L

Contact type

1 change-over

Features

w/o protection diode

Enclosure

DIP 8

Connection

Print

Contact material

Rh (Rhodium)

Nominal voltage

12 V DC

Resistance (coil)

500 Ω

Switching voltage (max.)

175 V DC

Switching current (max.)

0.5 A

Max. switching capacity

10 W

Min. temperature

-20 °C

Max. temperature

70 °C

Length

19.3 mm

Width

6.5 mm

Height

5.1 mm

Dim

(L x W x H) 19.3 x 6.5 x 5.1 mm

Documents & Downloads

Datasheet

Datasheet 1205879 StandexMeder Electronics DIP12-1C90-51L Reed relay 1 change-over 12 V DC 0.5 A 10 W DIP 8

User & Safety Instructions

User & Safety Instructions 1205879 StandexMeder Electronics DIP12-1C90-51L Reed relay 1 change-over 12 V DC 0.5 A 10 W DIP 8
