1/2
Image similar
StandexMeder Electronics DIP12-1A72-12L Reed relay 1 maker 12 V DC 0.5 A 10 W DIP 8
Product type
Reed relay
Contact type
1 maker
Enclosure
DIP 8
Connection
Print
Contact material
Iridium
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 3.79 / piece)
€ 3.79
incl. VAT
14-day return policy included
Highlights & Details
Reed relay in dual-in-line housing
Technical specifications
- Product type
Reed relay
- Type
DIP12-1A72-12L
- Contact type
1 maker
- Features
w/o protection diode
- Enclosure
DIP 8
- Connection
Print
- Contact material
Iridium
- Nominal voltage
12 V DC
- Resistance (coil)
1000 Ω
- Switching voltage (max.)
200 V DC
- Switching current (max.)
0.5 A
- Max. switching capacity
10 W
- Min. temperature
-20 °C
- Max. temperature
70 °C

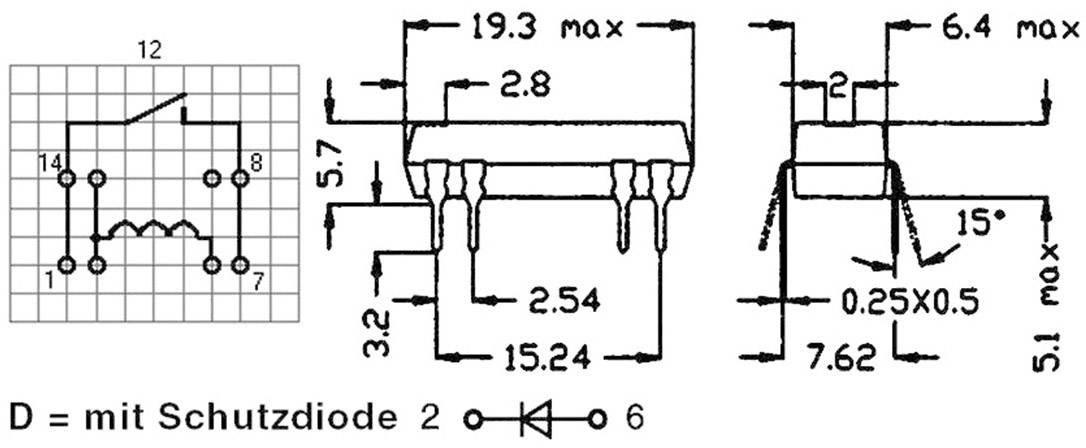

- Length
19.3 mm
- Width
6.4 mm
- Height
5.1 mm
- Dim
(L x W x H) 19.3 x 6.4 x 5.1 mm
Documents & Downloads
Datasheet
Datasheet 1205880 StandexMeder Electronics DIP12-1A72-12L Reed relay 1 maker 12 V DC 0.5 A 10 W DIP 8
User & Safety Instructions
User & Safety Instructions 1205880 StandexMeder Electronics DIP12-1A72-12L Reed relay 1 maker 12 V DC 0.5 A 10 W DIP 8
