Name: Sygonix SY-6249490 LED ceiling light LED (monochrome) LED EEC: D (A - G) 70 W White
Brand: Sygonix
SKU: 3124745
Availability: InStock

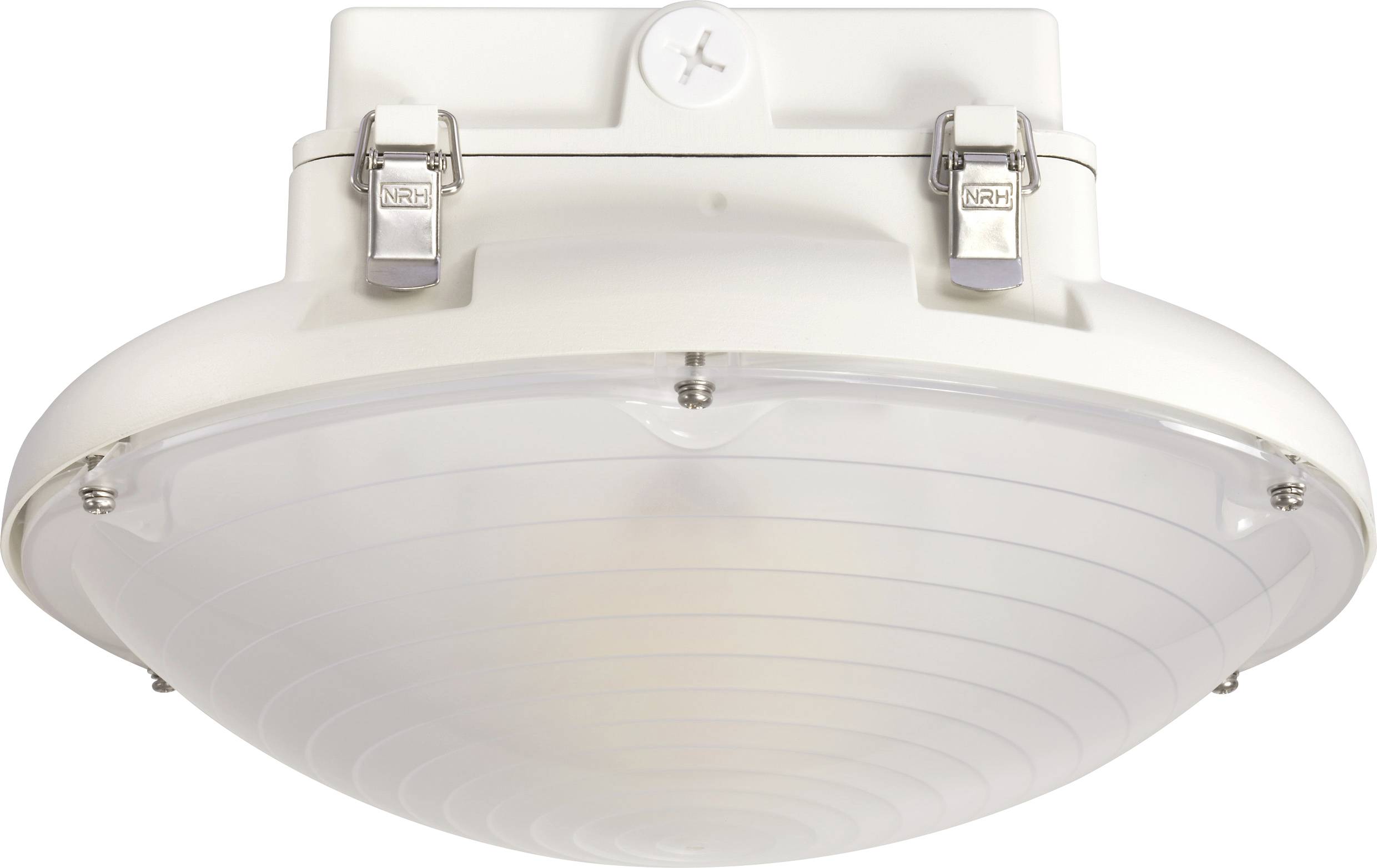

Ceiling light with a round, curved cover and metal brackets. White background colour, suitable for interior spaces.

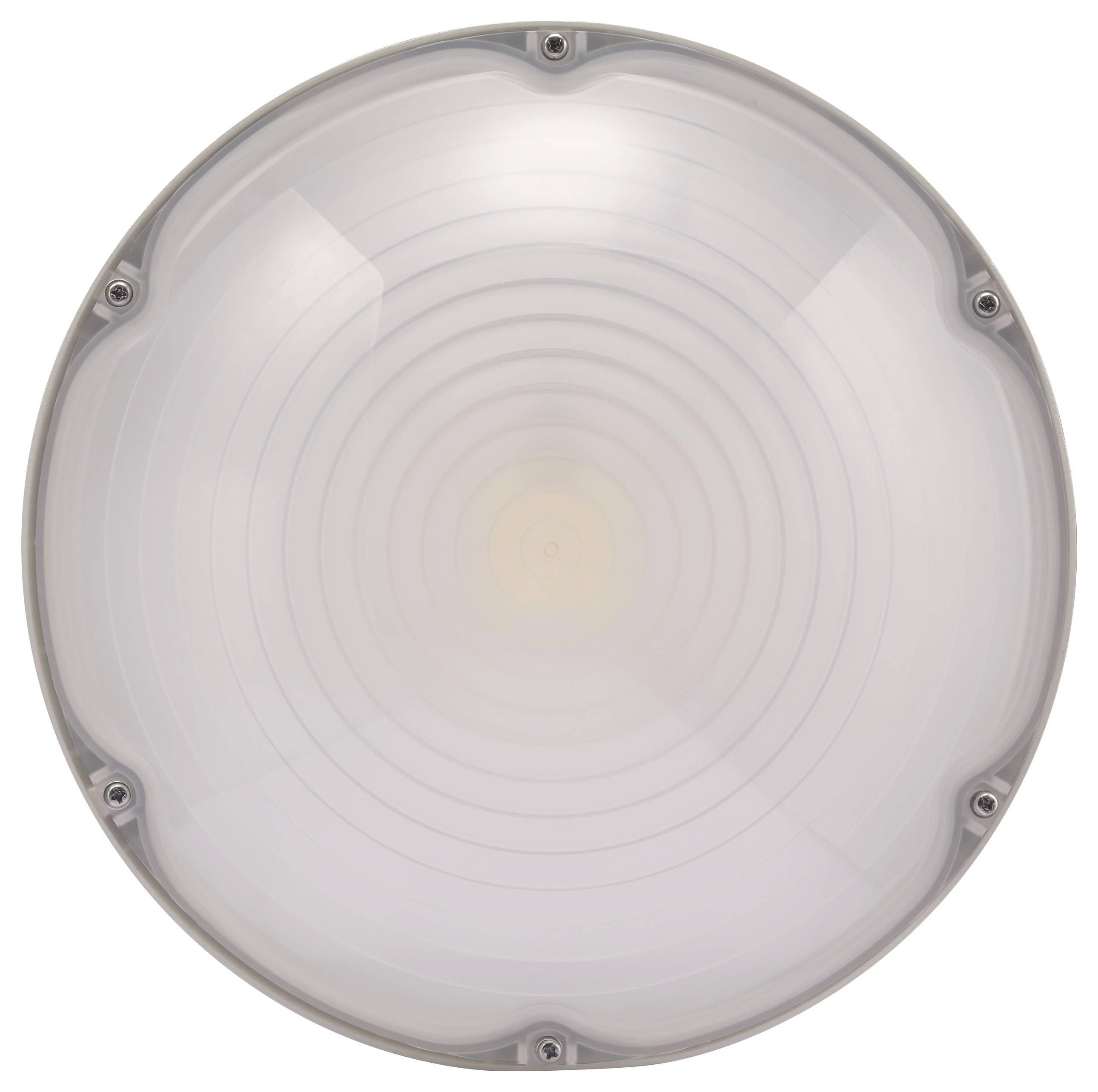

A round, white ceiling light with concentric circles, evenly illuminated.

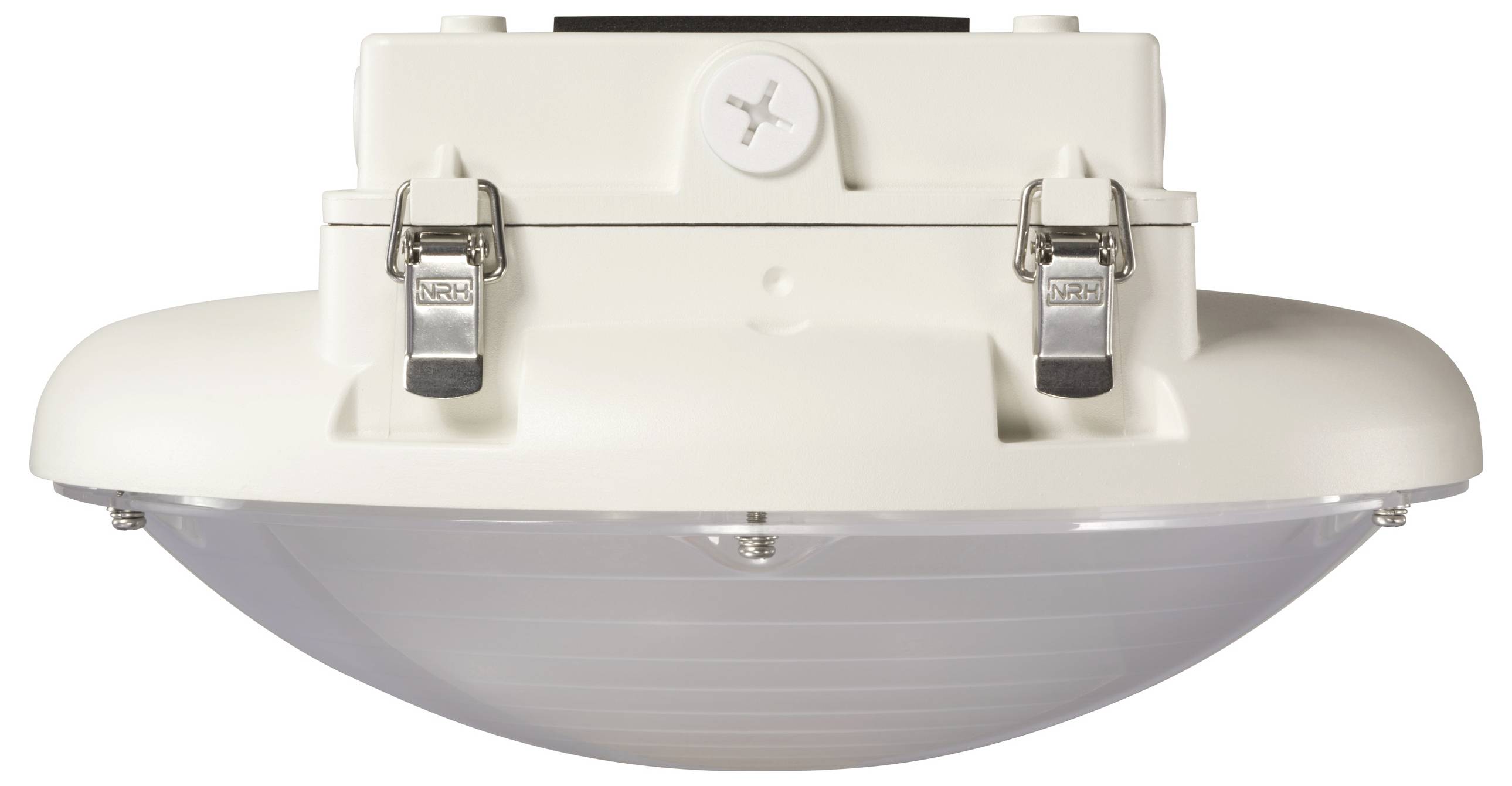

A round, white ceiling light with a clear cover and metal fasteners on the sides.

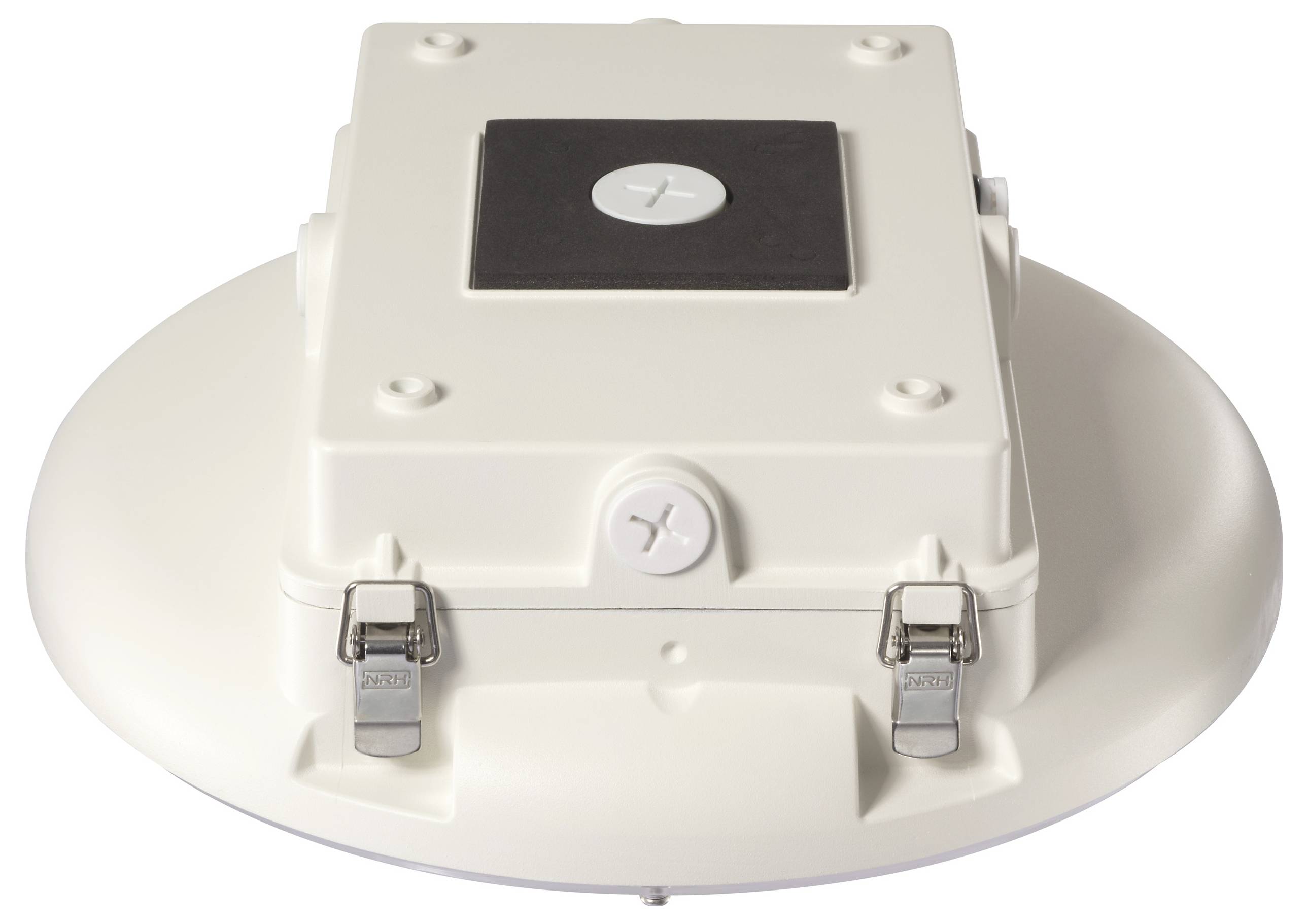

Sygonix SY-6249490 LED ceiling light LED (monochrome) LED EEC: D (A - G) 70 W White-3

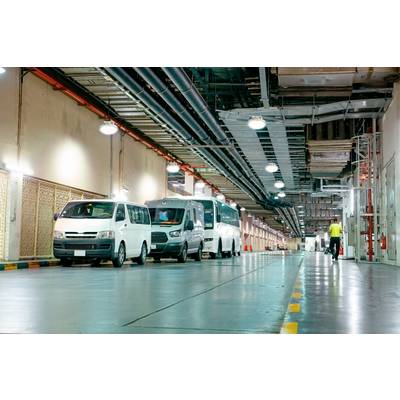

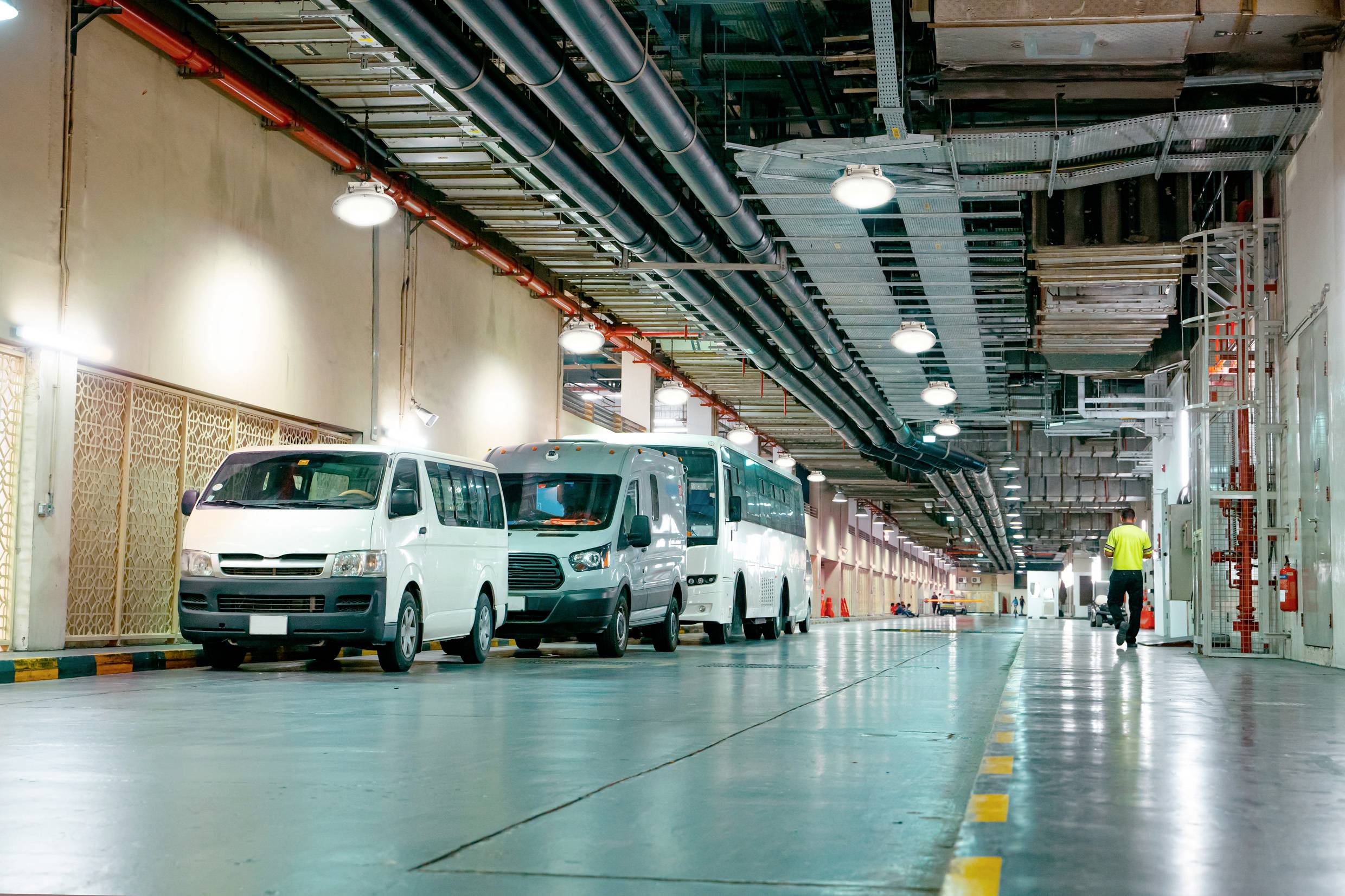

Several white delivery vans are parked in a long row in an underground car park. A person is walking in the distance.

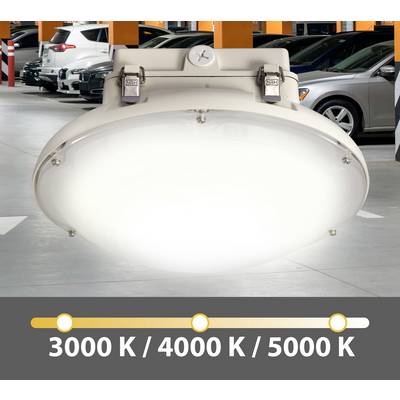

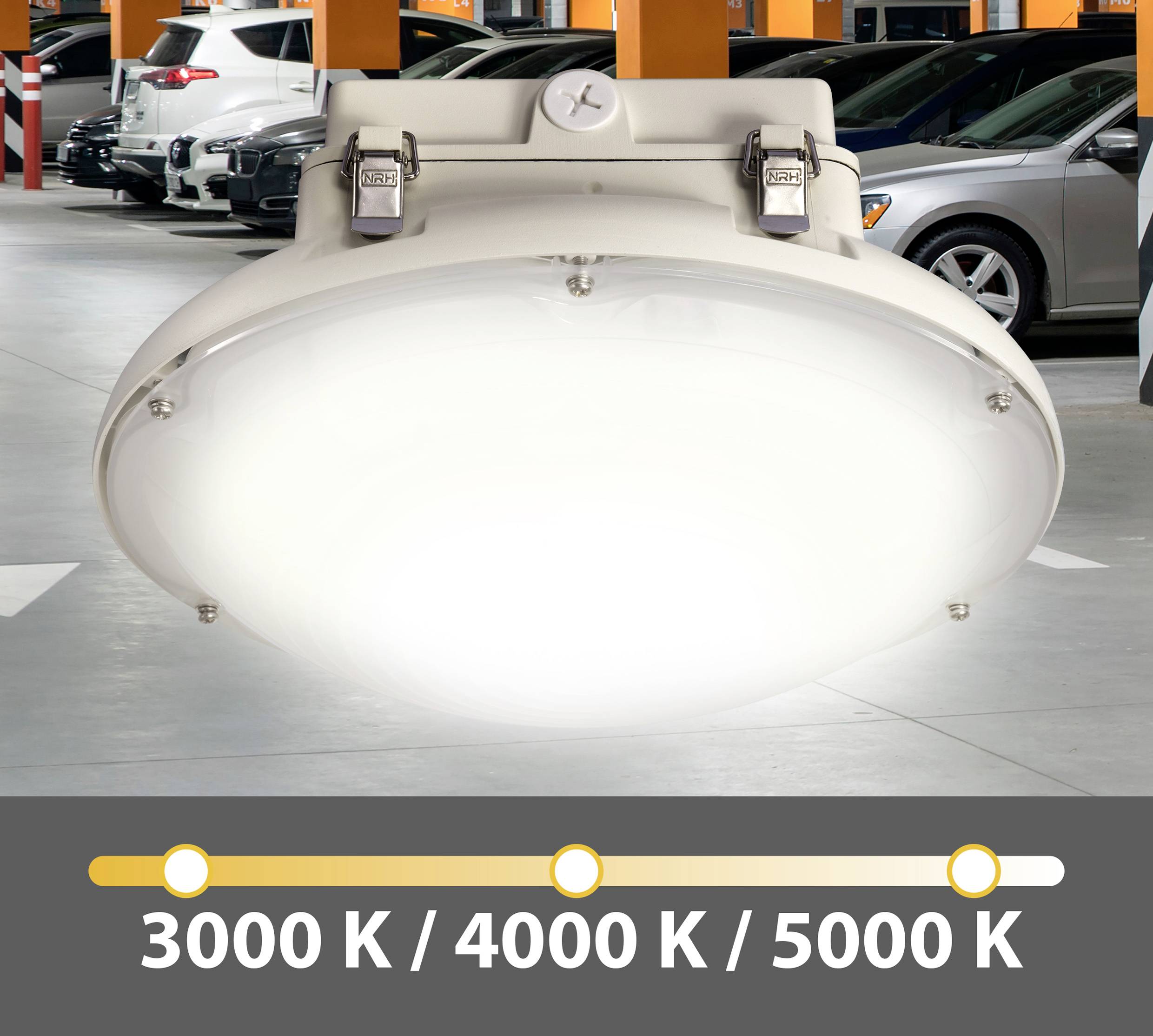

A bright garage lamp with adjustable colour temperature from 3000K, 4000K to 5000K, illuminates a car park with vehicles.

1/6

Product data sheet

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

80 Piece(s) (Only while stocks last)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 29.99 / piece)

€ 29.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Sygonix LED-underground garage lighting

Intergrated microwave sensor, the lighting is only active when it is actually needed. if no movement is detected, the lighting switching to a dimmed to lowest brightness or switch off completely.
3 power & 3 CCT levels
Smooth lamp body to prevent dust accumulation
Unique round shape made of die-cast aluminium heatsink with built-in sensor
Slim and low profile
Precisely designed Fresnel lens with bat-wing shaped light distribution to ensure uniform light output
Multiple installation options (e.g. surface-mounted, pole mounted and surface-mounted with conduit)
IP65

Our service for you

Technical specifications

Beam Angle: 150°
3 Power & 3 CCT selectable
Lumen: 40 W: 6600 lm, 60 W: 9600 lm, 70 W: 10500 lm

Dim: (Ø x H) 290 mm x 146 mm

Type: Planar

Operating voltage: 230 V AC

No. of bulbs: 240

Product type: LED ceiling light

Bulb type: LED (monochrome)

Height: 146 mm

: LED

Rating per bulb: 70 W

: 70 W

(Ø): 290 mm

Energy consumption: 70 kWh/1000h

Coverage max. (width): 3.6 m

Light features: Colour-changing

Protection class: IP65

: IP65

Factory colour: White

Material: Aluminium (die-cast)

Weight: 2.45 kg

: D (A - G)

Colour rendering index: 80

Colour: Warm white to neutral white

Light bulb included: Yes

: 5000 K

Colour temperature (max.): 5000 K

Colour temperature (min.): 3000 K

Colour temperature range: 3000 - 5000 K

Total luminous flux: 10500 lm

: 10500 lm

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

Datasheet

Datasheet 3124745 Sygonix SY-6249490 LED ceiling light LED (monochrome) LED EEC: D (A - G) 70 W White

User & Safety Instructions

User & Safety Instructions 3124745 Sygonix SY-6249490 LED ceiling light LED (monochrome) LED EEC: D (A - G) 70 W White

Warranty Terms

Warranty Terms 3124745 Sygonix SY-6249490 LED ceiling light LED (monochrome) LED EEC: D (A - G) 70 W White

Description

Sygonix garage LED lighting with integrated microwave sensor, the lighting is active only when it is actually needed. If no movement is detected, the lighting switches to a subdued to lowest brightness or completely off. The LED overhead light can be used both indoors and outdoors and is Ideal for parking areas, corridors and other areas in buildings with a range of less than 3.6 meters.

This text is machine translated.

Features

For indoor & outdoor use
Tool-free access to terminal box
Ideal for parking lots, corridors and other indoor applications with a range of less than 3.6 metres

Scope of delivery

Main unit
Manual
