TAMS Elektronik 53-04025-01-C BSA LC-NG-02 Flashing control circuits Residential buildings 1 pc(s)

Green electronic circuit board with multiple screw terminals along the edges, a black capacitor, and a blue rotary potentiometer.
Electronic circuit on a green printed circuit board, featuring multiple screw terminals, resistors, and capacitors, designed for electronic signal control.
'Green printed circuit board with black and green electronic components, including screw terminals, a capacitor, and a blue potentiometer.'

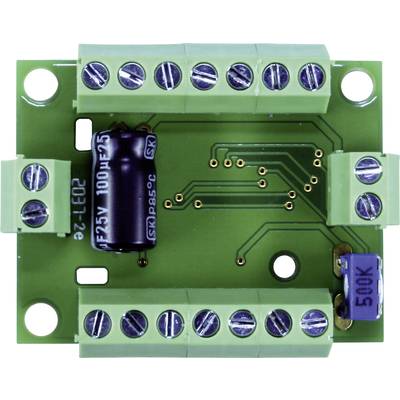

A green printed circuit board with multiple terminal blocks, a black capacitor, and a blue trimmer marked with '500K'.
Green electronic circuit board with multiple integrated circuits, resistors, and connections. Technical component.
Green electronic printed circuit board with multiple terminal blocks and a large capacitor in the centre.
'Green electronic circuit board with multiple screw terminals and a capacitor in the centre, used for electrical connections.'
Green electronic circuit with screw terminals, capacitor, and resistor, used for electrical connections.
1/8
EAN:
Part number:
Item no:
Fast track dispatch on Fri 6 Nov
20 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 19.99 / piece)
€ 19.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

Size

Universal

Product type

Flashing control circuits

Functions

Residential buildings

Type

Assembly kit

Age category

15 years and over

Type

Assembly Kit

Manufacturer part #

53-04025-01-C

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2373275 TAMS Elektronik 53-04025-01-C BSA LC-NG-02 Flashing control circuits Residential buildings 1 pc(s)

Warranty Terms

Warranty Terms 2373275 TAMS Elektronik 53-04025-01-C BSA LC-NG-02 Flashing control circuits Residential buildings 1 pc(s)

Description

For connecting the lights and TVs of two apartments or houses, which are automatically switched on and off according to typical daily routines.

This text is machine translated.

Features

  • 14 outputs (max. 200 mA each) for connecting incandescent lamps or LEDs (via series resistors). Of these 2 x 6 outputs for the lighting in the different rooms and 2 x 1 output for the television in the two apartments or houses. Subordinated circuits can be switched on and off together with the individual lighting.
  • Maximal total current: 1,000 mA
  • Use of the switching input: Selection of the process (house 1 & 2 or house 3 & 4)
  • Settings on the trim potentiometer: Setting the time factor (approx. 1 to 12 minutes / daily sequence)
  • Supply voltage: 12 - 18 V AC or 10 - 22 V DC.

Hints

Lamps and LEDs are not included.
