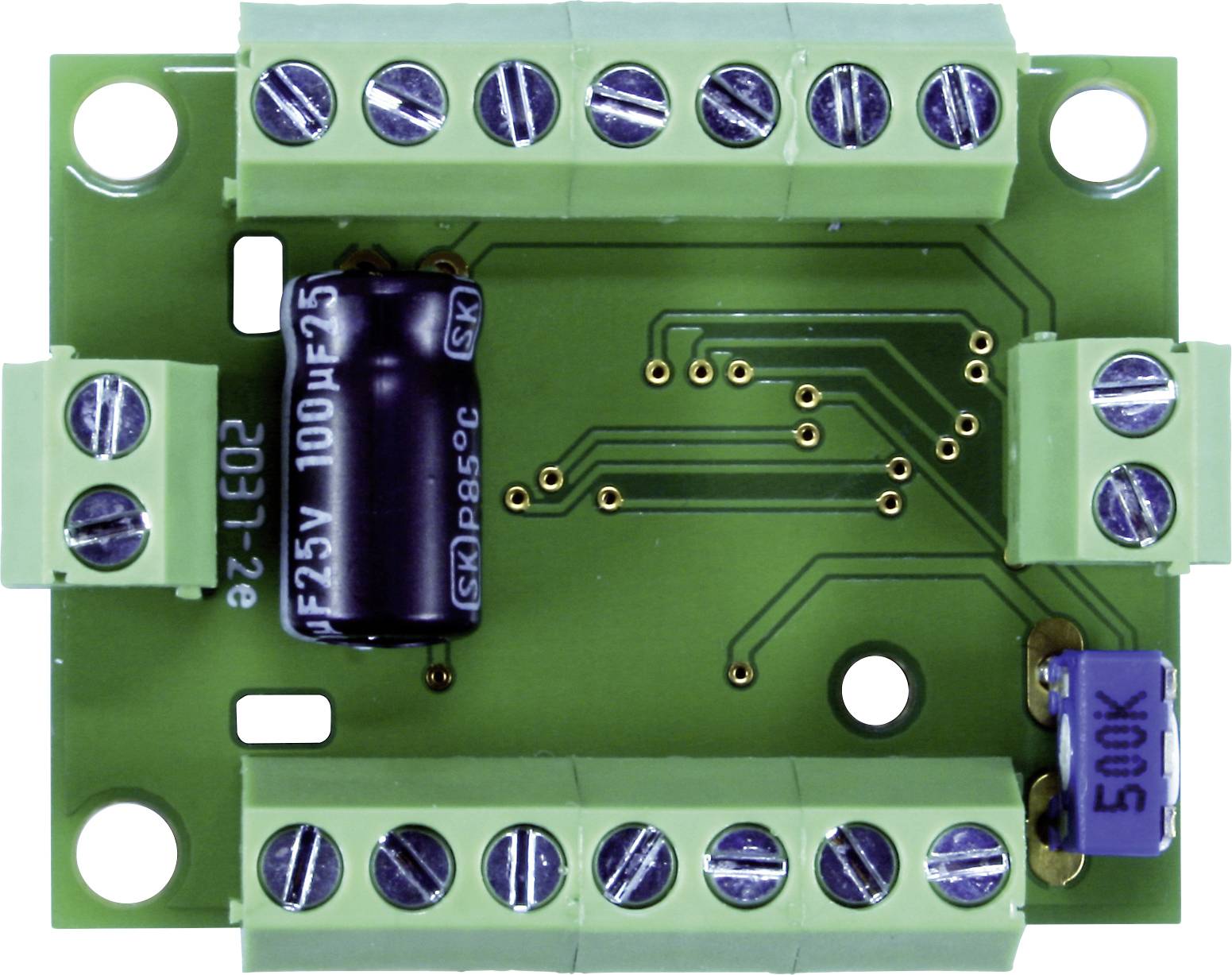

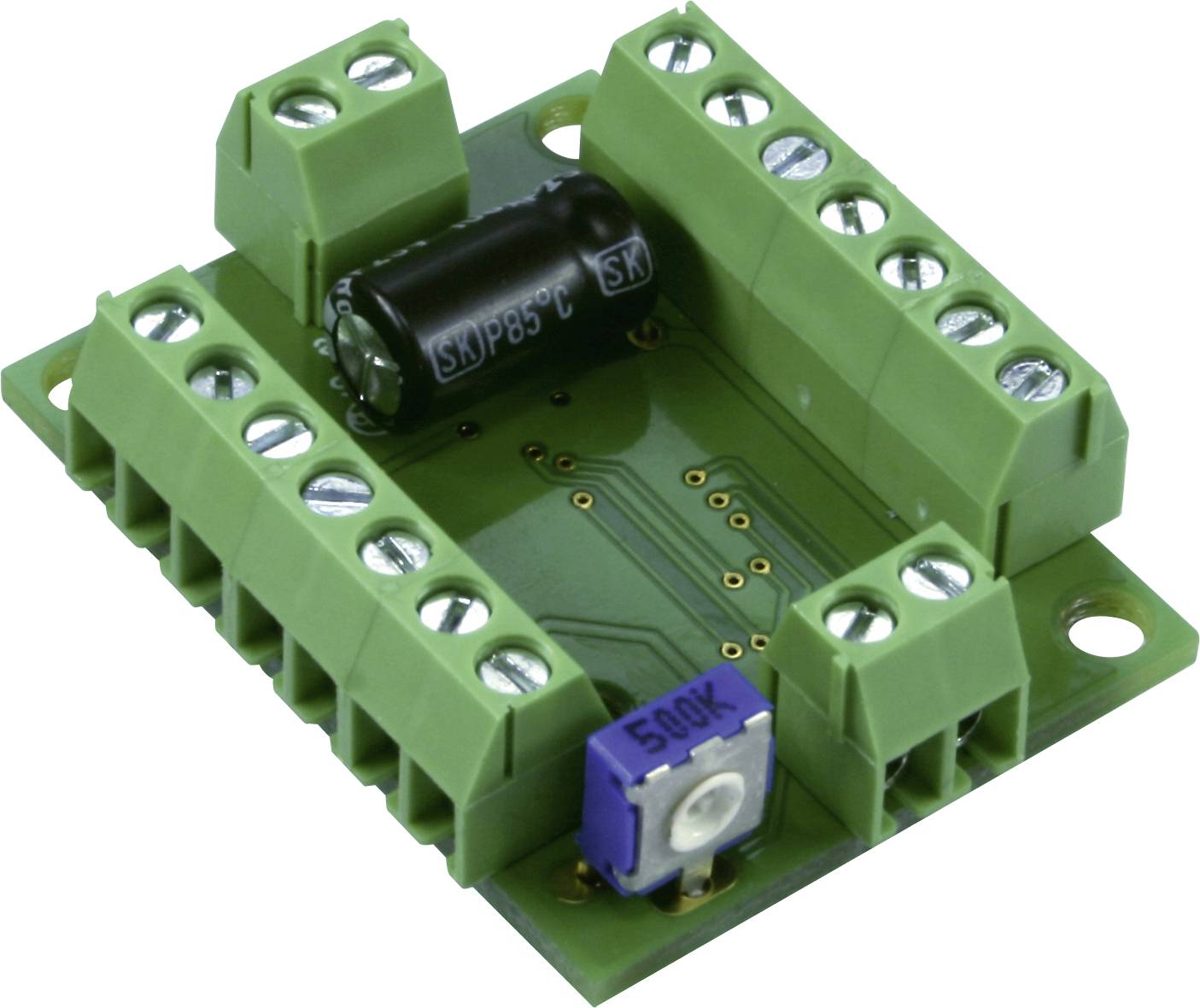

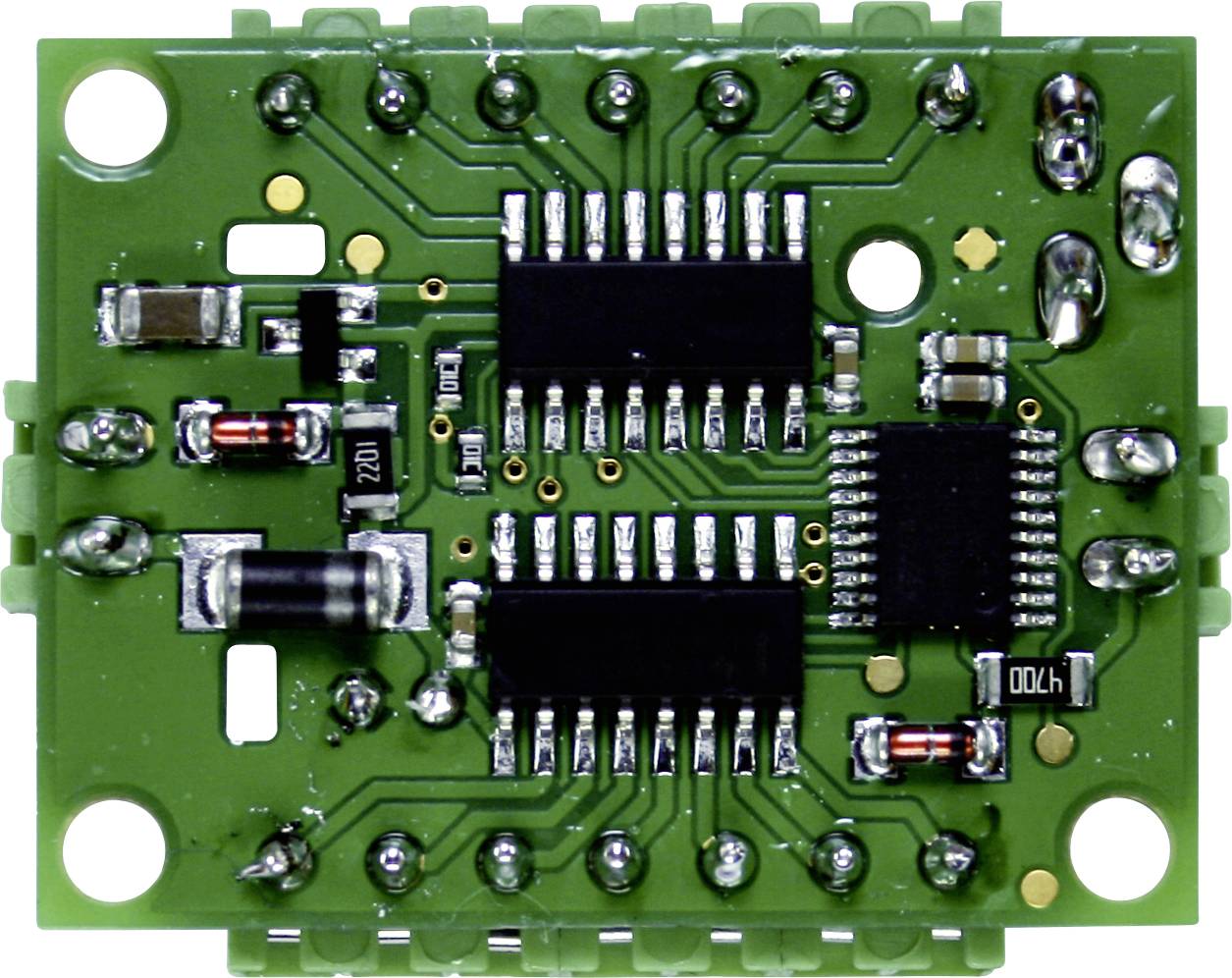

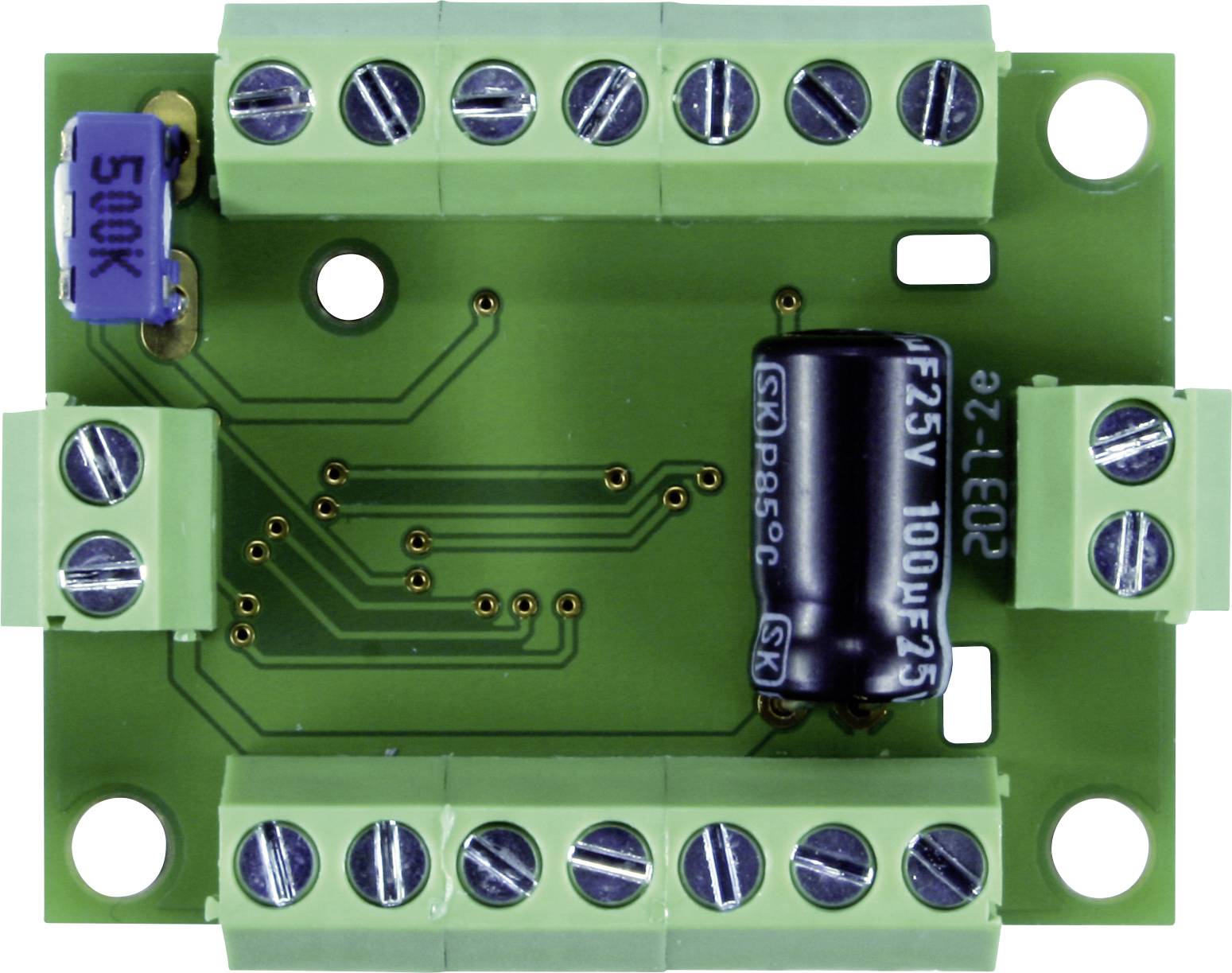

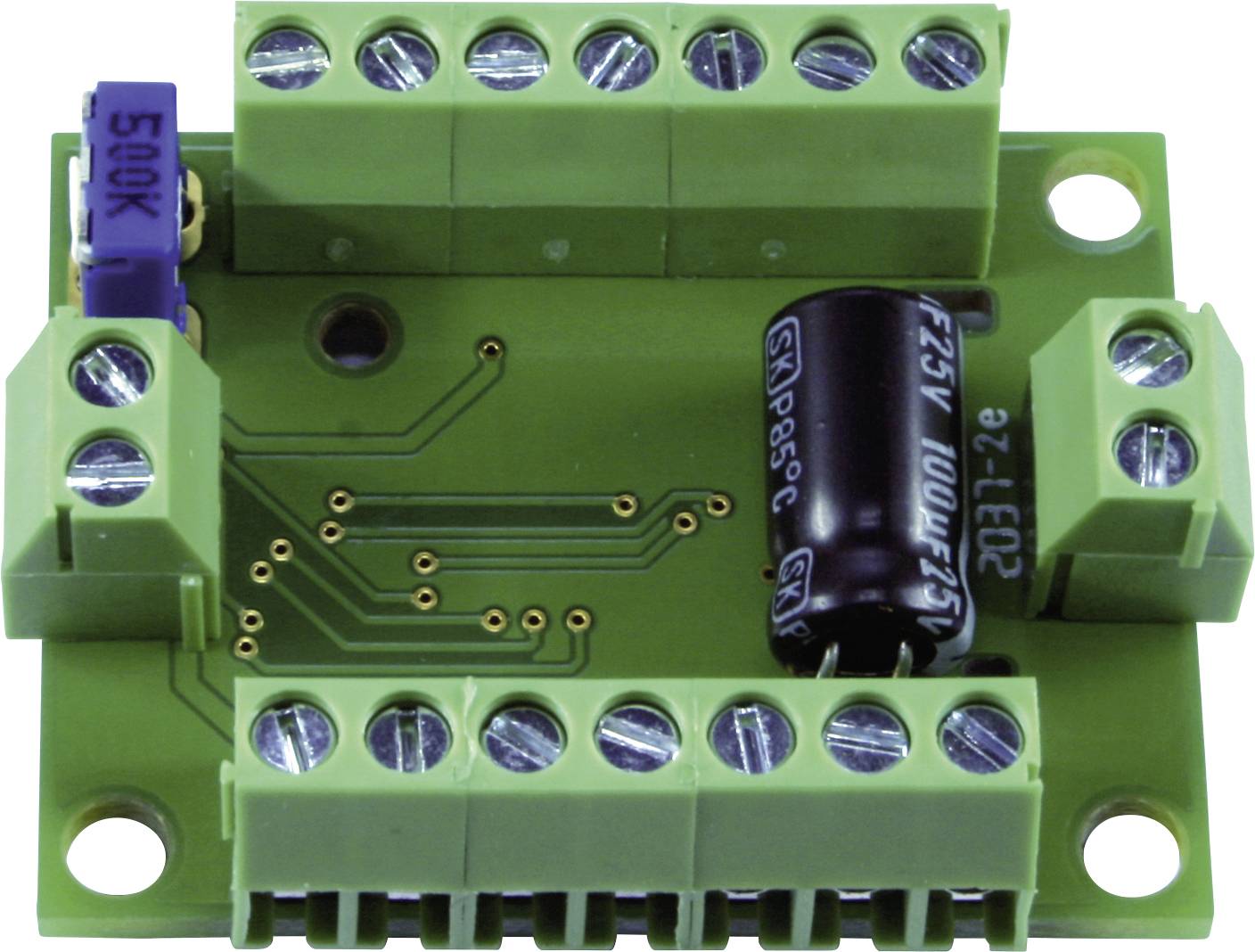

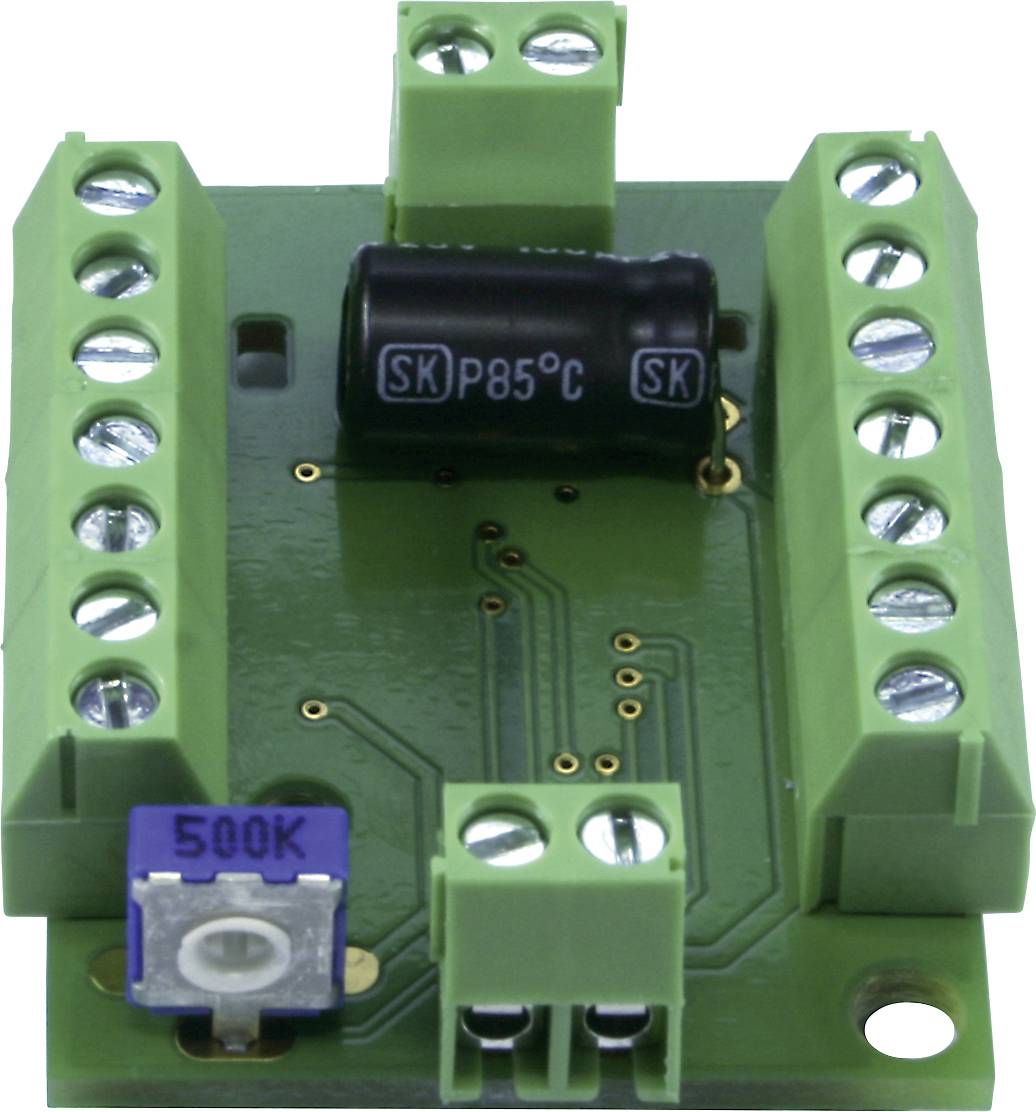

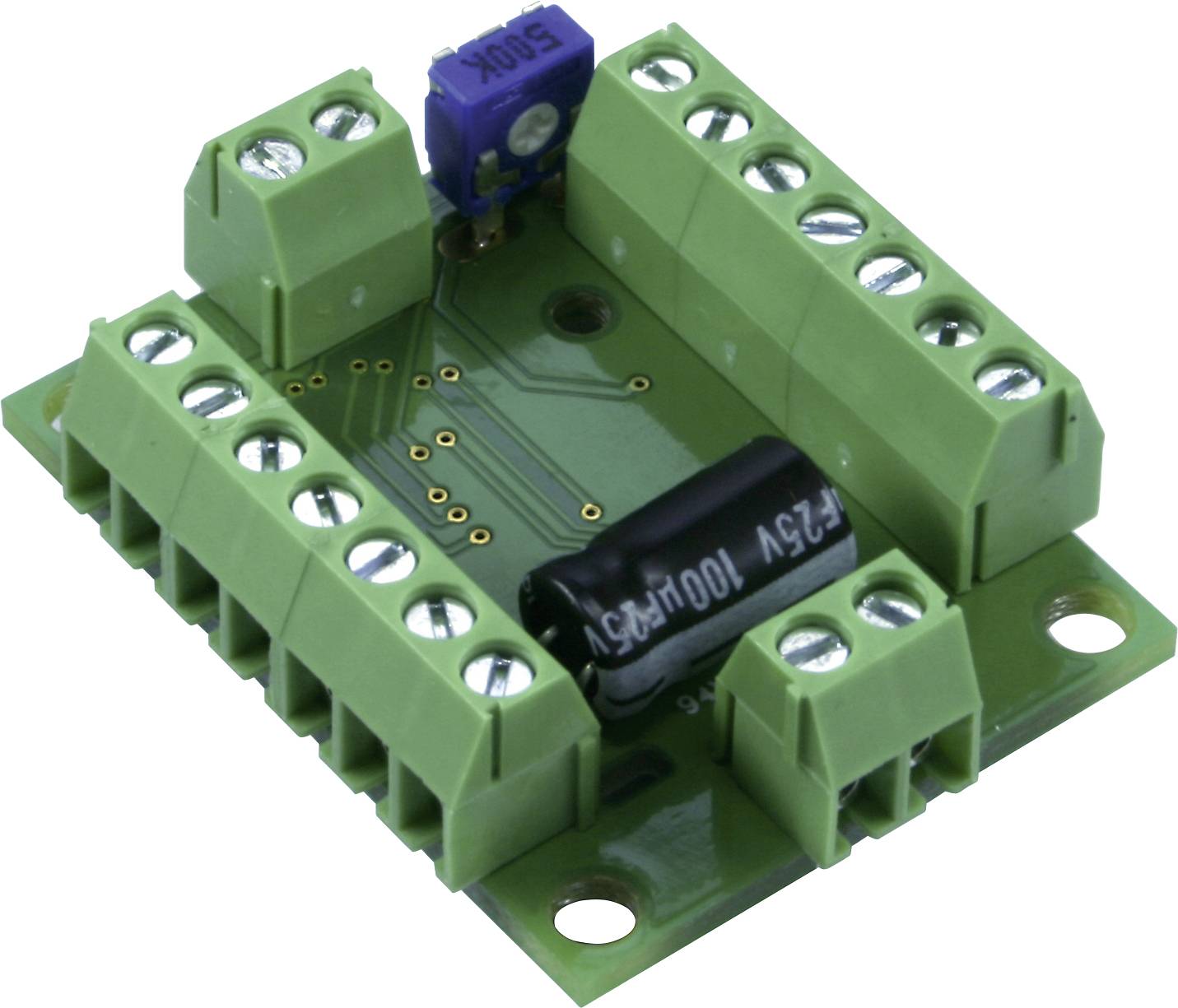

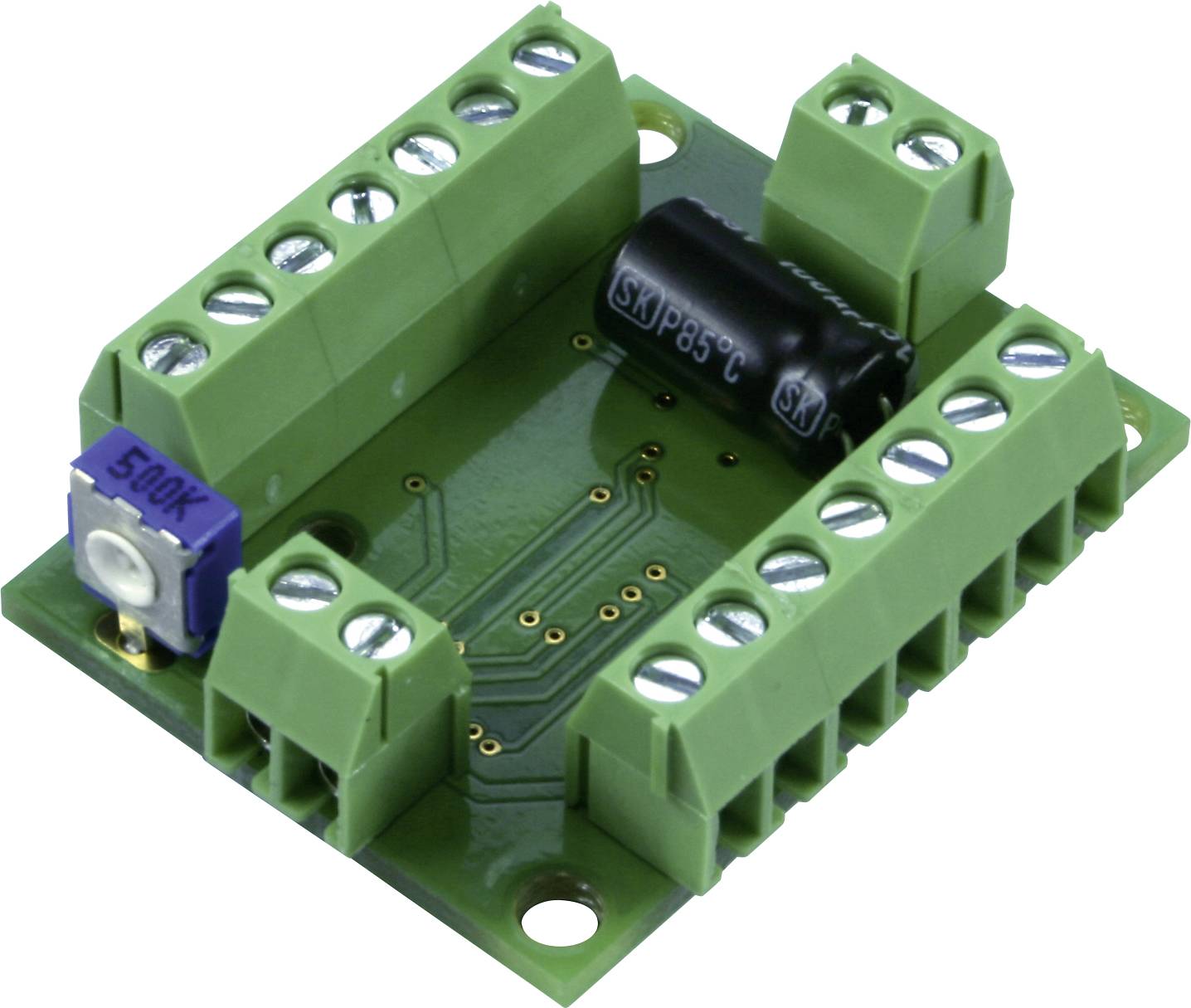

Name: TAMS Elektronik 53-04056-01-C BST LC-NG-05 Flashing control circuits Traffic 1 pc(s)
Brand: TAMS Elektronik
SKU: 2373295
Availability: InStock

Technical specifications

Size: Universal

Product type: Flashing control circuits

Functions: Traffic

Type: Prefab component

Age category: 15 years and over

Manufacturer part #: 53-04056-01-C

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2373295 TAMS Elektronik 53-04056-01-C BST LC-NG-05 Flashing control circuits Traffic 1 pc(s)

Warranty Terms

Warranty Terms 2373295 TAMS Elektronik 53-04056-01-C BST LC-NG-05 Flashing control circuits Traffic 1 pc(s)

Description

To control the traffic lights and a warning light at a junction, a radar trap and the vehicle lighting and horn. Three country-specific sequences are available for controlling the traffic lights: With red-yellow at the same time when switching to green, with green flashing light at the end of the green phase, with direct sequence from green to red. For night operation or in the event of a fault, it is possible to switch to yellow flashing. The headlights and rear lights of the vehicles are switched Heller at irregular intervals (to simulate a flash-to-pass and the brake light).

This text is machine translated.

Features

6 outputs for the traffic lights*
1 output for a warning light*
5 outputs for vehicle lighting* (headlights, taillights, right and left turn signals, interior lighting)
1 output for connecting a loudspeaker (impedance at least 8 ohms, recommended at least 32 ohms), which plays the horn of a vehicle
*Lighting outputs for connecting incandescent lamps or LEDs (via series resistors)
Maximal total current: 1,000 mA
Using the switching input: Switching to yellow flashing of the traffic lights, setting the variant of the traffic light circuit (one of three)
Settings on the trim potentiometer: Speed of the process
Supply voltage: 12 - 18 V AC or 10 - 22 V DC.

Hints

Lamps, LEDs and speakers are not included.
