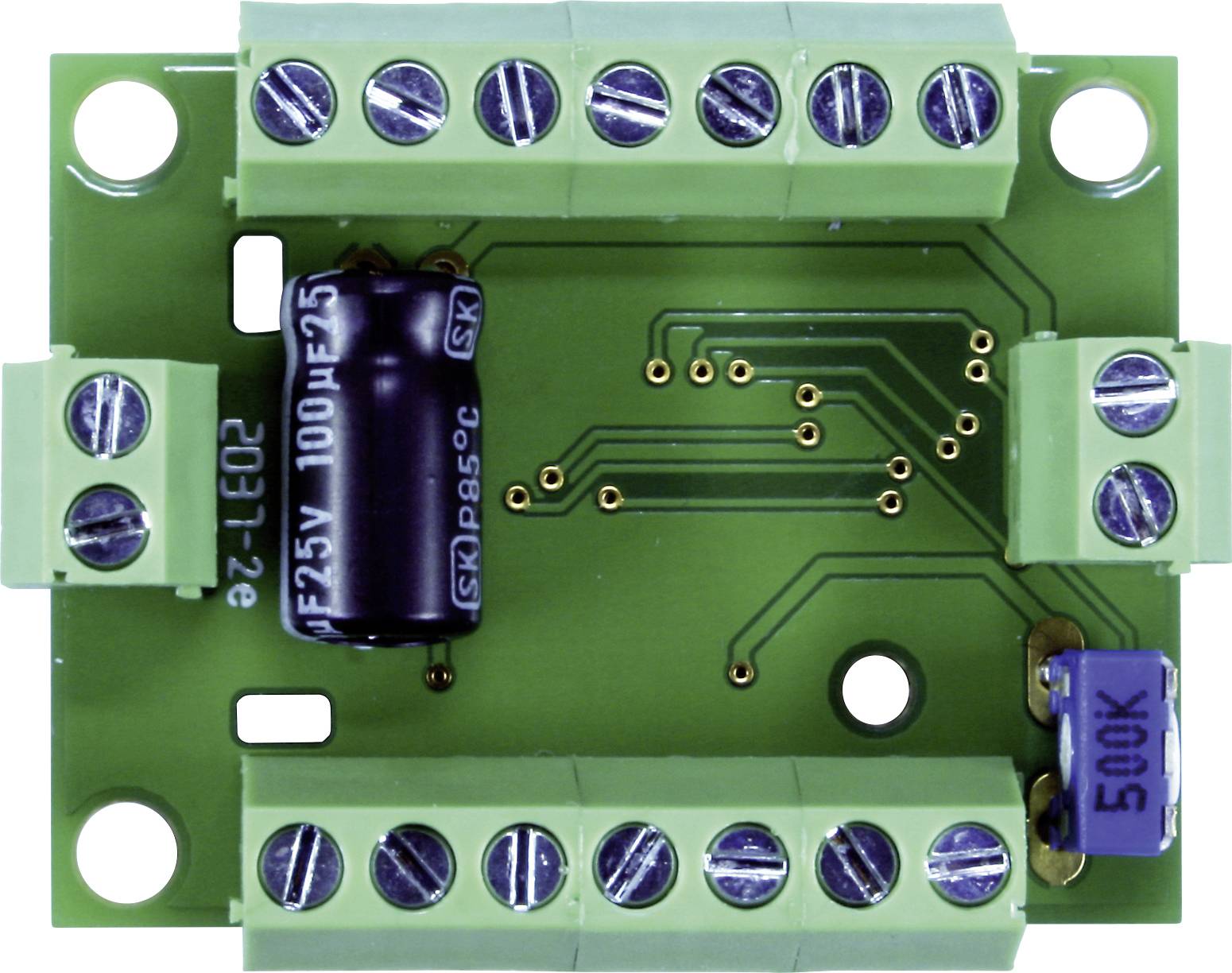

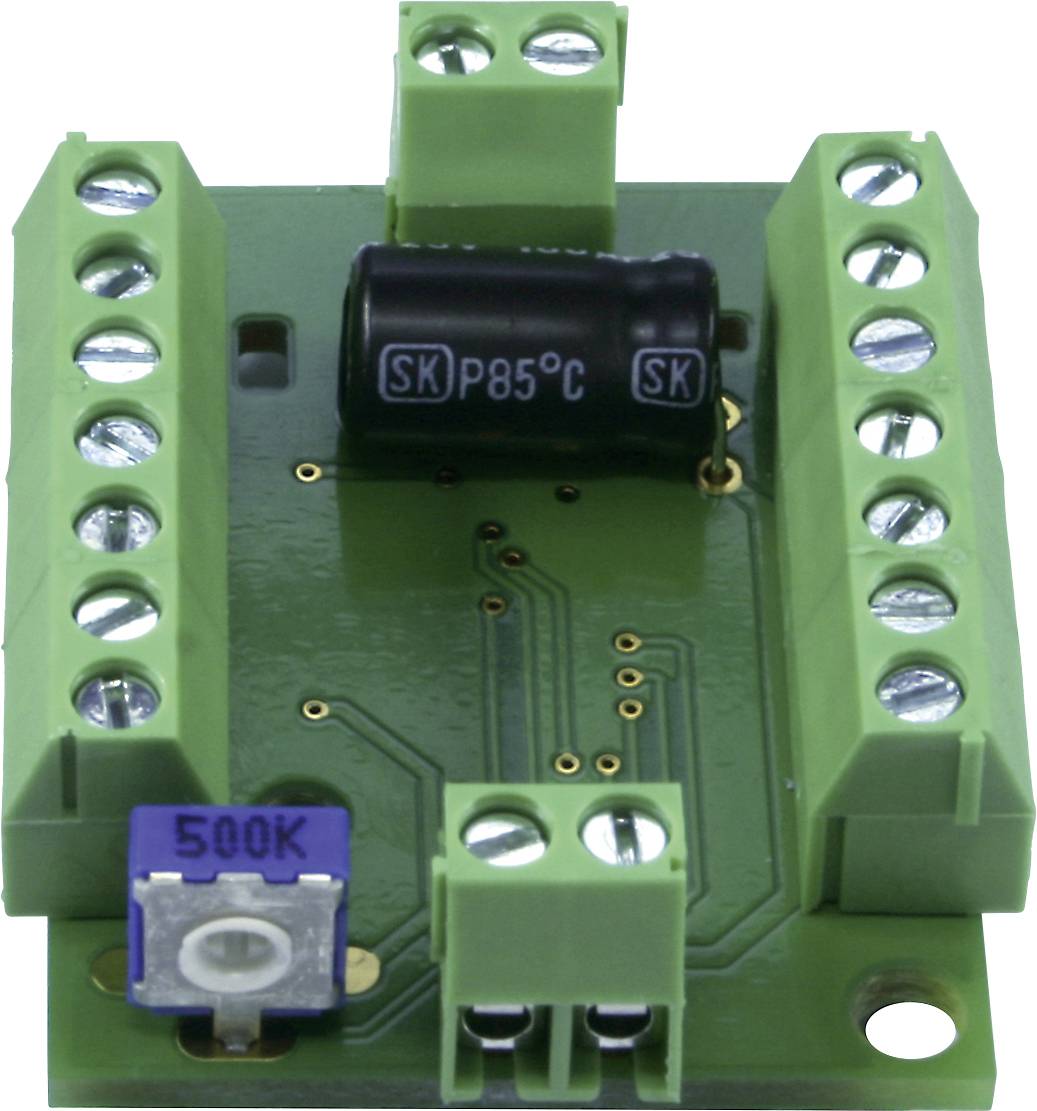

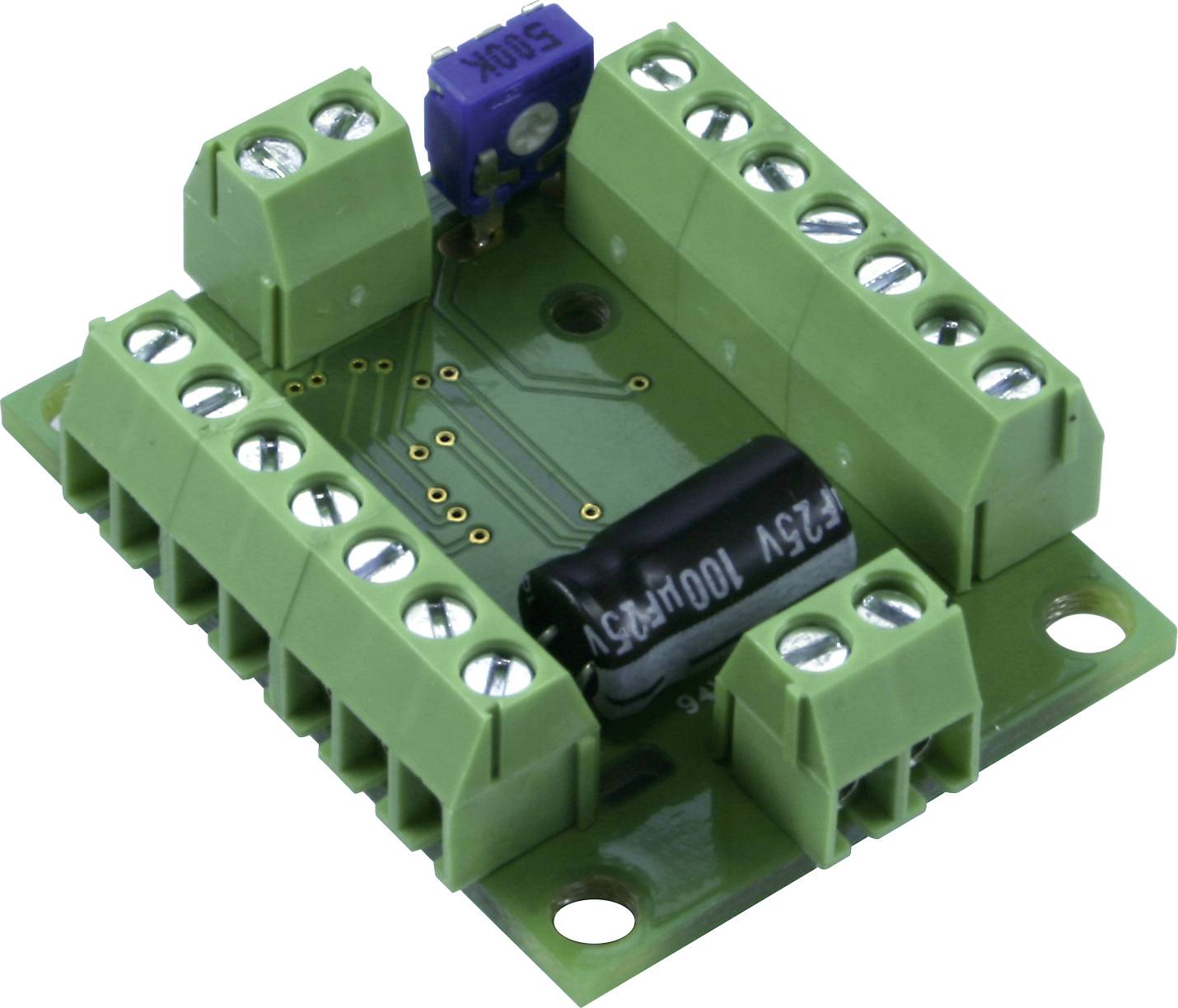

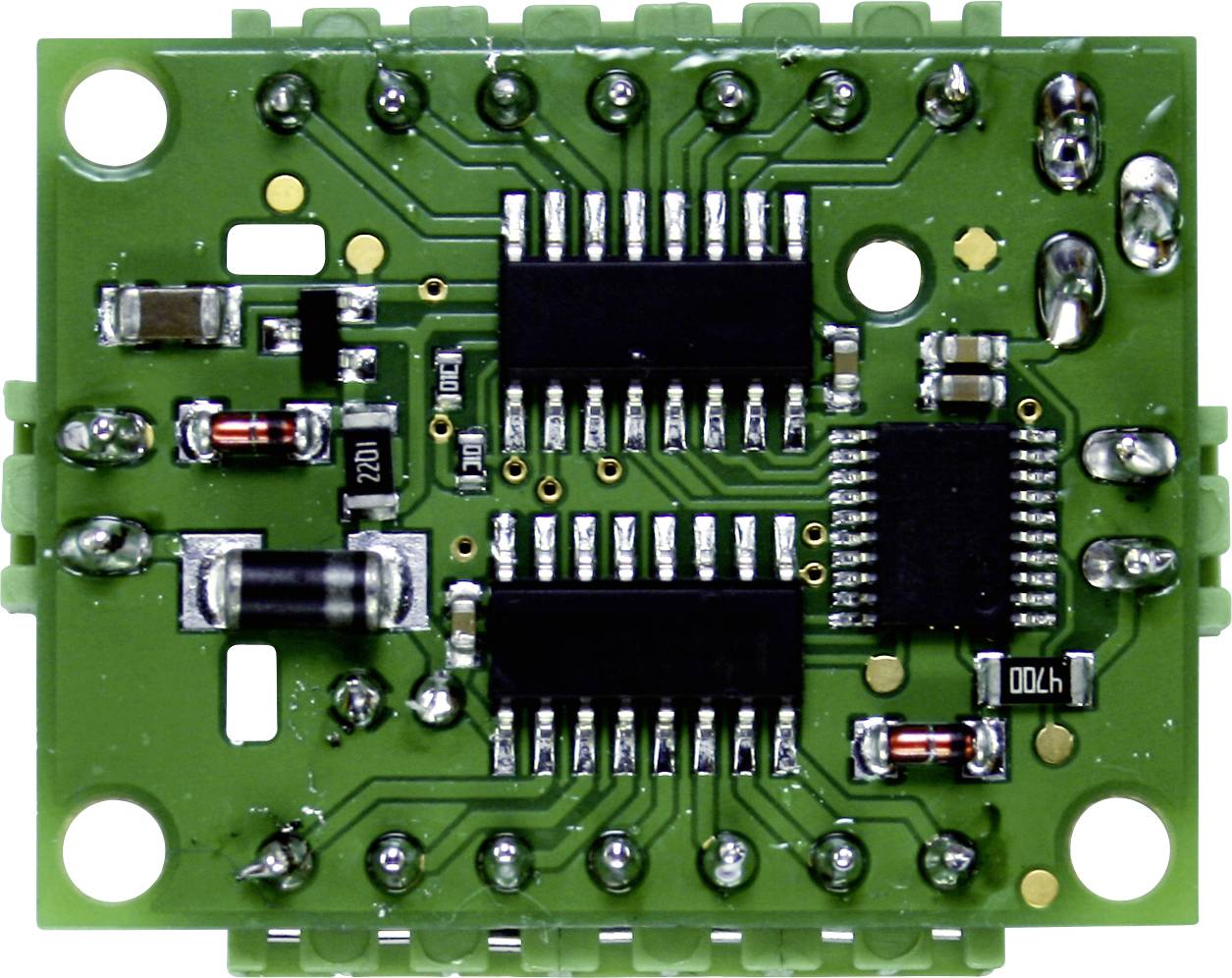

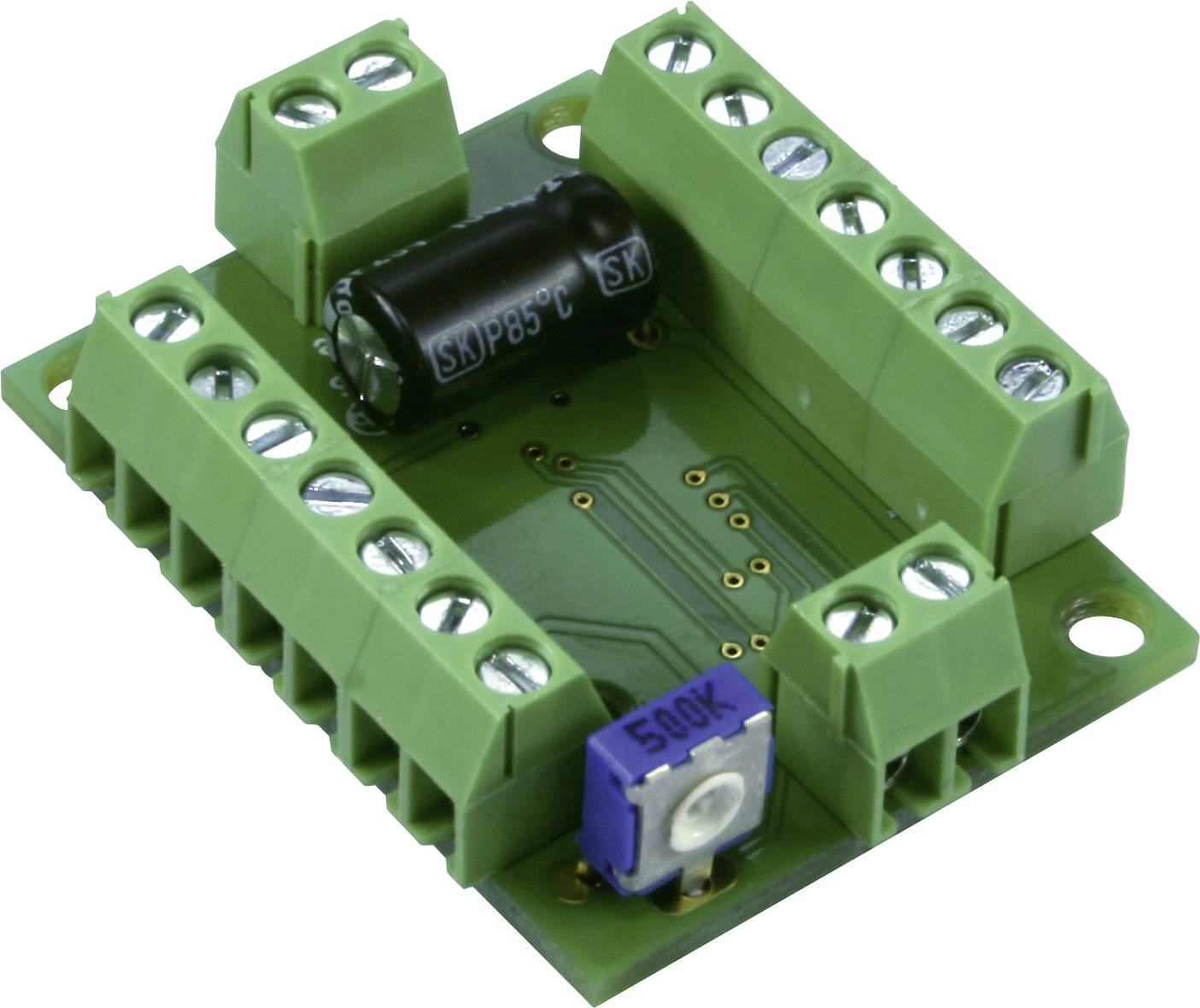

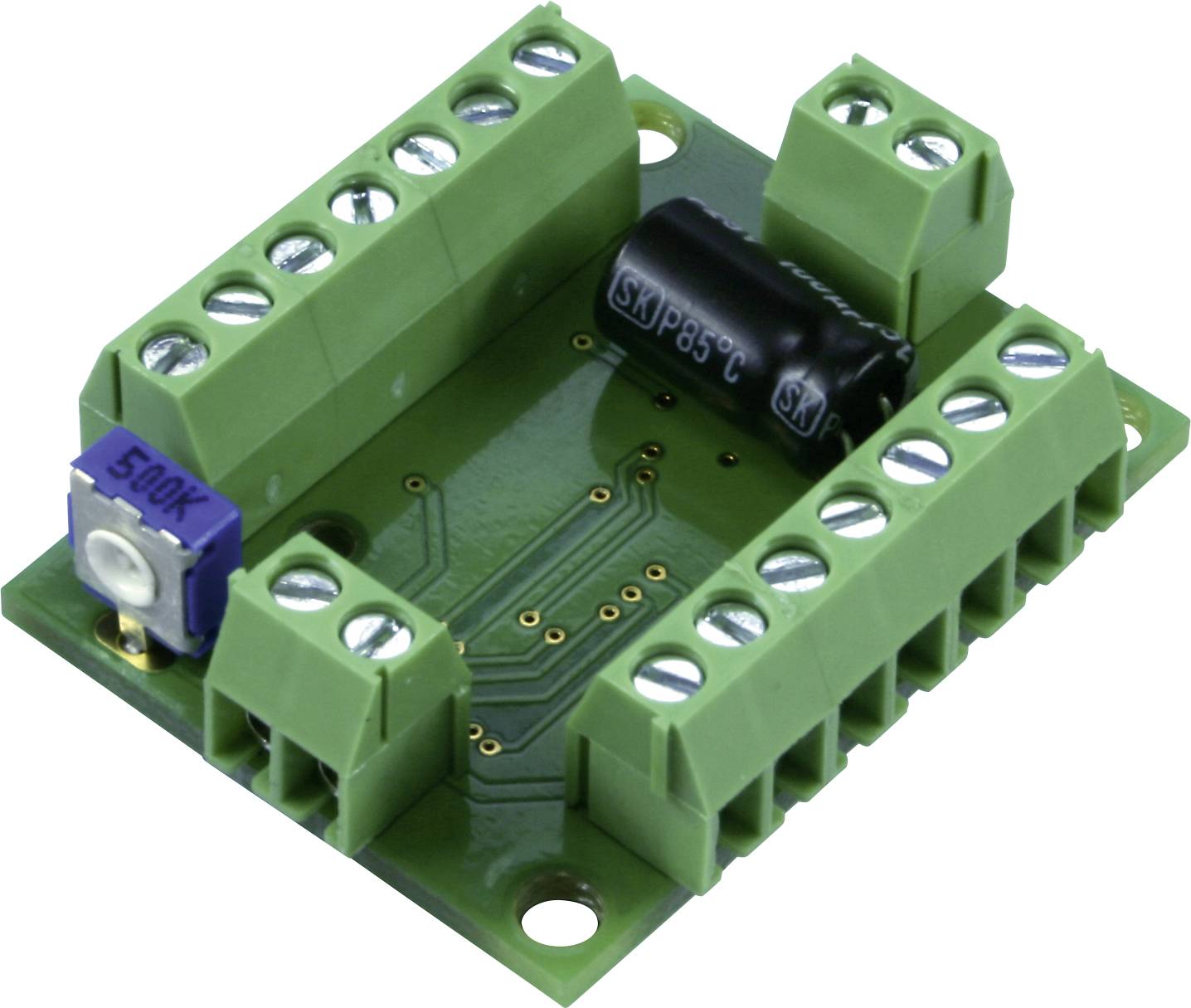

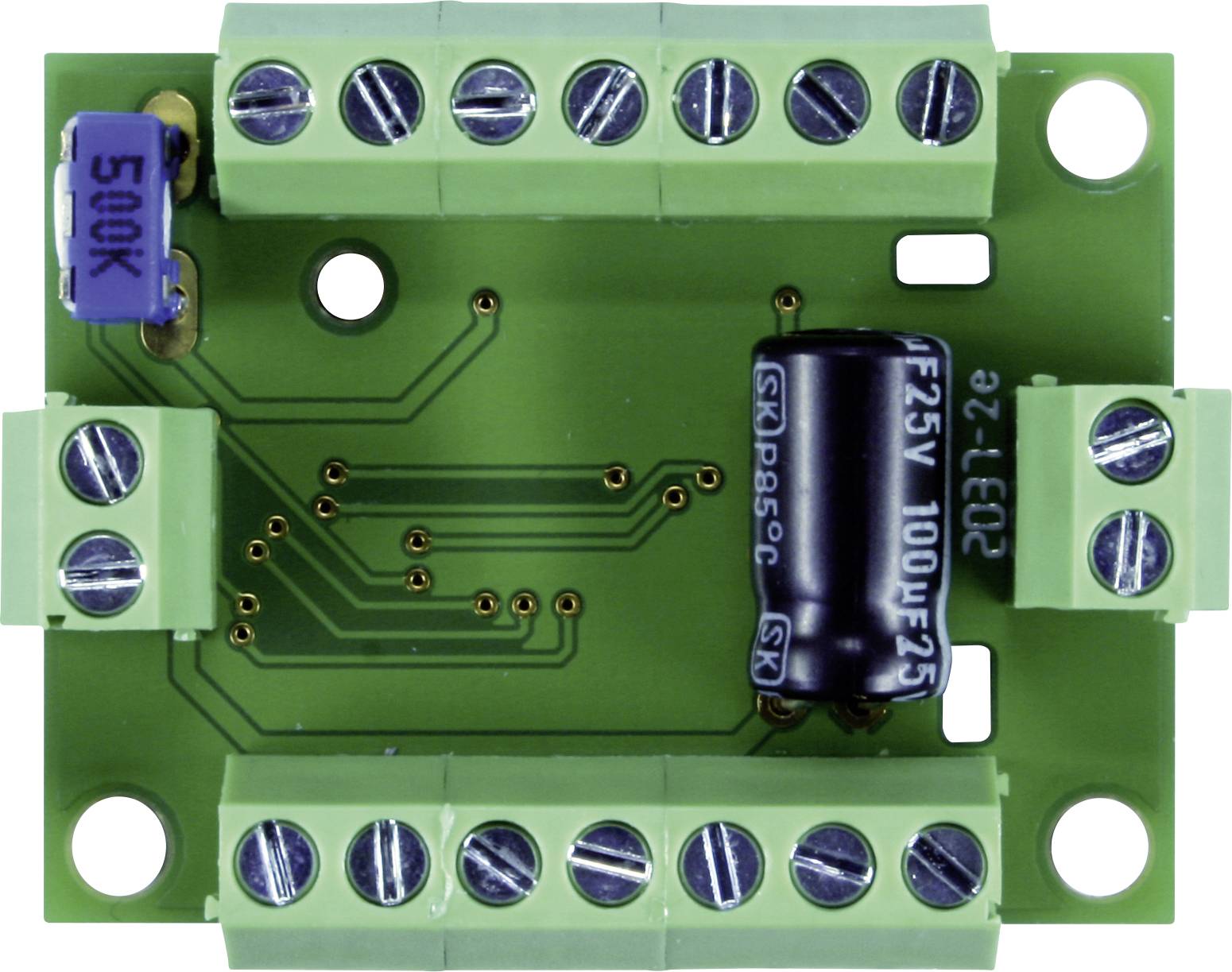

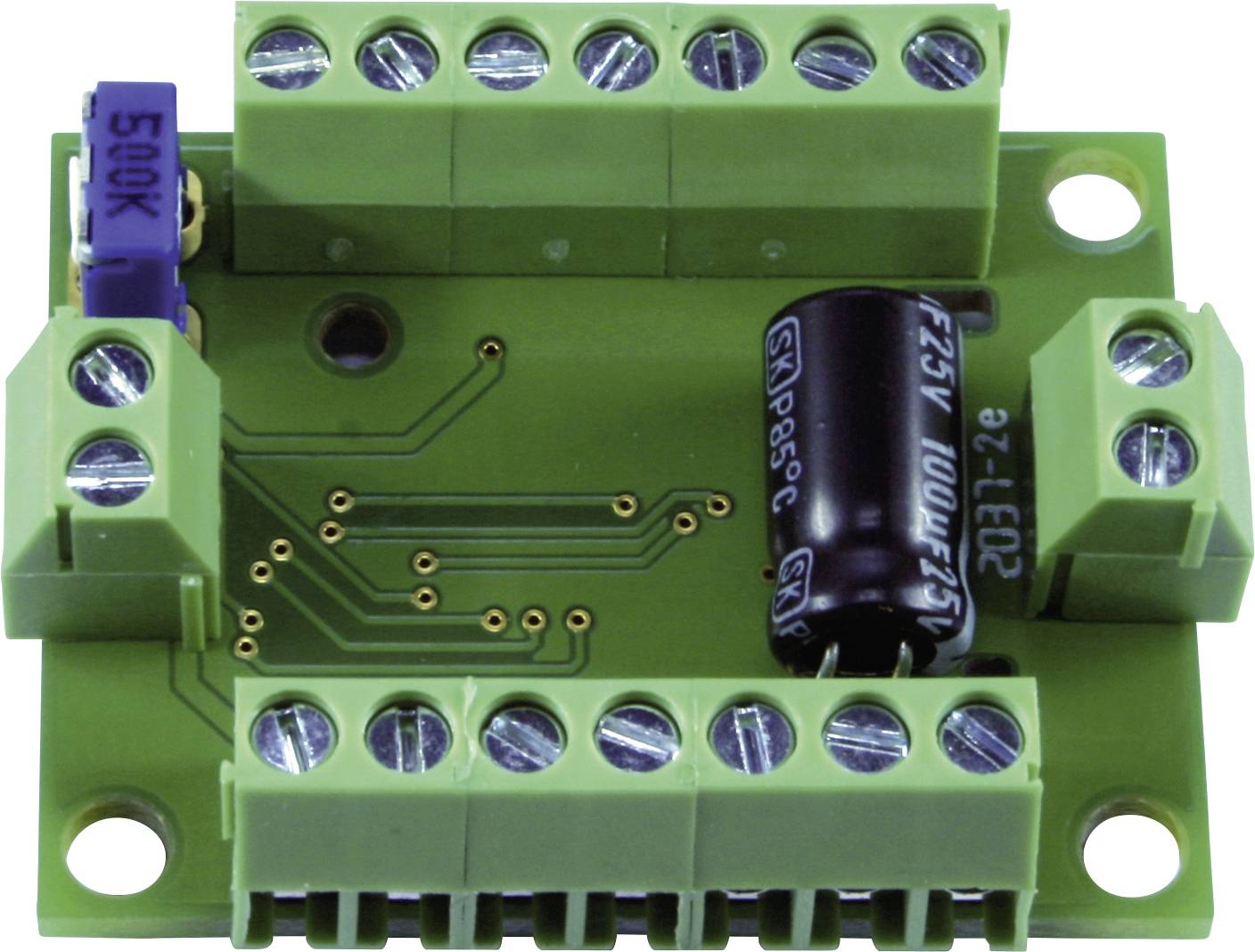

Name: TAMS Elektronik 53-04076-01-C BST LC-NG-07 Flashing control circuits Construction site flash 1 pc(s)
Brand: TAMS Elektronik
SKU: 2373296
Availability: InStock

Technical specifications

Size: Universal

Product type: Flashing control circuits

Functions: Construction site flash

Type: Prefab component

Age category: 15 years and over

Manufacturer part #: 53-04076-01-C

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2373296 TAMS Elektronik 53-04076-01-C BST LC-NG-07 Flashing control circuits Construction site flash 1 pc(s)

Warranty Terms

Warranty Terms 2373296 TAMS Elektronik 53-04076-01-C BST LC-NG-07 Flashing control circuits Construction site flash 1 pc(s)

Description

For the prototypical protection of a complete construction site (running lights of the blocking station, warning lights of a construction site vehicle with trailer etc.) and the control of two servos (e.g. for a crane and a road roller).

This text is machine translated.

Features

14 outputs (max. 200 mA each), of which:
7 outputs at which the running light typical of the barrier station is produced*
5 outputs for further warning lights with different light effects: Fast flashing (approx. 1 Hz), slow flashing (approx. 0.5 Hz), rising and coming off light, flash light*
2 outputs for connecting servos (e.g. for controlling a crane and a road roller). The signals for the two servos are sent either automatically after random long pauses or after a short earth impulse at the switching input. Note: An external power supply is required for the servos (e.g. Servo board Conrad Item No. 499661)
*Lighting outputs for connecting incandescent lamps or LEDs (via series resistors)
Maximal total current: 1,000 mA
Using the switching input: Triggering the servos
Using the trim potentiometer: Sets the speed of the running lights
Supply voltage: 12 - 18 V AC or 10 - 22 V DC.

Hints

Lamps, LEDs, servos and power supply for servos are not included in the delivery.
