Buy TAMS Elektronik 53-04115-01-C BSA LC-NG-11 Bausatz Flashing control circuits Flickering flames and candles 1 pc(s)

Green electronic circuit board with capacitor and resistor, connection terminals on all sides, marked circuits visible.

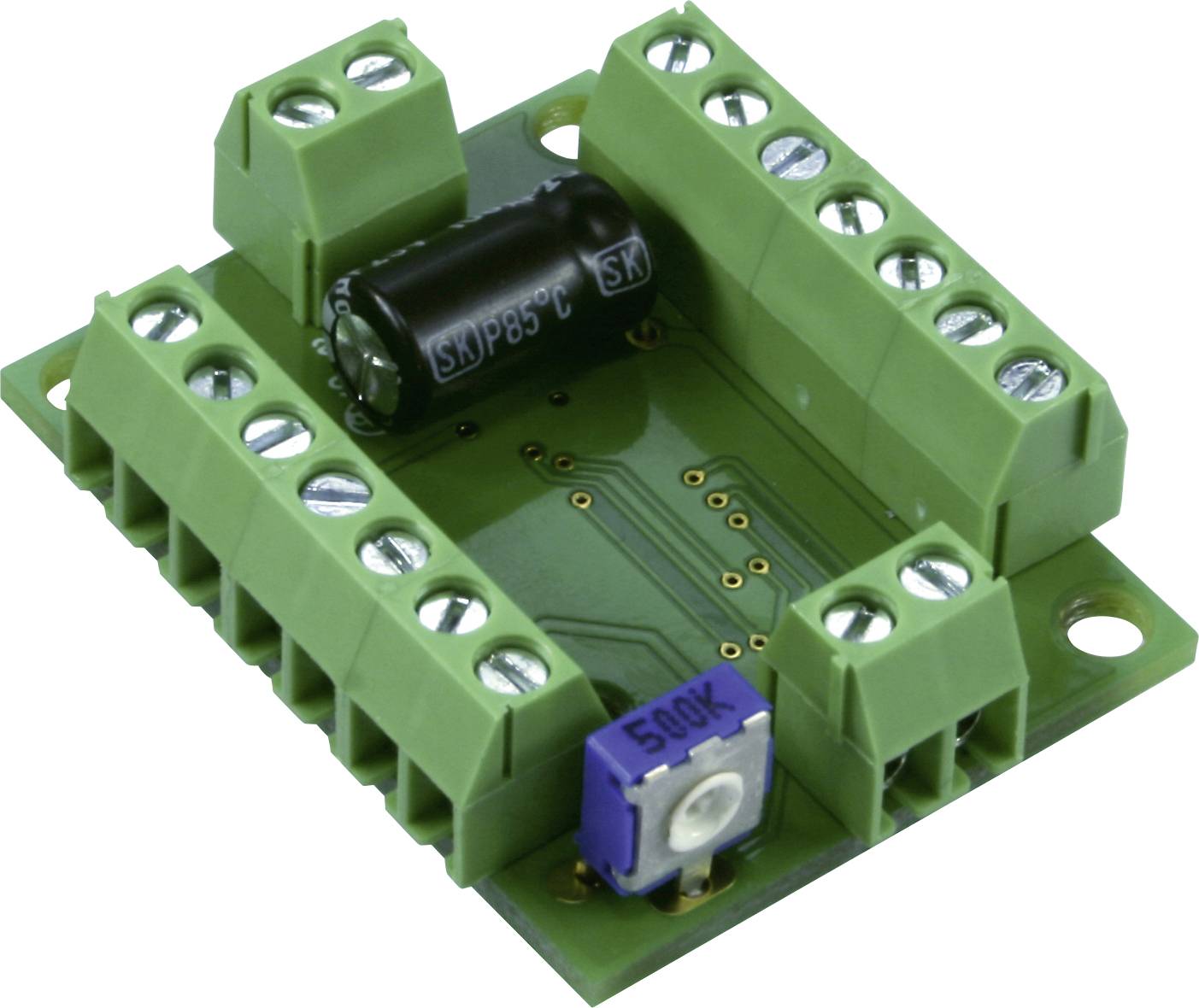

A green electronic circuit board with multiple terminal screws, a black capacitor, and a blue potentiometer.

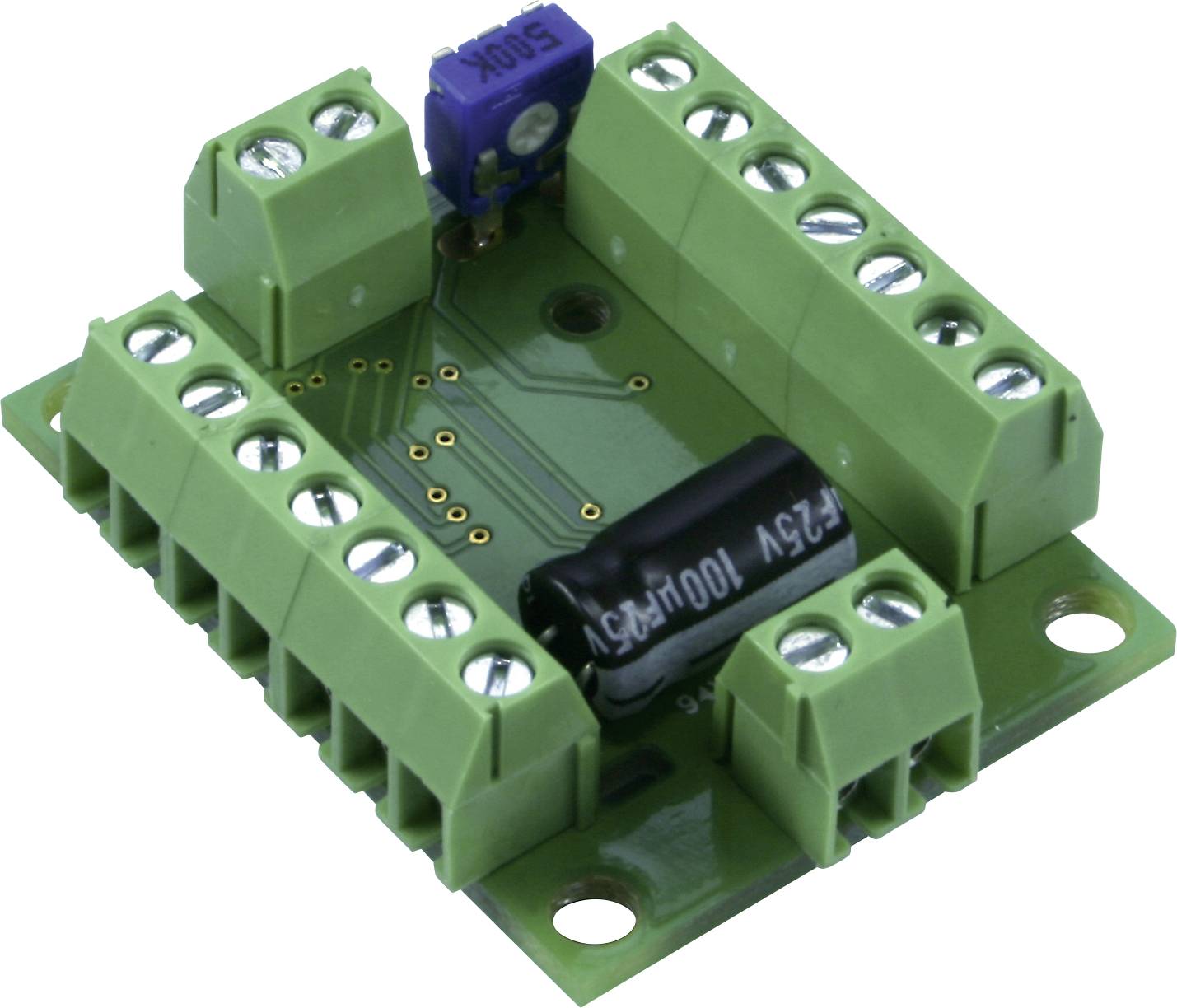

Green electronic circuit board with multiple terminal blocks and a small axial capacitor on it. Used for electrical connection.

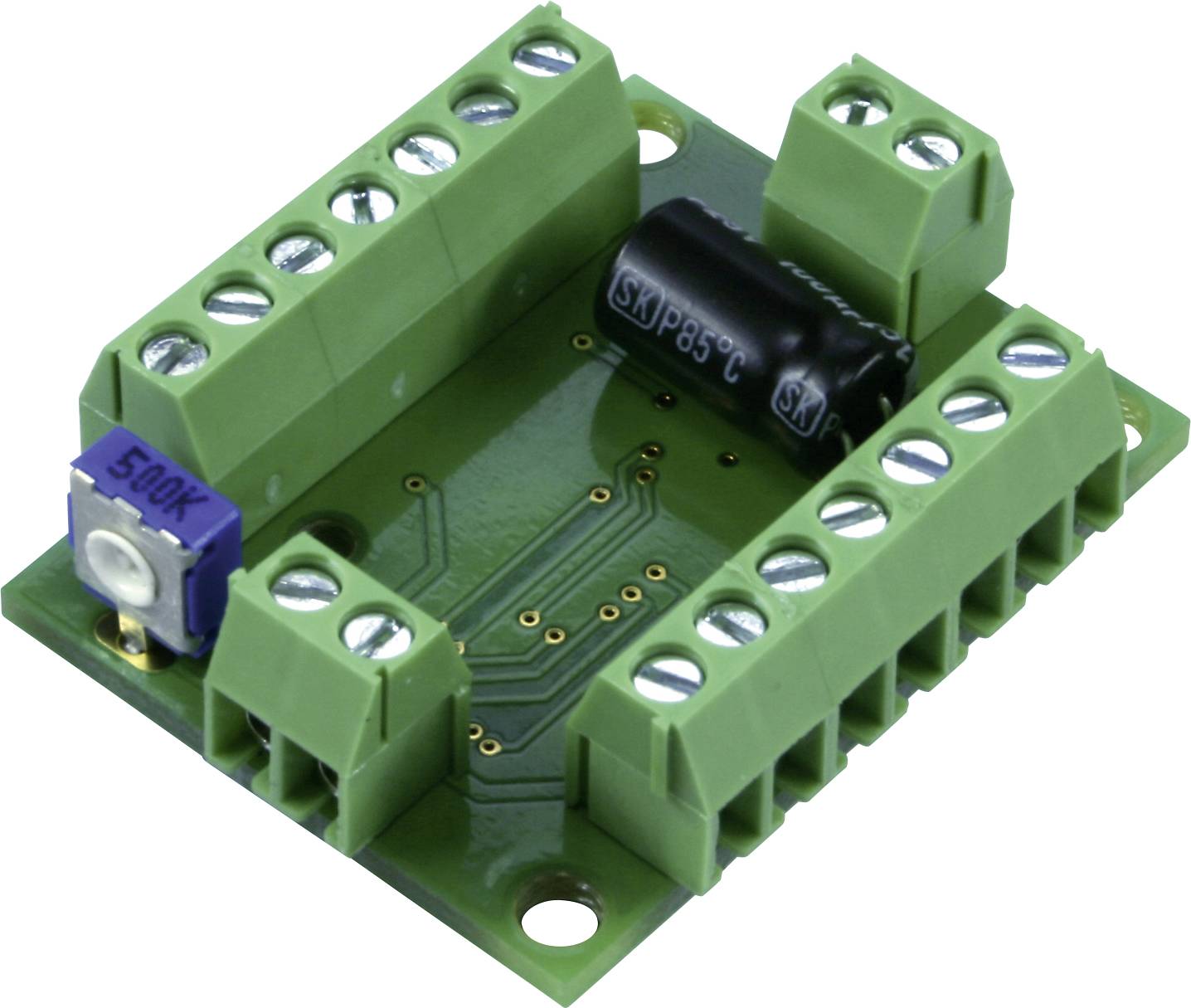

Printed circuit board with several green connectors and a rotary potentiometer marked '500K', along with a black capacitor.

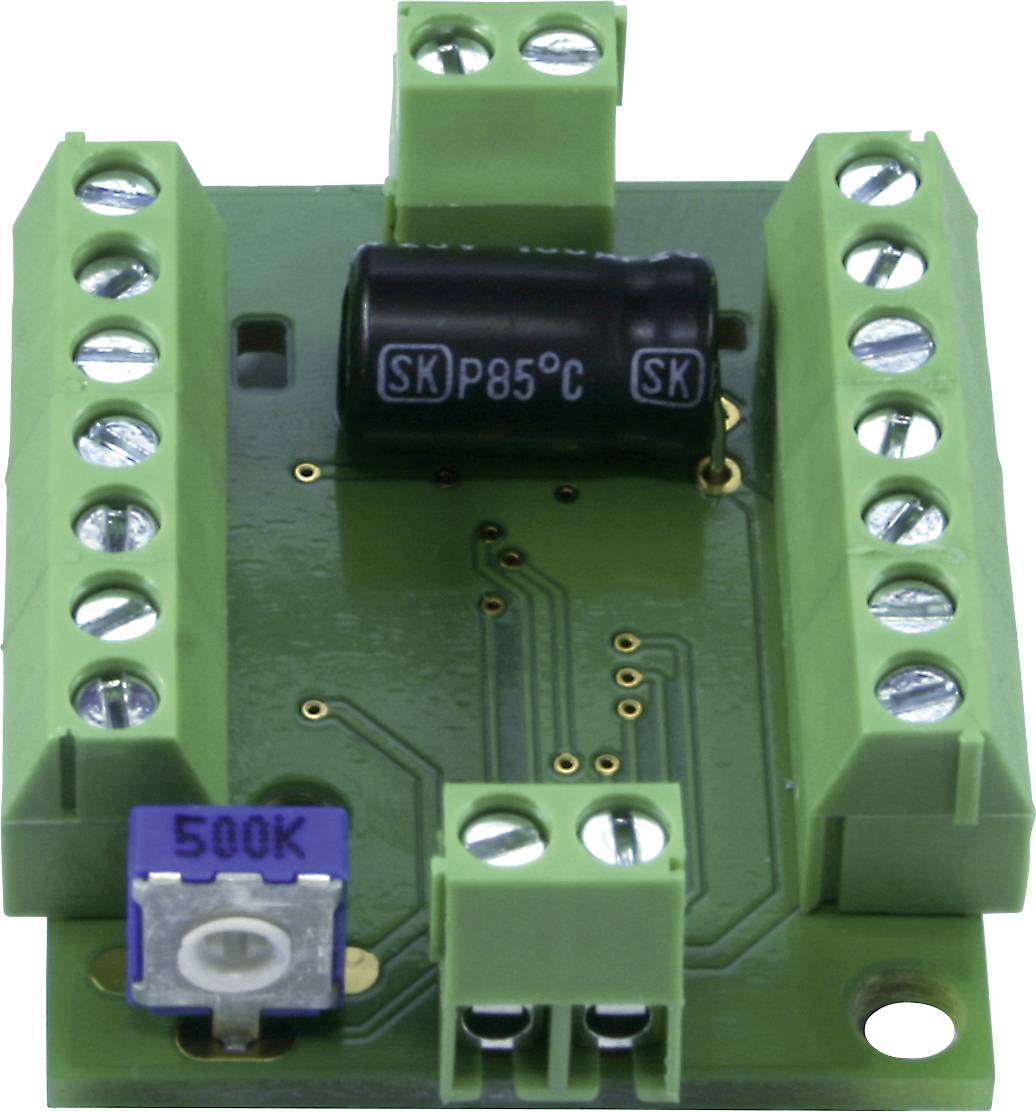

Small green circuit board with multiple screw terminals and a black capacitor in the centre, marked with '500K'.

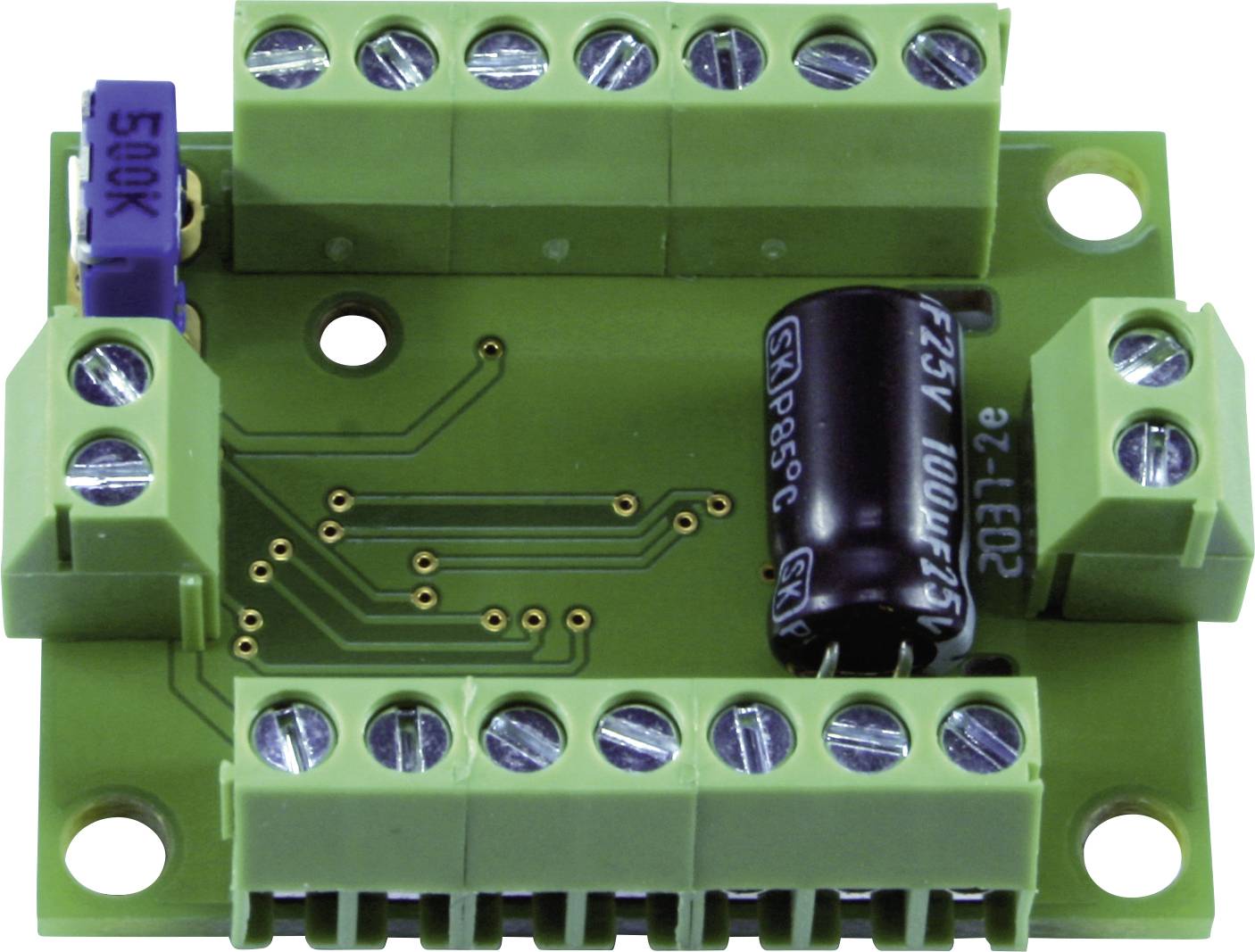

Green electronic circuit board with multiple screw terminals and a black cylindrical capacitor.

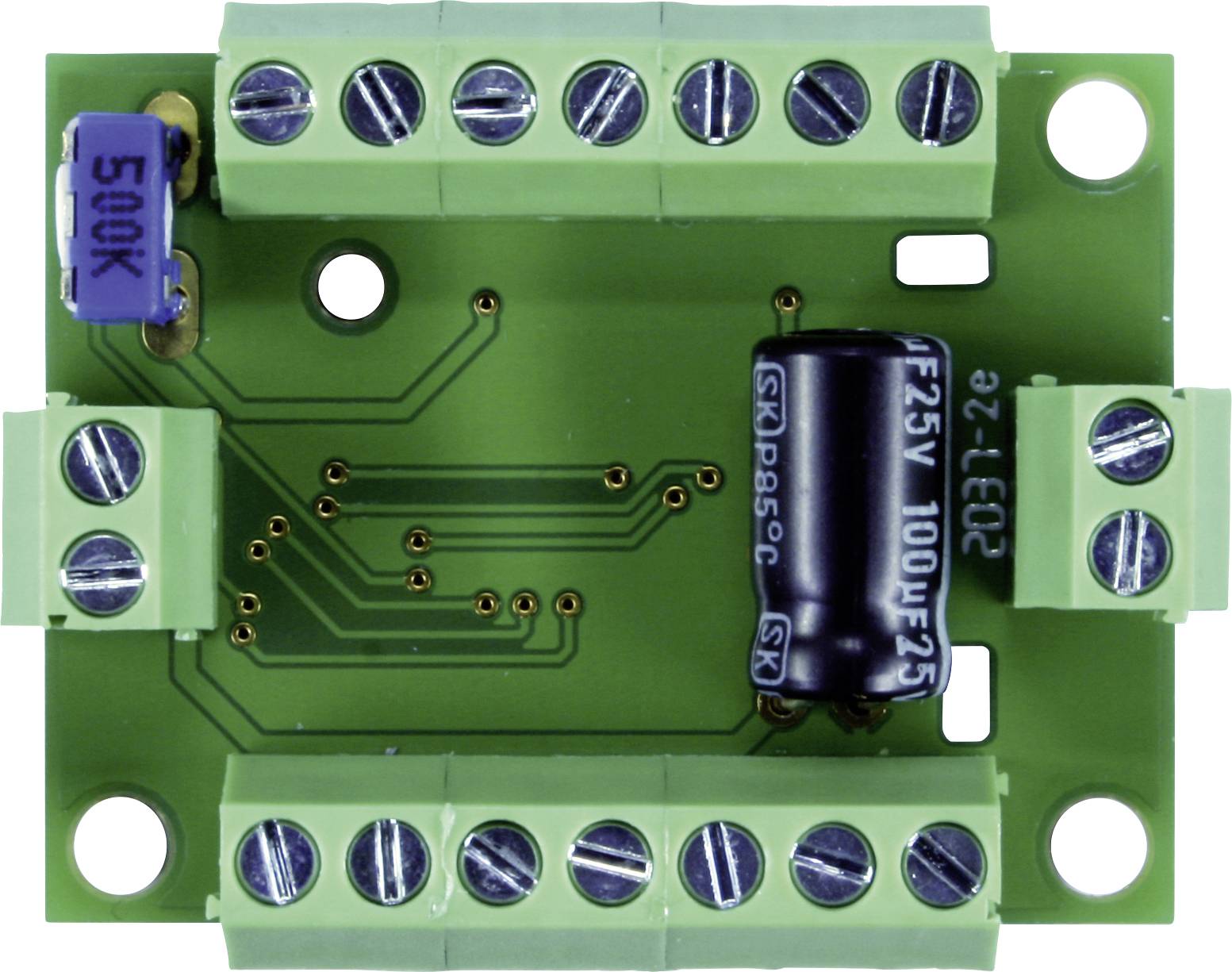

Green printed circuit board with multiple connection points, a 500k potentiometer and a black capacitor, labelled 'F25V 100μF25'.

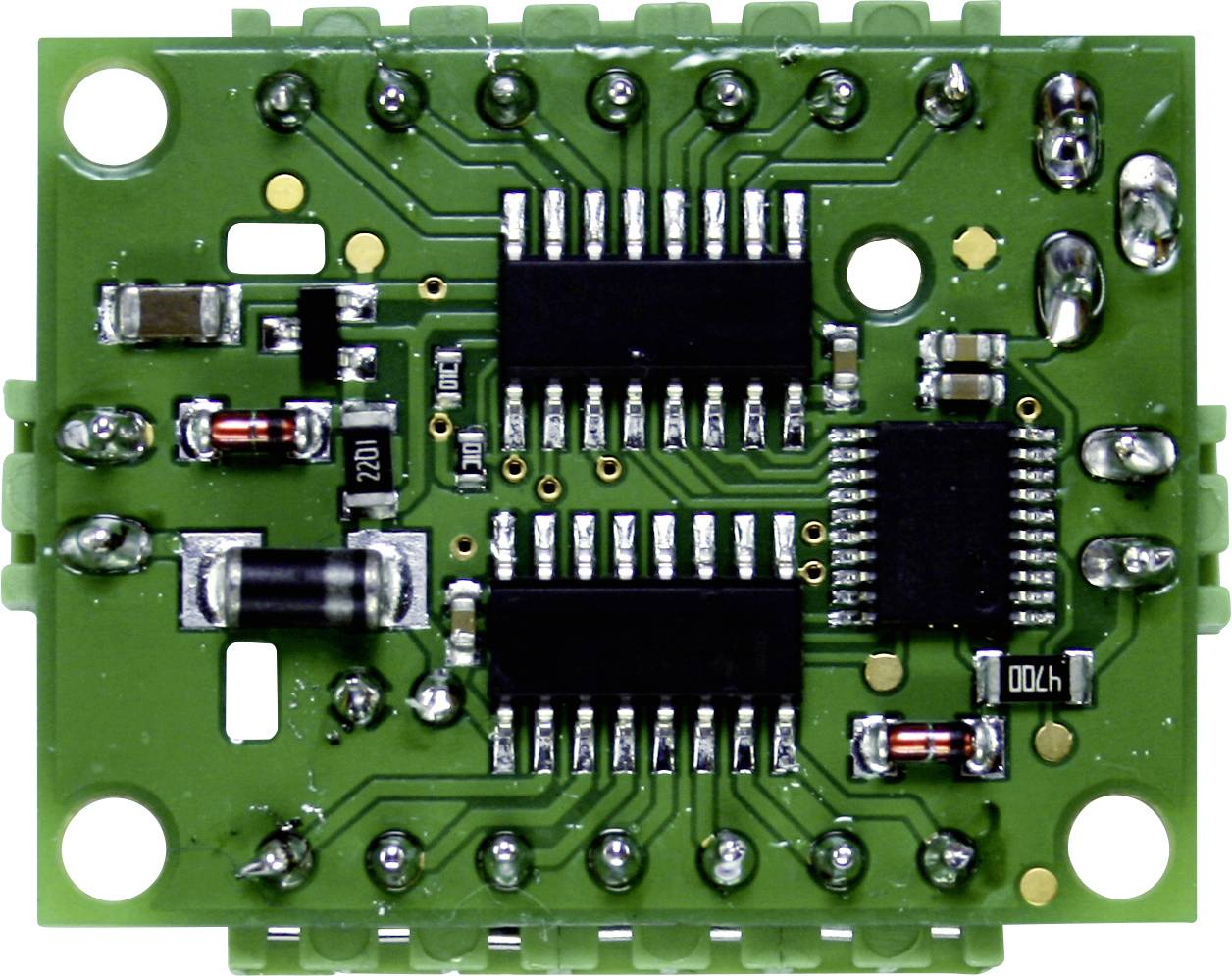

A green printed circuit board with multiple electronic components, including microchips, capacitors, and resistors, visible.

1/8

Fast track dispatch on Wed, 23 Sep

26 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 16.80 / piece)

€ 16.80

plus VAT.

14-day return policy included

Report legal concerns

Technical specifications

Size: Universal

Product type: Flashing control circuits

Functions: Flickering flames and candles

Type: Assembly kit

Age category: 15 years and over

Type: Assembly Kit

Manufacturer part #: 53-04115-01-C

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2373287 TAMS Elektronik 53-04115-01-C BSA LC-NG-11 Bausatz Flashing control circuits Flickering flames and candles 1 pc(s)

Warranty Terms

Warranty Terms 2373287 TAMS Elektronik 53-04115-01-C BSA LC-NG-11 Bausatz Flashing control circuits Flickering flames and candles 1 pc(s)

Description

Simulation of the typical flickering of open fires or candles at the outputs. Switching on the outputs in pairs to generate the effect of a blazing fire. Switch off the outputs in pairs to simulate the fire.

This text is machine translated.

Features

14 outputs (max. 200 mA each) for connecting incandescent lamps or LEDs (via series resistors) that simulate open flames or candle light
Maximal total current: 1,000 mA
Using the switching input: Switching the outputs on and off in pairs
Settings on the trim potentiometer: Length of the pauses between switching the output pairs on and off
Supply voltage: 12 - 18 V AC or 10 - 22 V DC.
