Name: TDE Instruments DPM72-MP+-XBEE-DIN DIN-rail mounted tester
Brand: TDE Instruments
SKU: 3031428
Availability: BackOrder

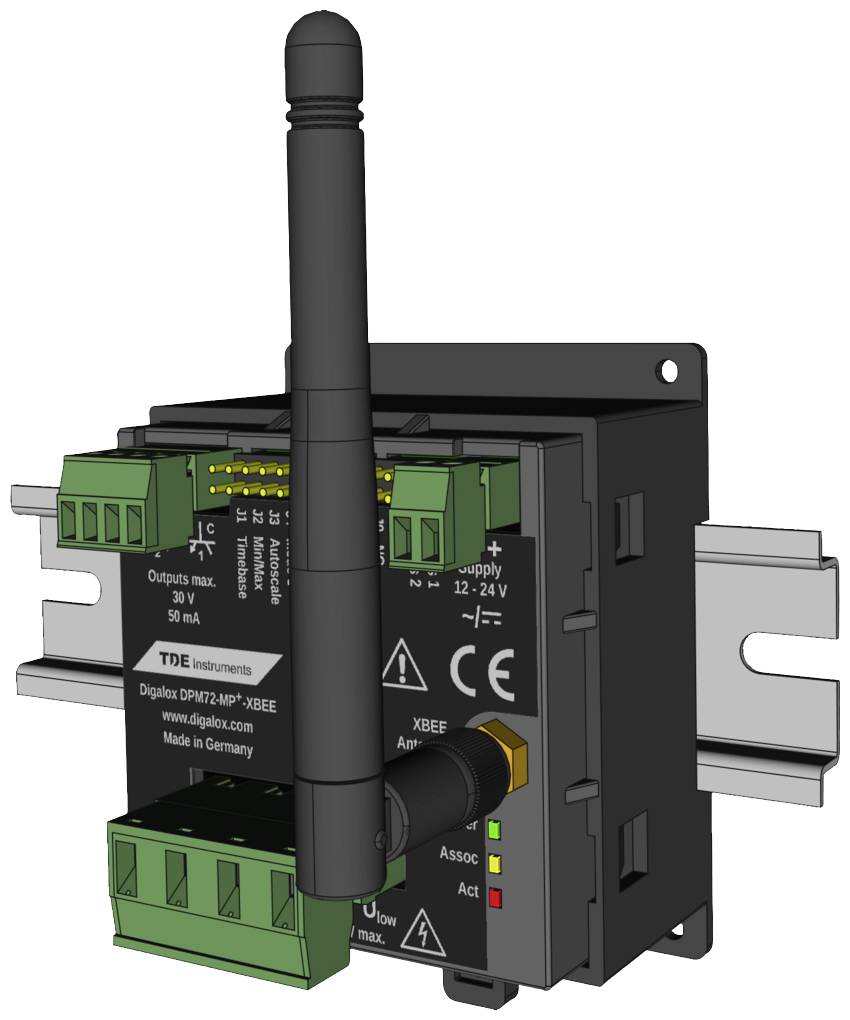

A black device mounted on the wall with an aerial and green connection terminals. It is designed for electrical connections.

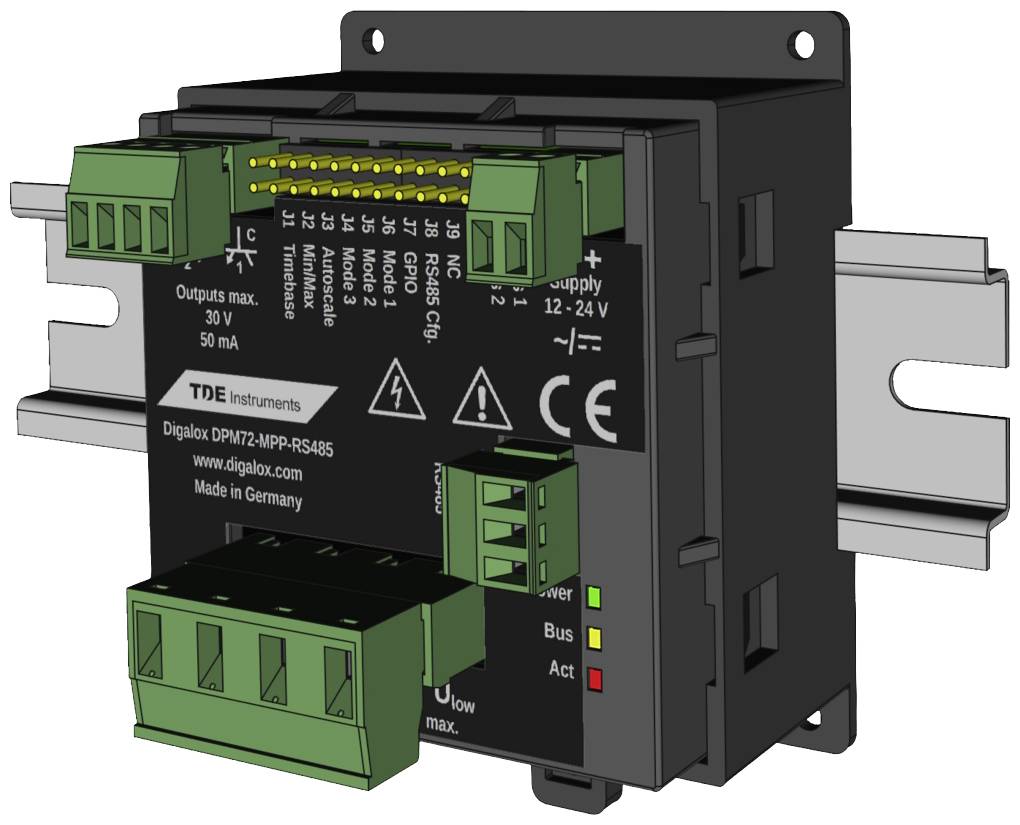

Electronic device for mounting on DIN rail, shows connections for various modules and status LEDs for power, bus, and act.

1/2

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Thu 5 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 249.99 / piece)

€ 249.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Accuracy 1%
Internal resistance voltage 2.6 MΩ
Internal resistance current 5 MΩ

Product type: DIN-rail mounted tester

Reading type: Frequency
Power
AC voltage
DC voltage
AC current
DC current
cos phi

Reading range (min.): -500 V
-10 A
10 Hz

Type: DPM72-MP+-XBEE-DIN

Reading range (max.): 500 V
10 A
1000 Hz

: IP00

Operating voltage: 12 V DC/AC
24 V DC/AC

Dim: (L x W x H) 79 x 68 x 94 mm

Weight: 116 g

Max. operating voltage: 24 V DC/AC

Min. operating voltage: 12 V DC/AC

Recess depth: 79 mm

Factory colour: Black

Width: 68 mm

Height: 94 mm

Length: 79 mm

Interfaces: XBEE

Interfaces: RS485

Documents & Downloads

Datasheet

Datasheet 3031428 TDE Instruments DPM72-MP+-XBEE-DIN DIN-rail mounted tester

User & Safety Instructions

User & Safety Instructions 3031428 TDE Instruments DPM72-MP+-XBEE-DIN DIN-rail mounted tester

Information

Information 3031428 TDE Instruments DPM72-MP+-XBEE-DIN DIN-rail mounted tester

Description

The device supports the V AC / DC, current AC / DC, frequency, power, and Cosinus phi measurement modes. Two galvanically isolated alarm outputs allow switching on or off when threshold values are reached. The device can be configured via the associated configuration software "Digalox® Manager", e.g. the threshold values for the switching outputs, hysteresis, etc. Measured values can be transmitted via XBEE wireless technology or RS485-Modbus interface depending on the model The device also has a counter with data retention. It allows operating hours meters or timers to be realized for exceeding the threshold value and undershoot, as well as ampere-hours and energy meters. The device can be mounted on DIN rails as well as on other backgrounds by using the corresponding drill holes on the housing.
