TDE Instruments DPM72-MP+-XBEE Meter
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 249.99 / piece)
€ 249.99
incl. VAT
14-day return policy included
Technical specifications
- LCD graphics display 192 x 160 pixels
- Accuracy 1%
- Internal resistance voltage 2.6 MΩ
- Internal resistance current 5 MΩ
- Product type
Meter
- Reading type
Frequency
Power
AC voltage
DC voltage
AC current
DC current
cos phi
- Reading range (min.)
-500 V
-10 A
10 Hz
- Type
DPM72-MP+-XBEE
- Reading range (max.)
500 V
10 A
1000 Hz
- Display technology
LCD
IP65
IP00
- Operating voltage
12 V DC/AC
24 V DC/AC
- Dim
(L x W x H) 76 x 72 x 72 mm
- Weight
162 g
- Max. operating voltage
24 V DC/AC
- Min. operating voltage
12 V DC/AC
- Display lighting
RGB
- Features
Colour display
- Recess depth
73 mm
- Factory colour
Black
- Width
72 mm
- Height
72 mm
- Length
76 mm

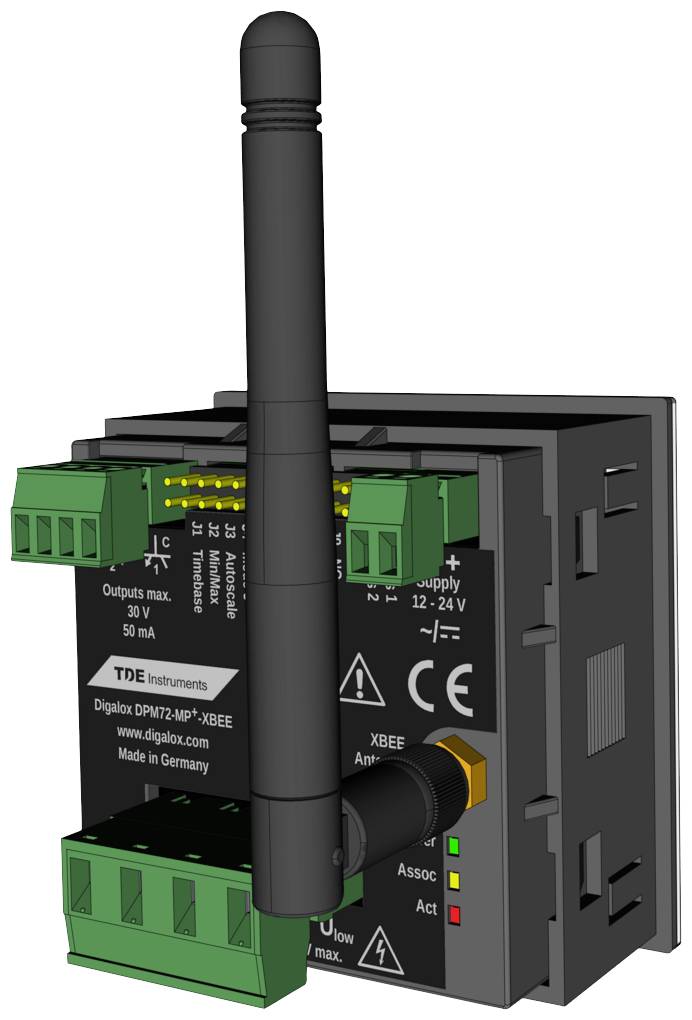

- Interfaces
XBEE
Documents & Downloads
Datasheet
Datasheet 3031427 TDE Instruments DPM72-MP+-XBEE Meter
User & Safety Instructions
User & Safety Instructions 3031427 TDE Instruments DPM72-MP+-XBEE Meter
Information
Information 3031427 TDE Instruments DPM72-MP+-XBEE Meter
Description

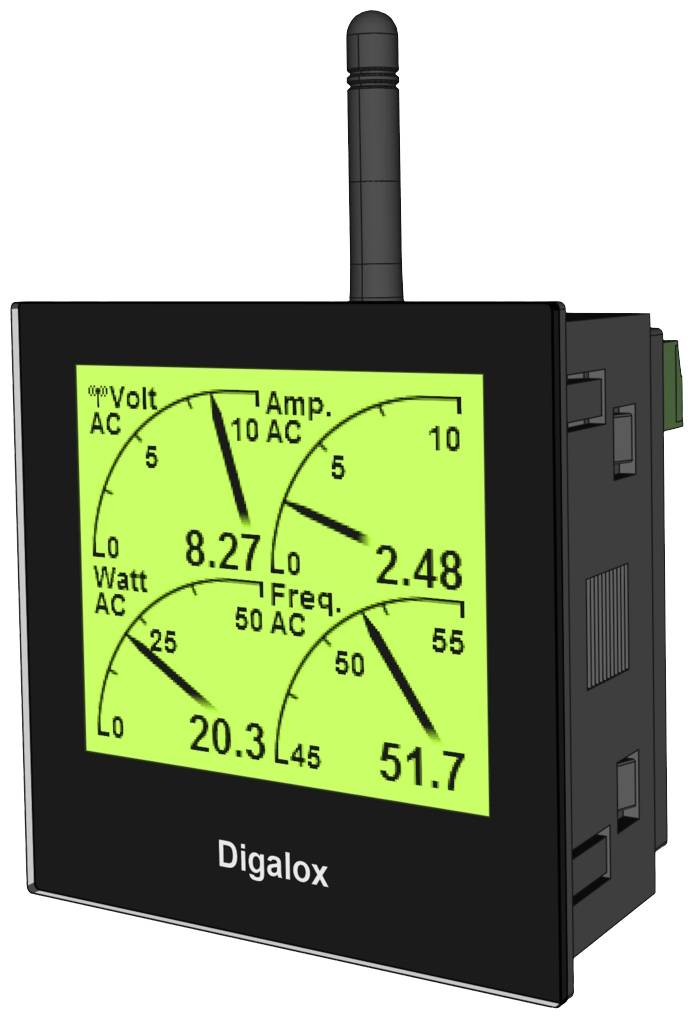

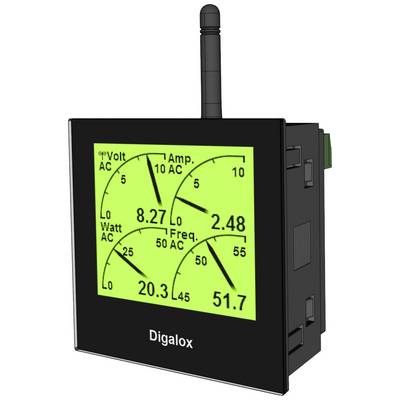

The multiple display with RGB backlighting can display up to four parameters simultaneously and provide color warning to the thresholds. Supports Volt AC/DC, AC/DC, frequency, power and Cosinus phi measurement modes. The device can be switched between the individual measuring functions via switching contact in operation. Minute and max values of up to four parameters are recorded and can be displayed and reset via jumper or external switch. The device records measured values for a period from 36 seconds up to 14 days. The time range and the display of the progression graphics can be switched over via the switching contact. The measured values remain stored as long as the device is supplied with power.
This text is machine translated.
This text is machine translated.
