Name: TDE Instruments DPM72-MPN+-XBEE Meter
Brand: TDE Instruments
SKU: 3031429
Availability: InStock

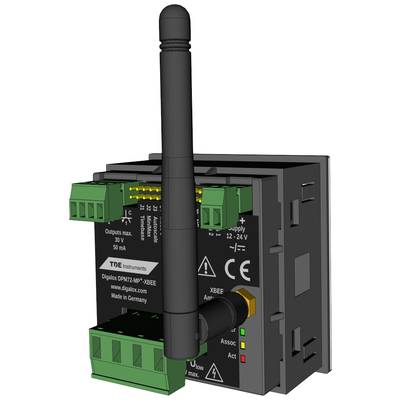

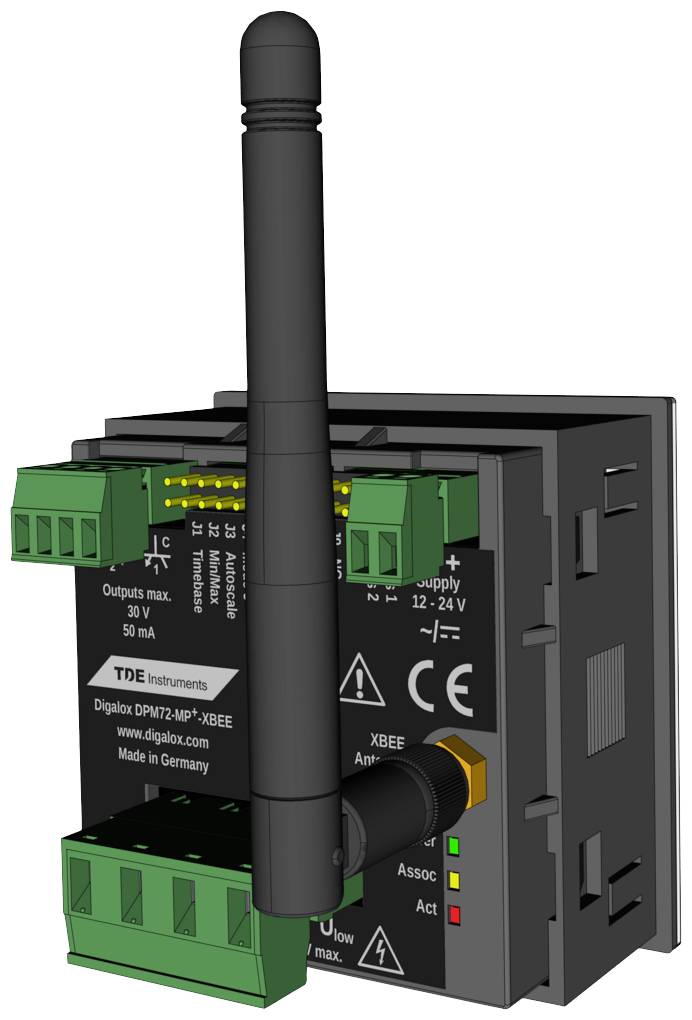

Electronic device with an antenna and several green connection terminals, with LEDs and symbols for input and output voltages displayed.

1/2

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

3 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 209.99 / piece)

€ 209.99

incl. VAT

Only 3 Piece(s) available

14-day return policy included

Report legal concerns

Technical specifications

LCD graphics display 192 x 160 pixels
Accuracy 1%
Internal resistance voltage 2.6 MΩ
Internal resistance current 20 kΩ

Product type: Meter

Reading type: Frequency
Power
AC voltage
DC voltage
AC current
DC current
cos phi

Reading range (min.): -500 V
10 Hz

Type: DPM72-MPN+-XBEE

Reading range (max.): 500 V
1000 Hz

Display technology: LCD

: IP65
IP00

Operating voltage: 12 V DC/AC
24 V DC/AC

Dim: (L x W x H) 76 x 72 x 72 mm

Weight: 162 g

Max. operating voltage: 24 V DC/AC

Min. operating voltage: 12 V DC/AC

Display lighting: RGB

Features: Reset function
Colour display

Recess depth: 73 mm

Factory colour: Black

Width: 72 mm

Height: 72 mm

Length: 76 mm

Interfaces: XBEE

Documents & Downloads

Datasheet

Datasheet 3031429 TDE Instruments DPM72-MPN+-XBEE Meter

User & Safety Instructions

User & Safety Instructions 3031429 TDE Instruments DPM72-MPN+-XBEE Meter

Information

Information 3031429 TDE Instruments DPM72-MPN+-XBEE Meter

Description

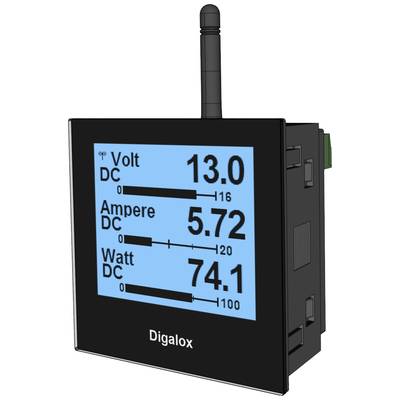

The multiple display with RGB backlighting can display up to four parameters simultaneously and provide color warning to the thresholds. Supports Volt AC/DC, AC/DC, frequency, power and Cosinus phi measurement modes. The device can be switched between the individual measuring functions via switching contact in operation. Minute and max values of up to four parameters are recorded and can be displayed and reset via jumper or external switch. The device records measured values for a period from 36 seconds up to 14 days. The time range and the display of the progression graphics can be switched over via the switching contact. The measured values remain stored as long as the device is supplied with power.

This text is machine translated.
