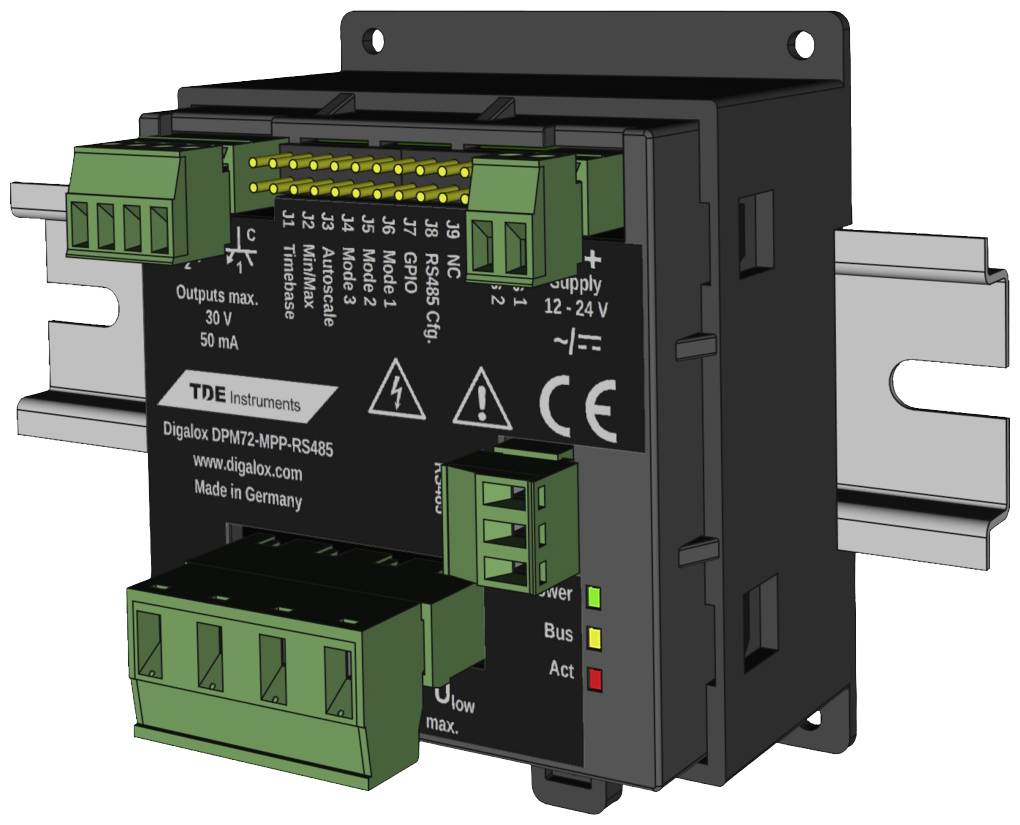

TDE Instruments DPM72-MPP-XBEE-DIN Analogue rack-mount meter
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 249.99 / piece)
€ 249.99
incl. VAT
14-day return policy included
Technical specifications
- Accuracy 0.5 %
- Internal resistance voltage 102 kΩ
- Internal resistance current 6.2 Ω
- Product type
Analogue rack-mount meter
- Reading type
AC voltage
DC voltage
AC current
DC current
- Reading range (min.)
-30 V
-100 mA
- Type
DPM72-MPP-XBEE-DIN
- Reading range (max.)
30 V
100 mA
IP00
- Operating voltage
12 V DC/AC
24 V DC/AC
- Dim
(L x W x H) 79 x 68 x 94 mm
- Weight
116 g
- Max. operating voltage
24 V DC/AC
- Min. operating voltage
12 V DC/AC
- Recess depth
79 mm
- Factory colour
Black
- Width
68 mm
- Height
94 mm
- Length
79 mm
- Interfaces
XBEE
Documents & Downloads
Datasheet
Datasheet 3031432 TDE Instruments DPM72-MPP-XBEE-DIN Analogue rack-mount meter
User & Safety Instructions
User & Safety Instructions 3031432 TDE Instruments DPM72-MPP-XBEE-DIN Analogue rack-mount meter
Information
Information 3031432 TDE Instruments DPM72-MPP-XBEE-DIN Analogue rack-mount meter
Description
Depending on the model, the analog signal (2×) measuring types 0/2 to 10 V and/or (2×) 0/4 to 20 mA AC / DC are supported. Two galvanically isolated alarm outputs allow switching on or off when threshold values are reached. The device can be configured via the associated configuration software "Digalox® Manager", e.g. the threshold values for the switching outputs, hysteresis, etc.
This text is machine translated.
This text is machine translated.
