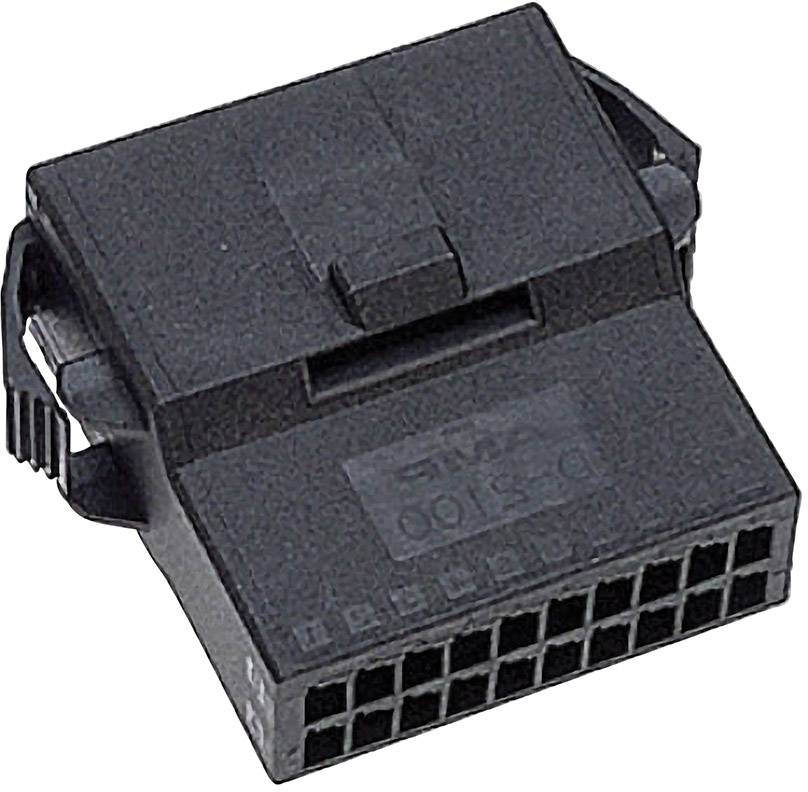

TE Connectivity Pin housing cable DYNAMIC 2000 Series Total number of pins 20 1-1318114-9 1 pc(s)
EAN:
Part number:
Item no:
Product type
Pin housing cable
Connector type
Plug, vertical mount
No. of rows
2
Series
DYNAMIC 2000 Series
Total number of pins
20
Datasheet (PDF)
Highlights & Details
Built-in pin housing DYNAMIC D-2100 D
- Content: 1 pc(s)
- No. of rows: 2
- Total number of pins: 20
Our service for you
Technical specifications
- Product type
Pin housing cable
- Connector type
Plug, vertical mount
- No. of rows
2
- Connector system
wire-to-board
- Series
DYNAMIC 2000 Series
- Pins per row
10
- Total number of pins
20
- Width
33.88 mm
- Pin shape
Rectangular
- Nominal current
3.2 A
- Nominal current - rounded value
3.2 A
- Content
1 pc(s)
- Dim
(L x W x H) 13.2 x 33.88 x 30.69 mm
- Connection
Print
- Code
X
- Case material
Polyester
- Manufacturer part #
1-1318114-9
- Factory colour
Black
- Industrial packaging
No
- Insulation material
Polyester
- Connector contact surface
Tin plated
- Nominal voltage
250 V AC
250 V DC
- Height
30.69 mm
- Length
13.2 mm
- RoHS-compliant
Yes
- Max. temperature
+105 °C
- Min. temperature
-55 °C
- Type
DYNAMIC D-2100D
