TE Connectivity Built-in pin strip (precision) DYNAMIC 2000 Series Total number of pins 6 1376136-1 1 pc(s)

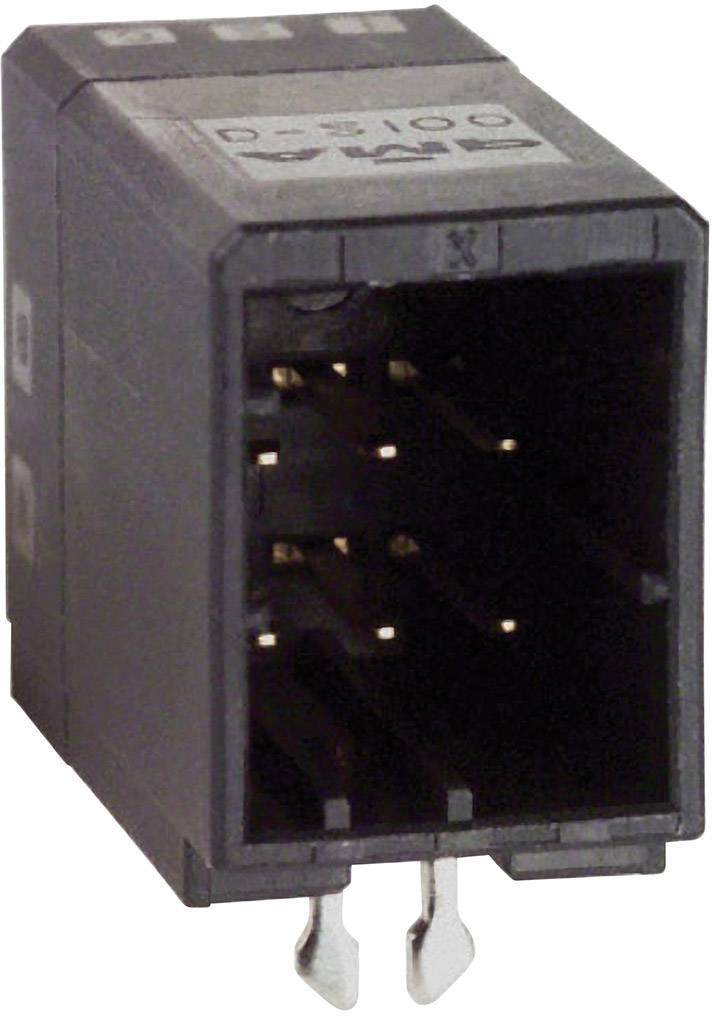

A black electric relay with multiple contact pins for connection to a circuit board.
Image similar
Product type
Built-in pin strip (precision)
Connector type
Plug, horizontal mount
No. of rows
2
Series
DYNAMIC 2000 Series
Total number of pins
6
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 3.79 / piece)
€ 3.79
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Pin base DYNAMIC D-2100 D

  • Content: 1 pc(s)
  • No. of rows: 2
  • Total number of pins: 6

Our service for you

  • A stylised logo with letters and a small circle. The background is white, with the depicted form in black.
  • CSA mark in black and white, showing the CSA seal for product safety certifications.

Technical specifications

Product type

Built-in pin strip (precision)

Connector type

Plug, horizontal mount

No. of rows

2

Connector system

wire-to-wire

Series

DYNAMIC 2000 Series

Pins per row

3

Total number of pins

6

Width

20.19 mm

Pin shape

Rectangular

Nominal current

5 A

Nominal current - rounded value

5 A

Content

1 pc(s)

Dim

(L x W x H) 10.2 x 20.19 x 13.2 mm

Connection

Print

Code

X

Case material

Polyester

Manufacturer part #

1376136-1

Factory colour

Black

Industrial packaging

No

Insulation material

Polyester

Contact material

Copper alloy

Connector contact surface

Gold plated

Nominal voltage

250 V AC

250 V DC

Height

13.2 mm

Length

10.2 mm

RoHS-compliant

Yes

Max. temperature

+105 °C

Min. temperature

-55 °C

Type

DYNAMIC D-2100D
