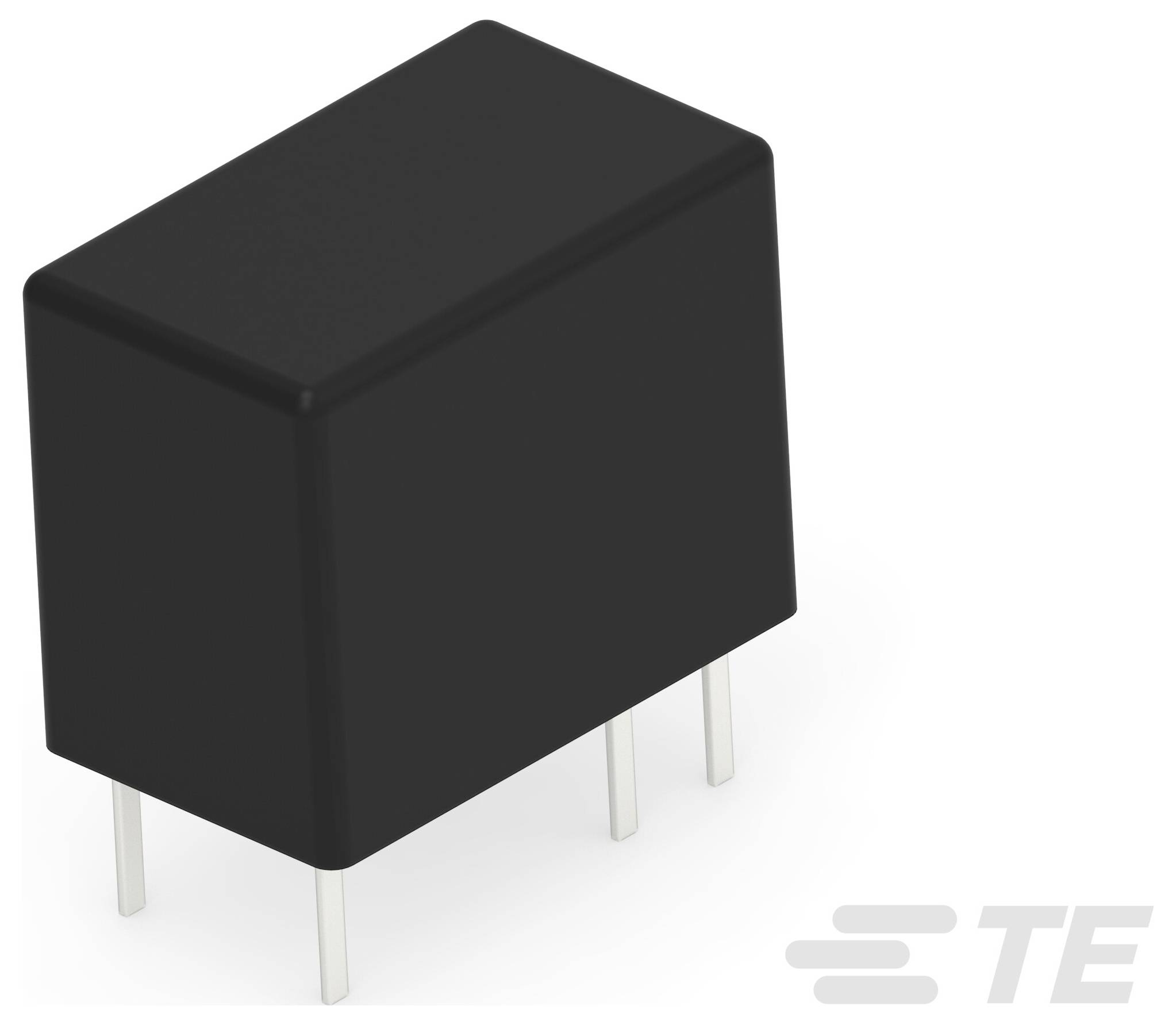

TE Connectivity TSC-112L3H,000 Industrial relay Nominal voltage: 12 V DC 1 change-over Piece 1 pc(s)
Packaging type
Piece
Product type
Industrial relay
Contact type
1 change-over
Nominal voltage
12 V DC
Type
TSC-112L3H,000
EAN:
Part number:
Item no:
Number
Total (€ 2.29 / piece)
€ 2.29
incl. VAT
Only 10 Piece(s) available
Highlights & Details
Our service for you
Technical specifications
- Sealing class: RTIII
- insulation (HF-parameter): -14.2dB at 900MHz, -31.8dB at 100MHz
- Insulation distance class (mm): 0 – 2.5
- Insulation creep current class (mm): 0 – 1.5
- Insulation probe functions: 1500V Initial surge resistance Voltage between contacts & coil
- Contact cut-off current (A): 1
- Contact coating material: Agni-alloy contact
- switch-in-circuit current:
- 1 Contact current: 1
- Contact current: Monostable, AC/DC
- coil type: Monostable
- connection type: Through-hole mounting
- Packaging type
Piece
- Product type
Industrial relay
- Type
TSC-112L3H,000
- Connection
THT
- Contact type
1 change-over
- Contact material
Ni
- Nominal voltage
12 V DC
- Creepage distance (coil/clips)
1.5 mm
- Resistance (coil)
960 Ω
- Coil voltage rating
150 mW
- Features
Washable (RT III)
- Max. temperature
+80 °C
- Min. temperature
-30 °C
- Length
12.5 mm
- Width
7.5 mm
- Height
9.9 mm
- Dim
(L x W x H) 12.5 x 7.5 x 9.9 mm
- Content
1 pc(s)
- Weight
3 g
- RoHS-compliant
Yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2272764 TE Connectivity TSC-112L3H,000 Industrial relay Nominal voltage: 12 V DC 1 change-over Piece 1 pc(s)
