TEKO 115TP.5 Desk casing (L x W x H) 161 x 95 x 64 mm Acrylonitrile butadiene styrene, PC Light grey 1 pc(s)
EAN:
Part number:
Item no:
Material
Acrylonitrile butadiene styrene
PC
Width
95 mm
Height
64 mm
Content
1 pc(s)
Product type
Desk casing
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 17.64
3
5% = € 0.88
€ 16.76
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 17.64 / piece)
€ 17.64
plus VAT.
Only 3 Piece(s) available
Technical specifications
- Maximum PCB length 153 mm
- Maximum PCB width 81 mm
- Screws: 4
- Material
Acrylonitrile butadiene styrene
PC
- Factory colour
Light grey
- Length
161 mm
- Width
95 mm
- Height
64 mm
- Content
1 pc(s)
- Dim
(L x W x H) 161 x 95 x 64 mm
- RoHS-compliant
Yes
- Depth
161 mm
- Type
115TP.5
- Weight
197 g
- UKCA
yes
- Product type
Desk casing
Documents & Downloads
Datasheet
Datasheet 2304234 TEKO 115TP.5 Desk casing (L x W x H) 161 x 95 x 64 mm Acrylonitrile butadiene styrene, PC Light grey 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2304234 TEKO 115TP.5 Desk casing (L x W x H) 161 x 95 x 64 mm Acrylonitrile butadiene styrene, PC Light grey 1 pc(s)
Description

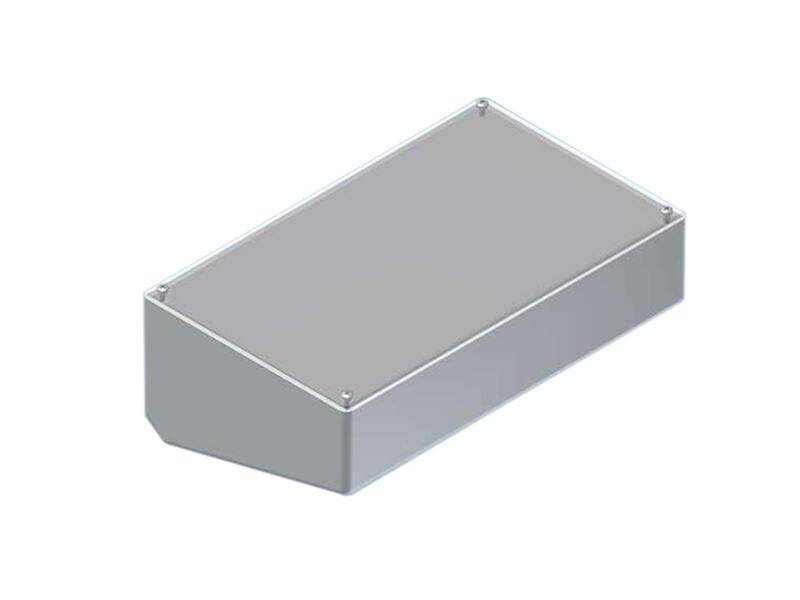

Plastic housing with transparent polycarbonate lid tilted by 15°, which is supplied in addition to protecting a 0.5 mm thick anodized aluminum plate underneath. The walls of the base have integrated guides and mounting pillars for PCB. The corners are rounded. Glossy surface Mounting with 4 screws.
