Name: Telegärtner 100023431 100023431 BNC connector Socket, built-in 50 Ω 1 pc(s)
Brand: Telegärtner
SKU: 1090874
Availability: InStock

A radio frequency coaxial connector with a nut, seal, and pin is shown. A metal tube lies beside it on a white surface.

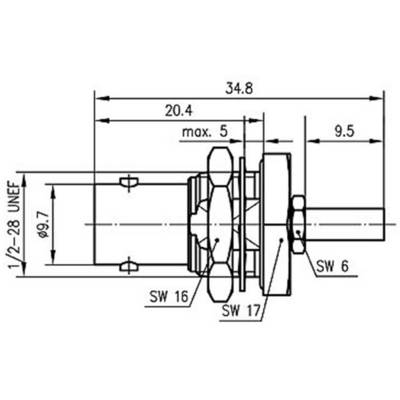

Technical drawing of a component with dimensions in millimetres: total length 34.8 mm, width 20.4 mm, spanner sizes 16 and 17.

1/2

Cable category

RG 316/U

Product type

BNC connector

Connector type

Socket, built-in

Impedance

50 Ω

Connection

Crimp

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

98 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 10.99 / piece)

€ 10.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

BNC plug connector

The plug socket - name, according to the shape of the inner conductor defined.
This text is machine translated.

Technical specifications

Mounting dimensions: Z04

Cable category: RG 316/U

Product type: BNC connector

Connector type: Socket, built-in

Impedance: 50 Ω

Connection: Crimp

Content: 1 pc(s)

Cable Ø: 2.60 mm

Mounting hole diameter: 11.8 mm

Max. frequency: 4 GHz

Front panel thickness: 5 mm

Case material: Brass nickel plated

Manufacturer part #: 100023431

Insulation resistance: ≥ 5 GΩ

Insulation material: PTFE

Contact material: Brass

RoHS-compliant: Yes

Temperature range: -40 - +155 °C

Type: 100023431

Seal type: Bayonet

Factory colour: Silver (metallic)

Weight: 0.02
