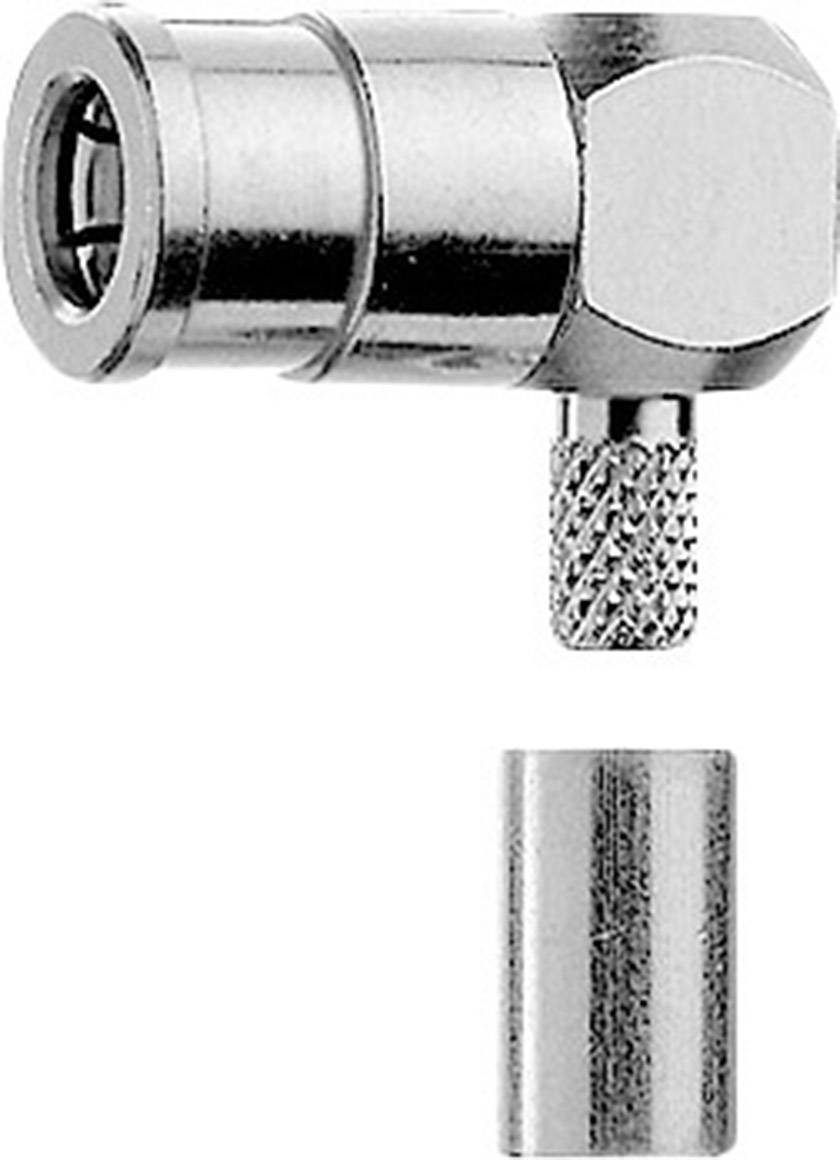

Name: Telegärtner 100024865 100024865 SMB connector Socket, right angle 50 Ω 1 pc(s)
Brand: Telegärtner
SKU: 1366147
Availability: SoldOut

Metal bayonet connector with serrated screw head and removable sleeve, suitable for hose connections in technical applications.

Technical drawing of a metal piece with dimensions: Length 12.5 mm, Width 4.8 mm, Diameter 6.35 mm, Height 13.4 mm.

1/2

Image similar

Cable category

RG 178 U

Product type

SMB connector

Connector type

Socket, right angle

Impedance

50 Ω

Connection

Crimp

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 3.49 / piece)

€ 12.99

-73 %

€ 3.49

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

SMB connectors

The plug socket - name, according to the shape of the inner conductor defined.
This text is machine translated.

Our service for you

Technical specifications

Cable category: RG 178 U

Product type: SMB connector

Connector type: Socket, right angle

Impedance: 50 Ω

Connection: Crimp

Content: 1 pc(s)

Cable Ø: 1.90 mm

Max. frequency: 4 GHz

Case material: Brass gold plated

Manufacturer part #: 100024865

Insulation material: PTFE

Contact material: Brass gold plated

RoHS-compliant: Yes

Temperature range: -55 - 155 °C

Type: 100024865

Seal type: Snap-in

Documents & Downloads

Datasheet

Datasheet 1366147 Telegärtner 100024865 100024865 SMB connector Socket, right angle 50 Ω 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1366147 Telegärtner 100024865 100024865 SMB connector Socket, right angle 50 Ω 1 pc(s)

Description

These connector series offer three different coupling mechanisms: SMB has a snap-on coupling allowing quick but secure connection, and is usable up to 4 GHz. SMC has a threaded coupling for vibration proof installation, and is usable up to 10 GHz. SMS has a slide coupling which is suitable for rack and panel systems, and is usable up to 4 GHz.
The impedance is controlled at 50 Ω for all types. Connector styles are available for flexible, conformable and semi-rigid cables. Versions of these series connectors are available for mounting to printed circuit boards using both thru-hole soldered and thru-hole press-fit techniques, as well as surface mount technology (SMD). Solder and crimp techniques are used to terminate these series to cables. SMB/SMC/SMS connectors find applications in all types of electronic equipment.
