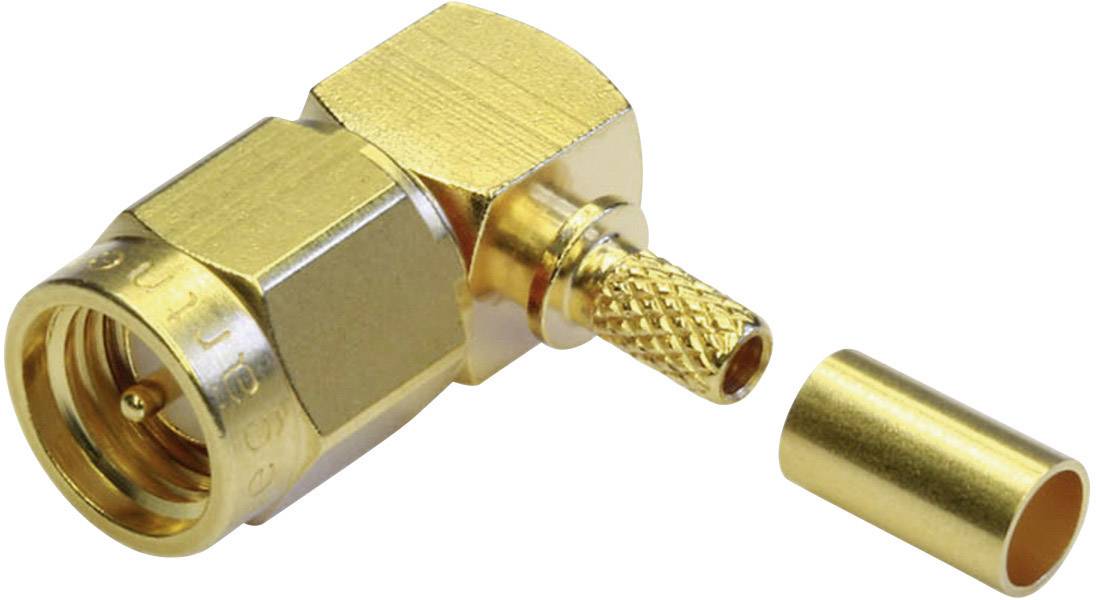

Telegärtner 100027638 100027638 SMA connector Plug, right angle 50 Ω 1 pc(s)
EAN:
Part number:
Item no:
Cable category
RG 58 C/U
Product type
SMA connector
Connector type
Plug, right angle
Impedance
50 Ω
Connection
Crimp
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 10.08
3
6% = € 0.58
€ 9.50
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 10.08 / piece)
€ 10.08
plus VAT.
14 days return policy included
Highlights & Details
SMA connectors
- The plug socket - name, according to the shape of the inner conductor defined.
- This text is machine translated.
Our service for you
Technical specifications
- Cable category
RG 58 C/U
- Product type
SMA connector
- Connector type
Plug, right angle
- Impedance
50 Ω
- Connection
Crimp
- Content
1 pc(s)
- Cable Ø
4.95 mm
- Case material
Brass gold plated
- Manufacturer part #
100027638
- Insulation resistance
≥ 5 GΩ
- Insulation material
PTFE
- Contact material
Beryllium / copper
- RoHS-compliant
Yes
- Temperature range
-55 - +155 °C
- Type
100027638
- Seal type
Screw-on
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1090954 Telegärtner 100027638 100027638 SMA connector Plug, right angle 50 Ω 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1090954 Telegärtner 100027638 100027638 SMA connector Plug, right angle 50 Ω 1 pc(s)
Description
The SMA series is a very popular coax connector with threaded coupling, and can be used up to frequencies of over 18 GHz (depending on type). The impedance is controlled at 50 Ω. Connector styles are available for flexible, conformable and semi-rigid cable types. Versions of the SMA connector are available for mounting to printed circuit boards using both through-hole soldered and through-hole press-fittechniques, as well as surface mount types (SMD). Solder, crimp and clamp techniques are used to terminate this series to cables. SMA applications include communications, satellite and test equipment.
