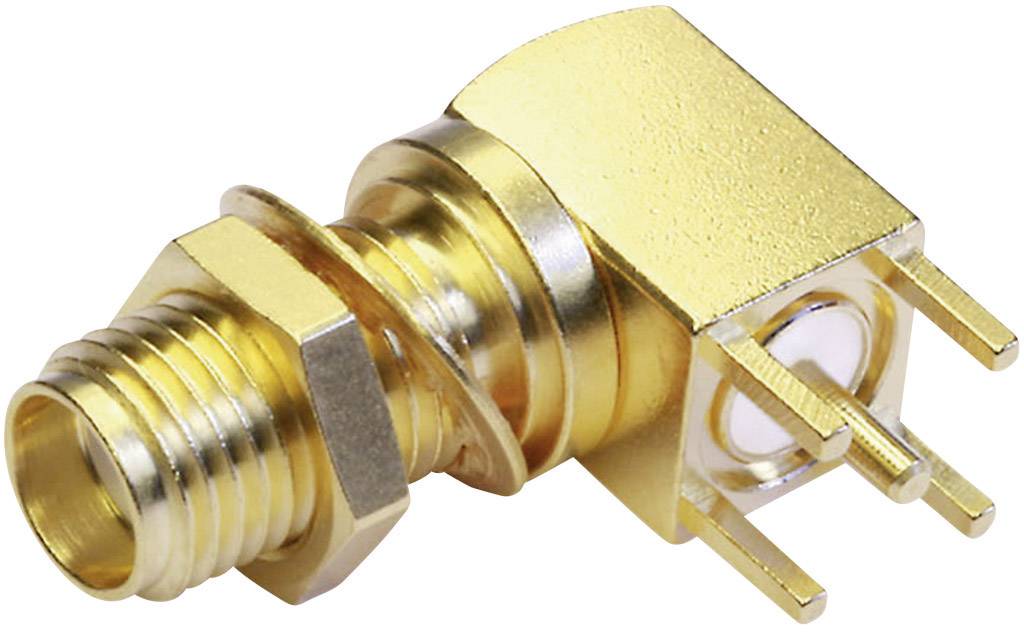

Telegärtner 100027652 100027652 SMA connector Socket, horizontal mount 50 Ω 1 pc(s) Single
Packaging type
Single
Product type
SMA connector
Connector type
Socket, horizontal mount
Impedance
50 Ω
Connection
Print
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 16.99 / piece)
€ 16.99
incl. VAT
14-day return policy included
Highlights & Details
SMA connectors
- The plug socket - name, according to the shape of the inner conductor defined.
- This text is machine translated.
Technical specifications

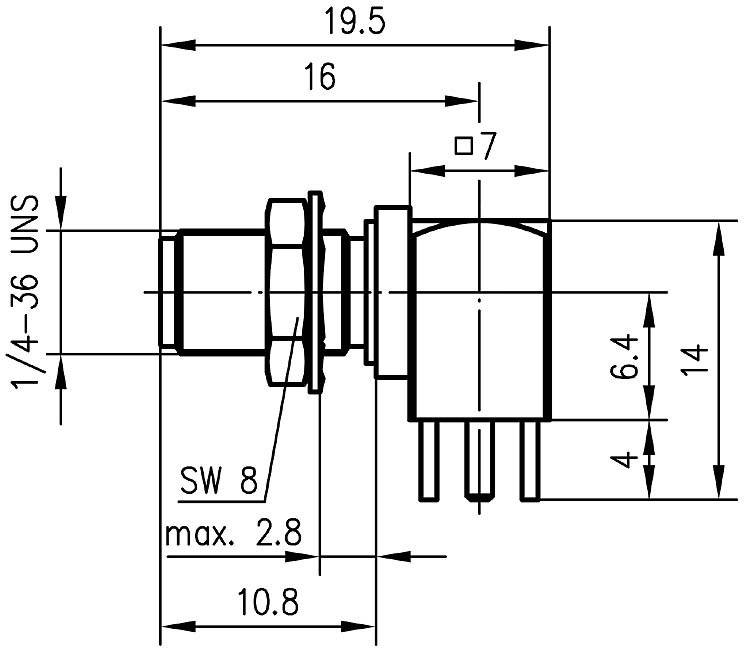

- Mounting dimensions: Z25/Z55
- Packaging type
Single
- Product type
SMA connector
- Connector type
Socket, horizontal mount
- Impedance
50 Ω
- Connection
Print
- Content
1 pc(s)
- Mounting hole diameter
7.2 mm
- Case material
Brass gold plated
- Manufacturer part #
100027652
- Insulation resistance
≥ 5 GΩ
- Insulation material
PTFE
- Contact material
Gold plated
- RoHS-compliant
Yes
- Temperature range
-55 - +155 °C
- Type
100027652
- Seal type
Screw-on
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1090940 Telegärtner 100027652 100027652 SMA connector Socket, horizontal mount 50 Ω 1 pc(s) Single
User & Safety Instructions
User & Safety Instructions 1090940 Telegärtner 100027652 100027652 SMA connector Socket, horizontal mount 50 Ω 1 pc(s) Single
Description
The SMA series is a very popular coax connector with threaded coupling, and can be used up to frequencies of over 18 GHz (depending on type). The impedance is controlled at 50 Ω. Connector styles are available for flexible, conformable and semi-rigid cable types. Versions of the SMA connector are available for mounting to printed circuit boards using both through-hole soldered and through-hole press-fittechniques, as well as surface mount types (SMD). Solder, crimp and clamp techniques are used to terminate this series to cables. SMA applications include communications, satellite and test equipment.
