TP-LINK InSight S245ZI INSIGHT S245ZI Corded IP CCTV camera 2688 x 1520 p
EAN:
Part number:
Item no:
Number
Total (€ 273.11 / piece)
€ 273.11
plus VAT.
Only 2 Piece(s) available
Corded IP-Dome camera;2688 x 1520 p;TP-LINKInSight S245ZI;INSIGHT S245ZIOutdoors
Highlights & Details
- Outdoor IP security camera
- CMOS 25.4 / 2.9 mm (1 / 2.9") 4 MP 2688 x 1520 pixels
- Wired Ethernet/LAN
- Night vision IR/white
- Optical Zoom: 5x
- Dome room ceiling Waterproof
- IP67 IK10 weather proof
- 775 g
Technical specifications
- Supported positioning: Outside
- Form factor: Dome
- Tilt angle range 0 - 75°
- Supported audio formats: G.711 A-law
- Viewing angle:
- Horizontal 29.6° – 102.0°
- Vertical: 16.8° – 53.8°
- Diagonal: 34.1° – 122.8°
- Angle of view vertical 16.8° – 53.8°
- Angle of view 34.1° – 122.8°
- 5 x optical Zoom
- Interfaces:
- 1 × RJ45 10/100M Ethernet port (PoE 802.3af/at)
- 1 × Alarm input (alarm in), 1 × Alarm output (alarm out)
- 1 × audio input (audio in), 1 × audio output (audio out)
- 1 × DC power connection
- Built-in microphone (captures audio signals in a radius of up to 5 meters)
- VIDEO COMPRESSION: H.265+/H.265/H.264+/H.264
- WDR 120 dB
- Noise suppression: 3D DNR
- Product type
CCTV camera
- CCTV features
Pan-tilt function
PoE IEEE 802.3at
- Camera type
Dome camera
- Power supply
12 V / DC
PoE (Power over Ethernet)
- Resolution (max.)
2688 x 1520 p
- Sensor type
CMOS
- Focal length
2,7 - 13,5 mm
- Max. viewing angle hor.
102.0°
- App compatibility
Yes
- Transfer type
Corded
- Light sensitivity (+ IR)
0 lx
- Light sensitivity (- IR)
0.005 lx
- IR range (max.)
60 m
- Used at
Outdoors
- Type
microSD card (up to 512 GB)
- Width
129.9 mm
- Height
102.5 mm
- Depth
129.9 mm
- (Ø)
129.9 mm
- Dim
(Ø x H) 129.9 mm x 102.5 mm
- Weight
775 g
- F-numbers
F1.6
- Enclosure material
Metal
- Factory colour
White
IP67
IK10
- Signal standard
IP
- Bluetooth
No
- Display resolution
2688 x 1520 Pixel
- Material (details)
Metal
- Microphone
Yes
- Type
IP-security camera
- 10/100/1000 Mbps ports
1 x
- Sensor type
CMOS
- Wi-Fi
No
- UKCA
yes
- Operating temperature (T-T)
-30 - 60 °C
- Weatherproof
yes
- Ethernet LAN
yes
- Storage relative humidity (H-H)
0 - 95 %
- Minimum illumination
0 Lux
- Password protection
yes
- Auto focus
yes
- Optical sensor size
25,4 / 2,9 mm (1 / 2.9")
- Detection distance
200 m
- Maximum operating distance
200 m
- Power consumption (Power over Ethernet (PoE))
12 W
- Infrared (IR) cut-off filter
yes
- DC-in jack
yes
- Remote viewing
yes
- Built-in speaker(s)
yes
- Web browser
yes
- Highlight Compensation (HLC)
yes
- Digital Wide Dynamic Range (DWDR)
yes
- Observe distance
84 m
- Detect distance
200 m
- Recognize distance
40 m
- Identify distance
21 m
- Dynamic range
120 dB
- Progressive scan
yes
- Web-based management
yes
- Camera pan control
yes
- Mirror
yes
- Reset button
yes
- Camera tilt control
yes
- Manual
yes
- Cloud-managed
yes
- Bit rate range
0 - 64 Kbit/s
- Human and vehicle targets classification
yes
- Digest authentication
yes
- Maximum aperture number
1.6
- Night vision
yes
- Live view
yes
- Built-in siren
yes
- Video motion detection
yes
- IP address filtering
yes
- Maximum memory card size
512 GB
- Operating relative humidity (H-H)
0 - 95 %
- Number of microphones
1
- Optical zoom
5 x
- Storage temperature (T-T)
-40 - 60 °C
- Total megapixels
4 MP
- Back Light Compensation (BLC)
yes
- Video recording
yes
- HTTPS encryption
yes
- Wide Dynamic Range (WDR)
yes
- Day/night mode
yes
- Number of cameras
1
- Power consumption (max)
10.8 W
- Motion sensor
yes
- Sample rate
8 kHz
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3808176 TP-LINK InSight S245ZI INSIGHT S245ZI Corded IP CCTV camera 2688 x 1520 p
Information
Information 3808176 TP-LINK InSight S245ZI INSIGHT S245ZI Corded IP CCTV camera 2688 x 1520 p
Conformity certificate
Conformity certificate 3808176 TP-LINK InSight S245ZI INSIGHT S245ZI Corded IP CCTV camera 2688 x 1520 p
Description

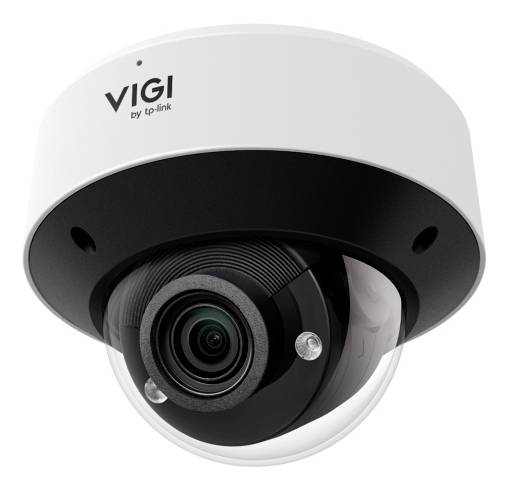

Professional 4-megapixel network dome camera with a motorized varifocal lens (2.7 mm to 13.5 mm) for flexibly adjustable viewing angles and 5-fold optical Zoom. Equipped with a 1/2.9-inch progressive scan CMOS sensor, the system delivers highly detailed photographs, which are transferred in a way that saves bandwidth and memory by the highly efficient H.265+ video compression. For difficult lighting conditions the camera has an integrated IR-LED night view as well as a real 120dB WDR for compensation of extreme contrast. The robust housing satisfies the protection classes IP67 (water and dust-proof) and IK10 (vandalism-proof). The power supply is done flexibly via PoE (802.3af/at) or 12V DC. A built-in microphone and speaker provide two-way audio, while local recording via the micro-SD card slot (up to 512 GB) and alarm and audio interfaces (in/out) round off system integration.
This text is machine translated.
This text is machine translated.
Features
- Motorised 5-way Zoom-lens (varifocal)
- Anti-vandalism protection according to IK10
- Weatherproof housing (IP67)
- Integrated two-way audio function (microphone & loudspeaker)
- True 120dB WDR backlight compensation
- Separate alarm and audio connection (In/Out)
- Local storage (up to 512 GB)
Scope of delivery
- Incl. drilling template
- Screws and rawlplugs
- Protective sleeve for RJ45 plug
- User manual.
- Cable adapter for inputs and outputs
Hints
No MicroSD card included, no power supply included
System requirements
- Windows, iOS, Android
