Buy TP-LINK INSIGHT S285(2.8MM) INSIGHT S285(2.8MM) Corded IP CCTV camera

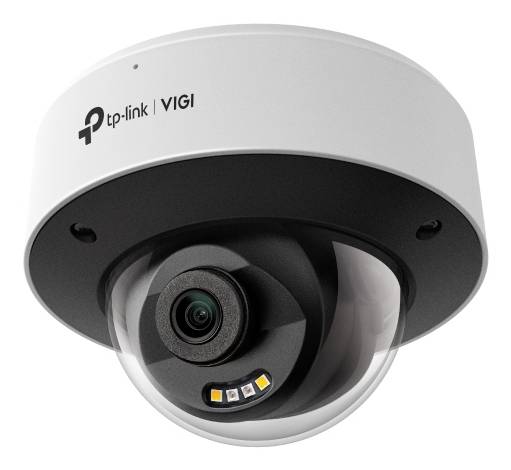

TP-Link VIGI dome security camera with visible lens and infrared LEDs on a white background.<br>

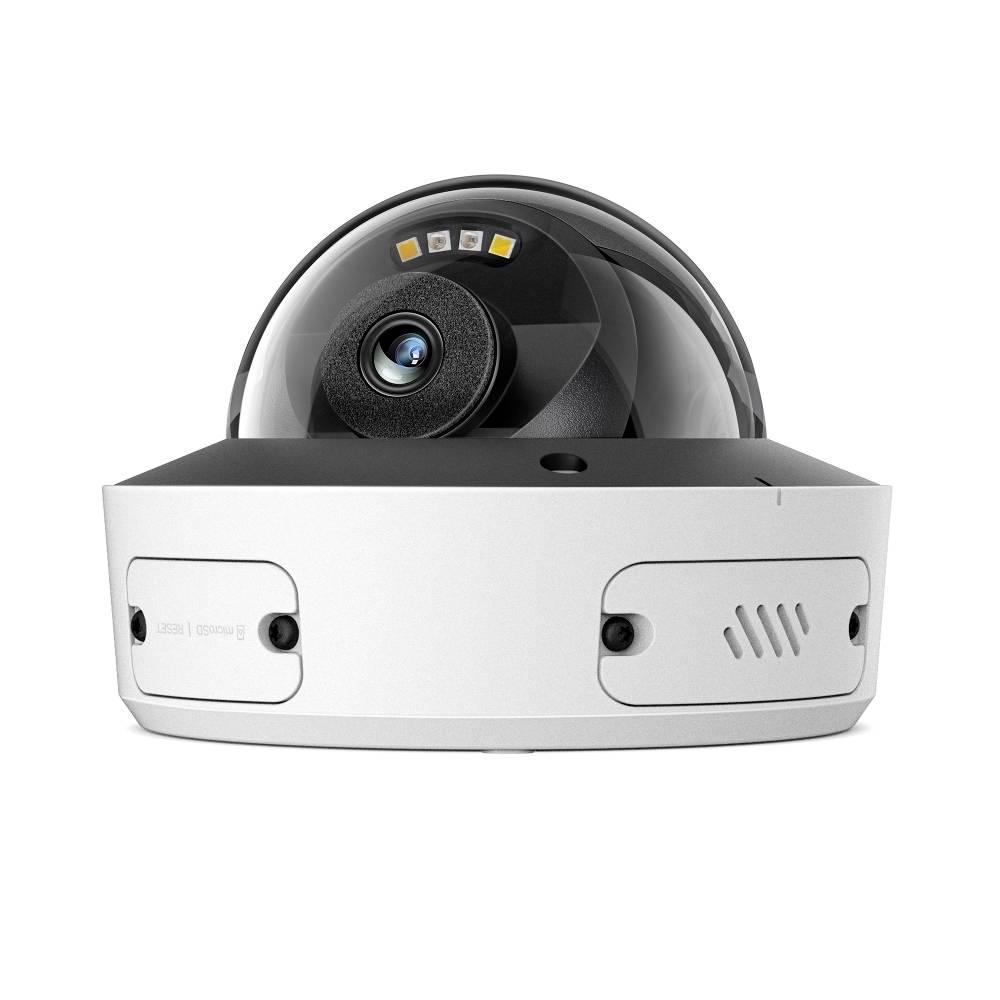

White dome security camera with a visible lens, infrared LEDs, and silver base, shown on a plain white background.

White TP-Link VIGI dome security camera with a dark tinted lens, shown front view on a plain white background.

1/3

Fast track dispatch on Mon, 21 Sep

2 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 193.27 / piece)

€ 193.27

plus VAT.

Only 2 Piece(s) available

14 days return policy included

Report legal concerns

Corded IP-Dome camera;TP-LINKINSIGHT S285(2.8MM);INSIGHT S285(2.8MM)Outdoors

Highlights & Details

Outdoor IP security camera
CMOS 25.4 / 2.7 mm (1 / 2.7") 8 MP 3840 x 2160 pixels
Wired Ethernet/LAN
Night vision IR/white
Dome room ceiling Waterproof
IP67 IK10 weather proof
White
620 g

Technical specifications

Supported positioning: Outside
Form factor: Dome
Tilt angle range 0 - 75°
Supported audio formats: G.711 A-law
Sensor size 1/2.7"
Viewing angle:
Horizontal: 110°
Vertical: 58.1°
Diagonal 133.5°
Infrared LEDs: Number: 2, wavelength: 850nm
VIDEO COMPRESSION: H.265+/H.265/H.264+/H.264
Wide Dynamic Range (WDR): 120 dB (True WDR) (When personal and vehicle analysis is activated, only DWDR is available)
Audio: Built-in microphone (detection radius up to 5 meters) and built-in speaker (two-way audio)
DORI Distance: Detect: 85 m, Observe: 35 m, Recognize: 17 m, Identify: 8 m.
Operating temperature: -30 °C to + 60 °C.

Product type: CCTV camera

Camera type: Dome camera

Power supply: 12 V / DC
PoE (Power over Ethernet)

Sensor type: CMOS

Max. viewing angle hor.: 110°

App compatibility: Yes

Transfer type: Corded

Light sensitivity (+ IR): 0 lx

Light sensitivity (- IR): 0.005 lx

IR range (max.): 30 m

Used at: Outdoors

Type: microSD card (up to 512 GB)

Width: 122 mm

Height: 89 mm

Depth: 122 mm

(Ø): 122 mm

Dim: (Ø x H) 122 mm x 89 mm

Weight: 620 g

F-numbers: F1.6

Enclosure material: Metal

Factory colour: White

: IP67
IK10

Signal standard: IP

Bluetooth: No

Display resolution: 3840 x 2160 Pixel

Material (details): Metal

Microphone: Yes

Type: IP-security camera

10/100/1000 Mbps ports: 1 x

Sensor type: CMOS

Wi-Fi: No

UKCA: yes

Operating temperature (T-T): -30 - 60 °C

Weatherproof: yes

Ethernet LAN: yes

Storage relative humidity (H-H): 0 - 95 %

Minimum illumination: 0 Lux

Password protection: yes

Optical sensor size: 25,4 / 2,7 mm (1 / 2.7")

Detection distance: 85 m

Maximum operating distance: 85 m

Power consumption (Power over Ethernet (PoE)): 12.3 W

Infrared (IR) cut-off filter: yes

DC-in jack: yes

Fixed focus: yes

Remote viewing: yes

Built-in speaker(s): yes

Web browser: yes

Highlight Compensation (HLC): yes

Digital Wide Dynamic Range (DWDR): yes

Observe distance: 35 m

Detect distance: 85 m

Recognize distance: 17 m

Identify distance: 8 m

Dynamic range: 120 dB

Progressive scan: yes

Web-based management: yes

Mirror: yes

Reset button: yes

Manual: yes

Cloud-managed: yes

Bit rate range: 0 - 64 Kbit/s

Human and vehicle targets classification: yes

Digest authentication: yes

Maximum aperture number: 1.6

Night vision: yes

Live view: yes

Fixed focal length: 2.8 mm

Built-in siren: yes

Video motion detection: yes

IP address filtering: yes

Maximum memory card size: 512 GB

Operating relative humidity (H-H): 0 - 95 %

Number of microphones: 1

Storage temperature (T-T): -40 - 60 °C

Total megapixels: 8 MP

Back Light Compensation (BLC): yes

Video recording: yes

HTTPS encryption: yes

Wide Dynamic Range (WDR): yes

Day/night mode: yes

Number of cameras: 1

Power consumption (max): 11 W

Motion sensor: yes

Sample rate: 8 kHz

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3808179 TP-LINK INSIGHT S285(2.8MM) INSIGHT S285(2.8MM) Corded IP CCTV camera

Information

Information 3808179 TP-LINK INSIGHT S285(2.8MM) INSIGHT S285(2.8MM) Corded IP CCTV camera

Description

All colors, at any time

8 MP full-color dome network camera

Vehicle & Individual Analysis

Search and filter people or vehicles based on different attributes to make post-processing faster and easier.

Human & vehicle classification

Differentiate people and vehicles from other objects and get more accurate event notifications.

Intelligent video improvement technology

- True WDR: By analyzing and combining different exposures, True WDR ensures that both bright and dark areas remain correctly exposed and a well balanced, natural image is produced, even in high-contrast light.△
- Smart IR: Smart IR dynamically adjusts infrared lighting to avoid overexposure, improve visibility across distances, and deliver clearer images.
- 3D DNR: 3D DNR is a noise reduction technology that analyzes image data across multiple frames to selectively reduce noise and preserve important details.
- White Balance: White Balance ensures that white appears neutral in an image, regardless of the lighting conditions.

Efficient H.265+ compression technology

H.265+ reduces the bandwidth and storage space required for videos while maintaining excellent image quality. It saves 57.5% and 15% more storage space as compared to H.264 and H.265.
