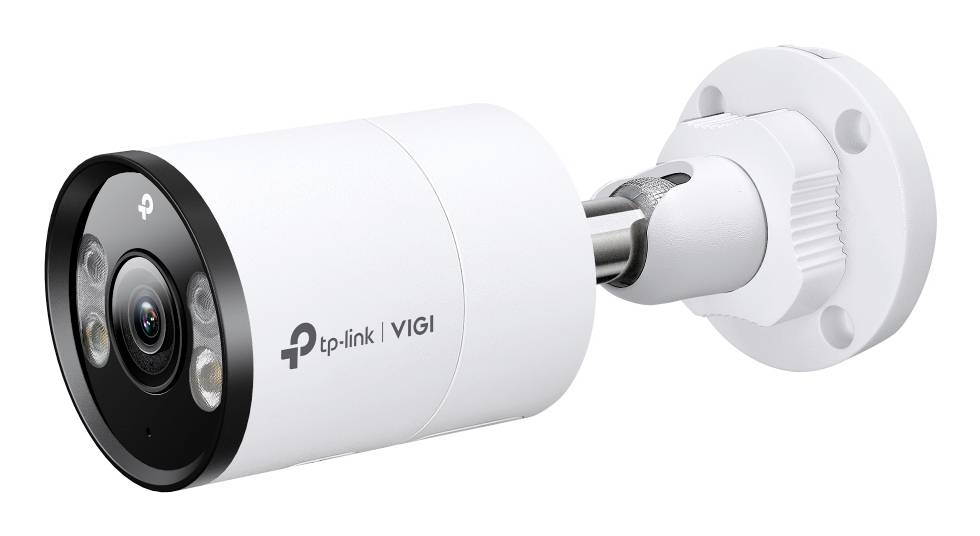

TP-LINK INSIGHT S345(4MM) Corded IP CCTV camera
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 147.05 / piece)
€ 147.05
plus VAT.
Only 1 Piece(s) available
Corded IP-Bullet camera;TP-LINK;INSIGHT S345(4MM)Outdoors
Highlights & Details
- Outdoor IP security camera
- CMOS 25.4 / 2.7 mm (1 / 2.7") 4 MP 2688 x 1520 pixels
- Wired Ethernet/LAN
- Night vision IR/white
- Cartridge (form) Wall Waterproof
- IP67 weather proof
- 525 g
Technical specifications
- Supported positioning: Outside
- Form factor: Cartridge (shape)
- Tilt angle range 0 - 90°
- Supported audio formats: G.711 A-law
- Product type
CCTV camera
- Camera type
Bullet camera
- Power supply
12 V / DC
PoE (Power over Ethernet)
- Sensor type
CMOS
- Transfer type
Corded
- Used at
Outdoors
- Type
microSD card (up to 512 GB)
- Width
184 mm
- Height
74 mm
- Dim
(W x H) 184 mm x 74 mm
- Weight
525 g
- Factory colour
White
IP67
- Signal standard
IP
- Bluetooth
No
- Display resolution
2688 x 1520 Pixel
- Material (details)
Metal
- Microphone
Yes
- Type
IP-security camera
- 10/100/1000 Mbps ports
1 x
- Sensor type
CMOS
- Wi-Fi
No
- UKCA
yes
- Screws included
yes
- Operating temperature (T-T)
-30 - 60 °C
- Weatherproof
yes
- Ethernet LAN
yes
- Storage relative humidity (H-H)
0 - 95 %
- Minimum illumination
0 Lux
- Password protection
yes
- Optical sensor size
25,4 / 2,7 mm (1 / 2.7")
- Maximum operating distance
80 m
- Power consumption (Power over Ethernet (PoE))
10.7 W
- Infrared (IR) cut-off filter
yes
- Remote viewing
yes
- Built-in speaker(s)
yes
- Web browser
yes
- Highlight Compensation (HLC)
yes
- Digital Wide Dynamic Range (DWDR)
yes
- Observe distance
33 m
- Detect distance
80 m
- Recognize distance
16 m
- Identify distance
8 m
- Dynamic range
120 dB
- Progressive scan
yes
- Web-based management
yes
- Mirror
yes
- Reset button
yes
- Manual
yes
- Cloud-managed
yes
- Bit rate range
0 - 64 Kbit/s
- Human and vehicle targets classification
yes
- Drilling template included
yes
- Maximum aperture number
1.6
- Night vision
yes
- Live view
yes
- Fixed focal length
4 mm
- Built-in siren
yes
- Video motion detection
yes
- Audio detection
yes
- IP address filtering
yes
- Maximum memory card size
512 GB
- Operating relative humidity (H-H)
0 - 95 %
- Number of microphones
1
- Storage temperature (T-T)
-40 - 60 °C
- Total megapixels
4 MP
- Back Light Compensation (BLC)
yes
- Mounting kit
yes
- Video recording
yes
- HTTPS encryption
yes
- Wide Dynamic Range (WDR)
yes
- Day/night mode
yes
- Number of cameras
1
- Motion sensor
yes
- Sample rate
8 kHz
Documents & Downloads
Datasheet
Datasheet 3808184 TP-LINK INSIGHT S345(4MM) Corded IP CCTV camera
User & Safety Instructions
User & Safety Instructions 3808184 TP-LINK INSIGHT S345(4MM) Corded IP CCTV camera
Information
Information 3808184 TP-LINK INSIGHT S345(4MM) Corded IP CCTV camera
Conformity certificate
Conformity certificate 3808184 TP-LINK INSIGHT S345(4MM) Corded IP CCTV camera
Description
High performance 4 Megapixel Network Bullet camera, equipped with a fixed 4 mm lens for focused detail surveillance and a 1/2.7" Progressive Scan CMOS sensor. The device supports the efficient H.265+ encoding for protecting network and memory capacity. For night-time surveillance, the camera has a flexible hybrid light system consisting of IR and white-light LEDs that delivers full-color shots when needed. High-contrast scenes are reliably compensated by the real 120dB WDR. Thanks to IP67 certification, the camera is suitable for outdoor use and power is supplied via PoE or 12V DC. The equipment also includes an integrated microphone, a loudspeaker as well as a micro-SD card slot for memory cards with a capacity of up to 512 GB.
This text is machine translated.
This text is machine translated.
Features
- Intelligent Hybrid Night Vision (IR & White Light LEDs)
- Integrated two-way audio (microphone & speaker)
- Reliable weather protection (IP67)
- Detail optimized focus through 4-mm lens
- 120dB WDR backlight compensation; local microSD slot (up to 512 GB)
Scope of delivery
- Incl. drilling template
- Screws and rawlplugs
- Protective sleeve for RJ45 plug
- User manual.
- Cable adapter for inputs and outputs
Hints
No MicroSD card included, no power supply included
System requirements
- Windows, iOS, Android
