TP-LINK InSight S345S INSIGHT S345S(4MM) Corded IP CCTV camera
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 343.70 / piece)
€ 343.70
plus VAT.
Only 2 Piece(s) available
Corded IP-Bullet camera;TP-LINKInSight S345S;INSIGHT S345S(4MM)Outdoors
Highlights & Details
- Outdoor IP security camera
- CMOS 25.4 / 1.79 mm (1 / 1.79") 4 MP 2688 x 1520 pixels
- Wired Ethernet/LAN
- Night vision 30 m IR/white
- Cartridge (form) ceiling/wall/bar
- IP67
- 600 g
Technical specifications
- Supported positioning: Outside
- Form factor: Cartridge (shape)
- Tilt angle range 0 - 75°
- Infrared LEDs: Number: 2, wavelength: 850 nm
- Shutter speed: 1/3 to 1/10000 s (slow shutter supported)
- Noise suppression: 3D DNR
- Audio: Built-in microphone (recording radius up to 5 meters) and built-in speaker (two-way audio)
- DORI Distance (4 mm): Detect: 76 m, Observe: 29 m, Recognize: 14 m, Identify: 7 m.
- Product type
CCTV camera
- Camera type
Bullet camera
- Power supply
12 V / DC
PoE (Power over Ethernet)
- Sensor type
CMOS
- Focal length
4 mm
- Max. viewing angle hor.
95°
- App compatibility
Yes
- Transfer type
Corded
- Light sensitivity (+ IR)
0 lx
- Light sensitivity (- IR)
0.0005 lx
- IR range (max.)
30 m
- Used at
Outdoors
- Type
microSD card (up to 512 GB)
- Width
66 mm
- Height
66 mm
- Depth
191 mm
- (Ø)
66 mm
- Dim
(Ø x H) 66 mm x 66 mm
- Weight
600 g
- F-numbers
F1.0
- Enclosure material
Metal
- Factory colour
White
IP67
- Signal standard
IP
- Bluetooth
No
- Display resolution
2688 x 1520 Pixel
- Material (details)
Metal
- Microphone
Yes
- Type
IP-security camera
- Rotation
360°
- 10/100/1000 Mbps ports
1 x
- Sensor type
CMOS
- Wi-Fi
No
- UKCA
yes
- Operating temperature (T-T)
-30 - 60 °C
- Ethernet LAN
yes
- Storage relative humidity (H-H)
0 - 95 %
- Video streaming
yes
- Signal-to-Noise Ratio (SNR)
52 dB
- Minimum illumination
0.0005 Lux
- Password protection
yes
- Optical sensor size
25,4 / 1,79 mm (1 / 1.79")
- Alarm input channels
1
- Alarm output channels
1
- Number of lenses
1
- Infrared (IR) cut-off filter
yes
- Built-in speaker(s)
yes
- Noise reduction
yes
- Web browser
yes
- Pan range
0 - 360°
- Highlight Compensation (HLC)
yes
- Region of Interest (ROI) encoding
yes
- Smart IR
yes
- Observe distance
29 m
- Detect distance
76 m
- Recognize distance
14 m
- Identify distance
7 m
- Dynamic range
120 dB
- Progressive scan
yes
- Card reader integrated
yes
- Manual
yes
- Cloud-managed
yes
- Digest authentication
yes
- Maximum aperture number
1
- Night vision
yes
- Fixed focal length
4 mm
- Number of illumination LEDs
2
- Video motion detection
yes
- Active tampering alarm
yes
- IP address filtering
yes
- Maximum memory card size
512 GB
- Operating relative humidity (H-H)
0 - 95 %
- Storage temperature (T-T)
-40 - 60 °C
- Total megapixels
4 MP
- Back Light Compensation (BLC)
yes
- Mounting kit
yes
- Built-in HDD
no
- HTTPS encryption
yes
- Wide Dynamic Range (WDR)
yes
- Infra-red wavelength
850 nm
- Alarm input/output
yes
- Number of cameras
1
Documents & Downloads
Datasheet
Datasheet 3808181 TP-LINK InSight S345S INSIGHT S345S(4MM) Corded IP CCTV camera
User & Safety Instructions
User & Safety Instructions 3808181 TP-LINK InSight S345S INSIGHT S345S(4MM) Corded IP CCTV camera
Information
Information 3808181 TP-LINK InSight S345S INSIGHT S345S(4MM) Corded IP CCTV camera
Description

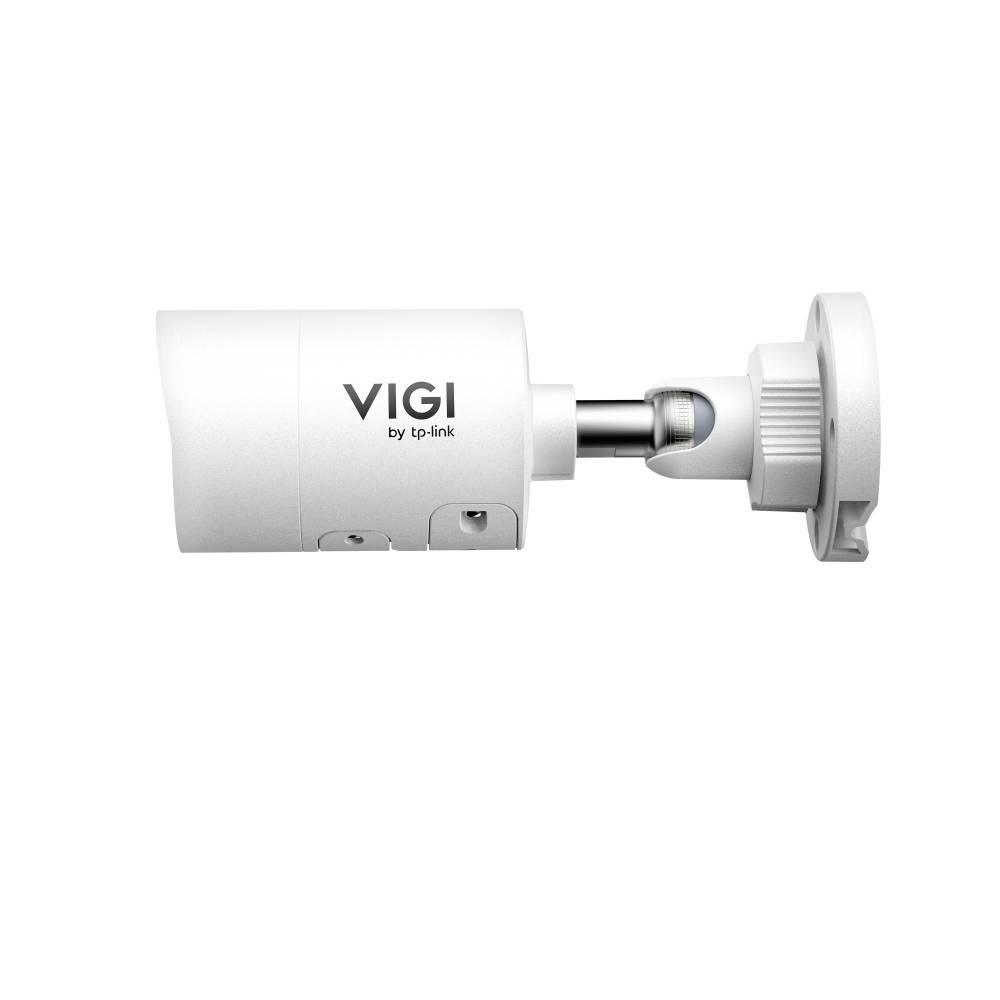

Bright 4 megapixel network bullet camera with a fixed 4 mm lens and a highly sensitive 1/1.79-inch progressive scan CMOS sensor for superior image quality even with minimal illumination. The transmission is done bandwidth-saving via the H.265+ compression. A dual light system consisting of IR and white light LEDs ensures complete night monitoring including full color option. Strong contrast and backlight can be corrected reliably with the real 120dB WDR. The camera is IP67 rated weatherproof and supports the power supply via PoE or 12V DC. The equipment is completed by an integrated microphone, a loudspeaker as well as a micro-SD card slot for storage media up to 512 GB.
This text is machine translated.
This text is machine translated.
Features
- Highly-sensitive 1/1.79" sensor for extreme light yield
- Intelligent Hybrid Night Vision (IR & White Light LEDs)
- Robust Bullet-housing with weather protection (IP67)
- Integrated two-way audio (microphone & speaker)
- Real 120dB WDR
- Local microSD slot (up to 512 GB)
Scope of delivery
- Incl. drilling template
- Screws and rawlplugs
- Protective sleeve for RJ45 plug
- User manual.
- Cable adapter for inputs and outputs
Hints
No MicroSD card included, no power supply included
System requirements
- Windows, iOS, Android
