Name: TP-LINK INSIGHT S345ZI INSIGHT S345ZI Corded IP CCTV camera
Brand: TP-LINK
SKU: 3808182
Availability: InStock

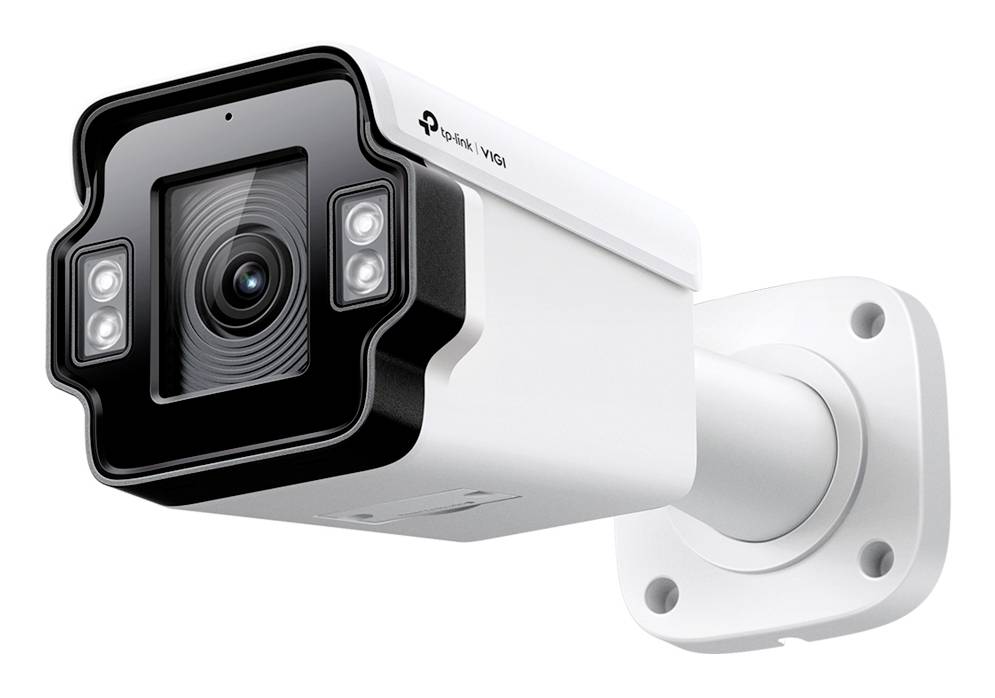

White TP-Link VIGI security camera mounted on a wall bracket, shown in a product-style view with front lens and side infrared LEDs.

EAN:

Part number:

Item no:

Fast track dispatch on Fri 6 Nov

3 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 395.00 / piece)

€ 395.00

incl. VAT

Only 3 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Corded IP-Bullet camera;TP-LINKINSIGHT S345ZI;INSIGHT S345ZIOutdoors

Outdoor IP security camera
CMOS 25.4 / 2.9 mm (1 / 2.9") 4 MP 2688 x 1520 pixels
Wired Ethernet/LAN
Night view 10 m IR
Optical Zoom: 5x
Cartridge (form) Wall Waterproof
IP67 weather proof
1.04 kg

Technical specifications

Supported positioning: Outside
Form factor: Cartridge (shape)
Tilt angle range 0 - 90°
Supported audio formats: G.711 A-law
Number of simultaneous live view channels: 6 channels
Viewing angle:
Horizontal 29.6° – 102.0°
Vertical: 16.8° – 53.8°
Diagonal: 34.1° – 122.8°
Shutter speed 1/3 to 1/10000 s
Audio: Integrated microphone (recording radius up to 5 m) as well as additional audio interfaces (1 × Audio In, 1 × Audio Out), built-in loudspeaker is not available (N/A)
Alarm interfaces (1 × alarm input (alarm in), 1 × alarm output (alarm out)
DORI Distance:
Detects from 66 to 207 meters
Observe: 28 – 86 meters
Recognition: 13 – 41 meters
Identify 7 – 21 meters

Product type: CCTV camera

Camera type: Bullet camera

Power supply: 12 V / DC
PoE (Power over Ethernet)

Sensor type: CMOS

Focal length: 2,7 - 13,5 mm

Max. viewing angle hor.: 102°

App compatibility: Yes

Transfer type: Corded

Light sensitivity (+ IR): 0 lx

Light sensitivity (- IR): 0.0005 lx

IR range (max.): 60 m

Used at: Outdoors

Type: microSD card (up to 512 GB)

Width: 100 mm

Height: 101 mm

Depth: 256 mm

Dim: (W x H x D) 100 x 101 x 256 mm

Weight: 1.04 kg

F-numbers: F1.6

Enclosure material: Metal

Factory colour: White

: IP67
IK10

Signal standard: IP

Bluetooth: No

Display resolution: 2688 x 1520 Pixel

Material (details): Metal

Microphone: Yes

Type: IP-security camera

Rotation: 360°

10/100/1000 Mbps ports: 1 x

Sensor type: CMOS

Wi-Fi: No

UKCA: yes

Operating temperature (T-T): -30 - 60 °C

Weatherproof: yes

Ethernet LAN: yes

Storage relative humidity (H-H): 0 - 95 %

Video streaming: yes

Signal-to-Noise Ratio (SNR): 52 dB

Minimum illumination: 0 Lux

Password protection: yes

Optical sensor size: 25,4 / 2,9 mm (1 / 2.9")

Alarm input channels: 1

Alarm output channels: 1

Number of lenses: 1

Power consumption (Power over Ethernet (PoE)): 12 W

Infrared (IR) cut-off filter: yes

DC-in jack: yes

Remote viewing: yes

Noise reduction: yes

Web browser: yes

Pan range: 0 - 360°

Detect distance (wide): 66 m

Detect distance (tele): 207 m

Observe distance (wide): 28 m

Observe distance (tele): 86 m

Recognize distance (wide): 13 m

Recognize distance (tele): 41 m

Identify distance (wide): 7 m

Identify distance (tele): 21 m

Highlight Compensation (HLC): yes

Digital Wide Dynamic Range (DWDR): yes

Region of Interest (ROI) encoding: yes

Smart IR: yes

Dynamic range: 120 dB

Progressive scan: yes

Card reader integrated: yes

Web-based management: yes

Mirror: yes

Reset button: yes

Cloud-managed: yes

Bit rate range: 0 - 64 Kbit/s

Human and vehicle targets classification: yes

Digest authentication: yes

Zoom capability: yes

Maximum aperture number: 1.6

Night vision: yes

Live view: yes

Number of illumination LEDs: 4

Built-in siren: yes

Video motion detection: yes

Audio detection: yes

IP address filtering: yes

Maximum memory card size: 512 GB

Operating relative humidity (H-H): 0 - 95 %

Number of microphones: 1

Optical zoom: 5 x

Storage temperature (T-T): -40 - 60 °C

Total megapixels: 4 MP

Back Light Compensation (BLC): yes

Video recording: yes

HTTPS encryption: yes

Wide Dynamic Range (WDR): yes

Infra-red wavelength: 850 nm

Day/night mode: yes

Number of cameras: 1

Power consumption (max): 10.8 W

Motion sensor: yes

Sample rate: 8 kHz

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3808182 TP-LINK INSIGHT S345ZI INSIGHT S345ZI Corded IP CCTV camera

Description

See every detail at close range

4 MP outdoor IR motorized Varifocal-Bullet-network camera

Motorised varifocal lens

By adjusting the field of view (FOV), this function helps to focus on areas of interest, minimize invalid detection zones and improve target clarity.

Greater clarity when zooming

Human & vehicle classification

Differentiate people and vehicles from other objects and get more accurate event notifications.

Intelligent video improvement technology

- True WDR: By analyzing and combining different exposures, True WDR ensures that both bright and dark areas remain correctly exposed and provides a balanced, natural image even in Hohem contrast environments.
- Smart IR: Smart IR dynamically adjusts the infrared lighting to prevent overexposure and glare, improve visibility across different distances and ensure clearer images.
- 3D DNR: 3D DNR is a noise reduction technology that analyzes image data over multiple frames to selectively reduce noise while preserving important details.
- White balance: The white balance ensures that white appears neutral in an image, regardless of the lighting conditions.

Efficient H.265+ compression technology

H.265+ reduces the bandwidth and storage space required for videos while retaining excellent picture quality. It saves 57.5% and 15% more storage space compared to H.264 and H.265.**
