Name: TP-LINK INSIGHT S445(4MM) INSIGHT S445(4MM) Corded IP CCTV camera
Brand: TP-LINK
SKU: 3808191
Availability: InStock

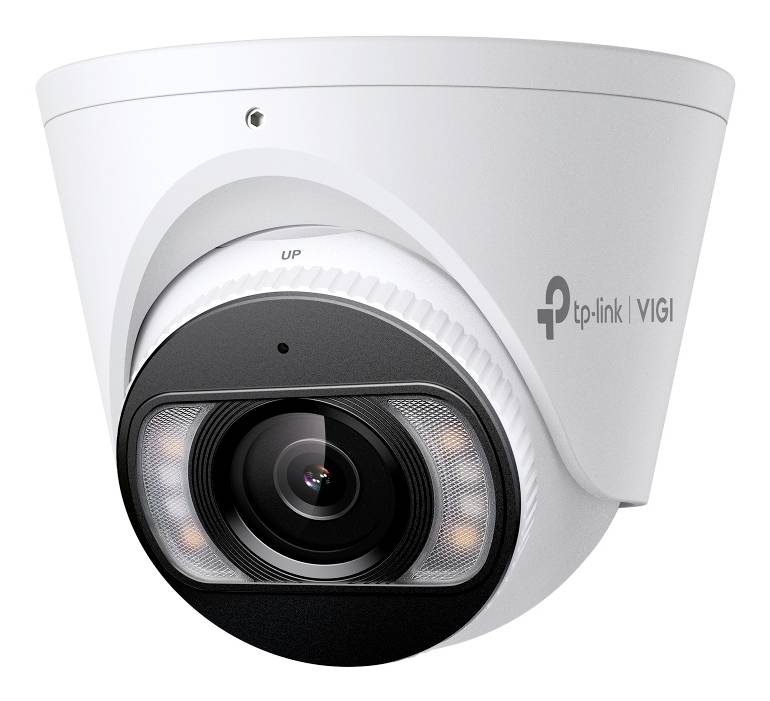

White TP-Link VIGI dome security camera with lens and infrared lights, shown front view on a plain background.

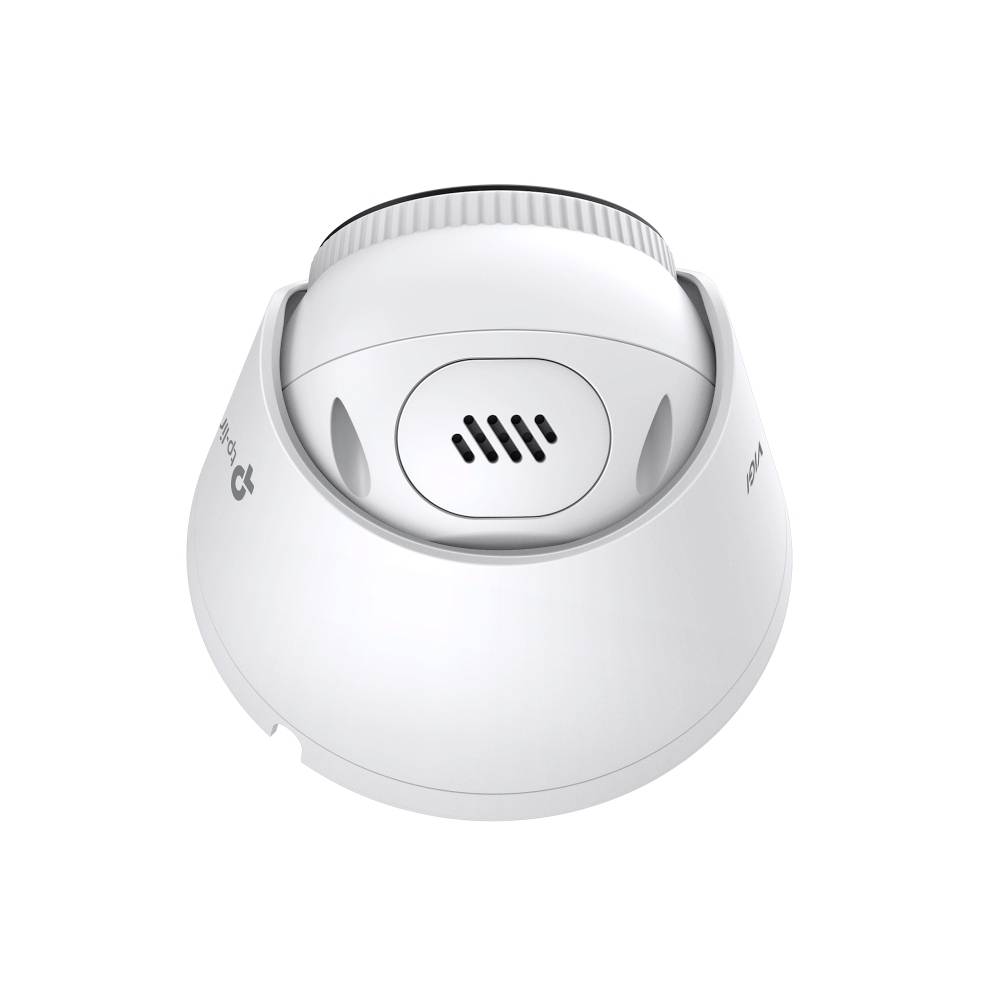

White round electronic device with a central vented opening, viewed from above on a plain white background.

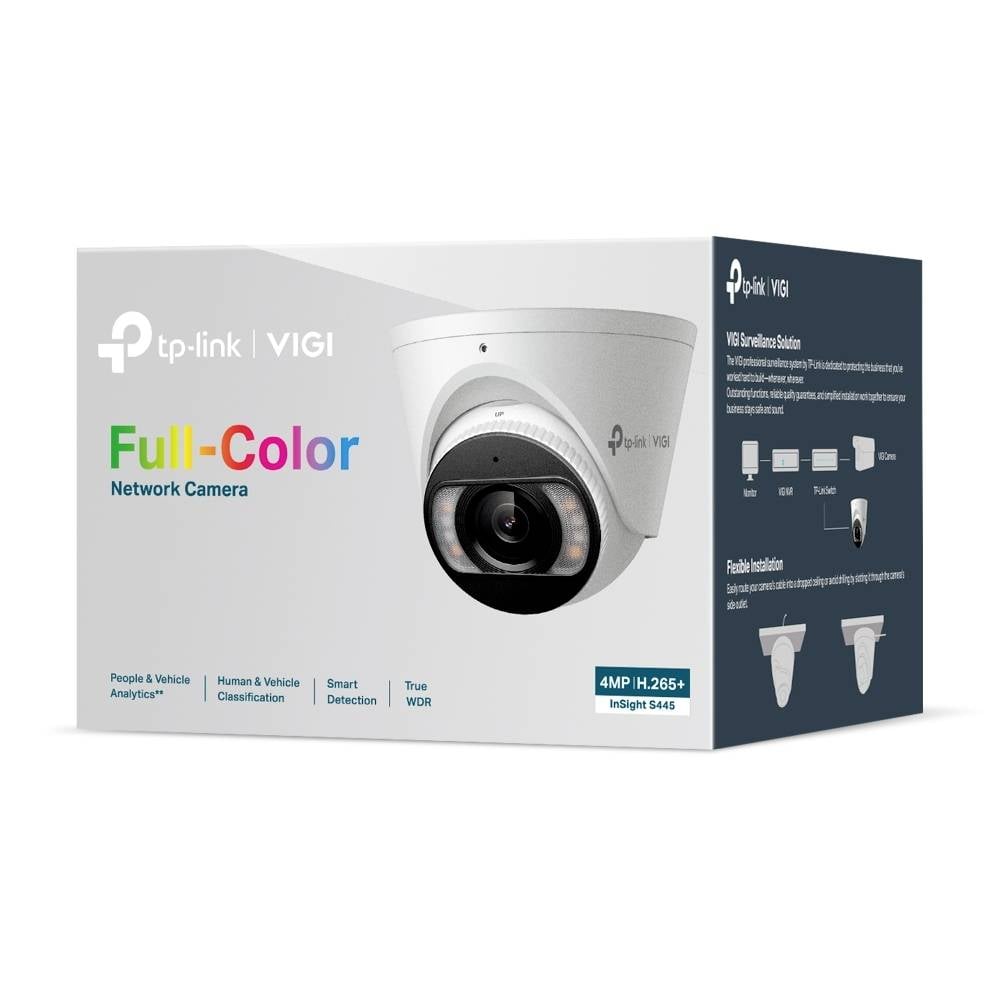

Box packaging for a TP-Link VIGI full-color network security camera, showing the dome camera image and labels for 4MP H.265+ and InSight S445.<br>

1/3

EAN:

Part number:

Item no:

Fast track dispatch on Thu 5 Nov

2 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 164.99 / piece)

€ 164.99

incl. VAT

Only 2 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Corded IP-Dome camera;TP-LINKINSIGHT S445(4MM);INSIGHT S445(4MM)Outdoors

Outdoor IP security camera
CMOS 25.4 / 2.7 mm (1 / 2.7") 4 MP 2688 x 1520 pixels
Wired Ethernet/LAN
Night vision IR/white
Turret room ceiling Waterproof
IP67 weather proof
480 g

Technical specifications

Supported positioning: Outside
Form factor: Turret
Tilt angle range 0 - 90°
Supported audio formats: G.711 A-law
Viewing angle (details): (Specific to the 4 mm lens)
Horizontal: 80.4°
Vertical: 41.8°
Diagonal 98.7°
Integrated LEDs: 4 infrared LEDs (wavelength: 850 nm, range: 30 m) and 4 white light LEDs (range: 30 m)
Audio features: Built-in microphone (recording radius of up to 5 m / 16.4 ft) and built-in speaker for two-way audio
DORI distance (for 4 mm lens): Detect (detect): 80 m, Observe (Observe): 33 m, Recognize (recognize): 16 m, Identify: 8 m.
VIDEO COMPRESSION: H.265+, H.265, H.264+, H.264
Operating temperature: -30 °C to + 60 °C.

Product type: CCTV camera

Camera type: Dome camera

Power supply: 12 V / DC
PoE (Power over Ethernet)

Sensor type: CMOS

Focal length: 4 mm

Max. viewing angle hor.: 80.4°

App compatibility: Yes

Transfer type: Corded

Light sensitivity (+ IR): 0 lx

Light sensitivity (- IR): 0.005 lx

IR range (max.): 30 m

Used at: Outdoors

Type: microSD card (up to 512 GB)

Width: 111 mm

Height: 83.7 mm

Depth: 111 mm

(Ø): 111 mm

Dim: (Ø x H) 111 mm x 83.7 mm

Weight: 480 g

F-numbers: F1.6

Enclosure material: Metal

Factory colour: White

: IP67

Signal standard: IP

Bluetooth: No

Display resolution: 2688 x 1520 Pixel

Material (details): Metal

Microphone: Yes

Type: IP-security camera / Turret-network camera

10/100/1000 Mbps ports: 1 x

Sensor type: CMOS

Wi-Fi: No

UKCA: yes

Screws included: yes

Operating temperature (T-T): -30 - 60 °C

Weatherproof: yes

Ethernet LAN: yes

Storage relative humidity (H-H): 0 - 95 %

Minimum illumination: 0 Lux

Password protection: yes

Optical sensor size: 25,4 / 2,7 mm (1 / 2.7")

Maximum operating distance: 80 m

Power consumption (Power over Ethernet (PoE)): 12 W

Infrared (IR) cut-off filter: yes

Fixed focus: yes

Remote viewing: yes

Built-in speaker(s): yes

Web browser: yes

Highlight Compensation (HLC): yes

Digital Wide Dynamic Range (DWDR): yes

Observe distance: 33 m

Detect distance: 80 m

Recognize distance: 16 m

Identify distance: 8 m

Dynamic range: 120 dB

Progressive scan: yes

Mirror: yes

Reset button: yes

Manual: yes

Cloud-managed: yes

Bit rate range: 0 - 64 Kbit/s

Digest authentication: yes

Drilling template included: yes

Signal-to-Noise Ratio (SNR) (panoramic camera): 52 dB

Digital Wide Dynamic Range (DWDR) (panoramic camera): yes

Maximum aperture number: 1.6

Night vision: yes

Live view: yes

Fixed focal length: 4 mm

Built-in siren: yes

Video motion detection: yes

IP address filtering: yes

Maximum memory card size: 512 GB

Operating relative humidity (H-H): 0 - 95 %

Number of microphones: 1

Storage temperature (T-T): -40 - 60 °C

Total megapixels: 4 MP

Back Light Compensation (BLC): yes

Mounting kit: yes

Video recording: yes

HTTPS encryption: yes

Wide Dynamic Range (WDR): yes

Day/night mode: yes

Number of cameras: 1

Power consumption (max): 11 W

Motion sensor: yes

Sample rate: 8 kHz

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3808191 TP-LINK INSIGHT S445(4MM) INSIGHT S445(4MM) Corded IP CCTV camera

Information

Information 3808191 TP-LINK INSIGHT S445(4MM) INSIGHT S445(4MM) Corded IP CCTV camera

Description

High performance 4 Megapixel network turret camera, equipped with a fixed 4 mm lens for focused detail surveillance and a 1/2.7" progressive scan CMOS sensor. The device supports the efficient H.265+ encoding for protecting network and memory capacity. For night-time surveillance, the camera has a flexible hybrid light system consisting of IR and white-light LEDs that delivers full-color shots when needed. High-contrast scenes are reliably compensated by the real 120dB WDR. Thanks to IP67 certification, the camera is suitable for outdoor use and power is supplied via PoE or 12V DC. The equipment also includes an integrated microphone, a loudspeaker as well as a micro-SD card slot for memory cards with a capacity of up to 512 GB.

This text is machine translated.
