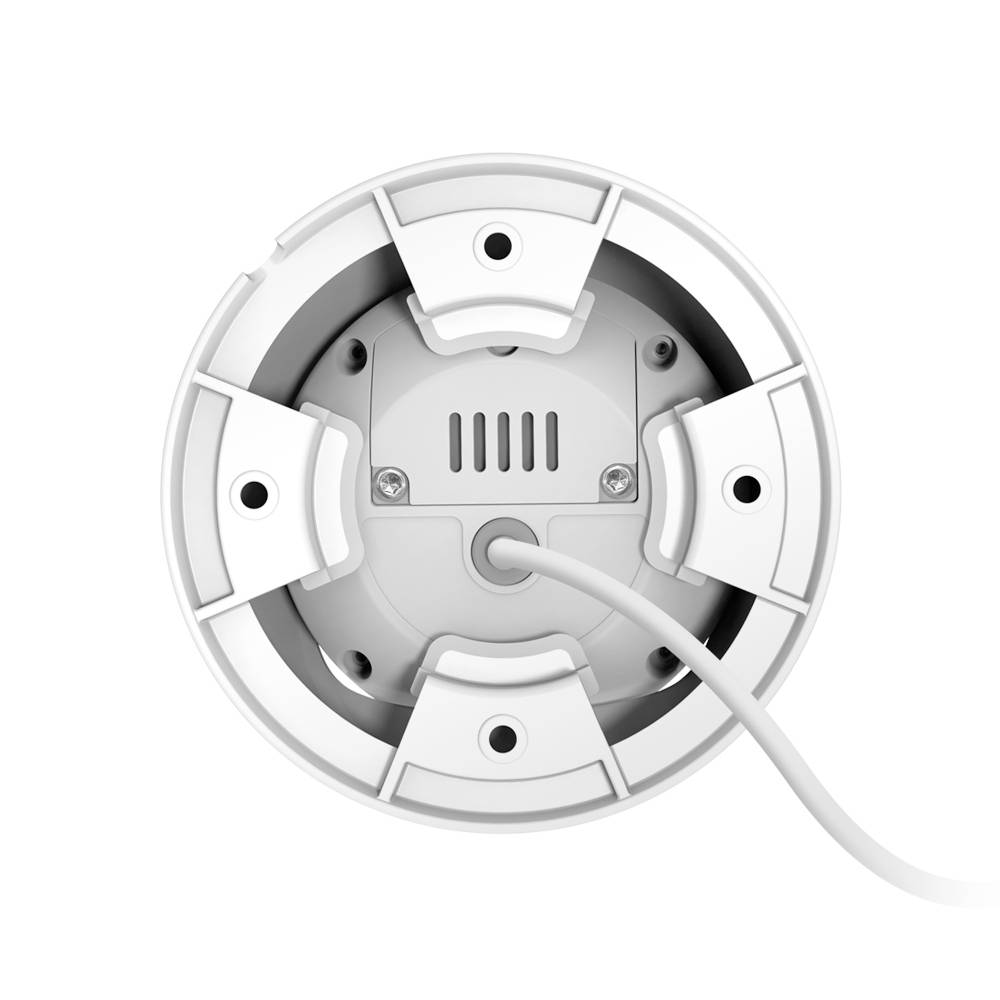

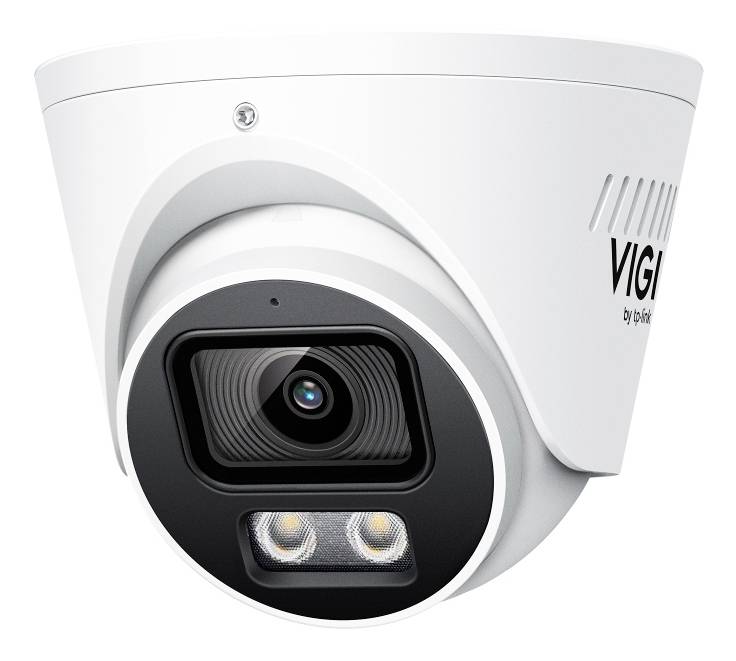

TP-LINK INSIGHT S445S(2.8MM) Corded IP CCTV camera
EAN:
Part number:
Item no:
Number
Total (€ 340.34 / piece)
€ 340.34
plus VAT.
Only 2 Piece(s) available
Corded IP-Dome camera;TP-LINK;INSIGHT S445S(2.8MM)Outdoors
Highlights & Details
- Outdoor IP security camera
- CMOS 25.4 / 79 mm (1 / 79") 4 MP 2688 x 1520 pixels
- Wired Ethernet/LAN
- Night view;
- Dome ceiling / wall
- IP67 weather proof
- 550 g
Technical specifications
- Supported positioning: Outside
- Form factor: Dome
- Tilt angle range 0 - 75°
- Number of simultaneous live view channels: 3 channels
- Product type
CCTV camera
- Camera type
Dome camera
- Power supply
12 V / DC (via PSU)
PoE (Power over Ethernet)
- Sensor type
CMOS
- App compatibility
Yes
- Transfer type
Corded
- Used at
Outdoors
- Type
microSD card (up to 512 GB)
- Width
111 mm
- Height
81.4 mm
- Depth
111 mm
- Dim
(W x H x D) 111 x 81.4 x 111 mm
- Weight
550 g
- Factory colour
White
IP67
- Signal standard
IP
- Display resolution
2688 x 1520 Pixel
- Material (details)
Metal
- Microphone
Yes
- Type
IP-security camera
- Rotation
360°
- 10/100/1000 Mbps ports
1 x
- Power consumption (ON)
15.6 W
- Power supply (details)
12 V
- Sensor type
CMOS
- UKCA
yes
- Operating temperature (T-T)
-30 - 60 °C
- Weatherproof
yes
- Ethernet LAN
yes
- Storage relative humidity (H-H)
0 - 95 %
- Video streaming
yes
- Minimum illumination
0.0005 Lux
- Password protection
yes
- Optical sensor size
25,4 / 79 mm (1 / 79")
- Alarm input channels
1
- Alarm output channels
1
- Number of lenses
1
- Auto pan mode
yes
- Infrared (IR) cut-off filter
yes
- Microphone in
yes
- Fixed focus
yes
- Built-in speaker(s)
yes
- Noise reduction
yes
- Web browser
yes
- Pan range
0 - 360°
- Highlight Compensation (HLC)
yes
- Region of Interest (ROI) encoding
yes
- Smart IR
yes
- Observe distance
25 m
- Detect distance
59 m
- Recognize distance
12 m
- Identify distance
6 m
- Dynamic range
120 dB
- Progressive scan
yes
- Card reader integrated
yes
- Frame rate
30 fps
- Web-based management
yes
- Mirror
yes
- Reset button
yes
- Cloud-managed
yes
- Bit rate range
256 - 6000 Kbit/s
- Human and vehicle targets classification
yes
- Digest authentication
yes
- Signal-to-Noise Ratio (SNR) (panoramic camera)
52 dB
- Number of Privacy masking areas
4
- Maximum aperture number
1
- Night vision
yes
- Live view
yes
- Fixed focal length
2.8 mm
- Video motion detection
yes
- Active tampering alarm
yes
- IP address filtering
yes
- Maximum memory card size
512 GB
- Operating relative humidity (H-H)
0 - 95 %
- Number of microphones
1
- Storage temperature (T-T)
-40 - 60 °C
- Total megapixels
4 MP
- Back Light Compensation (BLC)
yes
- Mounting kit
yes
- Built-in HDD
no
- Video recording
yes
- HTTPS encryption
yes
- Wide Dynamic Range (WDR)
yes
- Infra-red wavelength
850 nm
- Day/night mode
yes
- Alarm input/output
yes
- Number of cameras
1
- Power consumption (max)
17.9 W
- Motion sensor
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3808188 TP-LINK INSIGHT S445S(2.8MM) Corded IP CCTV camera
Description
Bright 4 megapixel network turret camera with a 2.8 mm fixed wide angle lens and a high-sensitivity 1/1.79" progressive scan CMOS sensor for superior image quality even with minimal illumination. The transmission is done bandwidth-saving via the H.265+ compression. A dual light system consisting of IR and white light LEDs ensures complete night monitoring including full color option. Strong contrast and backlight can be corrected reliably with the real 120dB WDR. The camera is IP67 rated weatherproof and supports the power supply via PoE or 12V DC. The equipment is completed by an integrated microphone, a loudspeaker as well as a micro-SD card slot for storage media up to 512 GB.
This text is machine translated.
This text is machine translated.
Features
- Highly-sensitive 1/1.79" sensor for extreme light yield
- Intelligent Hybrid Night Vision (IR & White Light LEDs)
- Robust Bullet-housing with weather protection (IP67)
- Integrated two-way audio (microphone & speaker)
- Real 120dB WDR
- Local microSD slot (up to 512 GB)
Scope of delivery
- Incl. drilling template
- Screws and rawlplugs
- Protective sleeve for RJ45 plug
- Instructions, cable adapter for inputs and outputs
Hints
No MicroSD card included, no power supply included
System requirements
- Windows, iOS, Android
