Name: TP-LINK InSight S485 INSIGHT S485(4MM) Corded IP CCTV camera
Brand: TP-LINK
SKU: 3808193
Availability: InStock

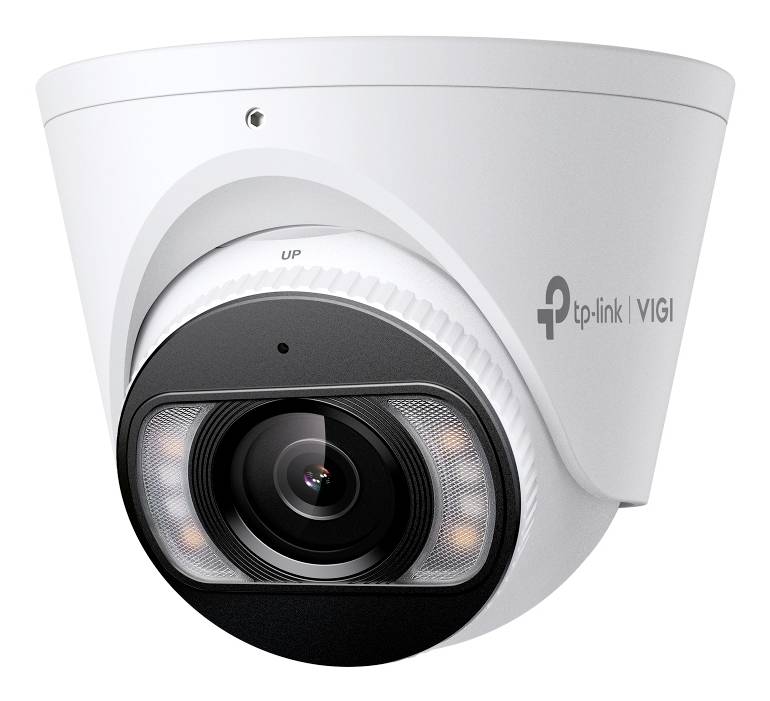

White TP-Link VIGI dome security camera with a central lens and infrared lights on the front.<br>

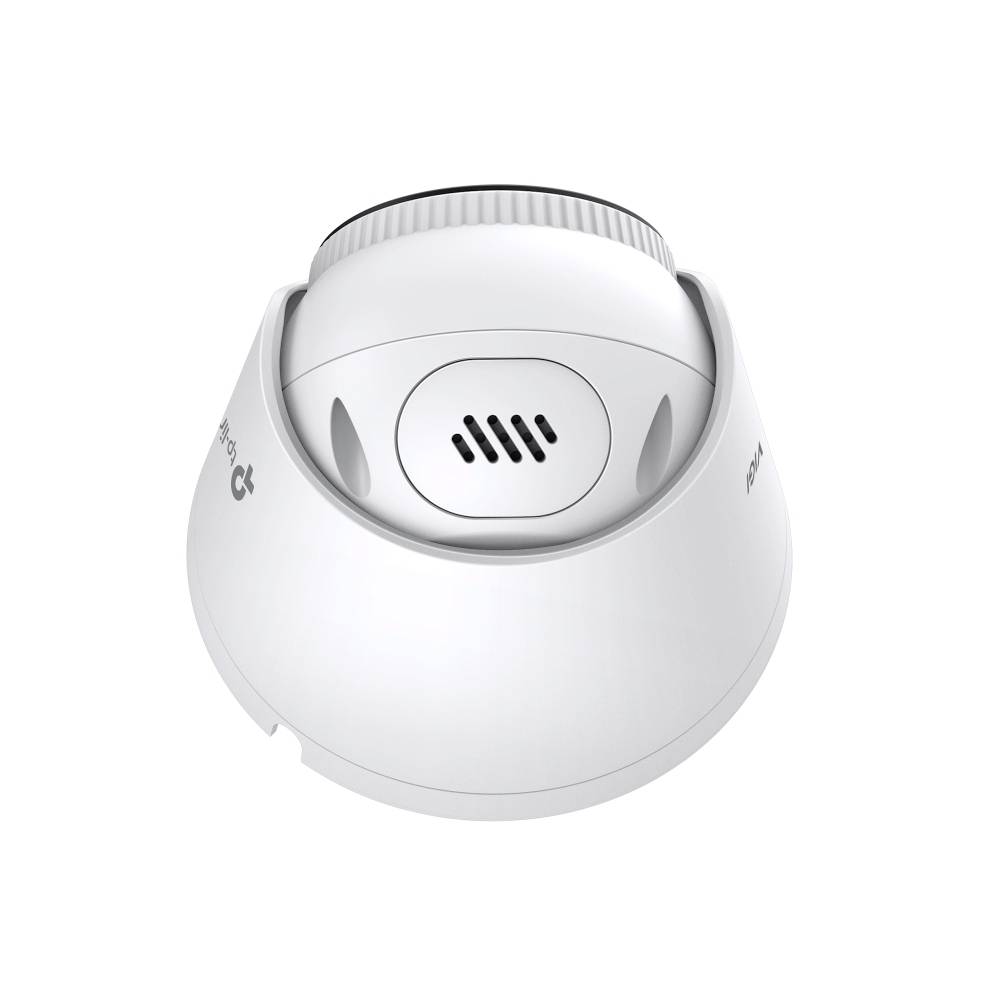

White round wall-mounted device with a central grille and top dial, likely a thermostat or sensor, shown on a plain background.

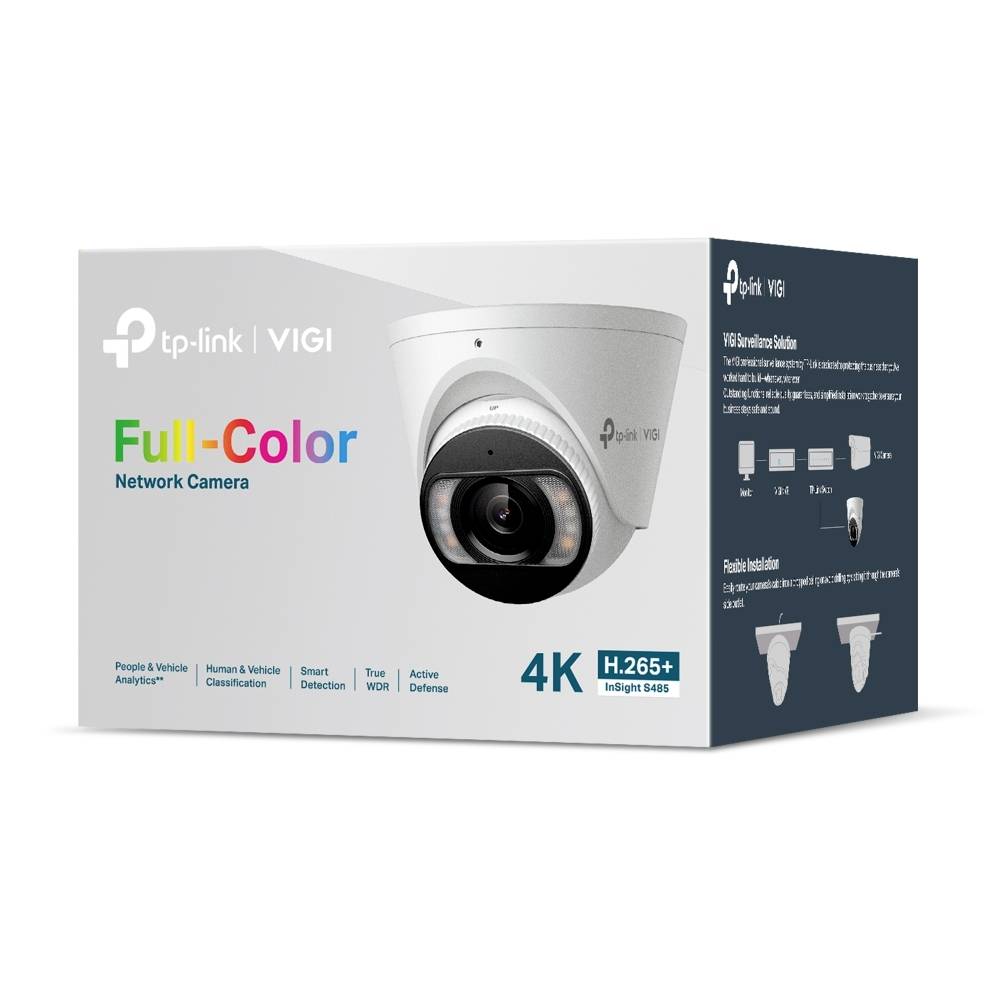

TP-Link VIGI Full-Color network camera box showing a dome security camera, 4K resolution, H.265+ video, and surveillance features.

1/4

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 5 Nov

2 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 214.99 / piece)

€ 214.99

incl. VAT

Only 2 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Corded IP-Dome camera;TP-LINKInSight S485;INSIGHT S485(4MM)Outdoors

Outdoor IP security camera
CMOS 25.4 / 2.7 mm (1 / 2.7") 8 MP 3840 x 2160 pixels
Wired Ethernet/LAN
Night vision IR/white
Turret room ceiling Waterproof
IP67 weather proof
480 g

Technical specifications

Supported positioning: Outside
Form factor: Turret
Tilt angle range 0 - 90°
Supported audio formats: G.711 A-law
Built-in microphone: Yes (records ambient noise within a radius of up to 5 meters)
DORI removal (2.8 mm / 4 mm):
Detect (detect) 85 m / 107 m
Observe (Observe): 35 m / 44 m.
Recognition: 17 m / 21 m.
Identify (Identify):8 m / 11 m.
Viewing angle:
With 4 mm lens: Horizontal 91.5°, vertical: 46.1°, diagonal: 109.6°

Product type: CCTV camera

Camera type: Dome camera

Power supply: 12 V / DC
PoE (Power over Ethernet)

Sensor type: CMOS

Focal length: 4 mm

Viewing angle: 91.5°

Max. viewing angle hor.: 91.5°

Vertical viewing angle: 46.1°

Vertical viewing angle: 106.9°

App compatibility: Yes

Transfer type: Corded

Light sensitivity (+ IR): 0 lx

Light sensitivity (- IR): 0.005 lx

IR range (max.): 30 m

Used at: Outdoors

Type: microSD card (up to 512 GB)

Width: 111 mm

Height: 83.7 mm

Depth: 111 mm

(Ø): 111 mm

Dim: (Ø x H) 111 mm x 83.7 mm

Weight: 480 g

F-numbers: F1.6

Enclosure material: Metal

Factory colour: White

: IP67

Signal standard: IP

Bluetooth: No

Display resolution: 3840 x 2160 Pixel

Material (details): Metal

Microphone: Yes

Type: IP-security camera

10/100/1000 Mbps ports: 1 x

Sensor type: CMOS

Wi-Fi: No

UKCA: yes

Screws included: yes

Operating temperature (T-T): -30 - 60 °C

Weatherproof: yes

Ethernet LAN: yes

Storage relative humidity (H-H): 0 - 95 %

Password protection: yes

Optical sensor size: 25,4 / 2,7 mm (1 / 2.7")

Maximum operating distance: 107 m

Power consumption (Power over Ethernet (PoE)): 12.5 W

Infrared (IR) cut-off filter: yes

DC-in jack: yes

Fixed focus: yes

Remote viewing: yes

Built-in speaker(s): yes

Web browser: yes

Highlight Compensation (HLC): yes

Digital Wide Dynamic Range (DWDR): yes

Observe distance: 44 m

Detect distance: 107 m

Recognize distance: 21 m

Identify distance: 11 m

Dynamic range: 120 dB

Progressive scan: yes

Web-based management: yes

Mirror: yes

Reset button: yes

Manual: yes

Cloud-managed: yes

Bit rate range: 0 - 64 Kbit/s

Drilling template included: yes

Maximum aperture number: 1.6

Night vision: yes

Live view: yes

Fixed focal length: 4 mm

Built-in siren: yes

Video motion detection: yes

IP address filtering: yes

Maximum memory card size: 512 GB

Operating relative humidity (H-H): 0 - 95 %

Number of microphones: 1

Storage temperature (T-T): -40 - 60 °C

Total megapixels: 8 MP

Back Light Compensation (BLC): yes

Mounting kit: yes

Video recording: yes

HTTPS encryption: yes

Wide Dynamic Range (WDR): yes

Day/night mode: yes

Number of cameras: 1

Power consumption (max): 11.5 W

Motion sensor: yes

Sample rate: 8 kHz

Documents & Downloads

Datasheet

Datasheet 3808193 TP-LINK InSight S485 INSIGHT S485(4MM) Corded IP CCTV camera

User & Safety Instructions

User & Safety Instructions 3808193 TP-LINK InSight S485 INSIGHT S485(4MM) Corded IP CCTV camera

Conformity certificate

Conformity certificate 3808193 TP-LINK InSight S485 INSIGHT S485(4MM) Corded IP CCTV camera

Description

High resolution 8 Megapixel Network Turret camera (4K UHD) equipped with a fixed 4 mm lens for detailed medium distance monitoring and a 1/2.7" Progressive Scan CMOS sensor. The camera uses modern H.265+ compression for relieving the load on the network and on the memory. An integrated hybrid light system comprising IR and white light LEDs enables a full-color night view when required. Ambitious lighting conditions and strong backlight are balanced by the real 120dB WDR. The camera is IP67 certified, supports power supply via PoE or 12V DC and is equipped with an integrated microphone, a loudspeaker and a micro-SD card slot for memory cards up to 512 GB.

This text is machine translated.
