Name: TP-LINK VIGI NVR2008H-8MP VIGI NVR1008H-8MP LAN, Corded IP Network video recorder 3840 x 2160 p
Brand: TP-LINK
SKU: 3808172
Availability: InStock

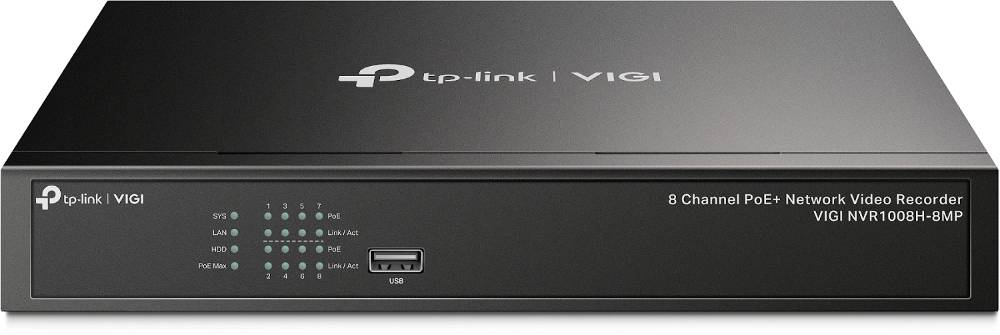

Front view of a TP-Link VIGI 8-channel PoE+ network video recorder, model VIGI NVR1008H-8MP, with status LEDs and USB port.

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Fri 6 Nov

1 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 325.00 / piece)

€ 325.00

incl. VAT

Only 1 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

LAN, Corded IP-3840 x 2160 p;TP-LINKVIGI NVR2008H-8MP;VIGI NVR1008H-8MPIndoors

Video input channels: 8 channels
3840 x 2160 pixels
Input bandwidth: 80 Mbps Output bandwidth: 60 Mbps
Max. Storage capacity 10 TB HDD Interface SATA
Number of Ethernet LAN connections (RJ-45): 1

Technical specifications

Video input channels: 8 channels
80 Mbps input bandwidth
Output bandwidth 60 Mbit/s.
Power consumption:
NVR maximum power consumption: 8.5 W (without hard drive) or 40 W (with hard drive)
PoE budget: Total 90 W for all ports (max. 30 W per port)
Rear/front connections:
1x USB 2.0 (front), 1x USB 3.0 (rear)
1-channel cinch (RCA) audio-in, 1-channel audio-out
1x eSATA
6 Alarm inputs
4 Alarm outputs

Product type: Network video recorder

Resolution (max.): 3840 x 2160 p

App compatibility: Yes

Transfer type: LAN
Corded

Used at: Indoors

Width: 294 mm

Height: 44 mm

Depth: 180 mm

Dim: (W x H x D) 294 x 44 x 180 mm

Factory colour: Black

Signal standard: IP

Display resolution: 3840 x 2160 Pixel

No. of HDMI ports: 1 x

No. of USB A 2.0 ports: 2 x

Keyboard layout: Keyboard not included

Memory capacity: 0 GB

Max. output current: 2.43 A

Output voltage: 53.5 V

10/100/1000 Mbps ports: 1 x

Power consumption (ON): 4.82 W

Wi-Fi: No

UKCA: yes

Operating temperature (T-T): -10 - 55 °C

Total Power over Ethernet (PoE) budget: 119 W

Audio RCA inputs: 1

Audio RCA outputs: 1

HDMI output: yes

Alarm input channels: 8

Alarm output channels: 1

Maximum storage capacity: 10 TB

Package weight: 2.1 kg

VGA (D-Sub) output ports: 1

Documents & Downloads

Datasheet

Datasheet 3808172 TP-LINK VIGI NVR2008H-8MP VIGI NVR1008H-8MP LAN, Corded IP Network video recorder 3840 x 2160 p

User & Safety Instructions

User & Safety Instructions 3808172 TP-LINK VIGI NVR2008H-8MP VIGI NVR1008H-8MP LAN, Corded IP Network video recorder 3840 x 2160 p

Information

Information 3808172 TP-LINK VIGI NVR2008H-8MP VIGI NVR1008H-8MP LAN, Corded IP Network video recorder 3840 x 2160 p

Conformity certificate

Conformity certificate 3808172 TP-LINK VIGI NVR2008H-8MP VIGI NVR1008H-8MP LAN, Corded IP Network video recorder 3840 x 2160 p

Description

Powerful 8-channel network video recorder designed for high-resolution surveillance systems with a maximum decoding capacity of up to 8 channels at 2 megapixels or up to 2 channels in true 8 megapixel (4K) resolution. The use of H.265+ video compression drastically reduces the storage capacity and network load required. The system supports a SATA hard disk with up to 10 TB for complete long-term recording in 24/7-mode. Thanks to full compatibility with the VIGI system and ONVIF support, the recorder can be seamlessly integrated into existing infrastructures and conveniently managed via APP, PC client or direct HDMI/VGA monitor connection.

This text is machine translated.
