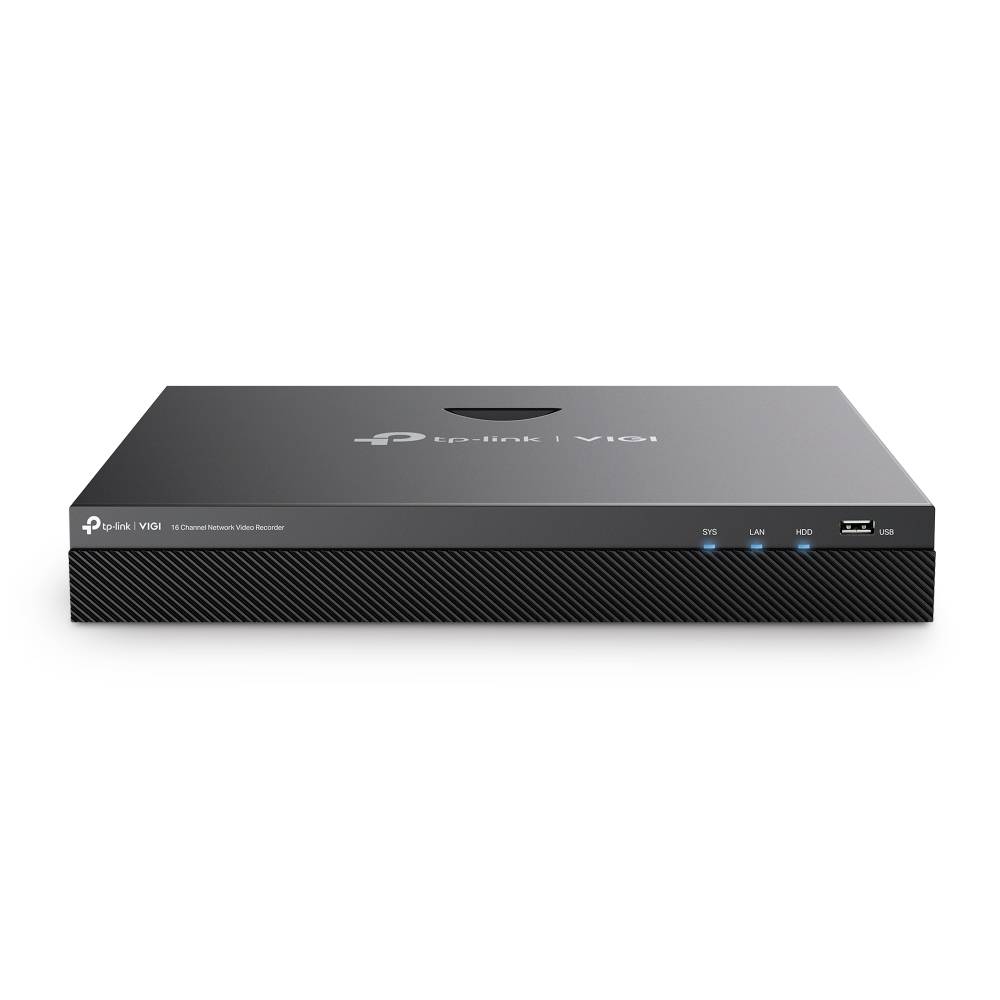

TP-LINK VIGI NVR2016H VIGI NVR2016H IP Network video recorder
EAN:
Part number:
Item no:
Number
Total (€ 323.53 / piece)
€ 323.53
plus VAT.
Only 1 Piece(s) available
IP-TP-LINKVIGI NVR2016H;VIGI NVR2016H
Highlights & Details
- Video input channels: 16 channels
- 3840 x 2160 pixels
- 80 Mbps input bandwidth
- Output bandwidth 60 Mbit/s.
- Max. Storage capacity 10 TB HDD Interface SATA
- Number of Ethernet LAN connections (RJ-45): 1
- 24.16 W
Technical specifications
- Video input channels: 16 channels
- Number of channels played simultaneously: 16 channels
- Supported audio formats: G.711 A-law,G.711 μ-law,G.726
- Maximum frame rate 30 fps
- USB interfaces 1 × USB 2.0 (front side), 1 × USB 3.0 (rear side)
- Audio interface 1 × RCA input (audio in), 1 × RCA output (audio out)
- Alarm connections: 6 Alarm inputs / 4 Alarm outputs
- Additional interfaces: 1 × eSATA, 1 × VGA
- VIDEO COMPRESSION: H.265+/H.265/H.264+/H.264
- Decode capacity: 10 channels at 1080P (25 fps), 2 channels at 8 MP (30 fps), 4 channels at 5 MP (30 fps), 5 channels at 4 MP (30 fps) or 6 channels at 3 MP (30 fps)
- Interoperability: ONVIF (Profile S), CGI
- Product type
Network video recorder
- Power supply
12 V / DC (via PSU)
- App compatibility
Yes
- Width
330 mm
- Height
45 mm
- Depth
285 mm
- Dim
(W x H x D) 330 x 45 x 285 mm
- Weight
1.9 kg
- Factory colour
Black
- Signal standard
IP
- Cable length
0 cm
- Version
Cable
- Display resolution
3840 x 2160 Pixel
- No. of HDMI ports
1 x
- No. of USB A 2.0 ports
2 x
- Memory capacity
0 GB
- Max. output current
3.3 A
- Output voltage
12 V
- 10/100/1000 Mbps ports
1 x
- Wi-Fi
No
- UKCA
yes
- Operating temperature (T-T)
-10 - 55 °C
- Line-in
yes
- Storage relative humidity (H-H)
10 - 90 %
- Playback controls
yes
- DC-in jack
yes
- eSATA ports quantity
1
- Number of HDDs supported
2
- eSATA
yes
- Reset button
yes
- Maximum storage capacity
10 TB
- Video motion detection
yes
- Operating relative humidity (H-H)
10 - 90 %
- Storage temperature (T-T)
-40 - 70 °C
- Package weight
3.2 kg
- Internal SATA ports quantity
2
- VGA (D-Sub) output ports
1
- Power consumption (max)
24.16 W
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3808175 TP-LINK VIGI NVR2016H VIGI NVR2016H IP Network video recorder
Conformity certificate
Conformity certificate 3808175 TP-LINK VIGI NVR2016H VIGI NVR2016H IP Network video recorder
Description
Powerful 16-channel network video recorder for centralized storage and administration of up to 16 IP cameras in medium to large security infrastructures. The system decompresses up to 8 channels at 2 megapixels (or 2 channels at 8 megapixels) at the same time and minimizes the data volume in the network as well as the memory requirement thanks to the H.265+-compression. Two integrated SATA interfaces enable the connection of hard drives with a total capacity of up to 20 TB (2 x 10 TB) for continuous video recording. The device can be controlled seamlessly via the VIGI management platform, web client or VIGI APP and supports the integration of third-party cameras via the ONVIF standard.
This text is machine translated.
This text is machine translated.
Features
- Dual SATA slots for extended storage capacity (up to 20 TB)
- 16-channel central administration
- Resource-optimized H.265+ compression
- HDMI and VGA direct display
- Flexible network integration
- APP and web control
Scope of delivery
- Inclusive of power supply with power cable
- USB mouse
- 19" rack holder
- Screw
- Rubber buffer for housing
- User manual.
- HDD-cable
- CCTV sign
Hints
Hard disk not included
System requirements
- Windows, iOS, Android
