Buy TracoPower TMPW 10-112-T AC/DC PSU (print) 12 V DC 0.8 A 10 W

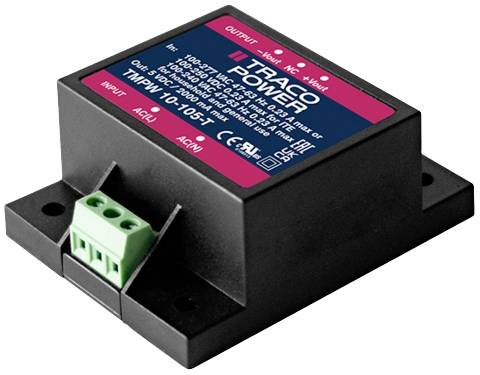

A black, rectangular electronic module with a green, three-pin connector and a label with technical data on top.

Datasheet (PDF)

Available soon

7 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Minimum order quantity: 10

Total (€ 22.68 / piece)

€ 226.80

plus VAT.

Only 7 Piece(s) available

Report legal concerns

Highlights & Details

AC/DC power supply, TMPW 10 series

Output 12 V DC / 0.8 A
Power 10 W

Technical specifications

Product type: AC/DC PSU (print)

Input voltage (max.): 305 V AC

Max. output current: 0.8 A

Output current (max.) - rounded: 800 mA

Min. input voltage: 90 V AC

Dim: (L x W x H) 43.20 x 55.10 x 22.90 mm

Output voltage (max.): 12 V DC

: 10 W

No. of outputs: 1 x

Type: closed

Operating temperature (max.): +70 °C

Operating temperature (min.): -40 °C

Weight: 65 g

Width: 55.10 mm

Height: 22.90 mm

Length: 43.20 mm

Type: TMPW 10-112-T

Documents & Downloads

Datasheet

Datasheet 3373119 TracoPower TMPW 10-112-T AC/DC PSU (print) 12 V DC 0.8 A 10 W

User & Safety Instructions

User & Safety Instructions 3373119 TracoPower TMPW 10-112-T AC/DC PSU (print) 12 V DC 0.8 A 10 W

Warranty Terms

Warranty Terms 3373119 TracoPower TMPW 10-112-T AC/DC PSU (print) 12 V DC 0.8 A 10 W

Description

These compact modules are equipped with a wide input range from 90 to 305 VAC for industrial and household applications. They are available in three designs: Enclosed plastic casing with solder pins, chassis housing with screw terminals (end: -T) or JST connectors (end: -J). Other features are an integrated filter according to EN 55032, class B and the approval according to IEC/EN/EL 62368-1.

This text is machine translated.
