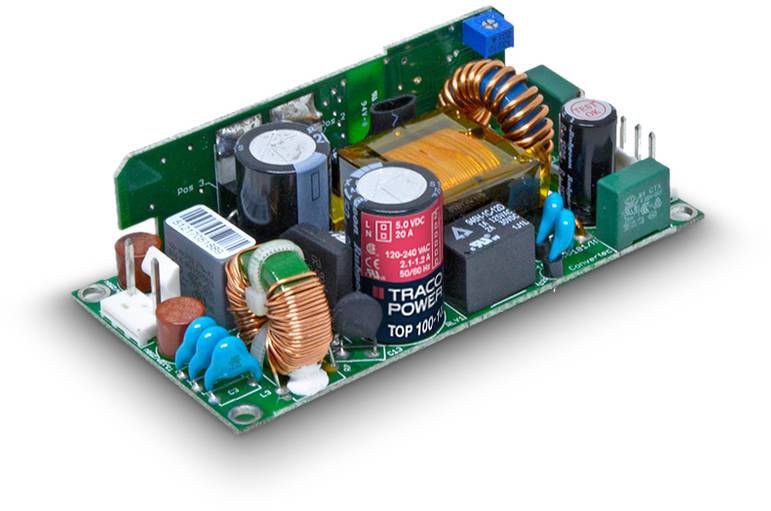

TracoPower TOP 100-112 Power supply unit 12 V DC 8.3 A 100 W
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Minimum order quantity: 5
Multiple: 5
Total (€ 97.99 / piece)
€ 97.99
incl. VAT
14-day return policy included
Highlights & Details
TracoPower TOP 100-112 Power supply unit 12 V DC 8.3 A 100 W
- Highest power density in industry standard 5.08 x 10.16 cm (2 x 4")
Technical specifications
- Type
TOP 100-12
- Product type
Power supply unit
- Input voltage (max.)
264 V AC
- Max. output current
8.3 A
- Output current (max.) - rounded
8.3 A
- Min. input voltage
90 V AC
- Dim
(L x W x H) 102 x 51 x 32 mm
- Output voltage (max.)
12 V DC
- Connection
Connector
100 W
- No. of outputs
1 x
- Output current 1
8.3 A
- Type
open
- Weight
140 g
- Width
51 mm
- Height
32 mm
- Length
102 mm
- Type
TOP 100-112
- Output current (min.)
0 A
- Output voltage (min.)
12 V DC
100 W
- Connection
Connectors
- Input voltage
90 - 132/187 - 264 V AC
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 511702 TracoPower TOP 100-112 Power supply unit 12 V DC 8.3 A 100 W
Datasheet 511702 TracoPower TOP 100-112 Power supply unit 12 V DC 8.3 A 100 W
User & Safety Instructions
User & Safety Instructions 511702 TracoPower TOP 100-112 Power supply unit 12 V DC 8.3 A 100 W
Warranty Terms
Warranty Terms 511702 TracoPower TOP 100-112 Power supply unit 12 V DC 8.3 A 100 W
Description
The main feature of the TOP-100 series is the highest power density in the industry standard 50.8 x 101.6 mm (2.0" x 4.0"). The power supply unit can be used with an output power of up to 100 W with convection cooling in an industrial operating temperature range of -25°C to +50°C can be operated. This feature is achieved by advanced technology and an extremely high efficiency> 90%, which makes the use of an additional cooling fan unnecessary.
This text is machine translated.
This text is machine translated.
Features
- Ultra compact Open Frame switching SMPS
- Connector with connector assembly (Molex)
- Overvoltage protection
- Interference according to EN 55022, class B and EN 61000-3-2 (PFHC)
- International safety standards/ permissions
- Network-/load regulation ±1% max
- Ripple < 100 m Vpp
- Power limit 150%
- Operation temperature -25 till +70 °C, reduction of performance above 50 ºC
- Safety/reliability as per IEC/EN 60950, UL 60950-1, CSA-C22.2 No. 60950-1103
- Efficiency 90%
- Protection class 2.
Scope of delivery
- Without Alubrucke as a heatsink.
- This text is machine translated.
