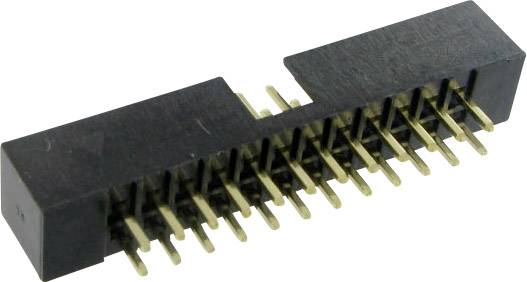

TRU COMPONENTS 1589714 Pin connector no ejector Contact spacing: 2 mm Total number of pins: 40 No. of rows: 2 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Minimum order quantity: 3
Total (€ 0.68 / piece)
€ 2.04
plus VAT.
Highlights & Details
Column plug connector RM 2 mm
- Total number of pins 40
- No. of rows 2
- Industrial goods No
- Content 1 pc(s)
Technical specifications
- Connector type
Pin strip, straight
- Features
no ejector
- CS
2 mm
- No. of rows
2
- Pins per row
20
- Total number of pins
40
- Nominal current
1 A
- Contact material
Phosphorus bronze
- Content
1 pc(s)
- Connection
Print
- Type
F05-40 AG1-G
- Dim
(L x W x H) 47.10 x 5.50 x 5.70 mm
- Factory colour
Black
- Height
5.70 mm
- Length
47.10 mm
- Width
5.50 mm
- Industrial packaging
No
- Connector orientation
Perpendicular (to the PCB)
- Manufacturer part #
1589714
- Case material
PBT
- RoHS-compliant
Yes
- Max. temperature
+105 °C
- Min. temperature
-40 °C
- Product type
Pin connector
