TRU COMPONENTS Junction box IP68 waterproof 3 inputs, 0.5-4.0 mm² TC-14745288 Black TRU COMPONENTS Content: 1 pc(s)

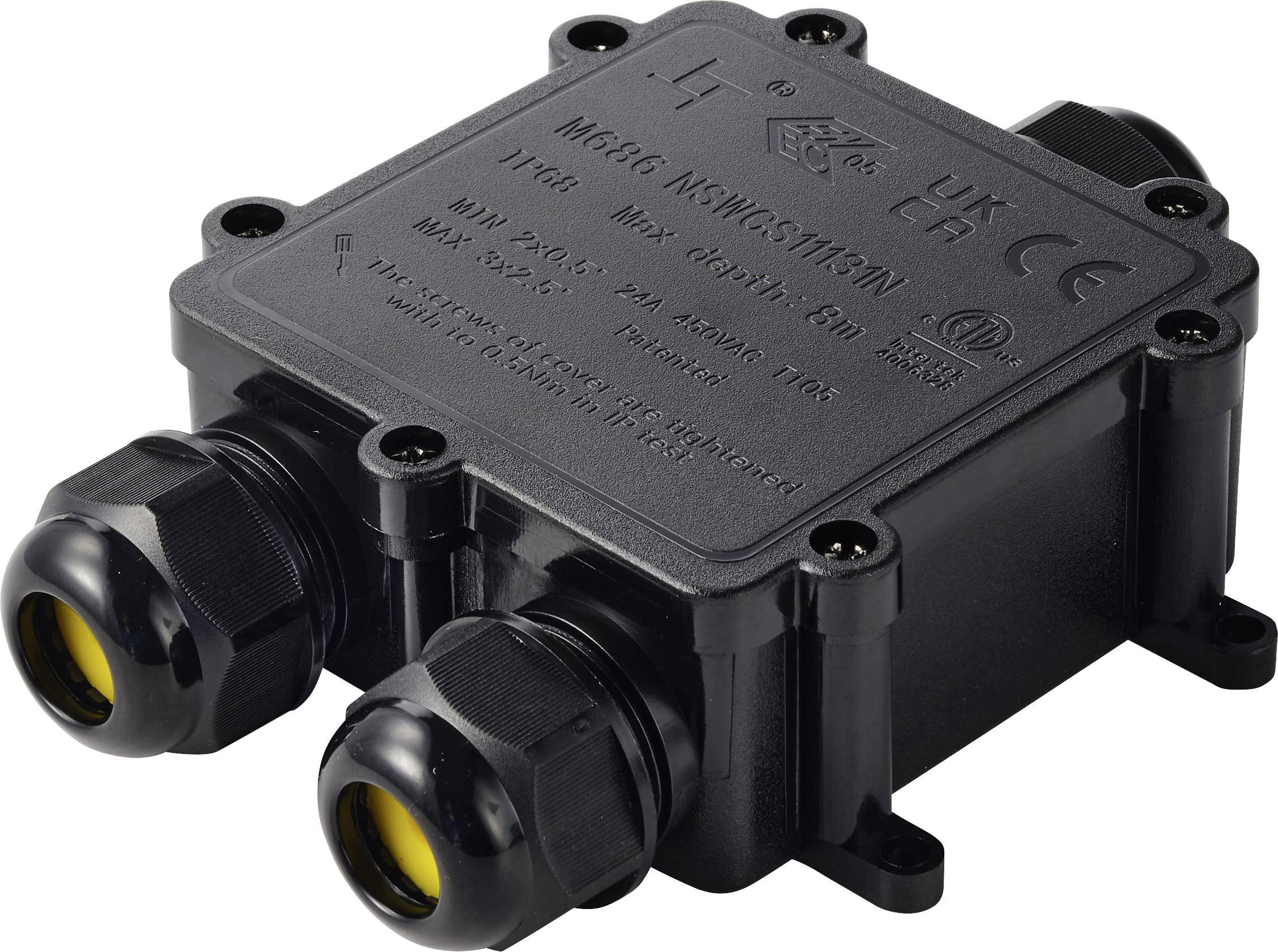

Black electrical junction box with two cable glands and embossed technical labeling on the lid<br>

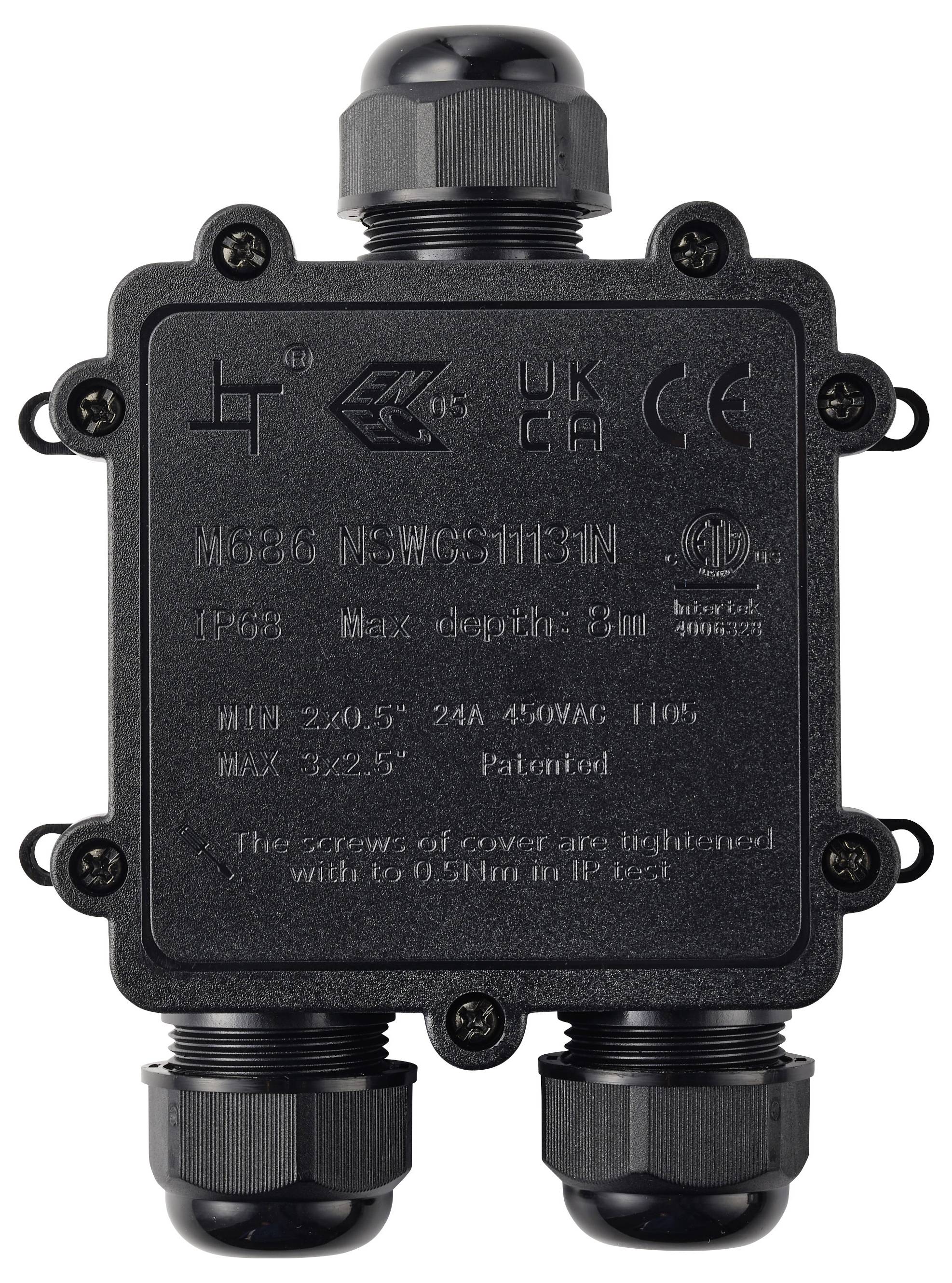

Black weatherproof electrical junction box with three cable gland connectors and embossed compliance markings on the cover.

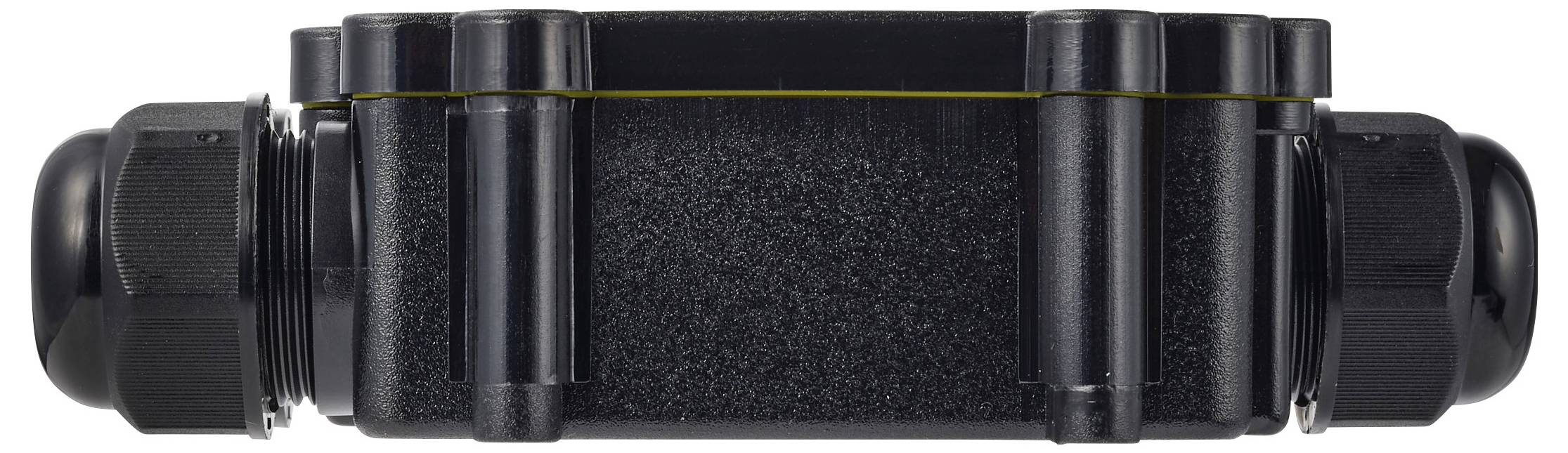

Side view of a black cylindrical inline device with screw-on end caps and mounting brackets, likely a pipe or cable connector.

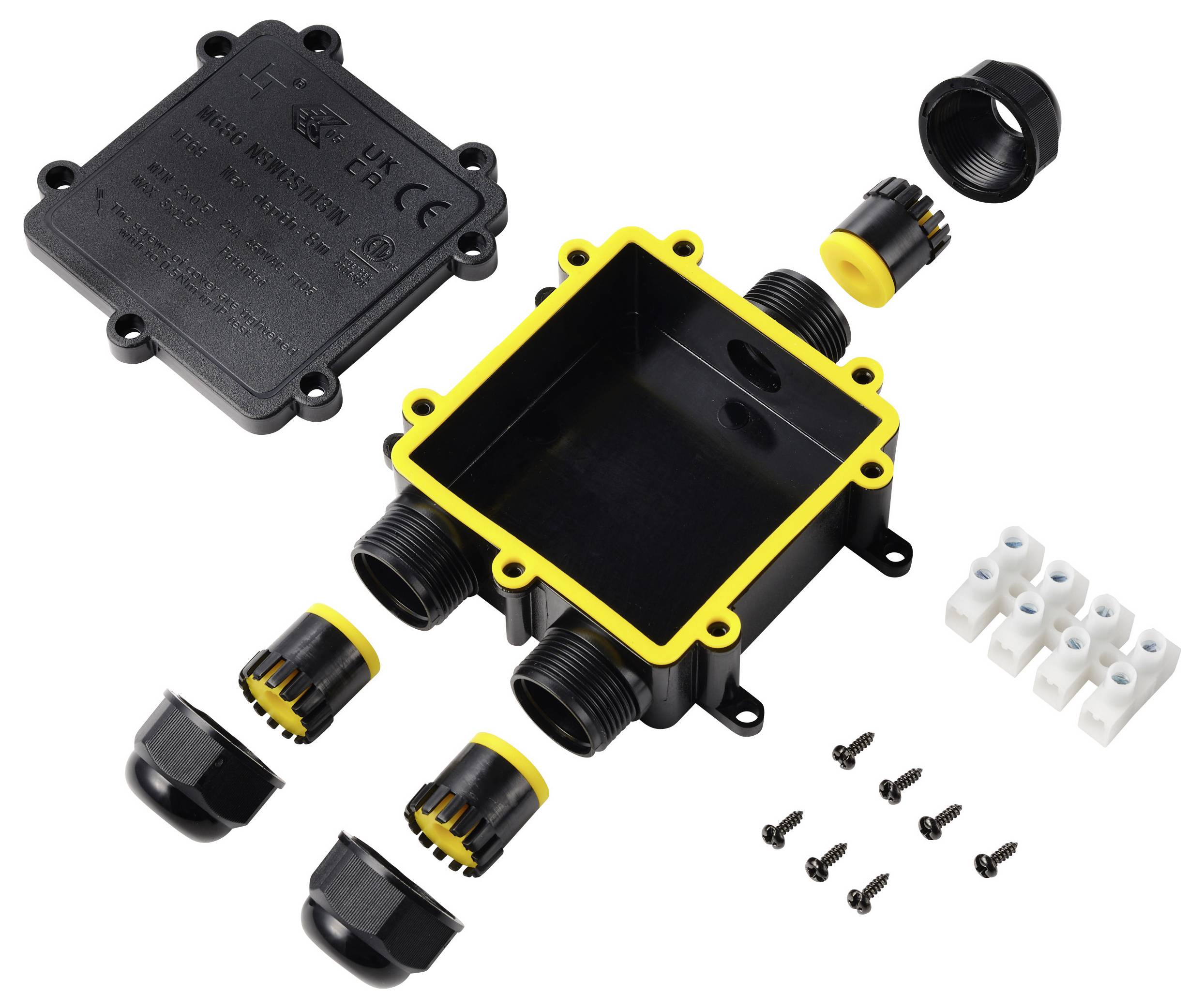

Exploded view of a black waterproof electrical junction box with yellow gasket, threaded cable glands, cap, terminal block, and mounting screws.

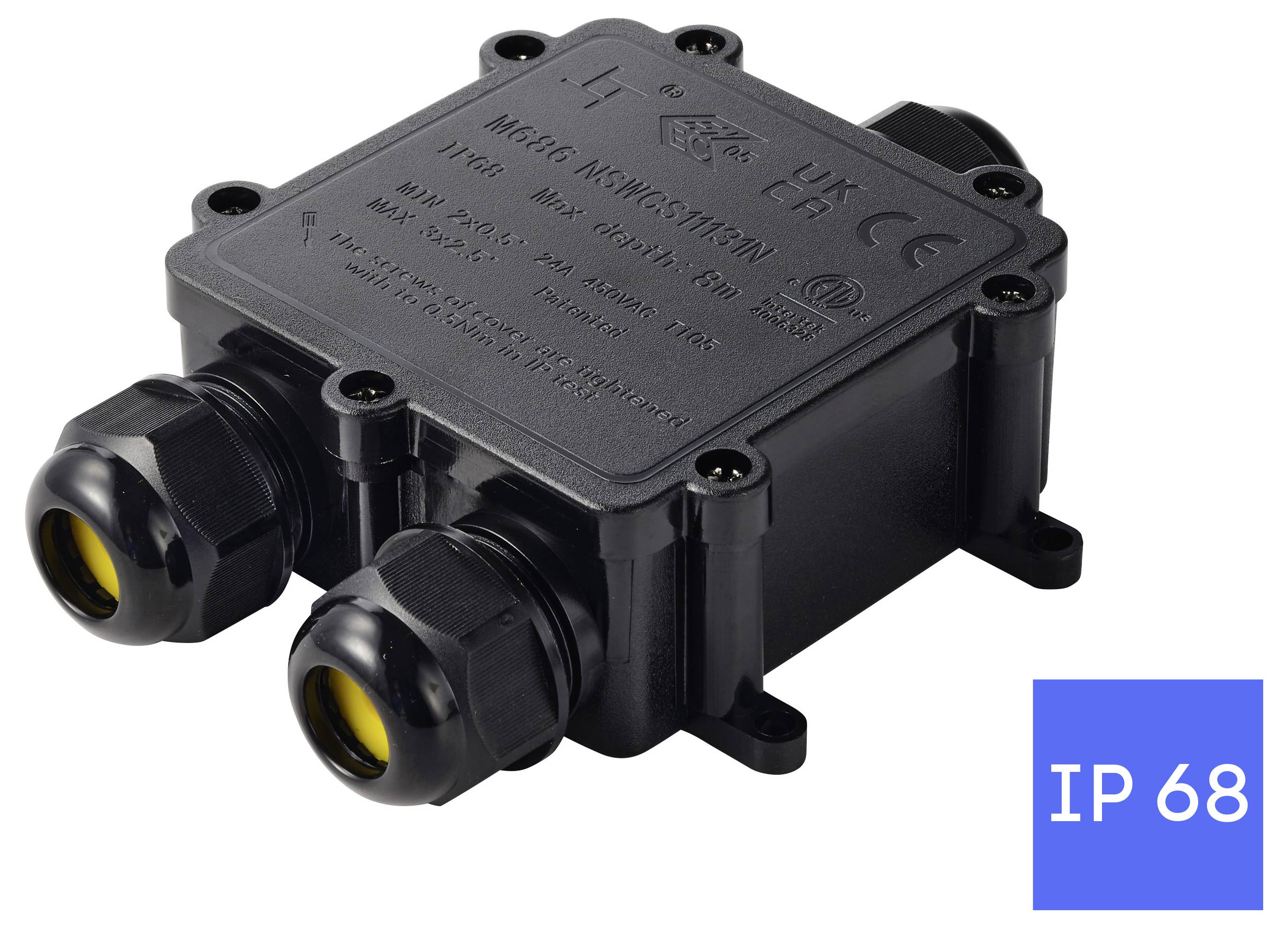

Black waterproof electrical junction box with two cable glands, labeled 'IP 68' for dust and water protection.

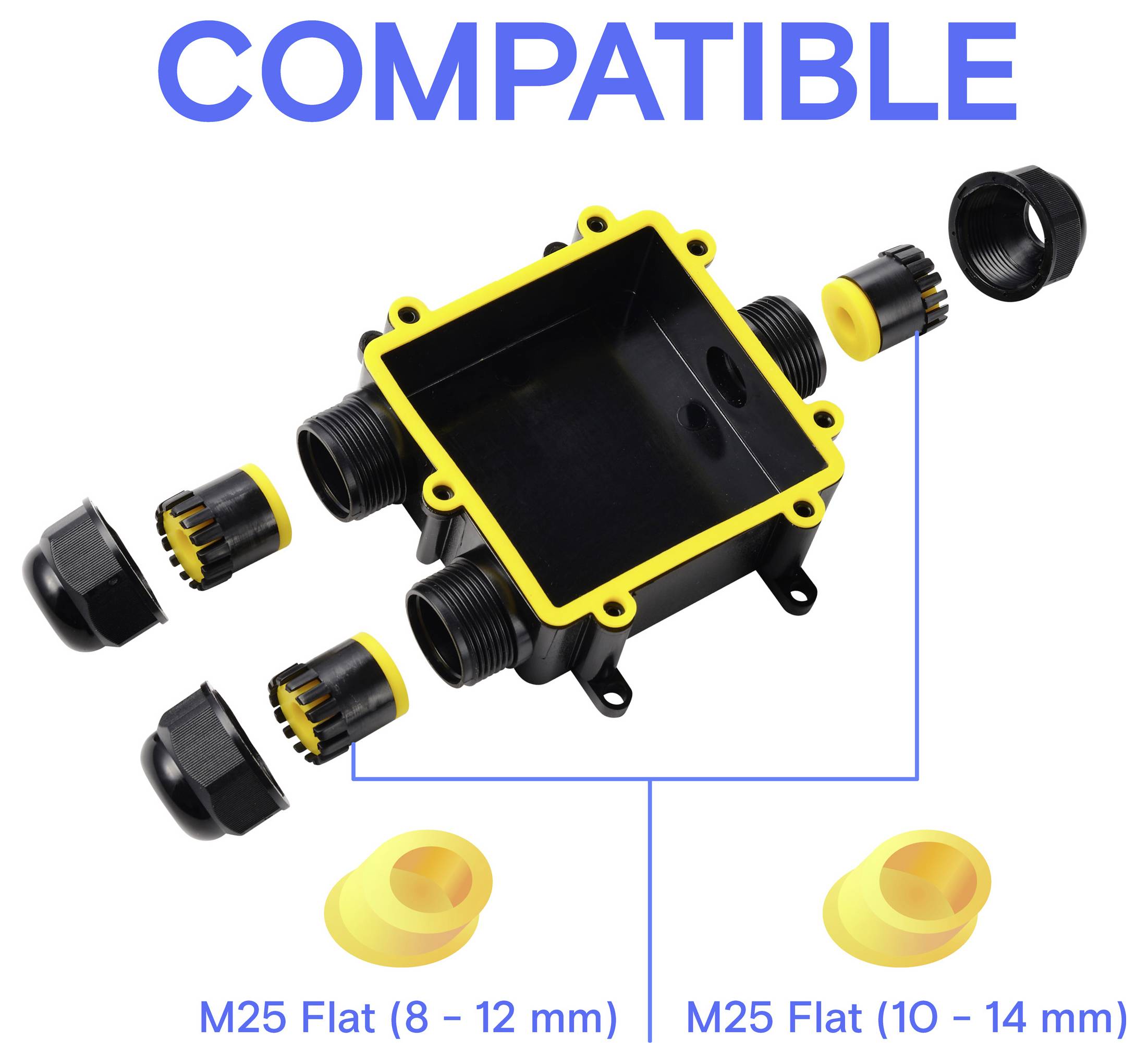

Exploded view of a waterproof electrical junction box labeled 'COMPATIBLE', showing M25 flat cable gland parts for 8-12 mm and 10-14 mm cables.
1/6
Product type
Junction box
AWG
12-14
Connection
PA10 terminal
Connector cross section
0.5-4.0 mm²
Rated voltage
450 V AC
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Fri 6 Nov
168 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 5.49 / piece)
€ 5.49
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

TRU COMPONENTS Junction box IP68 waterproof 3 inputs, 0.5-4.0 mm²

  • For 3-pole connection
  • IP68 Waterproof, Moisture-proof, Dust-proof, and Anti-UV protection
  • Accepts cable outer diameters of 4-8 mm, 8-12 mm and 10-14 mm
  • Wire cross-section capacity: 0.5-4.0 mm²
  • Rated for use under fresh water and underground applications
  • Compatible with 3x TRU COMPONENTS M25 step sealing plugs for 8-12 mm (TC-14745308) or 10-14 mm (TC-14745316) outer diameter

Technical specifications

  • Operating temperature: -40 to +105 °C
Product type

Junction box

12-14

Connection

PA10 terminal

Connector cross section

0.5-4.0 mm²

Rated voltage

450 V AC

Test current

24 A

Case material

PA 66

Total no. of pins

3

Manufacturer part #

TC-14745288

Factory colour

Black

Industrial packaging

No

Content

1 pc(s)

Contact material

Copper

Core diameter

8 mm

Dimensions

130.14 x 80.5 x 35.3 mm

Number of pins

3

IP68

Type

TC-14745288

Plastic free packaging

Plastic-free packaging

Documents & Downloads

Datasheet

Datasheet 3686322 TRU COMPONENTS Junction box IP68 waterproof 3 inputs, 0.5-4.0 mm² TC-14745288 Black TRU COMPONENTS Content: 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3686322 TRU COMPONENTS Junction box IP68 waterproof 3 inputs, 0.5-4.0 mm² TC-14745288 Black TRU COMPONENTS Content: 1 pc(s)

Description

Features

  • Built-in rubber ring and clamping nut
  • Water submersion up to 10 m for 150 hours
  • Connector made of UL94V-2 fire and flame retardant material
  • Resistance to high and low temperatures

Scope of delivery

  • Connector incl. 3x M25 sealing inserts (4-8 mm)
  • PA10 terminal block
  • 7x M3 x 9 mm Dacromet coated screws for waterproof box
