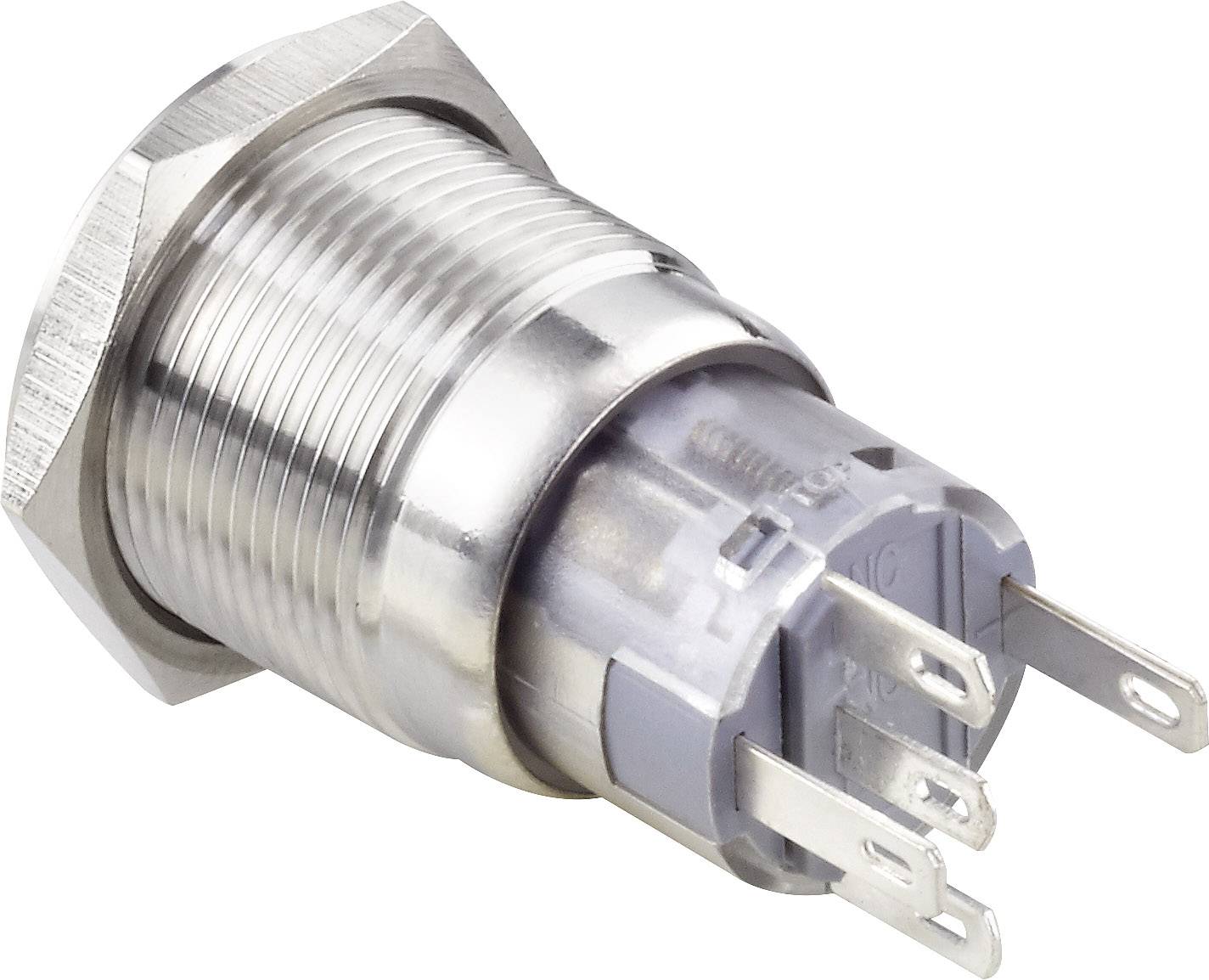

Buy TRU COMPONENTS TC-7494524 TC-LAS1-AGQ-11ZET/R/12V/S Tamper-proof switch 250 V AC 3 A 1 x Off/On latch Red IP65 1 pc(s)

Technical specifications

Operating voltage LED: 12 V

Product type: Tamper-proof switch

Switch/button features: tamperproof
for pushbutton

Casing/button colour: Stainless steel

Functions: latch

Lighting type: Circular lighting
Power symbol

Colour: Red

Bulb type: LED (monochrome)

Switch position: 1 x Off/On

Contact type: 1 breaker
1 maker

Material: Stainless steel

Contact material: Silver alloy

Connection: Soldering

Contact resistance: ≤ 50 mΩ

Switching voltage: 250 V AC

Switching current (max.): 3 A

Dielectric strength: 2000 V

Min. temperature: -25 °C

Max. temperature: +55 °C

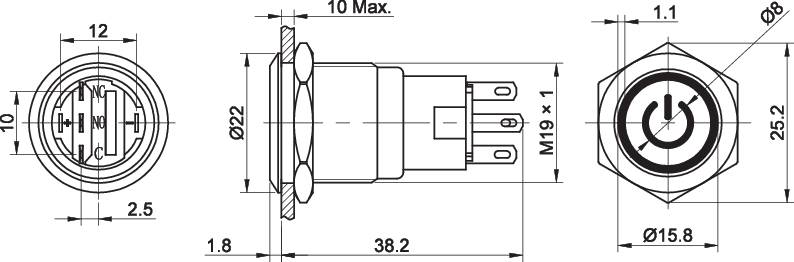

Button diameter: 15.8 mm

Durability: 1000000

Recess diameter: 19 mm

Recess depth: 38.2 mm

Electrical lifespan: 50000

: IP65

Actuating force: 5 N

Content: 1 pc(s)

Insulation resistance: ≥ 1000 MΩ

Board thickness (max.): 10 mm

Type: TC-LAS1-AGQ-11ZET/R/12V/S

Documents & Downloads

Datasheet

Datasheet 1873631 TRU COMPONENTS TC-7494524 TC-LAS1-AGQ-11ZET/R/12V/S Tamper-proof switch 250 V AC 3 A 1 x Off/On latch Red IP65 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1873631 TRU COMPONENTS TC-7494524 TC-LAS1-AGQ-11ZET/R/12V/S Tamper-proof switch 250 V AC 3 A 1 x Off/On latch Red IP65 1 pc(s)
