Name: V-TAC VT-60012CCT-RD 78736 LED surface-mount light EEC: E (A - G) 12 W Warm white to cool white White
Brand: V-TAC
SKU: 3781482
Availability: BackOrder

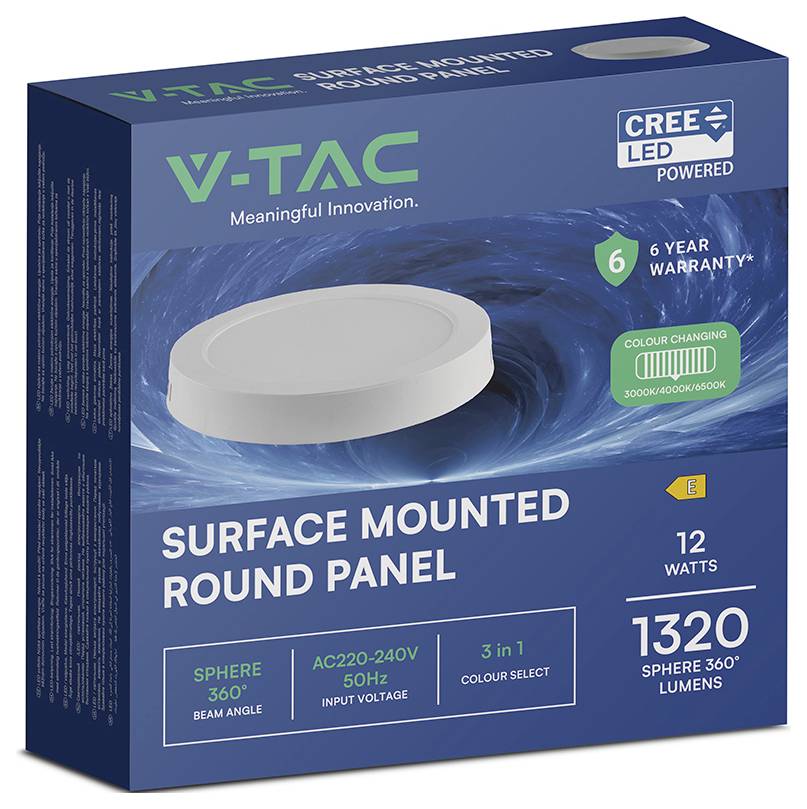

Box packaging for a V-TAC surface mounted round LED panel, showing a white circular light, 12 watts, 1320 lumens, 3-in-1 colour select, and 6-year warranty.

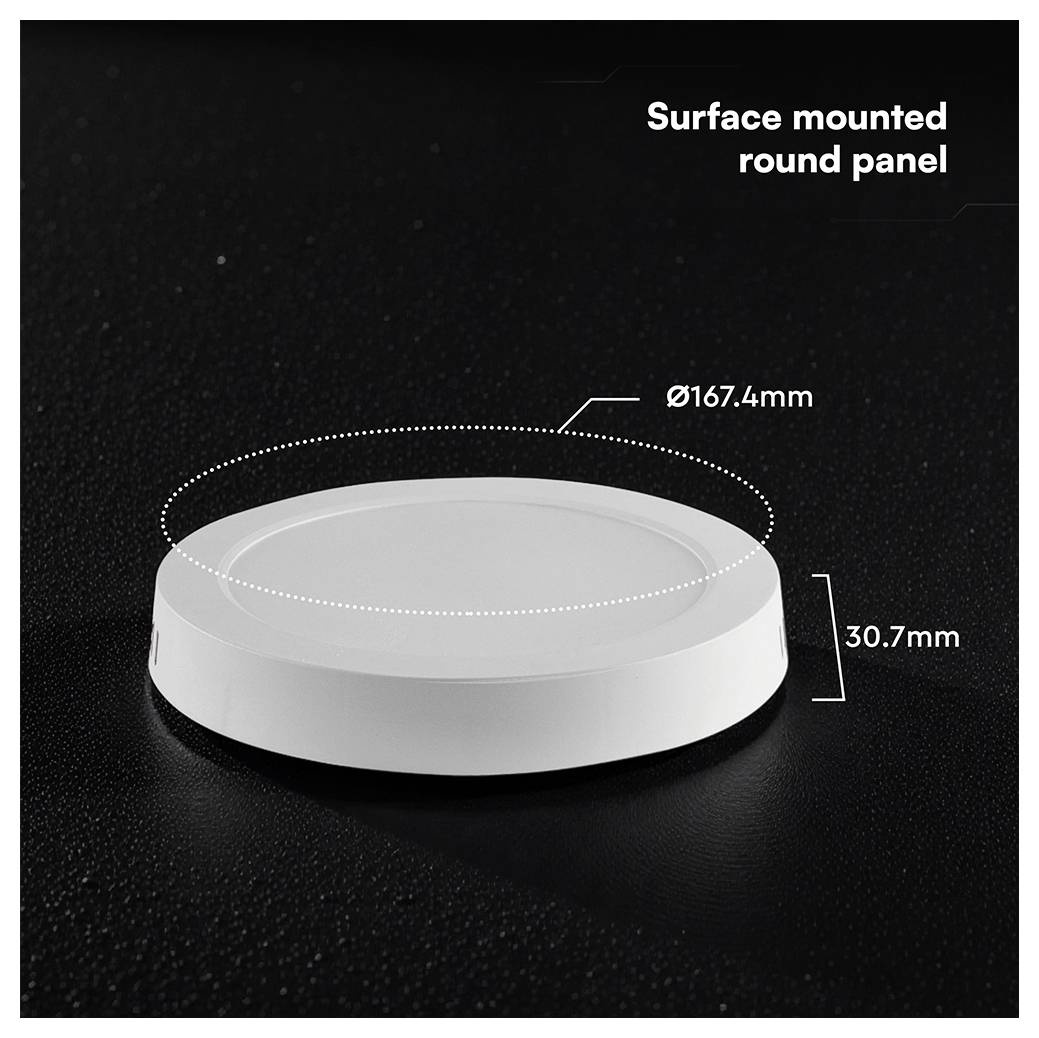

Surface mounted round panel light shown on a dark background, labeled 167.4 mm diameter and 30.7 mm thick.<br>

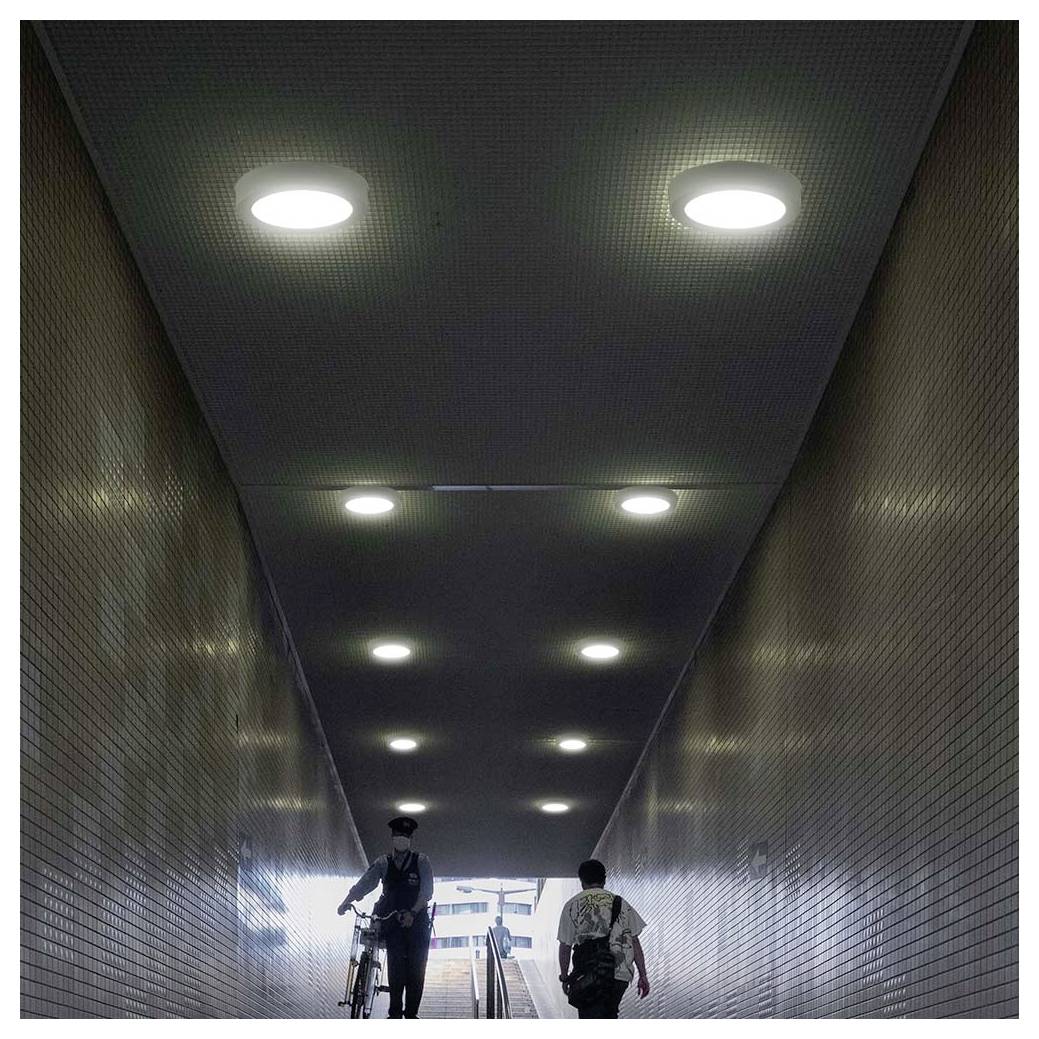

Dim tiled pedestrian tunnel with ceiling lights, showing two people walking toward a bright exit, one pushing a bicycle.

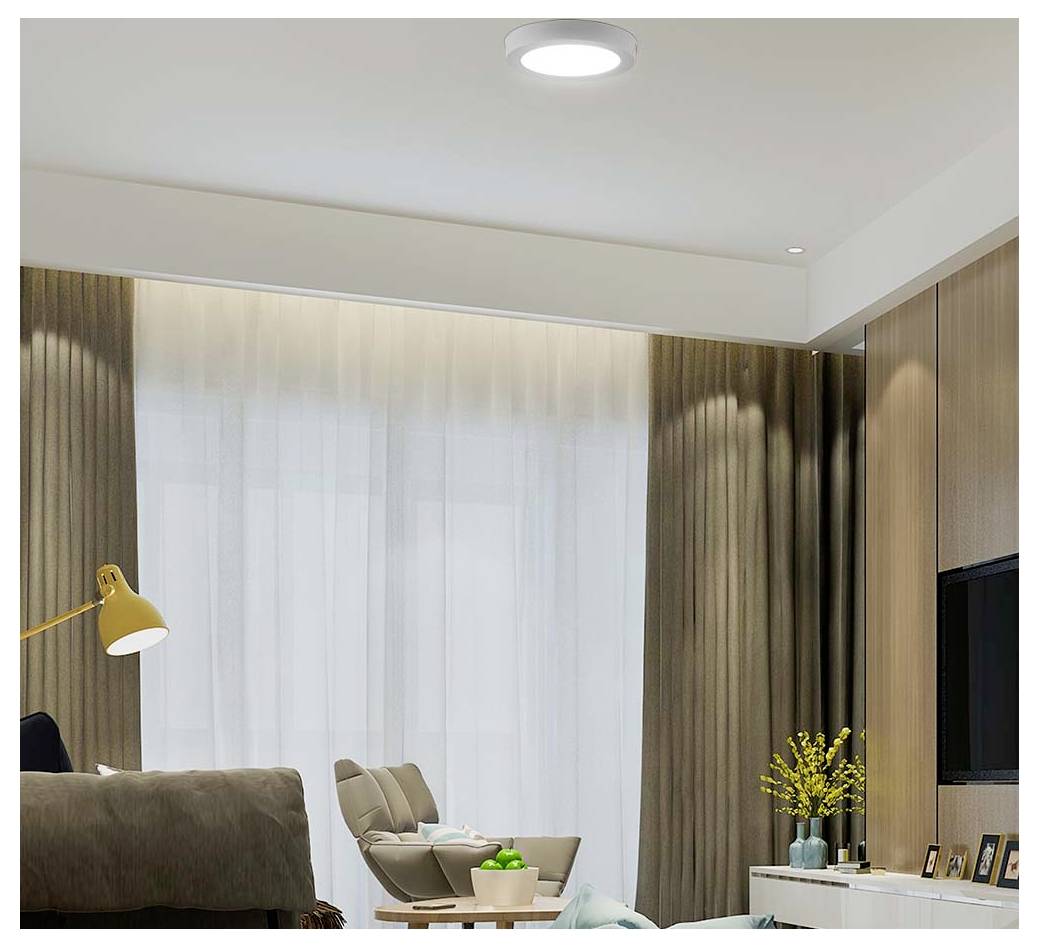

Modern living room with sheer curtains, beige recliner, floor lamp, TV cabinet, and small yellow flowers by the window.

1/5

Product data sheet

Datasheet (PDF)

EAN:

Part number:

Item no:

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 5.99 / piece)

€ 5.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

VT-60012CCT 12W BACKLIT SURFACE MOUNTED PANEL CREE CHIP CCT:3IN1 RD 6YRS WTY

Power= 12 W
Total luminous flux= 1320 lm
Colour temperature= 3000 K
Warm white to cool white

Technical specifications

Life: 30000 hours
On/off switching cycles >15000
LED chip type SMD-CREE chip
Power saving 85 Energy
Series CREE
Operating temperature: -20°C to + +45°C.
Lumens per watt: 110
Colour temperature 3IN1
cri: >80

Product type: LED surface-mount light

Type: Circular

Operating voltage: 240 V AC

Bulb type: LED (monochrome)

Rating per bulb: 12 W

: 12 W

Energy consumption: 12 kWh/1000h

: 3000 K

Colour: Warm white to cool white

: 1320 lm

Total luminous flux: 1320 lm

Radiation angle: 120°

Protection class: IP20

: IP20

Factory colour: White

Material: Plastic

Weight: 0.2 kg

Width: 167.4 mm

Height: 30.7 mm

(Ø): 167.4 mm

: E (A - G)

Type: Assembly

: No

Colour rendering index: 80

Depth: 167.4 mm

Colour temperature (min.): 3000 K

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3781482 V-TAC VT-60012CCT-RD 78736 LED surface-mount light EEC: E (A - G) 12 W Warm white to cool white White

User & Safety Instructions

User & Safety Instructions 3781482 V-TAC VT-60012CCT-RD 78736 LED surface-mount light EEC: E (A - G) 12 W Warm white to cool white White

Description

Strong and stable plastic body, backlit mini panels
High-quality electrical driver ensures a reliable lifespan
Use the CCT switch to select your preferred color temperature at any time
Developed with highly efficient LED SMD CREE chips...
No lead or mercury-content and thus environment-friendly
Suitable for offices, conference rooms, exhibition rooms, lobbies, cabins, Kitchens, etc.

This text is machine translated.
