Name: V-TAC VT-60012CCT-SQ 104956 LED surface-mount light EEC: E (A - G) 12 W Warm white to cool white White
Brand: V-TAC
SKU: 3781461
Availability: InStock

White rectangular LED wall panel light with a side control area and small indicator buttons.

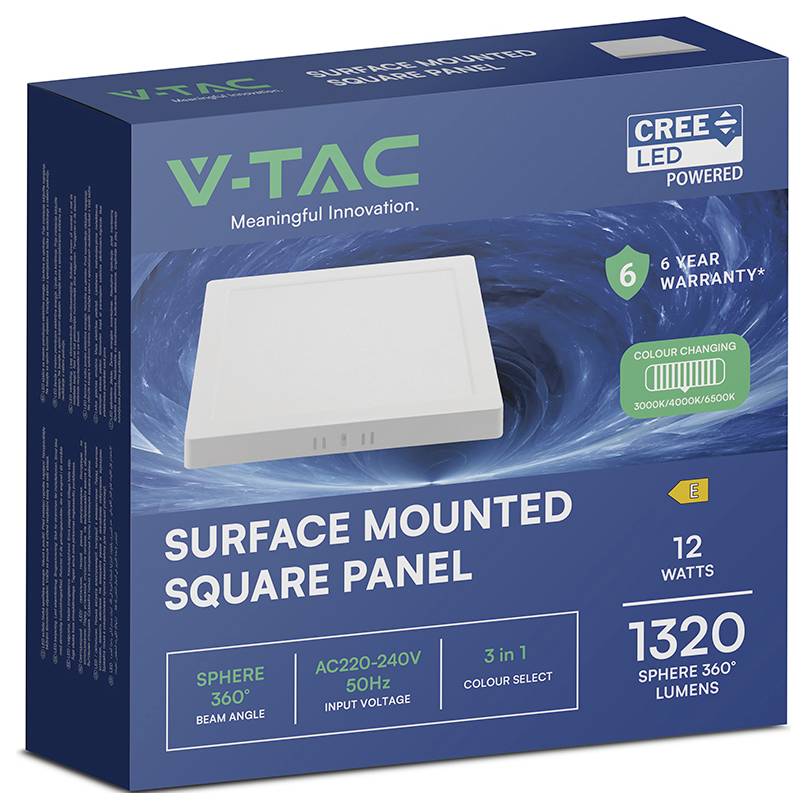

V-TAC CREE LED surface-mounted square panel light box, showing 12W, 1320 sphere 360° lumens, 6-year warranty, and colour options 3000K/4000K/6500K.

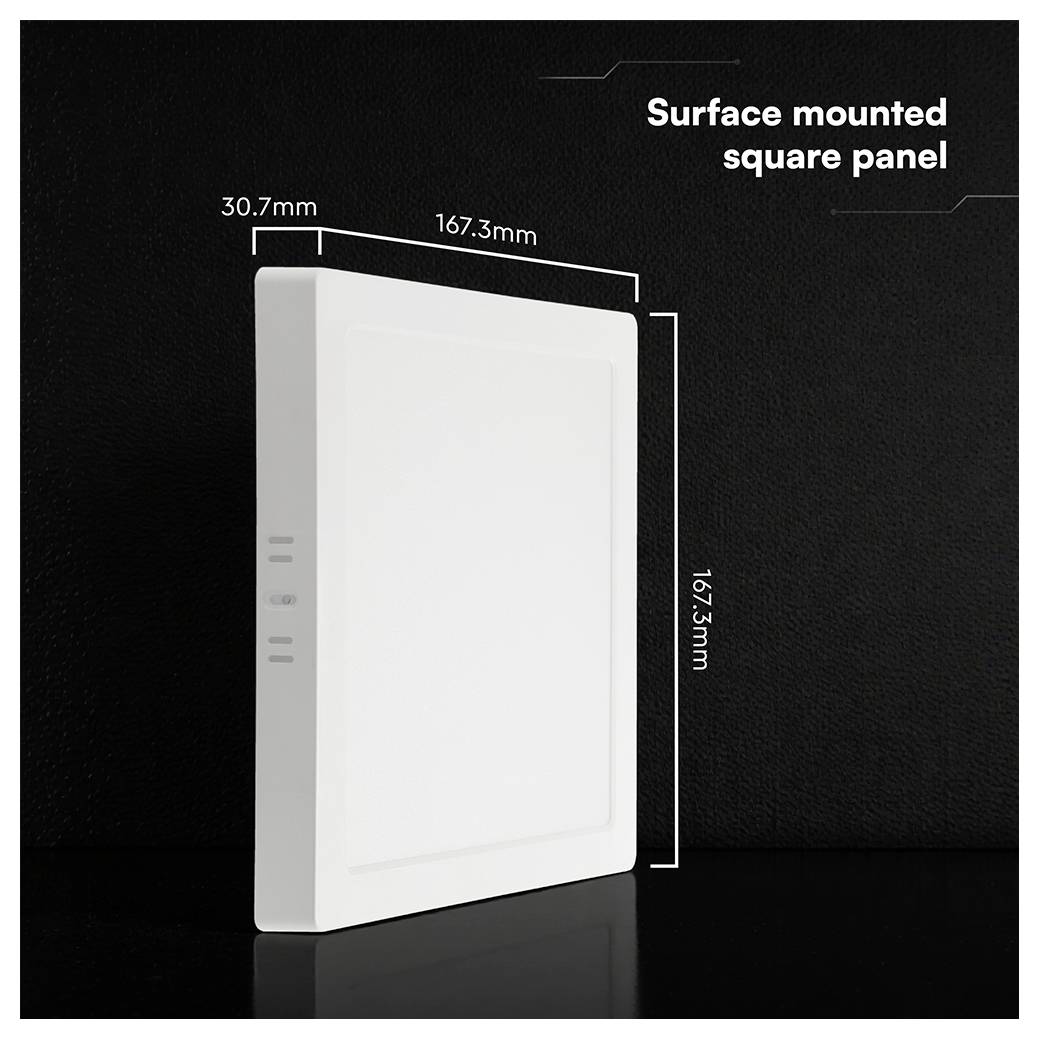

White surface-mounted square panel shown in perspective with dimensions labeled 167.3 mm by 167.3 mm and 30.7 mm thick.<br>

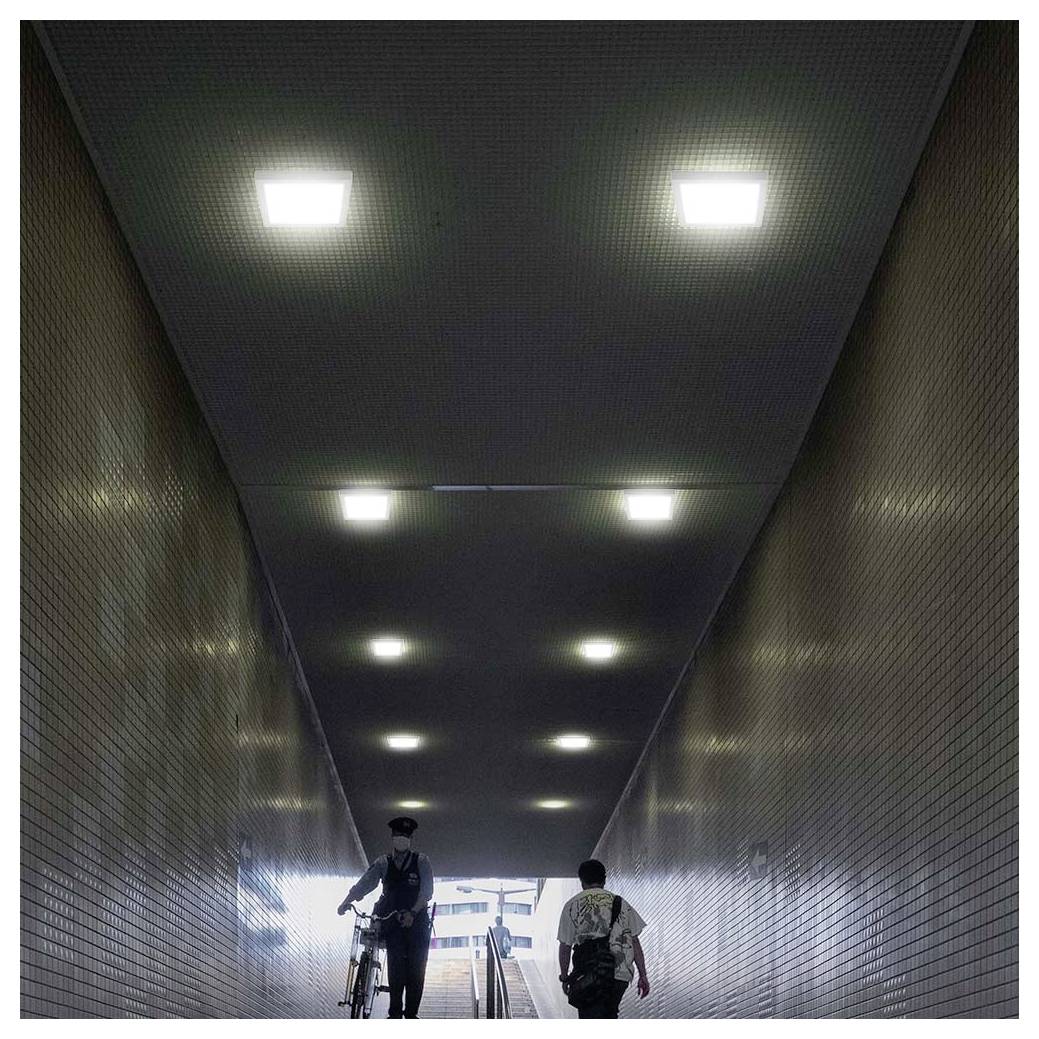

Two people walk through a tiled underground passage toward daylight, one pushing a bicycle, under rows of ceiling lights.

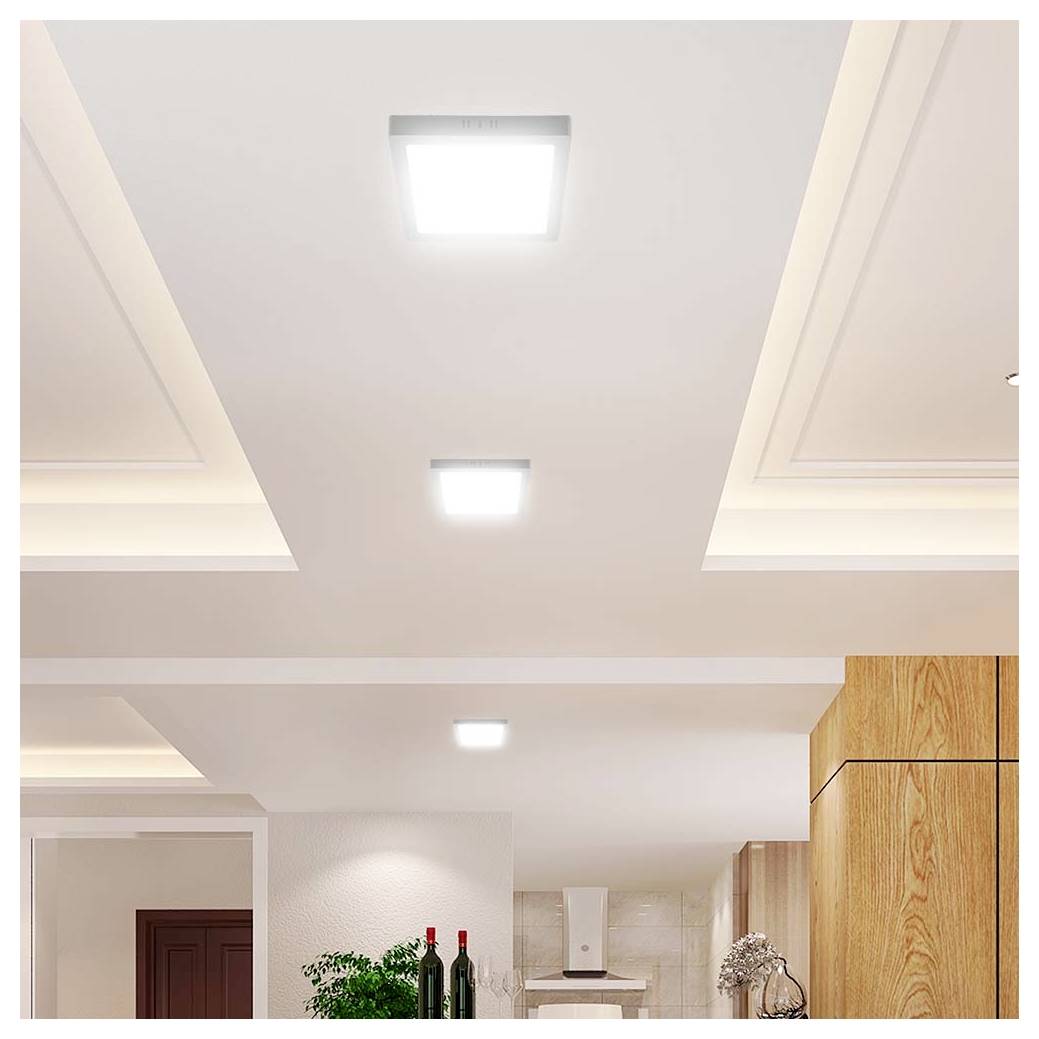

Modern kitchen ceiling with recessed square lights, coffered edges, wood cabinetry, and a small dining area below.

1/5

Product data sheet

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Tue 10 Nov

36 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 6.49 / piece)

€ 6.49

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

LED mini panels VT-60012CCT-SQ with SMD-CREE chip

Power= 12 W
Total luminous flux= 1320 lm
Warm white to cool white

Technical specifications

Life: 30000 hours
On/off switching cycles >15000
LED chip type SMD-CREE chip
Power saving 85 Energy
Series CREE
Operating temperature: -20°C to + +45°C.
Lumens per watt: 110
Colour temperature 3IN1
cri: >80

Product type: LED surface-mount light

Type: Square

Operating voltage: 240 V AC

Bulb type: LED (monochrome)

Rating per bulb: 12 W

: 12 W

Energy consumption: 12 kWh/1000h

Colour: Warm white to cool white

: 1320 lm

Total luminous flux: 1320 lm

Radiation angle: 120°

Protection class: IP20

: IP20

Factory colour: White

Material: Plastic

Weight: 0.24 kg

Width: 167.3 mm

Height: 30.7 mm

Length: 167.3 mm

: E (A - G)

Type: Assembly

: No

Colour rendering index: 80

Depth: 167.3 mm

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3781461 V-TAC VT-60012CCT-SQ 104956 LED surface-mount light EEC: E (A - G) 12 W Warm white to cool white White

User & Safety Instructions

User & Safety Instructions 3781461 V-TAC VT-60012CCT-SQ 104956 LED surface-mount light EEC: E (A - G) 12 W Warm white to cool white White

Description

Strong and stable plastic body, backlit mini panels
High-quality electrical driver ensures a reliable lifespan
Use the CCT switch to select your preferred color temperature at any time
Developed with highly efficient LED SMD CREE chips...
No lead or mercury-content and thus environment-friendly
Suitable for offices, conference rooms, exhibition rooms, lobbies, cabins, Kitchens, etc.

This text is machine translated.
