Velleman VTTEST11 Cable locator Break
EAN:
Part number:
Item no:
Number
Total (€ 71.99 / piece)
€ 71.99
incl. VAT
14-day return policy included
Highlights & Details

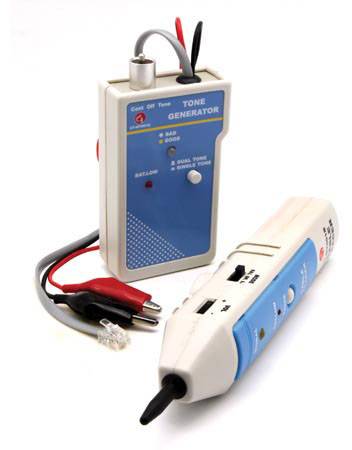

CABLE FINDER WITH TONE GENERATOR
- Network tester: With tone generator and probe tip
- Method: Use the tone generator and probe tip to determine if a wire is open or not and where this break is located
- Signal display in 3 modes: Lamp (L), speaker (SP) or both (S&L)
- Sound generator output: 'Single' (900Hz) or 'Dual' (900 - 1000Hz)

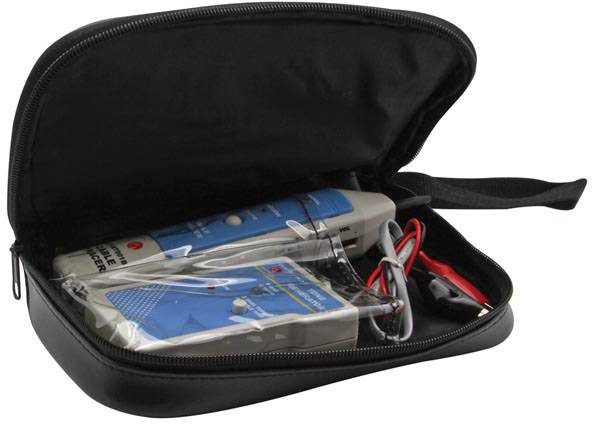

- Supplied with : Carry bag
- This text is machine translated.
Technical specifications
- Tone generator:
- Operating voltage: DC 9V ±15% (battery not included)
- Operating current: 10mA (interrupted) / 20mA (continuous)
- Output waveform: Square ±10Vpp
- 'Single' audio frequency: ±900Hz
- 'Dual' audio frequency: ±900Hz - 1000Hz
- Dimensions 115 x 62 x 27mm
- Weight: 95g
- Probe tip:
- Operating voltage: DC 9V ±15% (battery not included)
- Operating current: 25mA (L) / 80mA (max. SP volume) / 100mA (max. S&L volume)
- Max. Reception sensitivity>: 30mV
- Max. Output volume: ±120dB
- Dimensions 205 x 40 x 38mm
- Weight 80g
- Product type
Cable locator
- Function
Break
- Dim
(L x W x H) 38 x 100 x 50 mm
- Weight
372 g
- Width
100 mm
- Height
50 mm
- Length
38 mm
- Type
VTTEST11
- Factory colour
Multi-colour
- Material
ABS plastic
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2159261 Velleman VTTEST11 Cable locator Break
