VOLTCRAFT BS-9.8mm/20m Endoscope probe 20 m Waterproof, LED lit

Black cable on a metal spool with connectors and a camera or sensor, suitable for technical inspections.

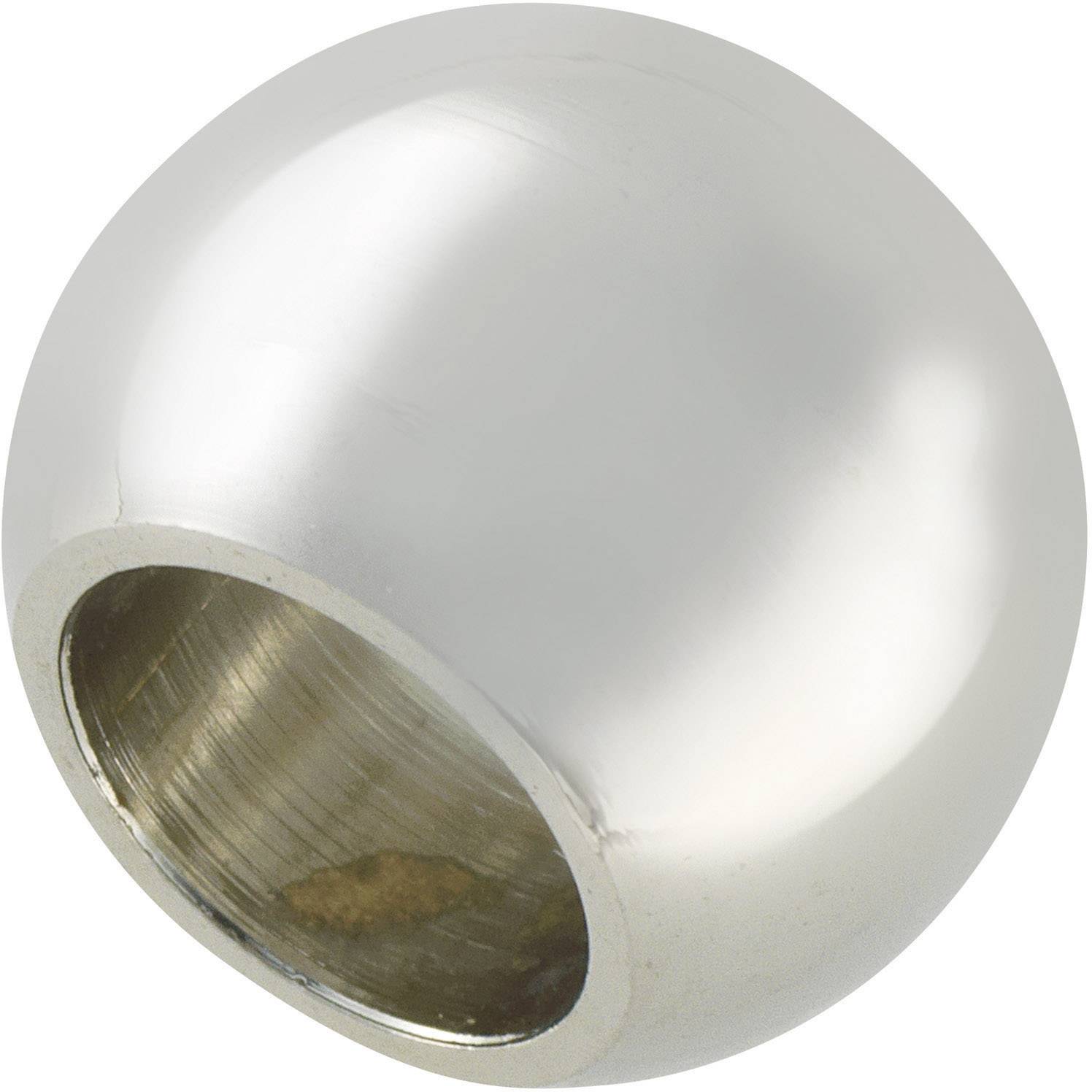

Metal ball with a hole in the centre, displaying a smooth, silvery surface.
1/2
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 375.00 / piece)
€ 375.00
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Endoscope camera probe,20 m VGA LF Flex

  • Highly flexible
  • Probe length
  • Resolution 640 x 480 pixels
  • Optics: Remote Focus
  • Watertight (IP67)

Our service for you

Technical specifications

  • Flexible
Probe length

20 m

Product type

Endoscope probe

Probe diameter

9.8 mm

Light source

4 white LEDs

Camera resolution

640 x 480 Pixel

Min. focusing distance

30 mm

Dim

(Ø x L) 9.8 mm x 20 m

Weight

1.34 kg

Endoscope features

Waterproof

LED lit

Focus

30 mm - ∞

Suitable for

Voltcraft

Suitable for

VOLTCRAFT BS-250XWSD

VOLTCRAFT BS-200XW

VOLTCRAFT BS-100XIP

VOLTCRAFT BS-30XHR

VOLTCRAFT BS-350XIPSD

Length

20 m

(Ø)

9.8 mm

IP67

Power supply (details)

via endoscope

Ambient temperature

0 - 45 °C

Max. bend radius

45 mm

Field of view

54°

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

Datasheet

Datasheet 1209064 VOLTCRAFT BS-9.8mm/20m Endoscope probe 20 m Waterproof, LED lit

User & Safety Instructions

User & Safety Instructions 1209064 VOLTCRAFT BS-9.8mm/20m Endoscope probe 20 m Waterproof, LED lit

Conformity certificate

Conformity certificate 1209064 VOLTCRAFT BS-9.8mm/20m Endoscope probe 20 m Waterproof, LED lit

Warranty Terms

Warranty Terms 1209064 VOLTCRAFT BS-9.8mm/20m Endoscope probe 20 m Waterproof, LED lit

Description

This text is machine translated.

Small diameter extra or spare gooseneck camera for endoscopes. The semi-flexible gooseneck can be bended into the required position and keeps this form.

Features

  • Waterproof camera probe Ø 9.8 mm, 20 m long
  • Spiral connection cable for user-friendly connection to the basis device.
  • Reel for good handling and for the transport
  • Dimmable LED camera light.
  • Protection class: IP67

Scope of delivery

  • Spiral connection cable (2 m)
  • Reel
  • 2 Guide Balls (Ø 15/25 mm)
  • User manual.

Hints

Use requires a compatible endoscope.
