VOLTCRAFT DDS-3025 USB 50 MHz (max) 1-channel
EAN:
Part number:
Item no:
Total (€ 285.00 / piece)
€ 285.00
incl. VAT
14-day return policy included
Highlights & Details
Arbitrary USB DDS function generator DDS -3025
- 50 MHz bandwidth (sine)
- 200 MS/s sampling rate
- Bit pattern generator
- 50 MHz frequency counter
- Signal generation of external CSV signal files, for example from Tektronix ®
Our service for you
Technical specifications
- Generator: Sampling Rate: 200 MSa/s
- Amplitude: ±3.5 V
- Frequency Resolution: 0.1%
- Digital level: LVCMOS
- Signal output type
Sine, rectangle, saw-tooth, trapezium, arbitrary, Gaussian's noise, white noise, AM/FM
- Product type
USB
- Frequency range
50 MHz (max)
- Signal output types
Sinus
- Frequency range (sine)
1 Hz - 50 MHz
- Distortion factor (sine)
-50 dBc
- Frequency range square wave
1 Hz - 5 MHz
- Display
LED
- Frequency range triangle
1 Hz - 10 MHz
- ARB frequency range
1 Hz - 25 MHz
Manufacturer's standards (no certificate)
- Frequency reading (external)
DC - 50 MHz
- Dim
(W x H) 206 mm x 122 mm
- Weight
400 g
- No. of channels
1-channel
- Max. frequency
50 MHz
- Features
incl. cycle counter
- Width
206 mm
- Height
122 mm
- Interfaces
USB
- Voltage supply
USB
- Type
DDS-3025
- Resolution
12 Bit
- Impedance
50 Ω
- Power supply (details)
USB
- Input resistance
>100 kΩ
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1188090 VOLTCRAFT DDS-3025 USB 50 MHz (max) 1-channel
Conformity certificate
Conformity certificate 1188090 VOLTCRAFT DDS-3025 USB 50 MHz (max) 1-channel
Warranty Terms
Warranty Terms 1188090 VOLTCRAFT DDS-3025 USB 50 MHz (max) 1-channel
Download
Download 1188090 VOLTCRAFT DDS-3025 USB 50 MHz (max) 1-channel
Description

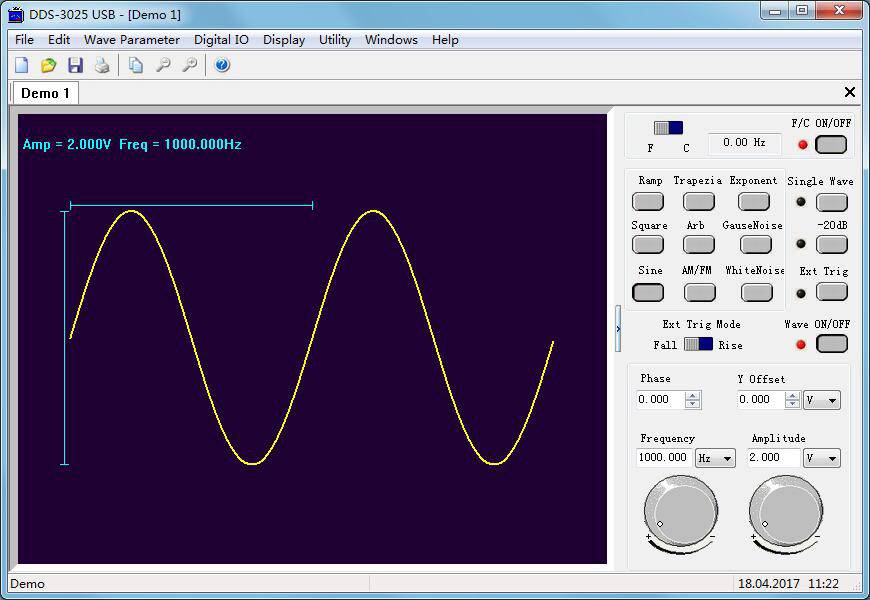

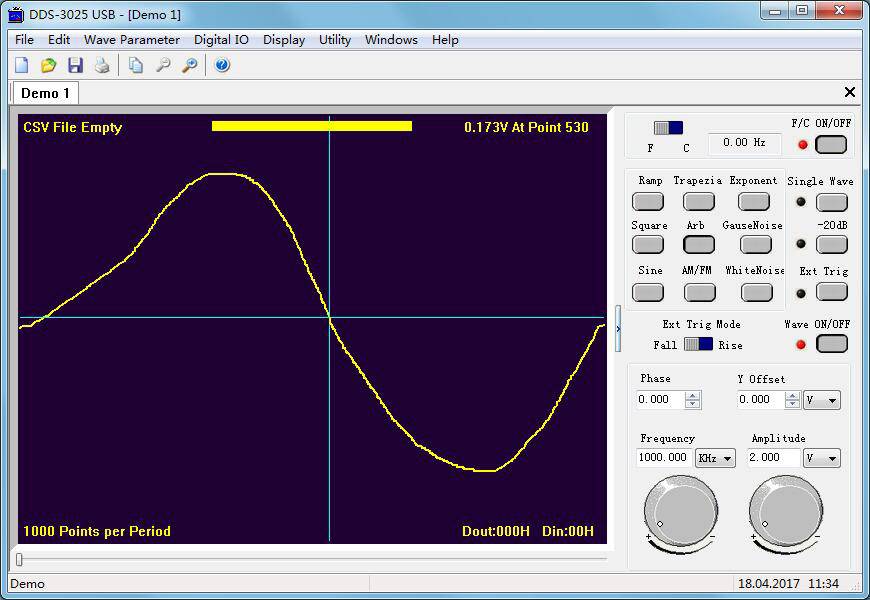

In connection with a Windows-compatible computer with USB interface, you have a extensive features of arbitrary DDS function generator, with the additional advantage that data can be stored and processed. The device has an output channel, with the arbitrary signals up to 25 MHz or sine signals up to 50 MHz and can be output. The screen surface is modeled on a traditional function generator. The settings are made via the software.
The integrated bit pattern generator and frequency counter enable extended analysis of digital systems. Via the built-in memory can be a pre-configured signal can also be output independently of the computer. The power supply is via an optional USB power adapter.
This text is machine translated.
The integrated bit pattern generator and frequency counter enable extended analysis of digital systems. Via the built-in memory can be a pre-configured signal can also be output independently of the computer. The power supply is via an optional USB power adapter.
This text is machine translated.
Features
- 12-bit vertical resolution
- External Trigger
- Synchronous output
- Operating and setting via software
- Integration into Lab View Systems
- 4 digital inputs (6 bit) and 12 digital outputs (12 Bit)
- Autonomous function without computer by internal memory (optional USB power supply required).
Scope of delivery
- USB cable
- BNC-BNC cable
- Software CD
- User manual.
System requirements
- CD drive · Free USB 2.0 interface · Windows ® XP/Windows Vista/Windows ® 7/8/10/11.
