Name: VOLTCRAFT VC-655 BT Bench multimeter Calibrated to (ISO standards) Digital CAT I 1000 V, CAT II 600 V Display (counts):
Brand: VOLTCRAFT
SKU: 2521781
Availability: InStock

Digital multimeter VOLTCRAFT VC-655 BT displays -0.787 mV DC on a screen. Buttons for various functions are visible.

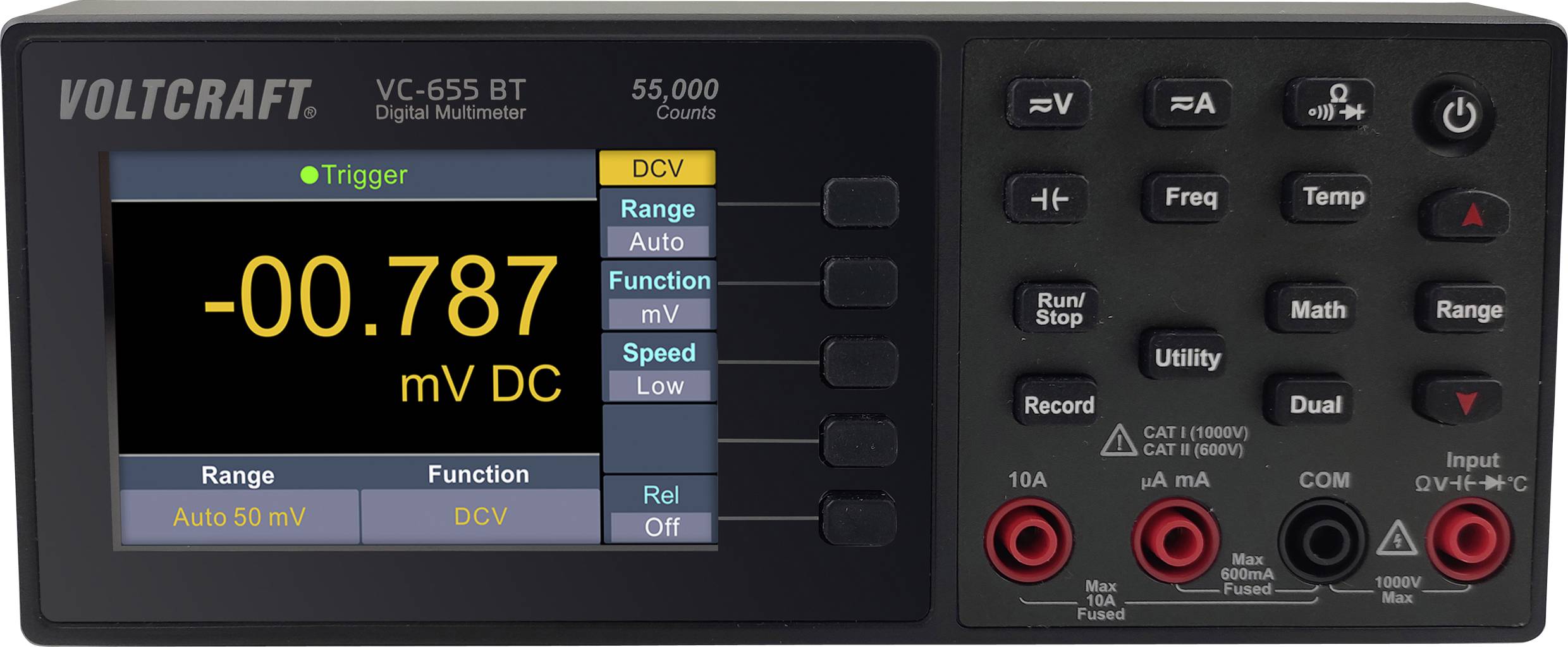

Digital multimeter with display showing '-0.787 mV DC', functions including range, auto and DCV. Display indicates green and red values.

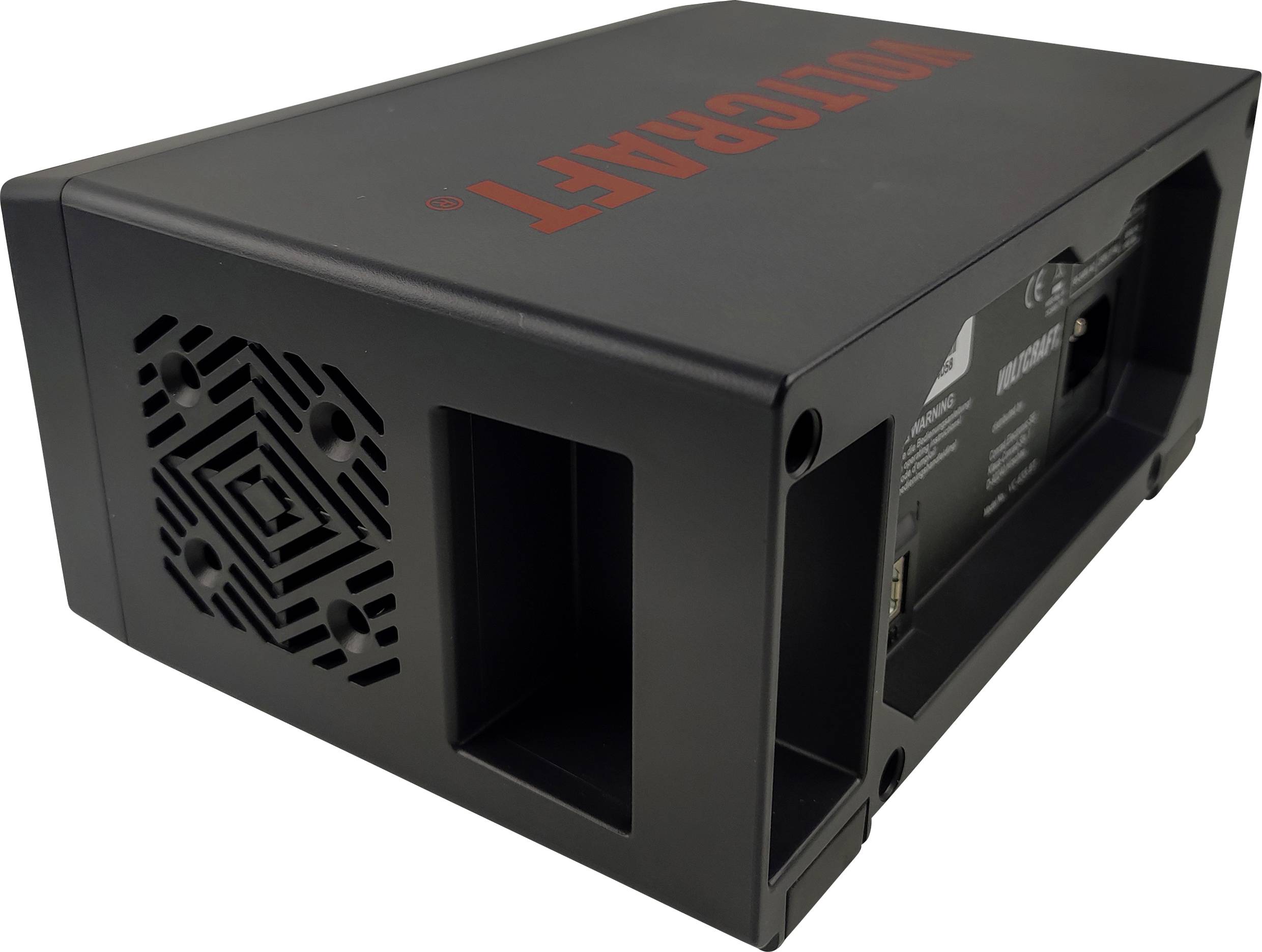

A black electronic device with ventilation slots on the side and a red 'VOLTCRAFT' print on the top surface.

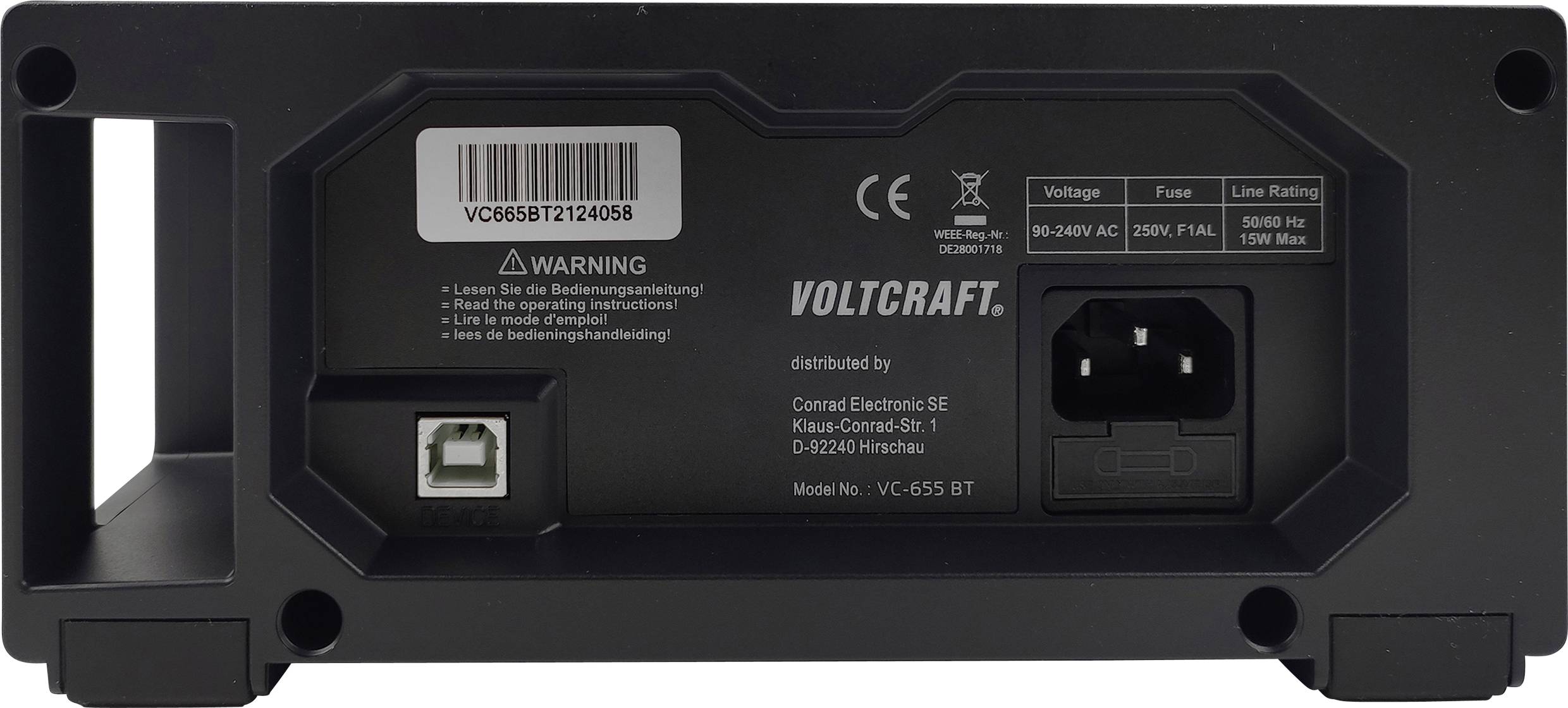

The rear of a Voltcraft device with a power connection, USB port, and warning label. Displays information about voltage and power.

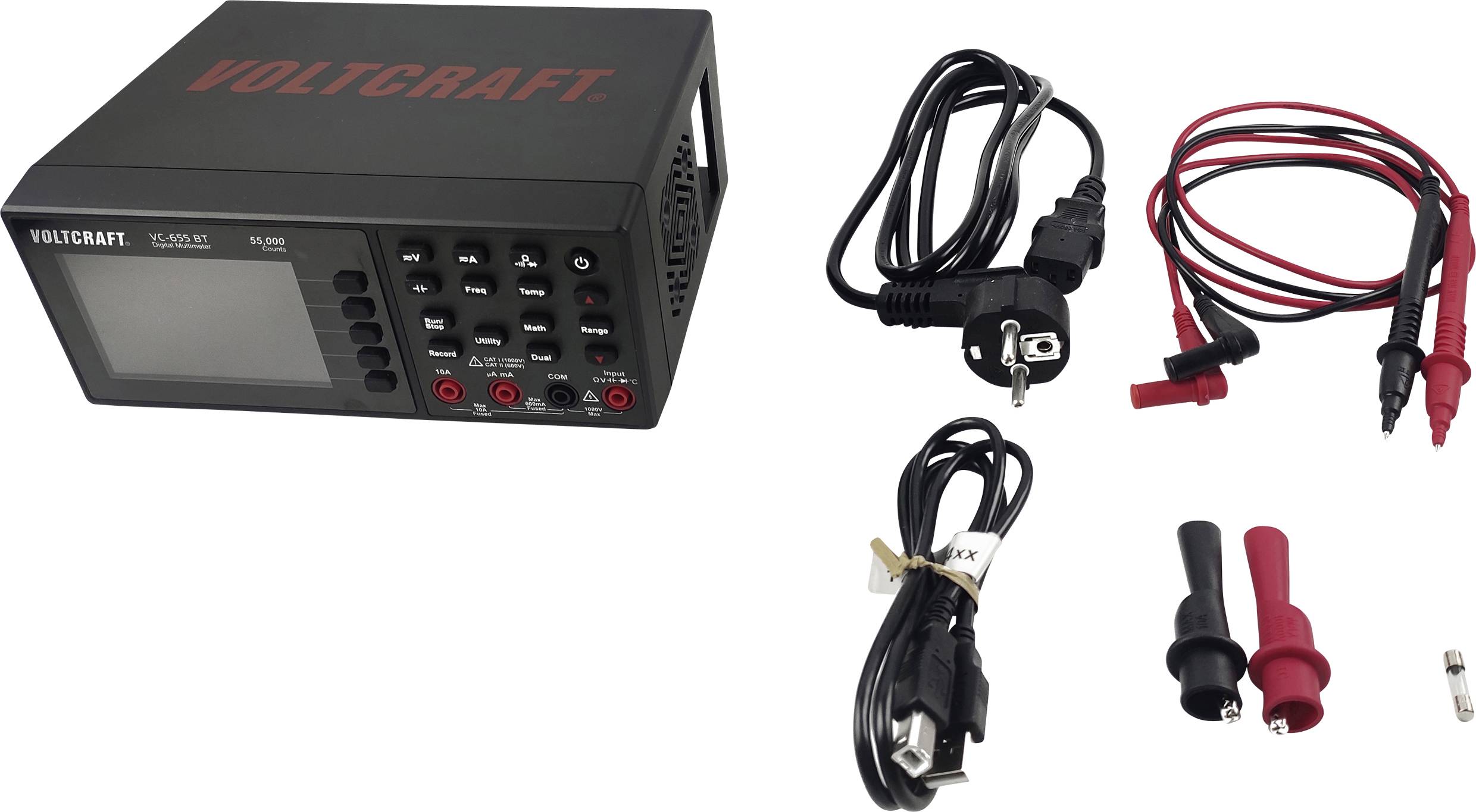

Voltcraft VC 890 measuring device with cables and accessories for electrical measurements. Main device on the left, cables and test probes on the right.

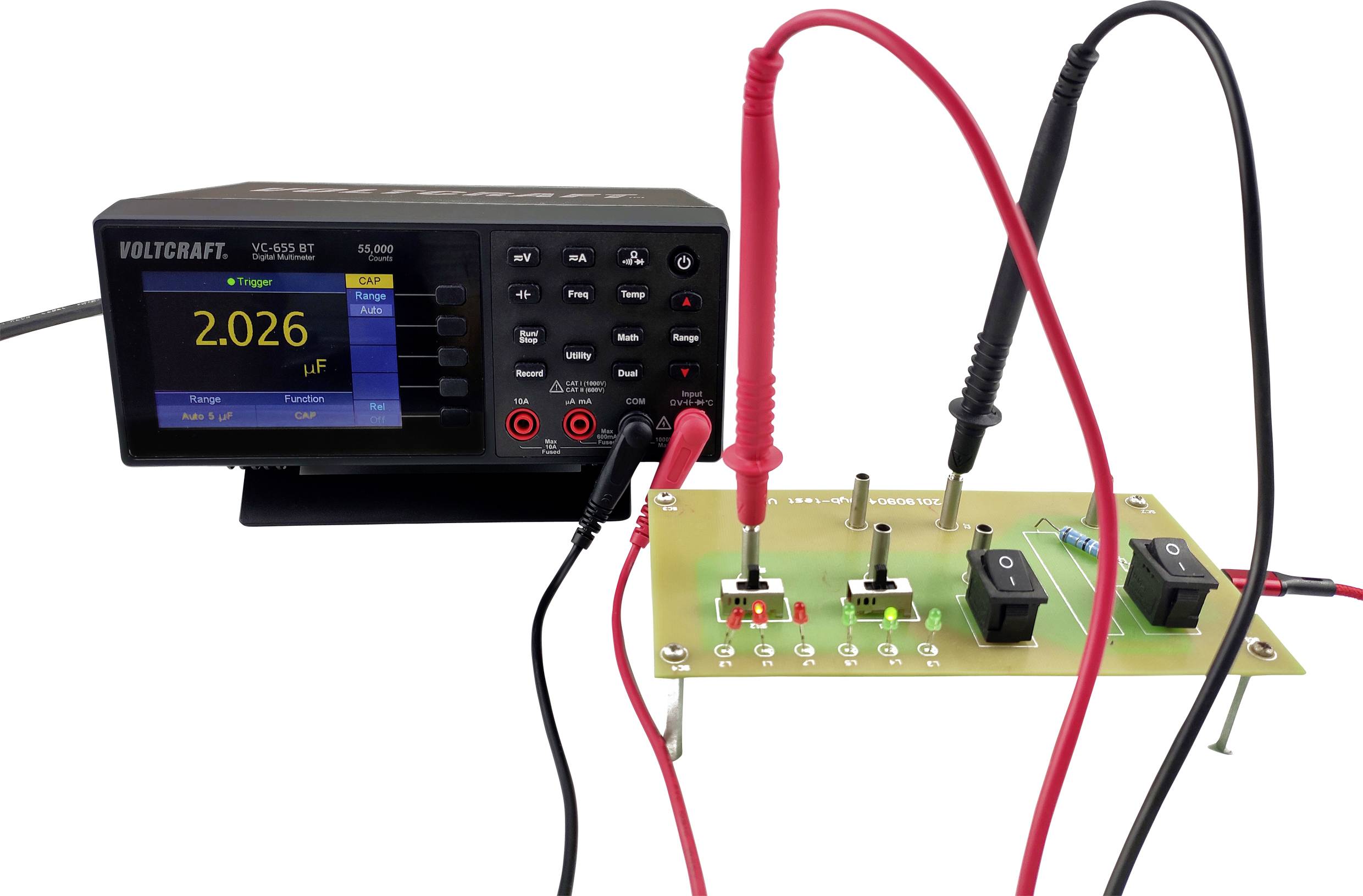

A digital measuring device is testing electronic components on a circuit board. A screen displays '2.026 µF'.

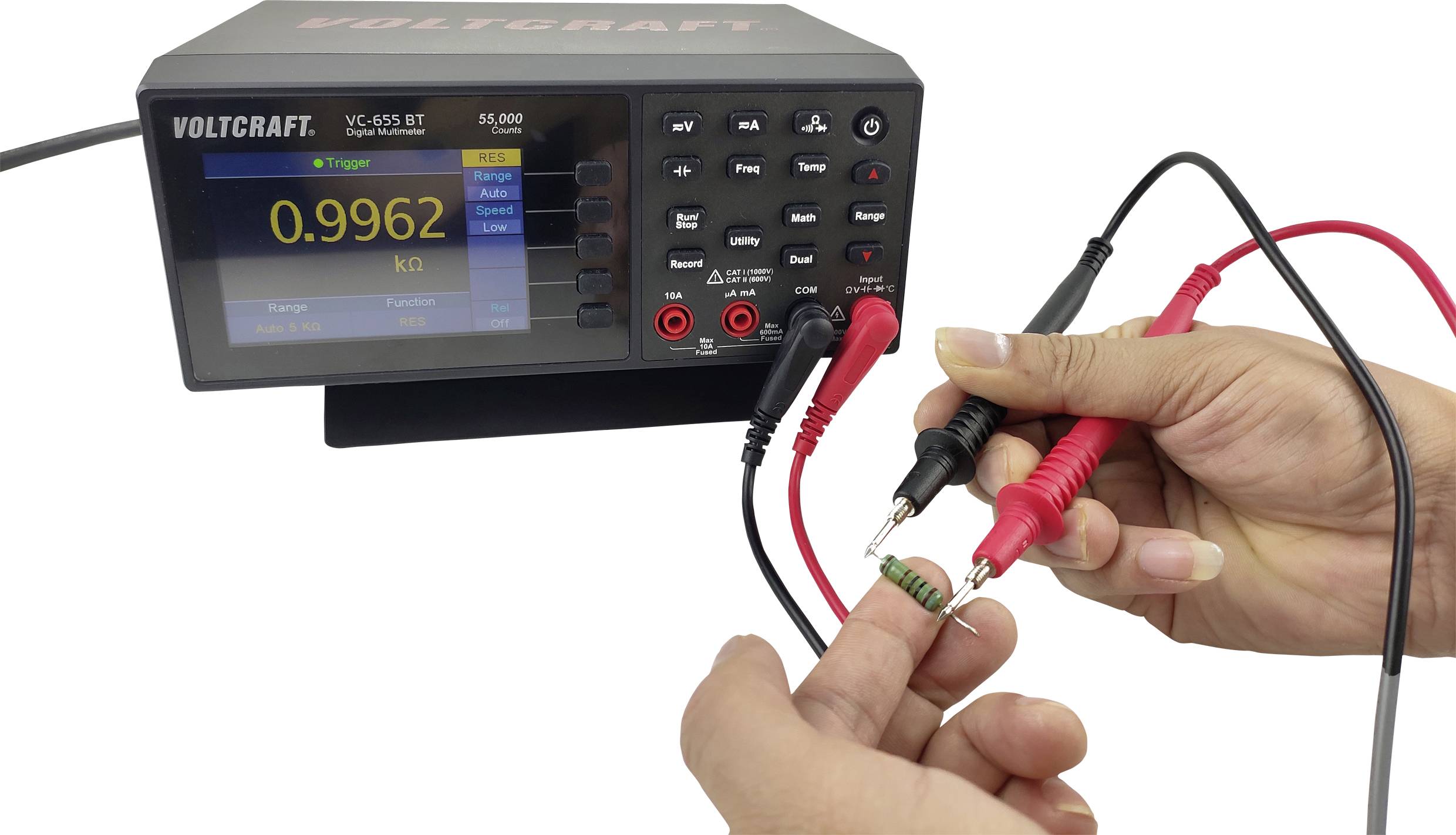

A person is measuring the resistance of a green resistor with a digital multimetre, which indicates 0.9962 kΩ.

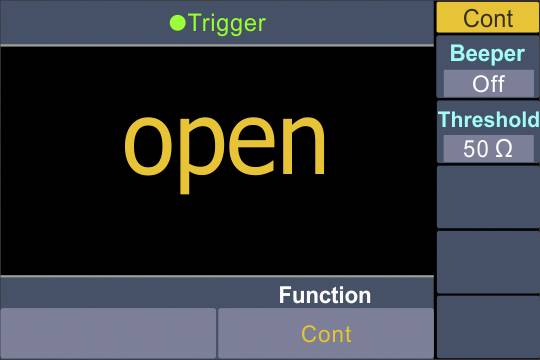

Screen of an electronic display: 'Trigger open' in Yellow. Right side shows settings: Cont, Beeper Off, Threshold 50 Ω.

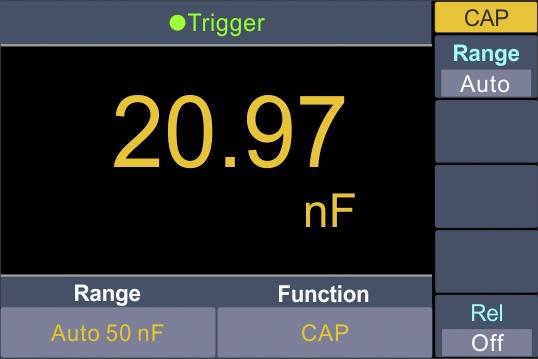

Digital measuring device shows: Capacitance measurement at 20.97 nF in automotive range mode. Functions: Trigger activated, Relative mode off.

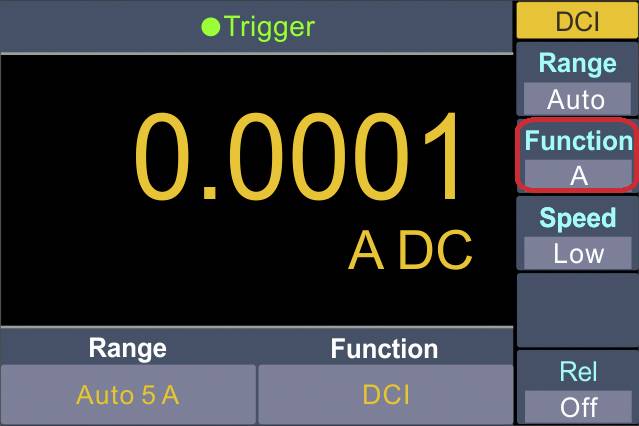

Meter display showing yellow digit '0.0001 A DC'. Mode 'DCI', Range 'Auto 5 A', Function 'A', Speed 'Low'.

VOLTCRAFT VC-655 BT Bench multimeter Calibrated to (ISO standards) Digital CAT I 1000 V, CAT II 600 V Display (counts): -10

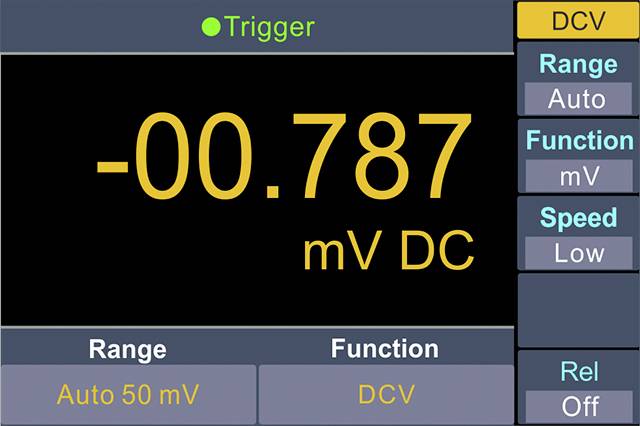

Measuring device display shows '-0.787 mV DC'. Functions: Automatic range selection, DC voltage, low speed.

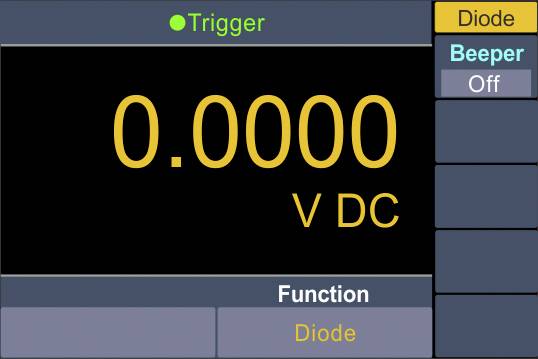

Measuring device display in diode test mode, showing '0.0000 V DC'. The trigger is activated, and the signal tone is switched off.

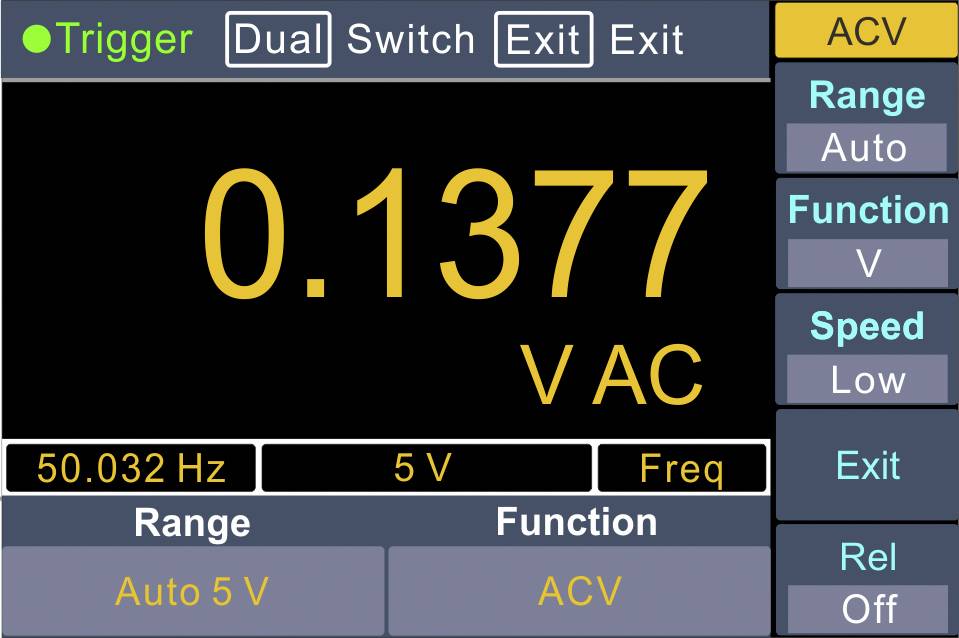

An electronic measuring instrument display shows '0.1377 V AC'. Top left: 'Trigger'. Bottom left: '50.032 Hz', 'Auto 5 V'. Right: Buttons for settings.

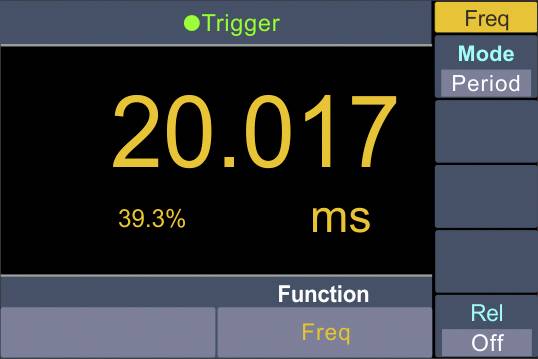

Image of a digital display with values: '20.017 ms', '39.3%', function 'Freq' and mode 'Period'. Green dot at the top with 'Trigger'.

Digital display of a frequency meter shows 49.981 Hz and 38.5%. Mode is 'Freq', function 'Freq' active.

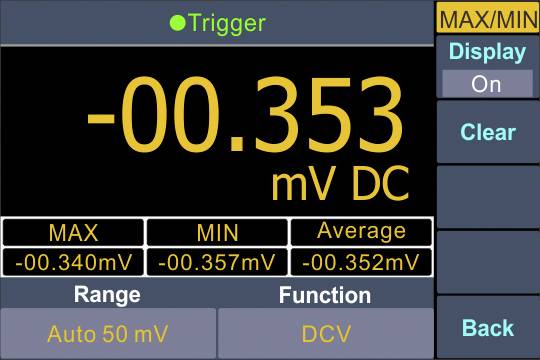

Image of a measuring device with display: '-00.353 mV DC'. Functions: MAX, MIN, Average, Range 'Auto 50 mV', Mode 'DCV'.

VOLTCRAFT VC-655 BT Bench multimeter Calibrated to (ISO standards) Digital CAT I 1000 V, CAT II 600 V Display (counts): -17

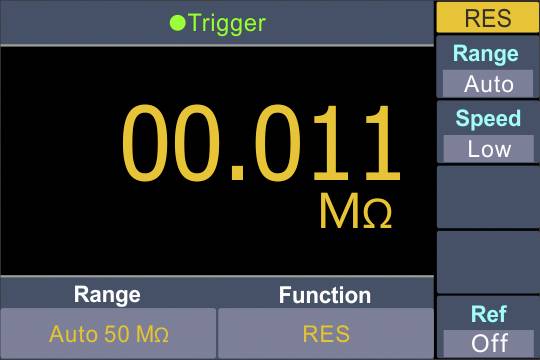

'RES' measuring device shows 0.011 MΩ in Auto 50 MΩ range. Trigger active, range set to 'Auto', low speed, Ref 'Off'.

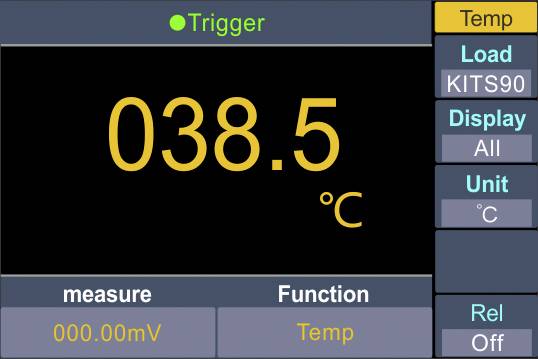

Measuring device with digital display shows '038.5 °C'. Control options on the right: 'Temp', 'Load KITS90', 'Display All', 'Unit °C', 'Rel Off'.

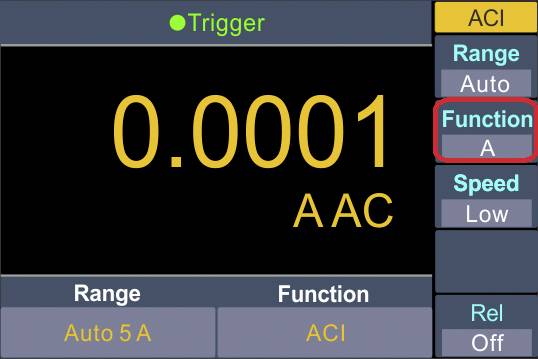

Measuring device display shows '0.0001 AAC', function 'A', range 'Auto 5 A' and ACI mode. Speed set to 'Low', Rel set to 'Off'.

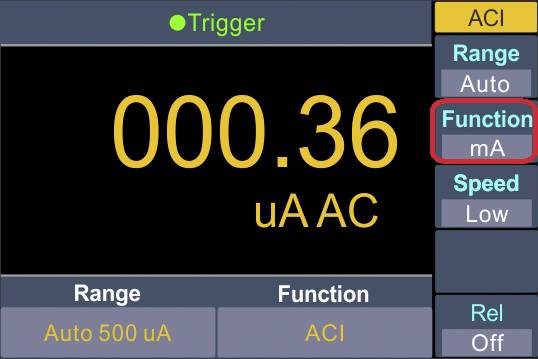

Measuring Device Display: Current Reading 0.36 µA AC in Range 'Auto 500 µA'. Function 'mA'. Speed 'Low'. Mode 'ACI'.

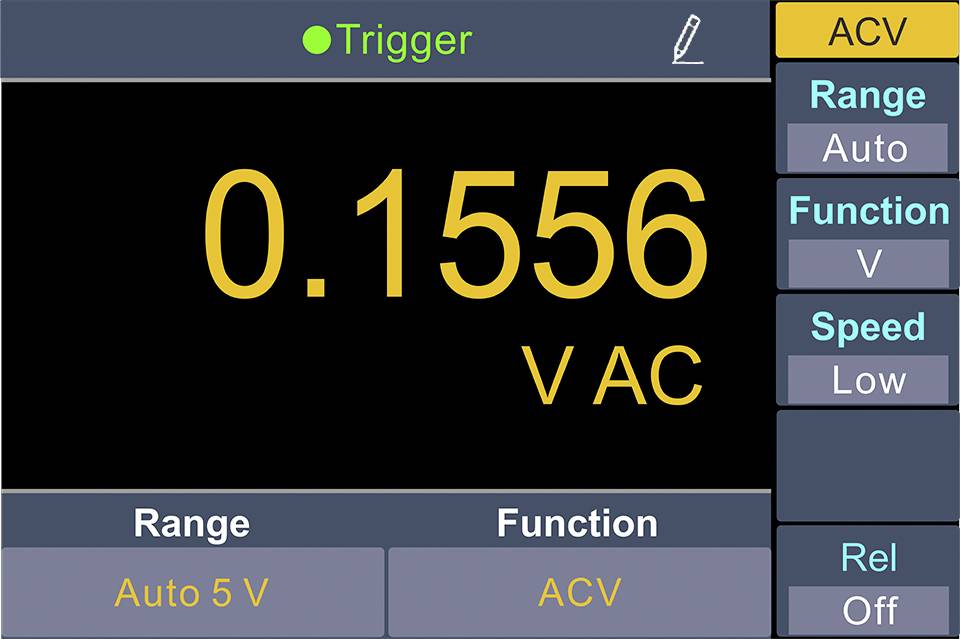

Image of a display showing 0.1556 V AC, with settings: Range set to 'Auto 5 V', Function 'ACV', Speed 'Low', Relay 'Off'.

Digital measuring device display shows '0.1556 V AC'. Settings: ACV, Auto-range, Function 'V', Speed 'Low', Relative value 'Off'.

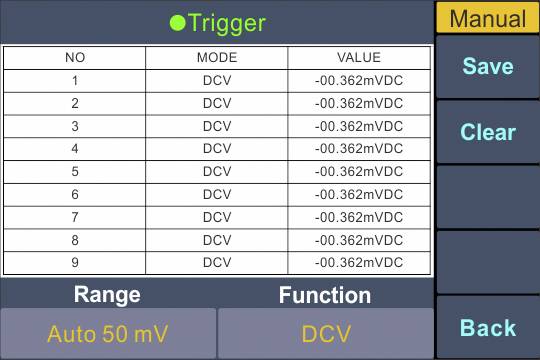

'Screen of a measuring software with data in tabular form: NO, MODE, VALUE. Manually selected. Options: Save, Delete, Back.'

1/25

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Mon 2 Nov

2 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 199.99 / piece)

€ 199.99

incl. VAT

Only 2 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

VC-655 BT DESK MULTIMETER DIGITAL

Up to 4.5 digit resolution, 55000 counts
LCD display with 9.4 cm (3.7 inch), high resolution with 480 x 320 pixels
Up to 64 measurements per second
CAT I 1000 V / CAT II 600 V
True RMS measurement of AC voltage and current
Two-line display for some measurement data
Trend analysis available in chart mode
SCPI support
IO interface USB

Our service for you

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

Datasheet

Datasheet 2521781 VOLTCRAFT VC-655 BT Bench multimeter Calibrated to (ISO standards) Digital CAT I 1000 V, CAT II 600 V Display (counts):

User & Safety Instructions

User & Safety Instructions 2521781 VOLTCRAFT VC-655 BT Bench multimeter Calibrated to (ISO standards) Digital CAT I 1000 V, CAT II 600 V Display (counts):

Warranty Terms

Warranty Terms 2521781 VOLTCRAFT VC-655 BT Bench multimeter Calibrated to (ISO standards) Digital CAT I 1000 V, CAT II 600 V Display (counts):

Download

Download 2521781 VOLTCRAFT VC-655 BT Bench multimeter Calibrated to (ISO standards) Digital CAT I 1000 V, CAT II 600 V Display (counts):

Description

Measure with safety
Digital multimeters are essential for detecting, analyzing and correcting faults in electronic circuits. The Voltcraft-655 BT is used in cat I 1000 V and cat II 600 V, so it is suitable for low-voltage applications as well as for troubleshooting devices connected to low-voltage systems (e.g. household appliances). In addition to measuring functions such as True RMS measurement of AC voltage and current or continuity test with acoustic signal, this multi-talent also supports temperature sensors of the ITS90 K-type and PT100. The optimal measuring ranges are conveniently set automatically. The Voltcraft digital desktop multimeter can carry out up to 64 measurements per second and SCPI is supported for control and programming.
Everything clearly in view
The 3.7 inch LCD display with up to 4.5digit resolution has 480 x 320 pixels and the necessary high resolution to display 55000 counts clearly. Some measurement data can even be displayed in two lines. Furthermore, a data hold function as well as a display for exceeding the range are available. The internal memory archives up to 1,000 measured values, and the data transfer is carried out via a USB-IO interface.
All in one package
In addition to a multimeter and power cable, 1 pair of test leads, 1 pair of alligator clips and a spare fuse are also supplied for immediate use. Also included on board: A quick start guide in German and English as well as software and the manual in English on CD.

This text is machine translated.
