WAGO 2204-1301 Continuity 6.20 mm Push-in connector Grey 50 pc(s)

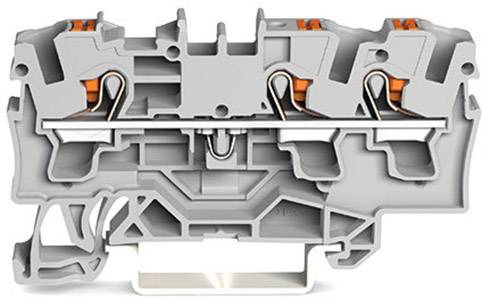

Cross-section of a grey electrical terminal block with orange elements. Suitable for securing wires.
Image similar
Product type
Continuity
Connection
Push-in connector
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (max.)
6 mm²
Nominal current - rounded value
32 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Thu 19 Nov
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number (Package size 50 pc(s))
Total (€ 1.80 / piece)
€ 89.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Continuity and earth conductor terminal; with printer series 2204

  • 2204-1301

Technical specifications

Product type

Continuity

Features

+ latchkey

+ CAGE CLAMP®

Connection

Push-in connector

Cross section (flexible) (min.)

0.50 mm²

Cross section (flexible) (max.)

4 mm²

Cross section (inflexible) (min.)

0.50 mm²

Cross section (inflexible) (max.)

6 mm²

AWG (min.)

20

AWG max.

10

Clamp width

6.20 mm

No. of rows

1

Pins per row

3

Number of pins

3

Factory colour

Grey

Nominal current

32 A

Nominal current - rounded value

32 A

Nominal voltage

800 V

Min. stripping length

11 mm

Stripping length (max.)

13 mm

Manufacturer part #

2204-1301

Content

50 pc(s)

Industrial packaging

Yes

Type

2204-1301

Dim

(L x W x H) 65.50 x 6.20 x 32.90 mm

Width

6.20 mm

Height

32.90 mm

Length

65.50 mm

Connector colour

Grey

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 1719229 WAGO 2204-1301 Continuity 6.20 mm Push-in connector Grey 50 pc(s)

User & Safety Instructions

User & Safety Instructions 1719229 WAGO 2204-1301 Continuity 6.20 mm Push-in connector Grey 50 pc(s)

Information

Information 1719229 WAGO 2204-1301 Continuity 6.20 mm Push-in connector Grey 50 pc(s)
